Honda HR-V: Keyless Access Control Unit Removal and Installation
Removal & Installation
NOTE: If the keyless access control unit is replaced, do the keyless access
registration. If the original keyless
access control unit is installed, confirm that all systems work properly.
1. Gauge Control Module - Remove
2. Keyless Access Control Unit - Remove

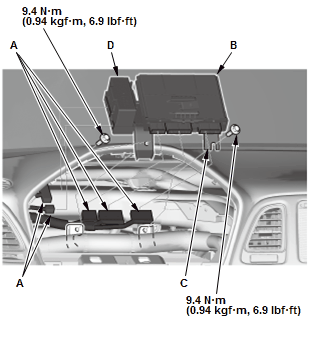

- Disconnect the connectors (A)
- Remove the keyless access control unit (B) with the bracket (C) and
under-dash subrelay box (D).

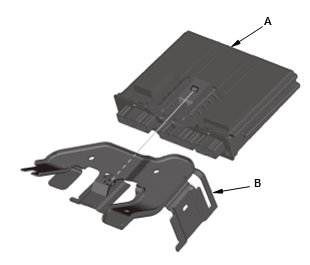

- Remove the keyless access control unit (A) from the
bracket (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
4. Keyless Access System - Registration
KEYLESS ACCESS LF ANTENNA (FRONT INTERIOR) REMOVAL AND INSTALLATION
Removal & Installation
1. Center Console - Remove
2. Front Interior LF Antenna - Remove

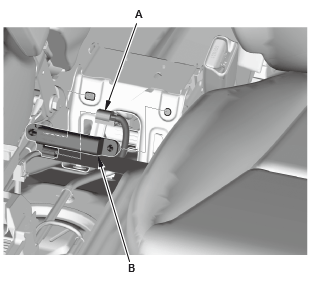

- Disconnect the connector (A)
- Remove the front interior LF antenna (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
KEYLESS ACCESS LF ANTENNA (REAR INTERIOR) REMOVAL AND INSTALLATION
Removal & Installation
1. Cargo Floor Board - Remove - Refer to: Interior Trim Removal and
Installation - Door Areas, or
Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim
Removal and Installation
- Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or
Interior Trim
Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior
Trim Removal and
Installation - Pillar Areas (Without Side Curtain Airbag)
2. Rear Interior LF Antenna - Remove

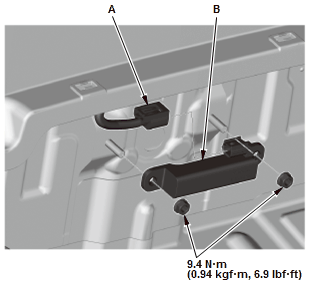

- Disconnect the connector (A)
- Remove the rear interior LF antenna (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
