Honda HR-V: Security Horn Removal, Installation, and Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Security System Keyless Entry System - Service Information / Security Horn Removal, Installation, and Test

Removal & Installation

1. Front Bumper - Remove

2. Security Horn - Remove

Security System Keyless Entry System - Service Information

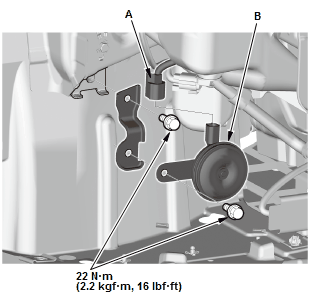

  1. Disconnect the connector (A)
  2. Remove the security horn (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Test

1. Security Horn - Test

Security System Keyless Entry System - Service Information

  1. Test the horn by momentarily connecting 12 volt battery power to the terminal (A) and grounding the bracket (B). The horn should sound
  2. If it fails to sound, replace the security horn.
