Honda HR-V: Moonroof Glass Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Moonroof - Service Information / Moonroof Glass Removal and Installation

Removal & Installation

1. Moonroof Glass - Remove

Moonroof - Service Information

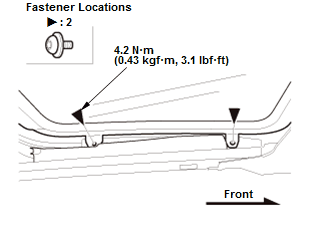

  1. Remove the bolts with a TORX T25 bit
  2. Repeat on the opposite side.

Moonroof - Service Information

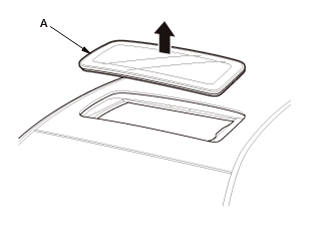

  1. Remove the glass (A) by lifting it up.

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

3. Moonroof Glass Position - Adjust

4. Water Leaks - Check

MOONROOF MOTOR-CONTROL UNIT REMOVAL AND INSTALLATION

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Headliner - Remove

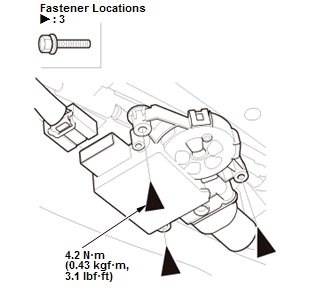

2. Moonroof Motor - Remove

Moonroof - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

4. Moonroof Control Unit - Reset
