Honda HR-V: No Sound Is Heard From The Speaker(s) (Display Is Normal) (With Navigation)

NOTE:

  • Check the vehicle 12 volt battery condition first.
  • Set the fader and the balance positions to the center.
  • Before doing this troubleshooting, go to Audio-navigation unit power will not turn on (No information display on touch screen) troubleshooting - Refer to: Navigation System Symptom Troubleshooting - Voice control does not work/respond, or Navigation System Symptom Troubleshooting - Audio-navigation unit power will not turn on (No information display on touch screen), or Navigation System Symptom Troubleshooting - Vehicle position icon wanders across the map when driving (does not follow a displayed road) or map vehicle ICON spins, or Navigation System Symptom Troubleshooting - Rearview camera image does not come on or work properly, or Navigation System Symptom Troubleshooting - Audio-navigation unit illumination does not work, or Navigation System Symptom Troubleshooting - Rearview camera image does not change when selecting different views.
  • Check the connectors for poor connections or loose terminals.

1. Problem verification:

  1. Turn the vehicle to the ON mode.
  2. Make sure the volume is not set to the MIN level, and check for sound in all modes (AM/FM, USB, and CD).

Is there sound in all modes, and is the sound normal?

YES

Intermittent failure, the system is OK at this time. Check for loose connections at the audio-navigation unit and speaker(s).

NO: No sound is heard in all modes

The failure is duplicated in all modes, go to step 2.

NO: No sound is heard in AM/FM mode

Go to Audio System Symptom Troubleshooting - Poor AM or FM radio reception or interference (With Navigation).

NO: No sound is heard in USB mode

Go to Audio System Symptom Troubleshooting - USB device does not function (With Navigation).

NO: No sound is heard in CD mode

Check for disc damage (scratches, fingerprints, and marks).

2. Speaker visual check:

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Check the speaker(s) with no sound for any damage.

Is there any damage?

YES

Replace the faulty speaker(s).

NO

Go to step 3.

3. Speaker internal resistance check:

  1. Test the speaker(s).

Is the speaker(s) OK?

YES

Go to step 4.

NO

Replace the faulty speaker(s).

4. Wire check (FL SPKR+/-, FR SPKR+/-, RL SPKR+/-, RR SPKR+/- lines):

  1. Disconnect the following connectors.

NOTE: Eject all the discs before disconnecting the audio-navigation unit to prevent damaging the CD player's load mechanism.

Audio-navigation unit connector A (24P)

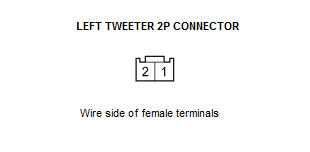

Left tweeter 2P connector

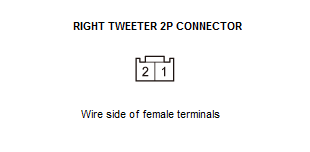

Right tweeter 2P connector

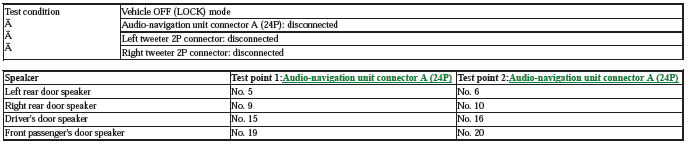

  1. Measure the resistance between test points 1 and 2.

Audio Visual Systems - Testing & Troubleshooting

Is there about 4 Ω?

YES

The SPKR wires are not open and short. Go to step 5.

NO

Repair an open or short in the wire (s) between the audio-navigation unit and the speaker(s).

5. Shorted wire check (FL SPKR+/-, FR SPKR+/-, RL SPKR+/-, RR SPKR+/- lines):

  1. Disconnect the following connectors.

Driver's door speaker 2P connector

Front passenger's door speaker 2P connector

Left rear door speaker 2P connector

Right rear door speaker 2P connector

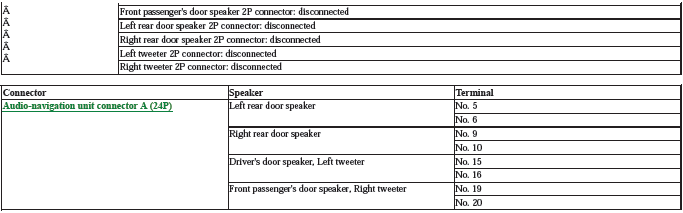

  1. Check for continuity between following test points and body ground individually.

Audio Visual Systems - Testing & Troubleshooting

Audio Visual Systems - Testing & Troubleshooting

Is there continuity?

YES

Repair a short to body ground in the wire (s) between the audio-navigation unit and the speaker(s).

NO

The SPKR wires are OK. Go to step 6.

6. Open wire check (SPKR (Tweeter) FL SPKR+/-, FR SPKR+/- lines):

  1. Connect terminals A and B with jumper wires.

Audio Visual Systems - Testing & Troubleshooting

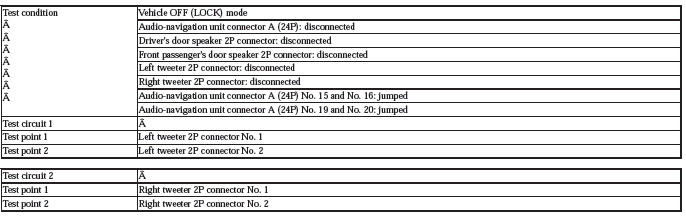

  1. Check for continuity between test points 1 and 2.

Audio Visual Systems - Testing & Troubleshooting

Audio Visual Systems - Testing & Troubleshooting

Audio Visual Systems - Testing & Troubleshooting

Is there continuity?

YES

Replace the audio-navigation unit.

NO

Repair an open in the wire (s) between the audio-navigation unit and the tweeter.
