Honda HR-V: Paddle Shifter Removal and Installation (CVT)

Honda HR-V (2015-2021) Service Manual / Transmission / Continuously Variable Transmission (CVT) - Service Information / Paddle Shifter Removal and Installation (CVT)

Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repair or service.

Paddle Shifter + (Upshift Switch)

1. Driver's Airbag - Remove

2. Steering Wheel - Remove

3. Case - Remove

Continuously Variable Transmission (CVT) - Service Information

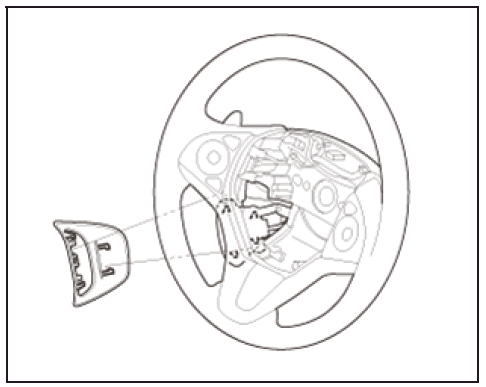

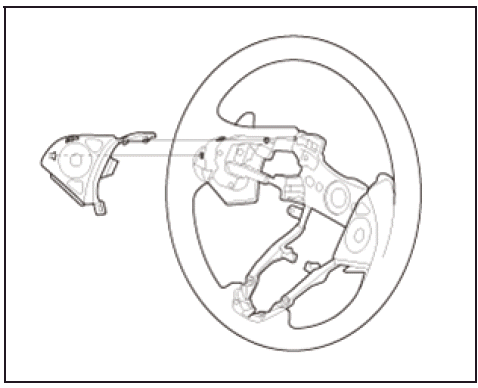

4. Body Cover - Remove

Continuously Variable Transmission (CVT) - Service Information

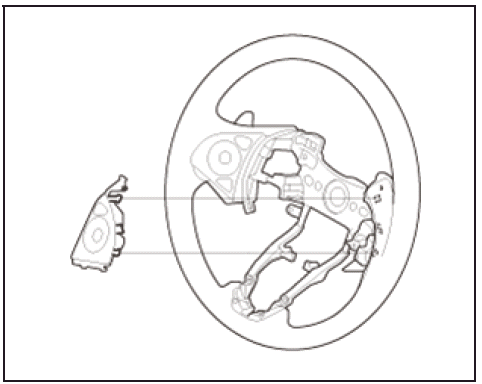

5. HFT Switch - Remove

Continuously Variable Transmission (CVT) - Service Information

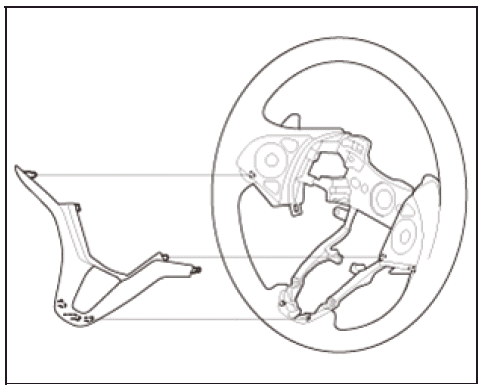

6. Lower Garnish - Remove

Continuously Variable Transmission (CVT) - Service Information

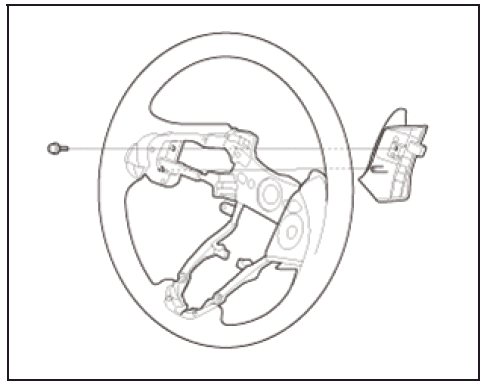

7. Cruise Control Combination Switch - Remove (With Cruise Control)

Continuously Variable Transmission (CVT) - Service Information

8. Garnish - Remove (Without Cruise Control)

Continuously Variable Transmission (CVT) - Service Information

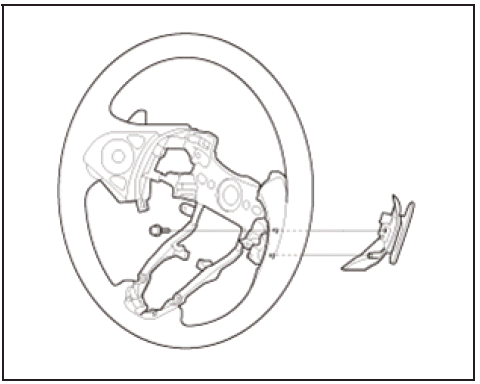

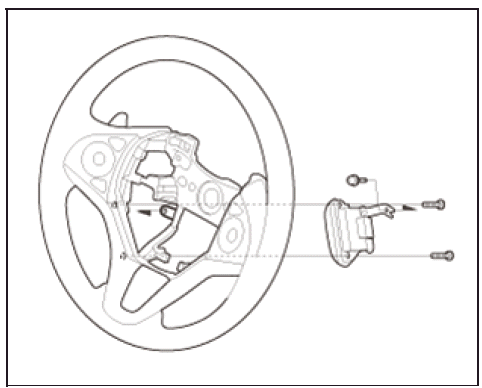

9. Paddle Shifter + (Upshift Switch) - Remove

Continuously Variable Transmission (CVT) - Service Information

Paddle Shifter - (Downshift Switch)

10. Driver's Airbag - Remove

11. Steering Wheel - Remove

12. Case - Remove

Continuously Variable Transmission (CVT) - Service Information

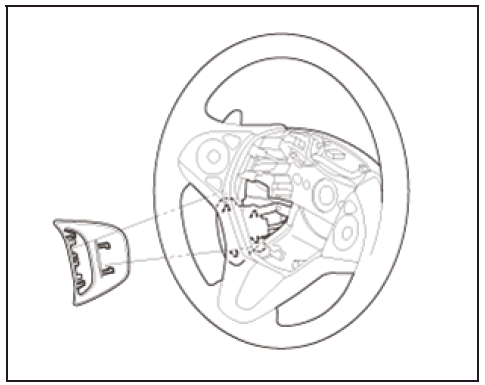

13. Body Cover - Remove

Continuously Variable Transmission (CVT) - Service Information

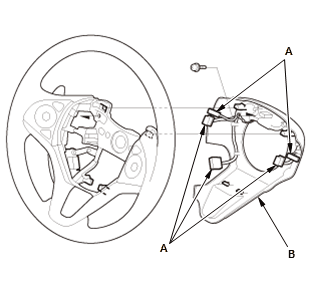

  1. Disconnect the connectors (A)
  2. Remove the body cover (B).

14. HFT Switch - Remove

Continuously Variable Transmission (CVT) - Service Information

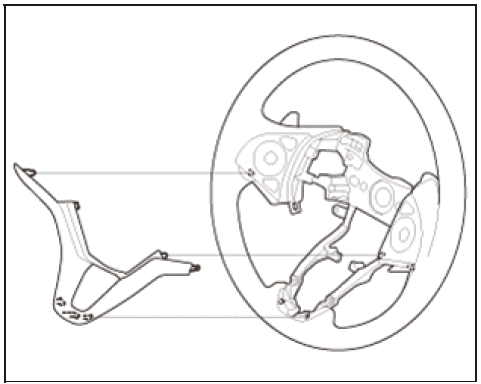

15. Lower Garnish - Remove

Continuously Variable Transmission (CVT) - Service Information

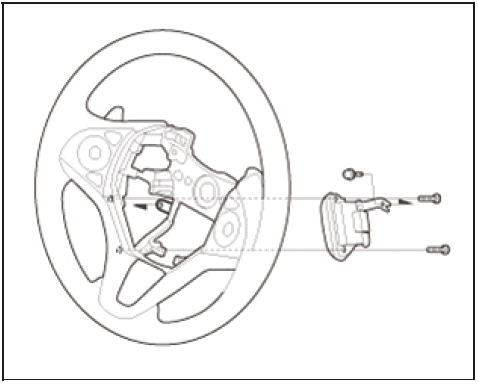

16. Audio Remote Switch - Remove

Continuously Variable Transmission (CVT) - Service Information

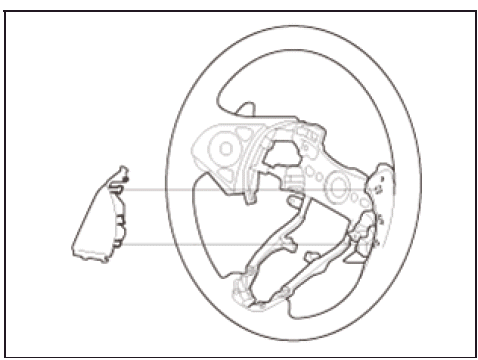

17. Paddle Shifter - (Downshift Switch) - Remove

Continuously Variable Transmission (CVT) - Service Information

18. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
