Honda HR-V: Playing a USB Flash Drive

Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA or AAC*1 format.

Connect your USB flash drive to the USB port, then press the CD/AUX button.

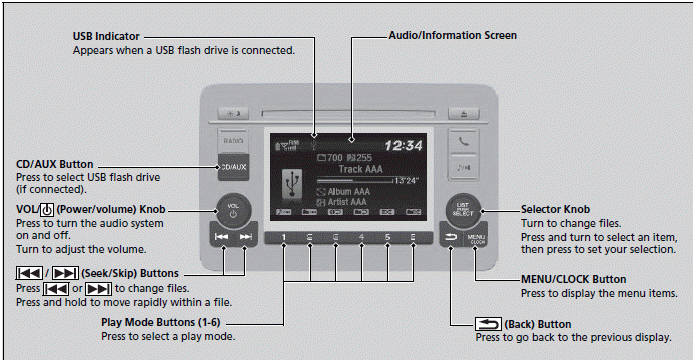

Audio System Basic Operation

*1:Only AAC format files recorded with iTunes are playable on this unit.

Use the recommended USB flash drives.

Files in WMA format protected by digital rights management (DRM) cannot be played.

The audio system displays UNPLAYABLE FILE, and then skips to the next file.

If there is a problem, you may see an error message on the audio/information screen.

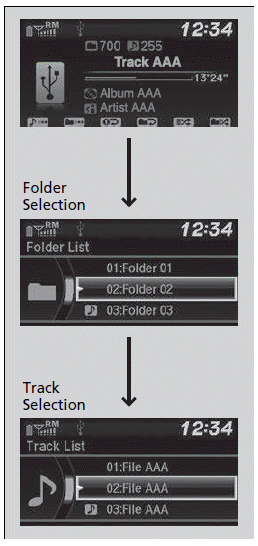

■How to Select a File from a Folder with the Selector Knob

1. Press to display a folder

2. Rotate to select a folder.

3. Press to display a list of
files in that folder.

4. Rotate to select a file, then
press .

Audio System Basic Operation

■How to Select a Play Mode

You can select repeat, random, and scan modes when playing a file.

Available mode icons appear above the play mode buttons.

Press the button corresponding to the mode you want to select.

Audio System Basic Operation

■ To turn off a play mode

Press the selected button.

Play Mode Menu Items


Repeat One Folder: Repeats
all files in the current folder.

Repeat One Track: Repeats
the current file.


Random in Folder: Plays all
files in the current folder in random order.

Random All: Plays all files
in random order.


Scan Folders: Provides
10-second sampling of the first file in each of the main folders.

Scan Tracks: Provides
10-second sampling of all files in the current folder.

You can also select a play mode by pressing the MENU/CLOCK button.

Rotate to select Play Mode,
then press

Rotate to select a mode,
then press

To turn it off, rotate to
select Normal Play, then press
