Honda HR-V: Audio/Information Screen

Displays the audio status and wallpaper. From this screen, you can go to various setup options.

  • Use simple gestures - including touching, swiping, and scrolling - to operate certain audio functions.
  • Wearing gloves may limit or prevent touchscreen response.
  • You can use the microfiber soft cleaning cloth to remove dust or fingerprints from the touchscreen.

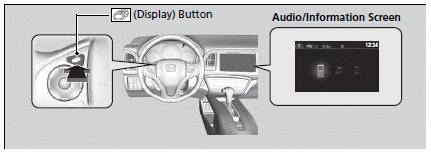

■Switching the Display

Using the button


Press the (display) button on
the steering wheel to change the display.

Audio System Basic Operation

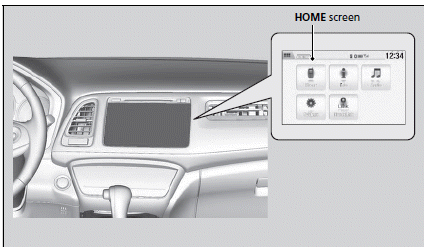

Using the HOME screen

Audio System Basic Operation


Select HOME to go to the HOME screen.

Select Phone, Info, Audio, Settings, or HondaLink.

■ Phone

Shows the HFL information.

■ Info

Shows the Trip Computer, Clock/Wallpaper, Voice Info, or System/Device Information.

■ Audio

Shows the current audio information.

■ Settings

Enters the customizing menu screen.

■ HondaLink Apps

Connects with your smartphone*1 to play personalized music, information, and social media streams.

■Wallpaper Setup

You can change, store, and delete the wallpaper on the audio/information screen.

  • When importing wallpaper files, the image must be in the USB flash drive's root directory. Images in a folder cannot be imported.
  • The file name must be fewer than 256 characters.
  • The file format of the image that can be imported is BMP (bmp) or JPEG (jpg).
  • The individual file size limit is 5 MB.
  • The maximum image size is 4,096 x 4,096 pixels. If the image size is less than 800 × 480 pixels, the image is displayed in the middle of the screen with the extra area appearing in black.
  • Up to 5 files can be selected.
  • If the USB flash drive does not have any pictures, the No files detected message appears.

Audio System Basic Operation


1. Connect the USB flash drive to the USB port.

2. Select Settings to go to the Settings screen.

3. Select Info.

4. Select Clock/Wallpaper Type, then the Wallpaper tab.

5. Select Add New.

  • The picture name is displayed on the list.

6. Select a desired picture.

  • The preview is displayed on the left side on the screen.

7. Select Start Import to save the data.

  • Then the display will return to the wallpaper list.

Audio System Basic Operation


■ Select wallpaper

1. Select Settings to go to the Settings screen.

2. Select Info.

3. Select Clock/Wallpaper Type, then the Wallpaper tab.

  • The screen changes to the wallpaper list.

4. Select a desired wallpaper.

  • The preview is displayed on the left side on the screen.
  • The pop-up menu appears on the screen.

5. Select Set.

  • The display will return to the wallpaper list.

■ Delete wallpaper

1. Select Settings to go to the Settings screen.

2. Select Info.

3. Select Clock/Wallpaper Type, then the Wallpaper tab.

  • The screen changes to the wallpaper list.

4. Select a wallpaper that you want to delete.

  • The preview is displayed on the left side on the screen.
  • The pop-up menu appears on the screen.

5. Select Delete.

  • The confirmation message will appear.

6. Select Yes to delete completely.

  • The display will return to the wallpaper list.

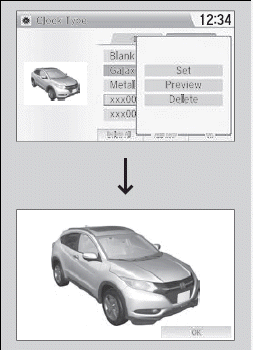

From the pop-up menu, select Preview to see a preview at full-size screen.

Audio System Basic Operation


To go back to the previous screen, select OK, or BACK.

When the file size is large, it takes a while to be previewed.

To delete all wallpapers you add, select Delete All, then Yes.
