Honda HR-V: Playing a Video Using the HDMI

Your audio system allows you to play videos from an HDMI-compatible device when parked.

Connect the device, using an HDMI cable, then select the HDMI mode.

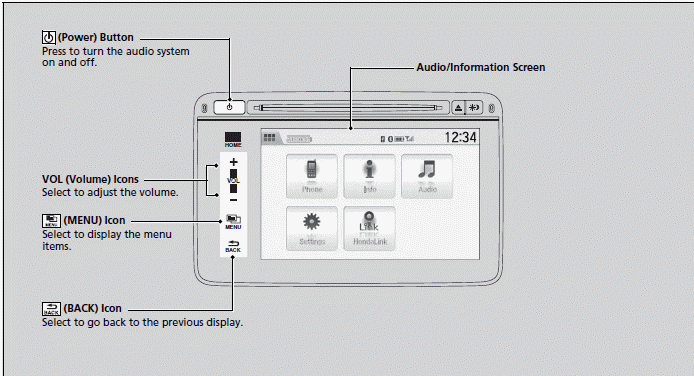

Audio System Basic Operation

■Changing the Screen Aspect

1. Select HOME.

2. Select Settings to go to the Settings screen.

3. Select Audio.

4. Select Aspect Ratio Adjustment.

5. Select the setting you want.

6. Select OK.

Audio System Basic Operation

This feature is limited while driving. To play videos, stop your vehicle and apply the parking brake.

Smartphone Apps

You can connect a compatible smartphone to the system to enable integration between the smartphone's approved apps and the vehicle. This allows you to control the phone through the vehicle display. To check smart phone compatibility, download the HondaLink app, and view connection instructions, visit For the latest apps and feature details, check

Audio System Basic Operation

Park in a safe place before connecting your phone and while operating the displayed apps.

Not all phones and apps are compatible with the system. The system does not display all the available apps on smartphone, and some apps need to be preinstalled. Ask a dealer for details.

You need to switch the Bluetooth connection to your smartphone if another electronic device is connected.

The following may vary by phone type:

  • How to connect a smartphone to the system.
  • Apps that can be operated on the screen.
  • Display response time/update time.

We do not support every app operation on the display audio.

Ask the app provider for any questions on the app's features.

Siri Eyes Free

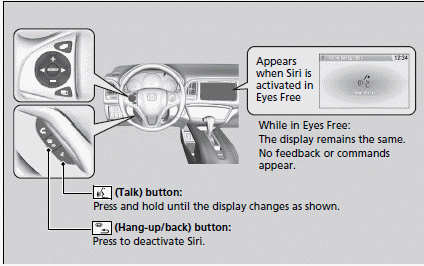

You can talk to Siri using the Talk button on the steering wheel when your iPhone is paired to Bluetooth HandsFreeLink.

Siri is a trademark of Apple Inc.

Check Apple Inc. website for features available for Siri.

When operating the vehicle, only use Siri through the Talk button.

■Using Eyes Free

Audio System Basic Operation

Some commands work only on specific phone features or apps.
