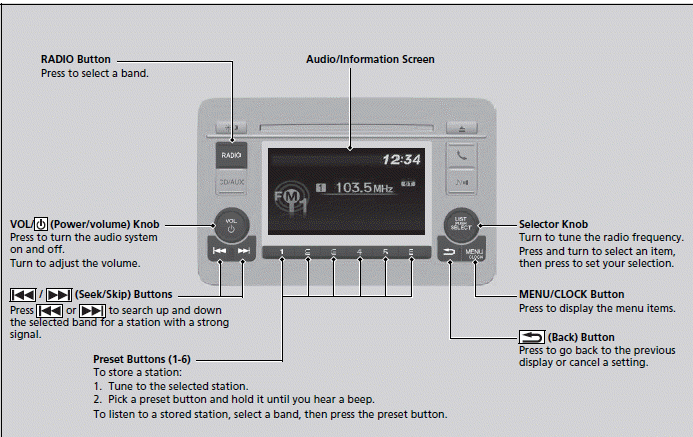

Honda HR-V: Playing the AM/FM Radio
.png)
The ST indicator appears on the display indicating stereo FM broadcasts.
Stereo reproduction in AM is not available.
You can store 6 AM stations and 12 FM stations into the preset memory.
Switching the Audio Mode Press the SOURCE button on the steering wheel.
■Radio Data System (RDS)
Provides text data information related to your selected RDS capable FM station.
■ To find an RDS station from Station List
1. Press .png)
while listening to an
FM station.
2. Rotate .png)
to select the station,
then press .png)
.
■ Update List
Updates your available station list at any time.
1. Press .png)
while listening to an
FM station.
2. Rotate .png)
to select Update List,
then press .png)
.
■ Radio text
Displays the radio text information of the selected RDS station.
1. Press the MENU/CLOCK button.
2. Rotate .png)
to select Settings, then
press .png)
.
3. Rotate .png)
to select RDS Settings,
then press .png)
.
4. Rotate .png)
to select Radio Text,
then press .png)
.
■ Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Press the MENU/CLOCK button.
2. Rotate .png)
to select Scan, then
press .png)
.
To turn off scan, press .png)
.
When you select an RDS-capable FM station, the RDS automatically turns on, and the frequency display changes to the station name. However, when the signals of that station become weak, the display changes from the station name to the frequency.
