Honda HR-V: Rear Brake Disc Removal and Installation

Honda HR-V (2015-2021) Service Manual / Brakes / Brake System - Service Information / Rear Brake Disc Removal and Installation

Removal & Installation

NOTE:

  • Keep grease away from the brake disc and the brake pads.
  • Unless otherwise indicated, illustrations used in the procedure are for 2WD model.

1. Vehicle - Lift

2. Rear Wheel - Remove

3. Parking Brake - Release

4. Rear Brake Pad - Remove

5. Brake Caliper Bracket - Remove

Brake System - Service Information

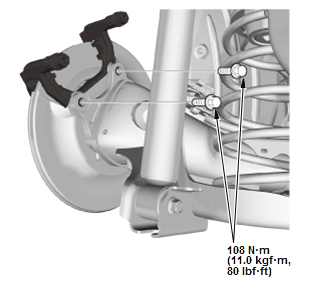

Fig. 16: Brake Caliper Bracket Mounting Bolt Torque Specifications

6. Rear Brake Disc - Remove

Brake System - Service Information

  1. Remove the brake disc flathead screw (A)
  2. Remove the brake disc (B).

    NOTE : If the brake disc is stuck to the hub bearing unit, thread two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the hub bearing unit. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.

7. All Removed Parts - Install

  1. Install the brake disc in the reverse order of removal.

    NOTE: Before installing the brake disc clean the mating surfaces between the hub bearing unit and the inside of the brake disc.

8. Rear Brake Disc Runout - Inspect

9. Parking Brake - Adjust

  1. Turn the vehicle to the ON mode
  2. Pull the electric parking brake switch to apply the parking brake, then press the brake pedal and push the electric parking brake switch to release the parking brake
  3. Turn the vehicle to the OFF (LOCK) mode.
