Honda HR-V: Rear Power Window Motor Test
Test
1. Rear Door Panel - Remove
2. Rear Power Window Motor - Test
.png)
.png)
- Test the motor in each direction by connecting 12 volt battery power and
ground to the connector (A) according to the table. When the motor stops
running, disconnect 12 volt battery power immediately. If the motor does not
run
or fails to run smoothly, remove the rear door regulator, go to step 2.
.png)
.png)

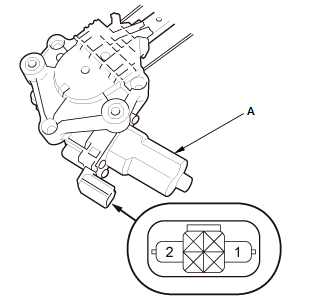

- Test the rear power window motor (A) by connecting 12 volt battery
power and ground according to the table. When the motor stops running,
disconnect 12 volt battery power immediately.
- If the motor does not run or fails to run smoothly, the rear power
window motor is faulty; replace the rear door regulator. If the motor
runs smoothly, replace the wire harness or adjust the rear door glass.
3. All Removed Parts - Install
REAR POWER WINDOW SWITCH TEST
Test
1. Rear Door Armrest - Remove

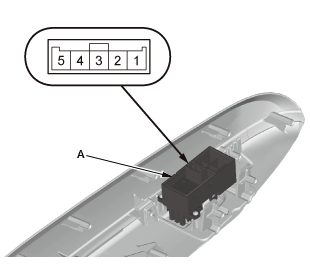

2. Rear Power Window Switch - Test
.png)
.png)

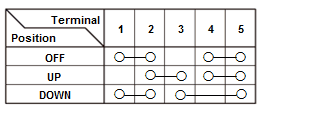

- Check for continuity between the terminals in each switch position
according to the table.
- If the continuity is not as specified, replace the rear power window
switch - Refer to: Front Passenger's Power Window Switch Removal
and Installation, or Rear Power Window Switch Removal and
Installation (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
