Honda HR-V: Circuit Diagram

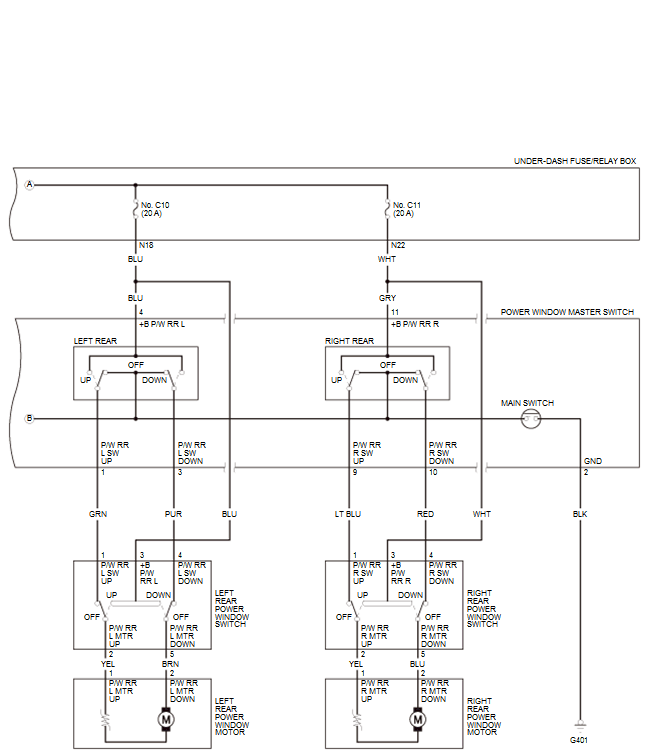

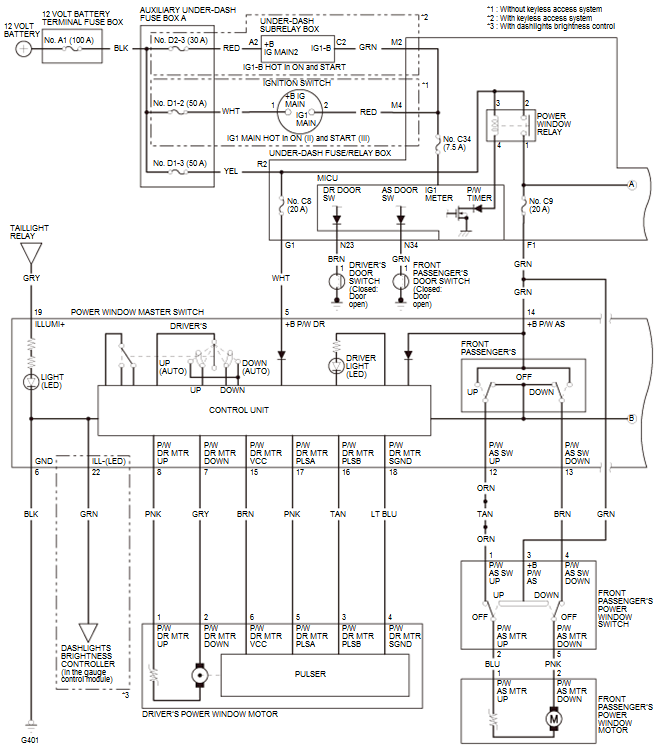

POWER WINDOWS CIRCUIT DIAGRAM
.png)
.png)
INPUTS AND OUTPUTS

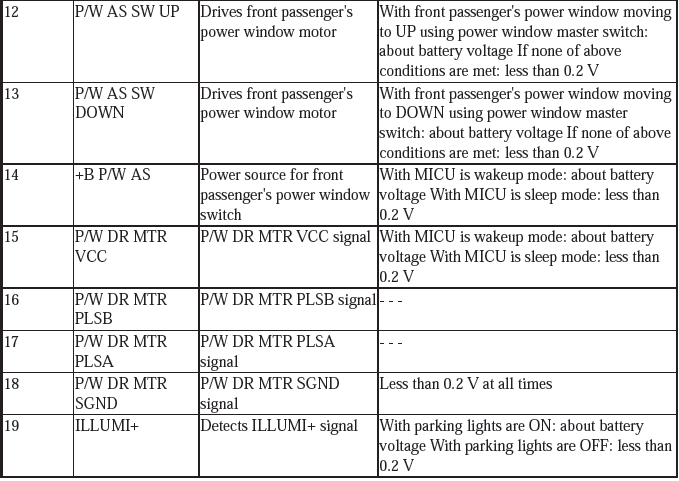

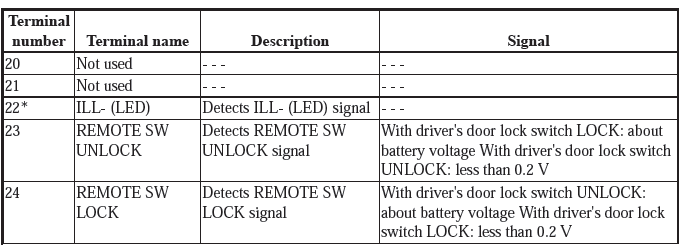

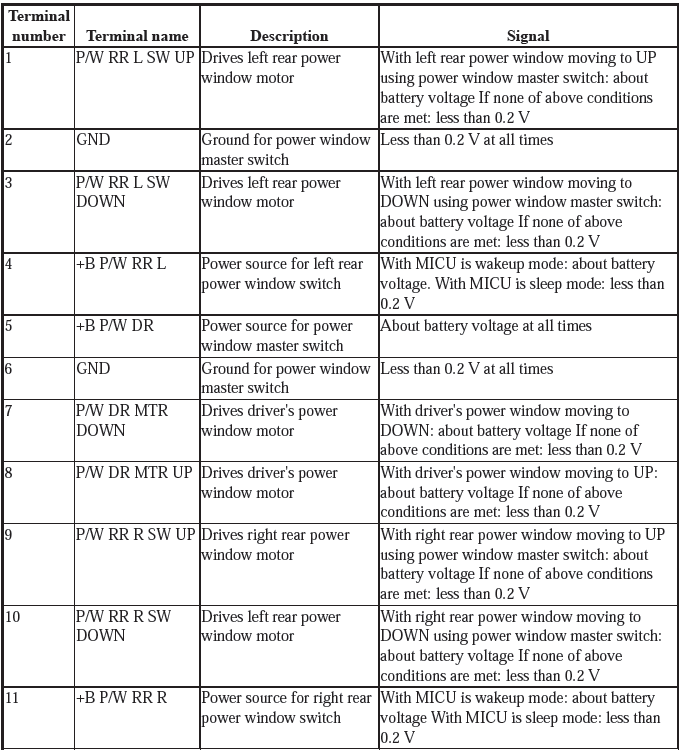

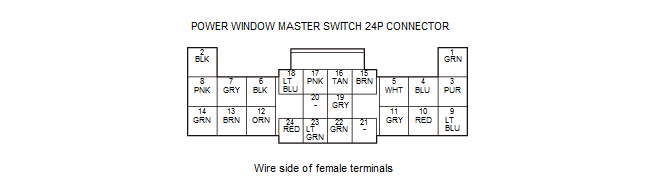

POWER WINDOW MASTER SWITCH CONNECTOR FOR INPUTS AND OUTPUTS
.png)
.png)
.png)
*: With dashlights brightness control
.png)
*: With dashlights brightness control
POWER WINDOWS ELECTRONIC WIRING DIAGRAM
Refer to: Power Windows
COMPONENT LOCATION INDEX

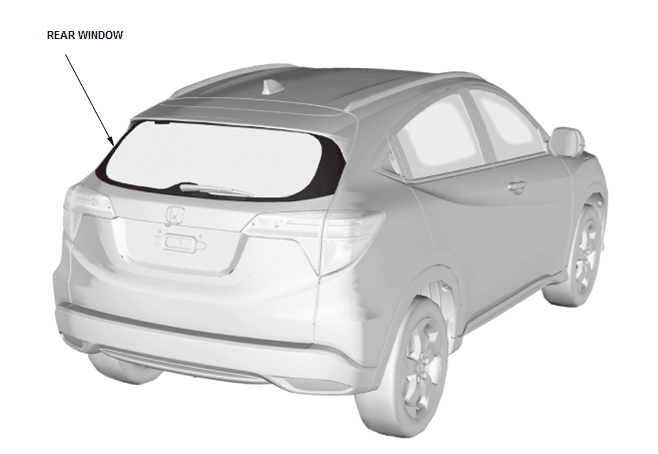

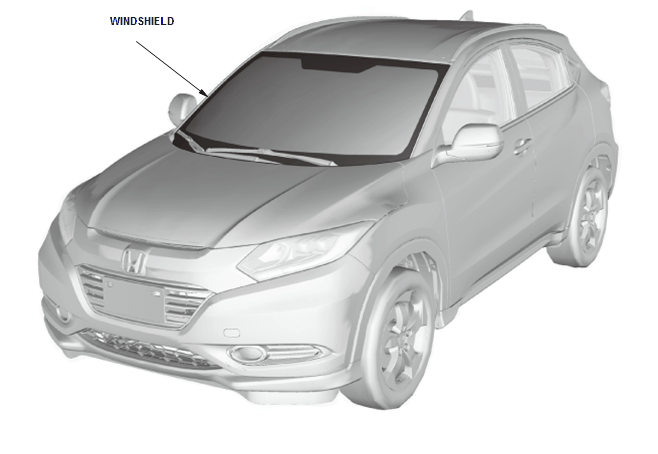

GLASS COMPONENT LOCATION INDEX
.png)
.png)

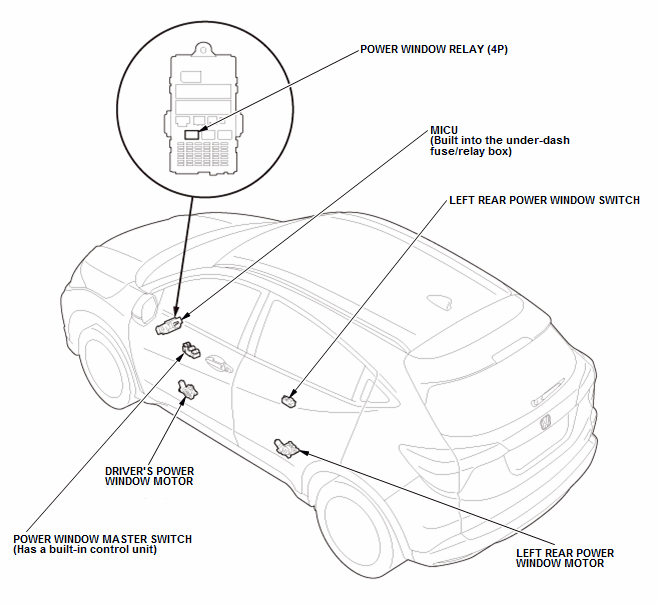

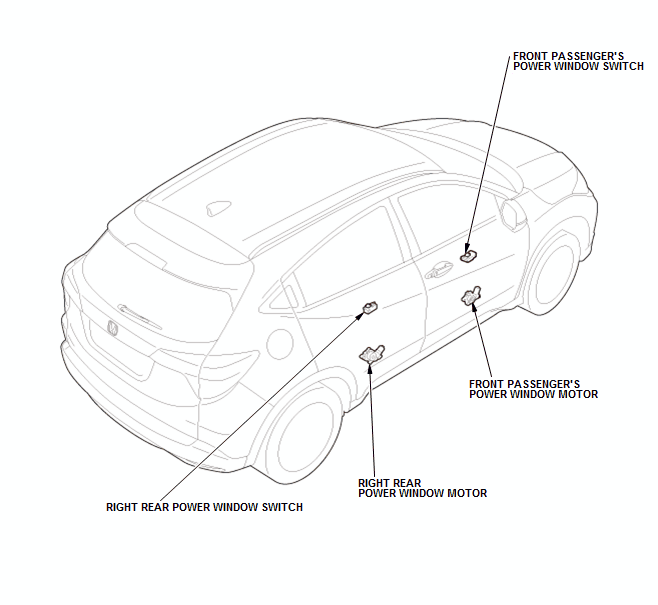

POWER WINDOWS COMPONENT LOCATION INDEX
.png)
.png)
