Removal and Installation

1. Rear Seat Belt Buckle - Remove

Seat Belts - Service Information

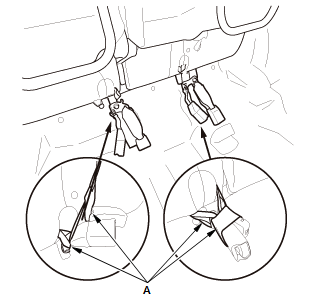

  1. Release the elastic straps (A).

Seat Belts - Service Information
Fig. 8: Rear Seat Belt Buckle With Torque Specifications

  1. Fold down both rear seat-back

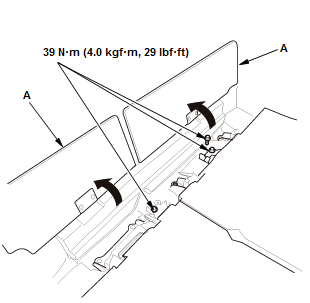

  2. Pull up the both cargo floor boards (A), then remove the bolts.

Seat Belts - Service Information

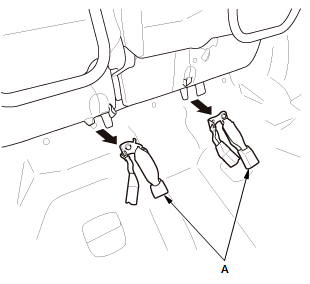

  1. Remove the rear seat belt buckles (A).

2. All Removed Parts - Install

Anchor bolt installation

Seat Belts - Service Information

  1. Install the parts in the reverse order of removal.

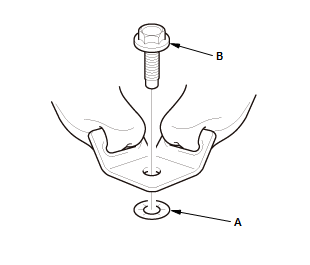

    NOTE: Assemble the toothed lock washer (A) on the bolt (B) as shown.

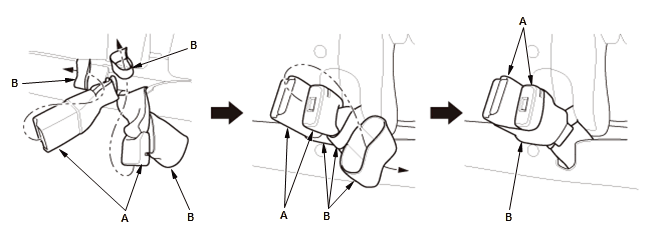

2. NOTE: Install the right rear seat belt buckles (A) through the elastic straps (B) as shown.

Seat Belts - Service Information
