Honda HR-V: Rear Seat Belt Removal and Installation

Removal and Installation

Rear Left/Right Seat Belt

1. Rear Side Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

2. Quarter Pillar Trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

3. Rear Seat Belt Lower Anchor Bolt - Remove

Seat Belts - Service Information

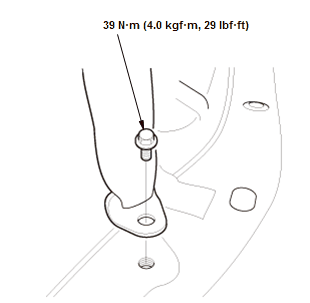

Fig. 9: Rear Seat Belt Lower Anchor Bolt With Torque Specifications

4. Rear Seat Belt Upper Anchor Bolt - Remove

Seat Belts - Service Information

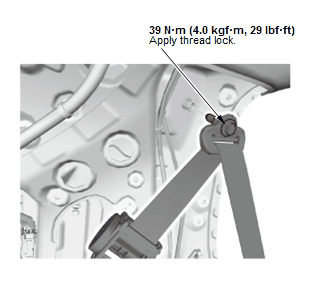

Fig. 10: Rear Seat Belt Upper Anchor Bolt With Torque Specifications

5. Rear Seat Belt Assembly - Remove

Seat Belts - Service Information

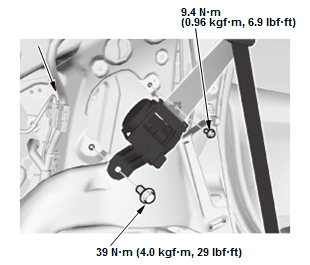

Fig. 11: Rear Seat Belt Assembly With Torque Specifications

6. All Removed Parts - Install

Upper anchor bolt installation

Seat Belts - Service Information

  1. Install the parts in the reverse order of removal.

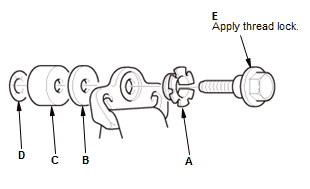

    NOTE: Assemble the bushing (A), the collar (B, C), and the toothed lock washer (D) on the bolt (E) as shown.

Rear Center Seat Belt

7. Headliner - Remove

8. Rear Center Seat Belt - Remove

Seat Belts - Service Information

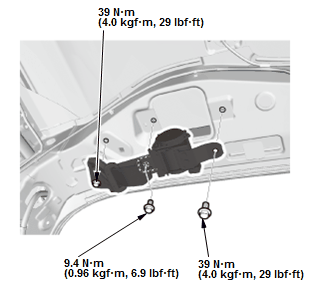

Fig. 12: Rear Center Seat Belt With Torque Specifications

9. All Removed Parts - Install

Anchor bolt installation

Seat Belts - Service Information

  1. Install the parts in the reverse order of removal.

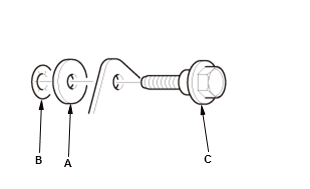

    NOTE: Assemble the collar (A) and the toothed lock washer (B) on the bolt (C) as shown.

SEAT BELT SHOULDER ANCHOR ADJUSTER REMOVAL AND INSTALLATION

Removal and Installation

NOTE: SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. B-Pillar Upper/Lower Trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

2. Shoulder Anchor Adjuster - Remove

Seat Belts - Service Information

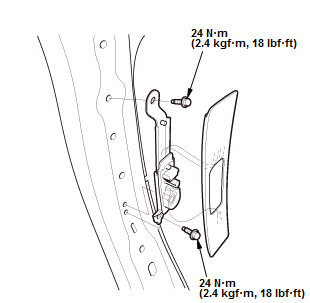

Fig. 13: Shoulder Anchor Adjuster With Torque Specifications

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
