Honda HR-V: Rear Seat Removal and Installation

Removal & Installation

1. Rear Seat - Remove

Seats - Service Information

  1. Lift up both rear seat cushions

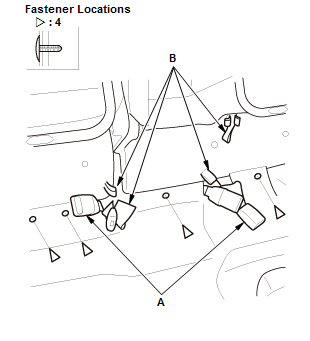

  2. Pull the rear seat belt buckles (A) out through each elastic straps (B)
  3. Remove the clips.

Seats - Service Information
Fig. 6: Fold Down Rear Seat Back Mounting Bolts Torque Specifications

  1. Fold down both rear seat-back

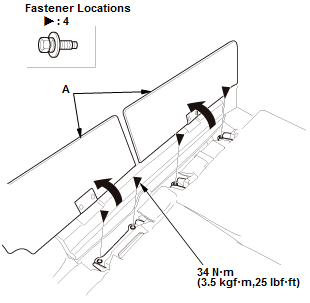

  2. Pull up the both cargo floor board (A), then remove the bolts.

Seats - Service Information

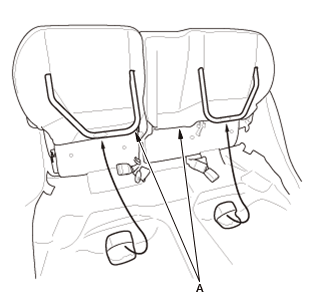

  1. Remove both rear seat assemblies (A).

2. All Removed Parts - Install

NOTE : Install the right rear seat belt buckles (A) through the elastic straps (B) as shown.

Seats - Service Information

REAR SEAT-BACK LATCH REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Seat-Back Latch - Remove

Seats - Service Information

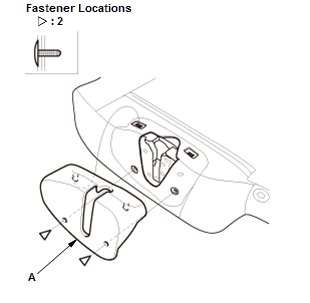

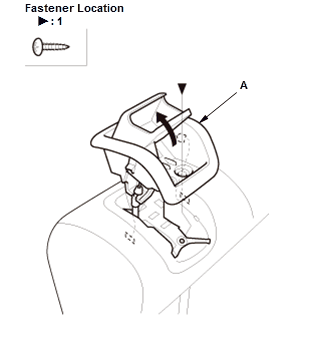

  1. Remove the rear seat-back latch cover (A).

Seats - Service Information

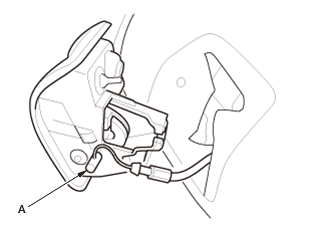

  1. Disconnect the rear seat-back latch cable (A).

Seats - Service Information

  1. Remove the striker hole cover (A).

Seats - Service Information
Fig. 7: Rear Seat Back latch With Torque Specifications

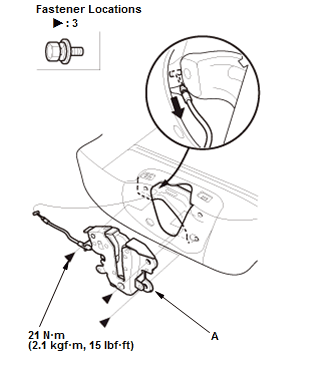

  1. Remove the rear seat-back latch (A).

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REAR SEAT-BACK STRIKER REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Side Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

2. Rear Seat-Back Striker - Remove

Seats - Service Information

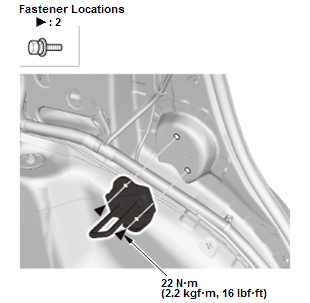

Fig. 8: Rear Seat Back Striker Mounting Bolt Torque Specifications

3. All Removed Parts - Install

Seats - Service Information

  1. Install the parts in the reverse order of removal.

    NOTE : After installing the rear seat-back striker (A), move the rear seat-back striker up or down until it is centered in the seat-back latch (B).
