Honda HR-V: Side Impact Sensor (Second) Removal and Installation

Honda HR-V (2015-2021) Service Manual / Restraints / Supplemental Restraint System - Service Information / Side Impact Sensor (Second) Removal and Installation

Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Rear Side Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

3. Side Impact Sensor (Second) - Remove

Supplemental Restraint System - Service Information

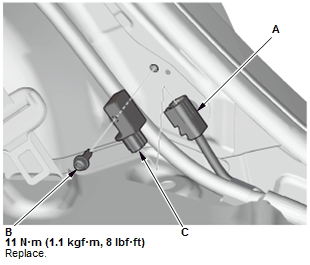

Fig. 10: Side Impact Sensor (Second) With Torque Specifications

  1. Disconnect the connector (A)
  2. Remove the bolt (B), then remove the side impact sensor (second) (C).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE:

    • During installation, install the new bolt to the specified torque.
    • Before installing the rear side trim panel, make sure the SRS indicator works normally.

5. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
