REMOVAL & INSTALLATION

LANE WATCH CAMERA REMOVAL AND INSTALLATION

Removal and Installation

1. Power Mirror - Remove

2. Mirror Holder - Remove

3. Mirror Housing Cover - Remove

4. Mirror Housing Under Cover - Remove. MIRROR HOUSING REMOVAL AND INSTALLATION

5. Lane Watch Camera - Remove

Sight Support - Service Information

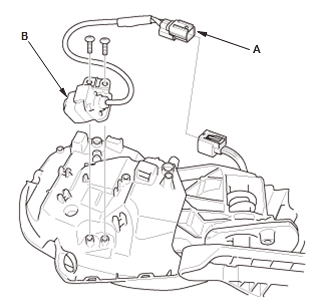

  1. Disconnect the connector (A)
  2. Remove the screws, then remove the Lane Watch camera (B)

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

7. Lane Watch Camera - Aim

LANE WATCH SWITCH REMOVAL, INSTALLATION, AND TEST

Removal and Installation

  • SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC), and the precautions and procedures before doing repairs or service.
  • Unless otherwise indicated, illustrations used in the procedure are for RHD model.

1. Combination Light Switch - Remove

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Test

1. Lane Watch Switch - Test

Sight Support - Service Information

Sight Support - Service Information

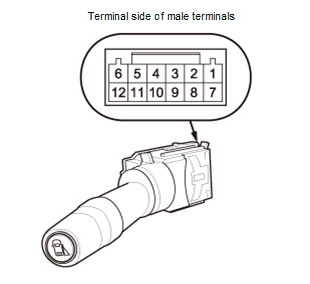

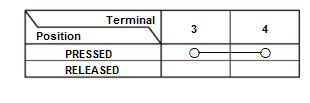

  1. On the switch side, check for continuity between the combination light switch 12P connector terminals in each switch position according to the table
  2. If the continuity is not as specified, replace the combination light switch.
