Honda HR-V: Steering Rack End Removal and Installation
Honda HR-V (2015-2021) Service Manual / Steering / Steering System - Service Information / Steering Rack End Removal and Installation
Removal
NOTE:
- Do not allow dust, dirt, or other foreign materials to enter the steering gearbox.
- Refer to Steering Gearbox Disassembly and Reassembly as needed during this procedure.
1. Steering Gearbox - Remove
2. Tie-Rod End - Remove
.png)
3. Rack End Boot - Remove
.png)

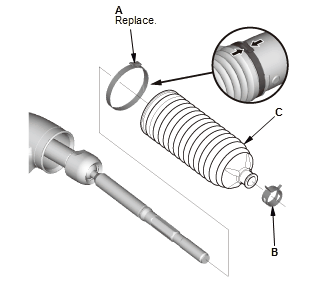

- Remove the boot band (A)
- Remove the tie-rod clip (B)
- Pull the boot (C) away from the end of the steering gearbox.
4. Rack End - Remove
.png)
- Hold the gearbox housing using a C-clamp (A) and wooden blocks (B) to a
workbench as shown.
NOTE: Do not clamp the cylinder part of the gearbox housing in a vise.
.png)
- Unscrew the rack end (A) with a wrench.
NOTE:
- Hold the shaped flat surface (B) (one side only) with a wrench when unscrewing both rack ends.
- Be careful not to damage the rack surface.
- Remove the rack end and the spacer (C).
Installation
NOTE:
- Do not allow dust, dirt, or other foreign materials to enter the steering gearbox.
- Refer to Steering Gearbox Disassembly and Reassembly as needed during this procedure.
1. Rack End - Install
.png)
- Hold the gearbox housing using a C-clamp (A) and wooden blocks (B) to a
workbench as shown.
NOTE: Do not clamp the cylinder part of the gearbox housing in a vise.
.png)

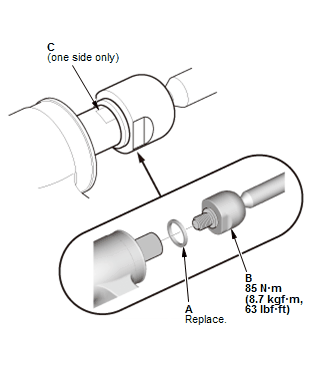

- Install the new spacer (A)
- Tighten the rack end (B) with a wrench.
NOTE :
- Hold the shaped flat surface (C) (one side only) with a wrench when tightening both rack ends.
- Be careful not to damage the rack surface.
.png)

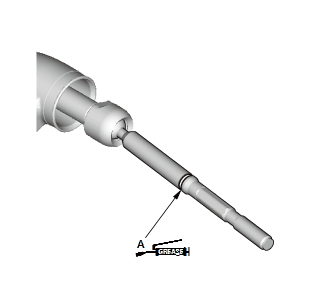

- Apply multipurpose grease to the boot grooves (A).
2. Rack End Boot - Install
.png)

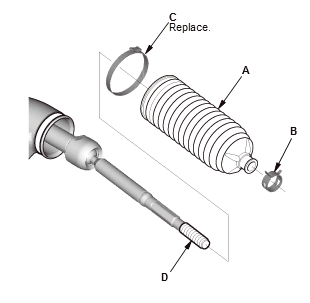

- Install the boot (A) on the rack end with the tie-rod clip (B) and the
new boot band (C).
NOTE:
- Fit the boot end in the installation grooves in the housing properly.
- After installing the boots, wipe the grease off the threaded section (D) of the rack end.
.png)

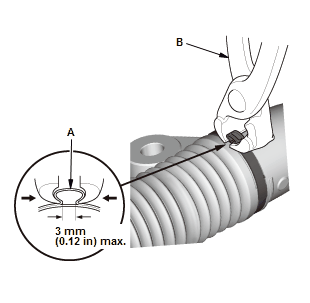

- Close the ear portion (A) of the boot band with pincers Oetiker 1098, commercially available or equivalent (B)
- Slide the rack right and left to be certain that the boots are not deformed or twisted.

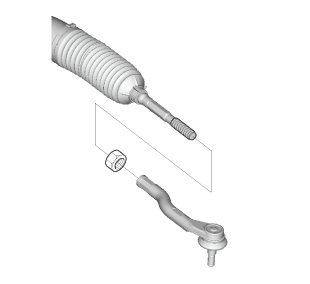

3. Tie-Rod End - Install
.png)

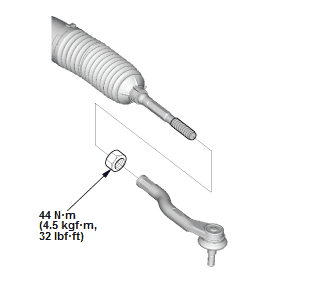

Fig. 12: Outer Tie Rod End With Torque Specifications
4. Steering Gearbox - Install
