Honda HR-V: Symptom Troubleshooting
TPMS SYMPTOM TROUBLESHOOTING - TPMS CANNOT BE CALIBRATED
NOTE:
- If any gauge control module or VSA system DTCs are indicated, do the
troubleshooting for these DTCs first.
- Check the number of miles on the gauge control module. After proceeding
TPMS calibration, DATA LIST with the HDS shows the same number of miles on
the gauge control
module. When TPMS switch is not working, DATA LIST with the HDS shows the
number of miles of the last TPMS calibration previously done.
1. TPMS calibration check:
- Turn the vehicle to the ON mode.
- Check the number of miles on the gauge control module.
- Make sure the tires are inflated to the specified tire pressure listed
on the doorjamb label.
- Do the TPMS calibration.
- Check the parameter(s) below with the HDS.
.png)
Does the value on the HDS match the number of miles on the gauge control
module?
YES
Intermittent failure, the system is OK at this time.
NO
Go to step 2.
2. TPMS switch check:
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connector.

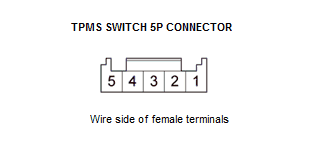

TPMS switch 5P connector.
- Check the TPMS switch.
Is the TPMS switch OK?
YES
Go to step 3.
NO
Replace the TPMS switch.
3. Shorted wire check (TPMS SW line):
- Disconnect the following connector.
Gauge control module connector A (32P)
- Check for continuity between test points 1 and 2.
.png)
.png)
Is there continuity?
YES
Repair a short to body ground in the wire between the gauge control module
and the TPMS switch.
NO
The TPMS SW wire is OK. Replace the gauge control module.

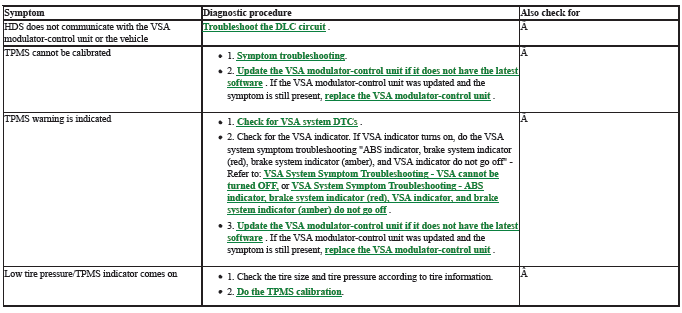

TPMS SYMPTOM TROUBLESHOOTING INDEX(TPMS)
.png)

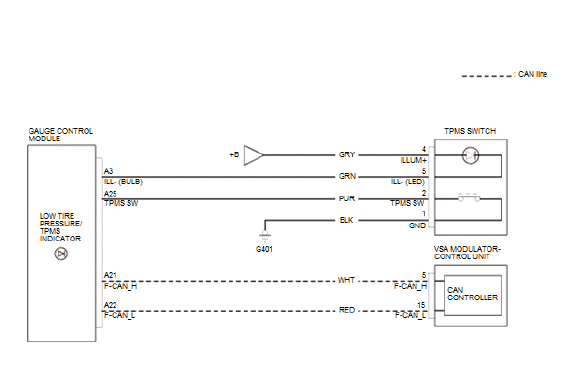

CIRCUIT DIAGRAM
TPMS CIRCUIT DIAGRAM
.png)
Fig. 2: TPMS Circuit Diagram

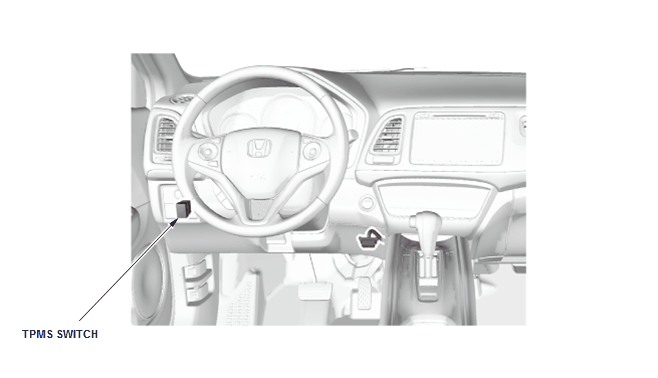

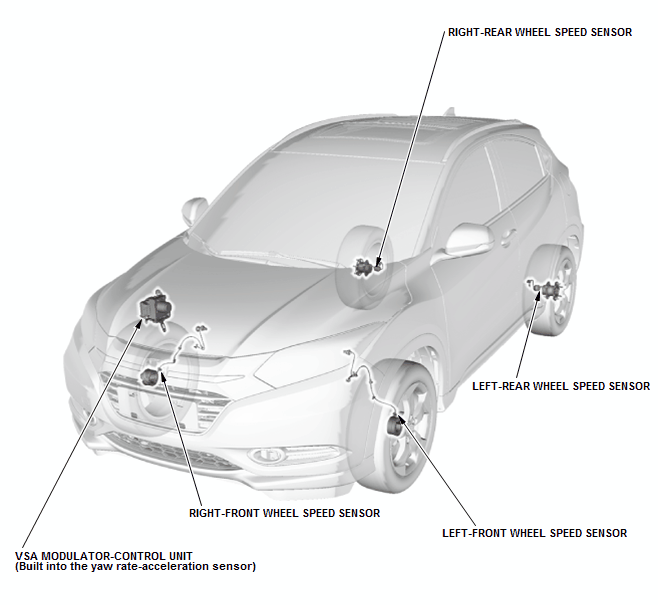

COMPONENT LOCATION INDEX
TPMS COMPONENT LOCATION INDEX
.png)
.png)
