Honda HR-V: Symptom Troubleshooting

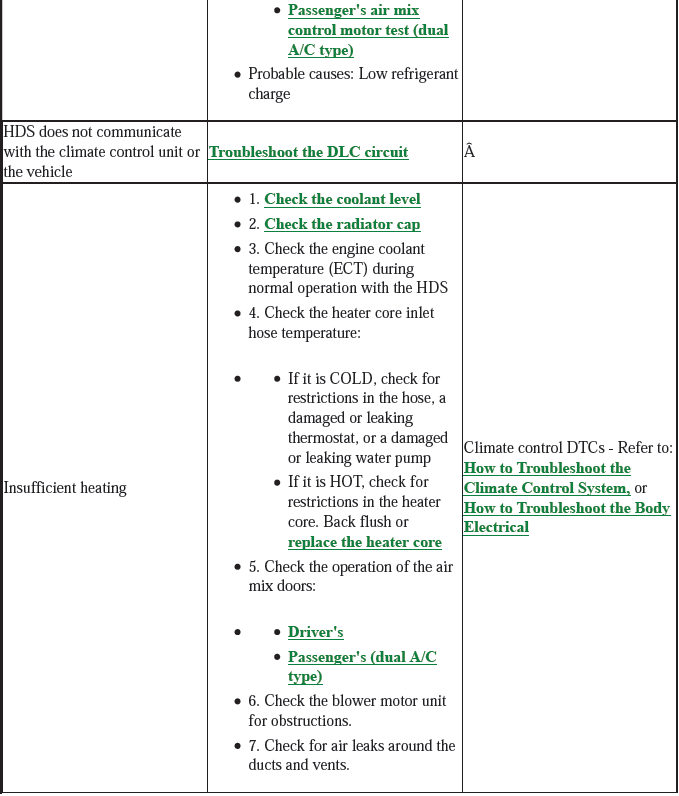

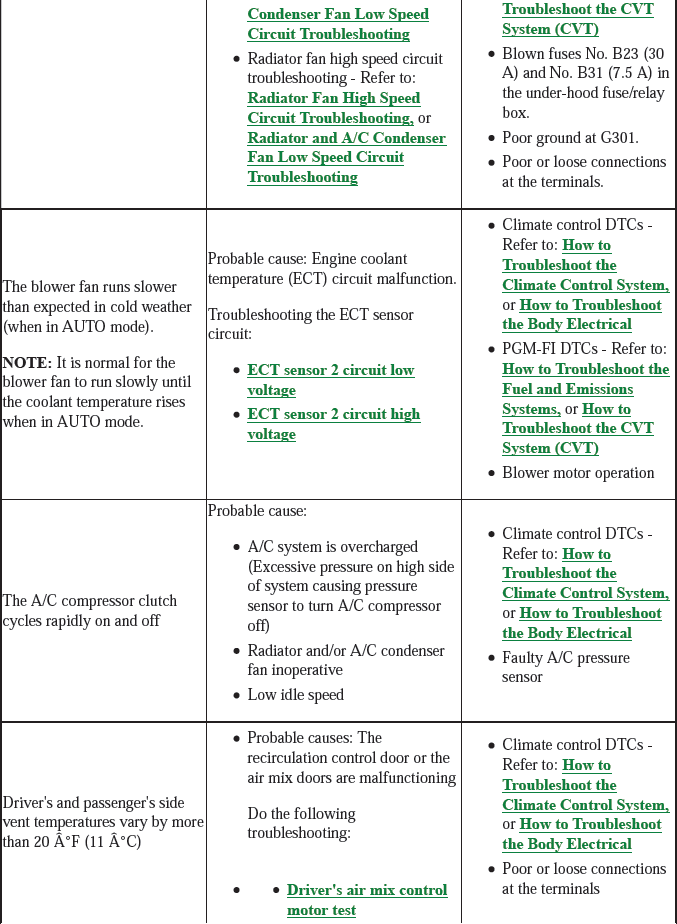

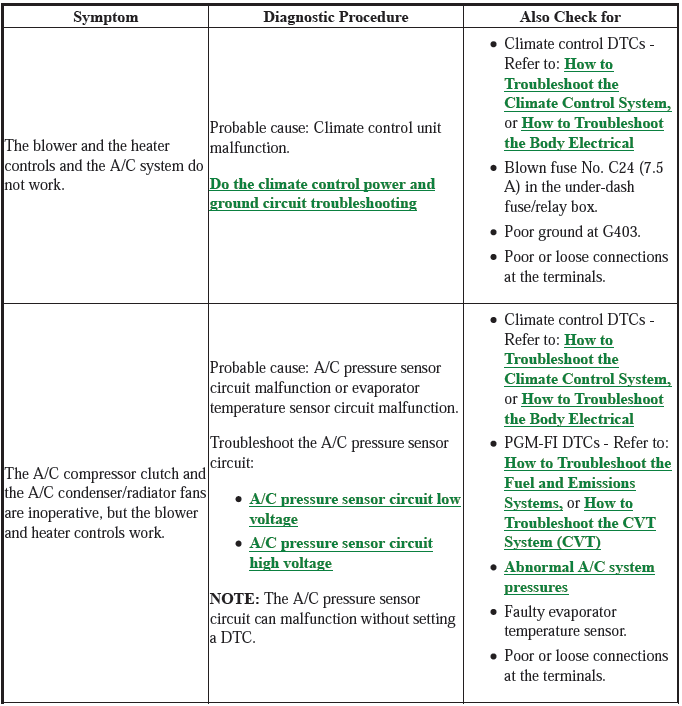

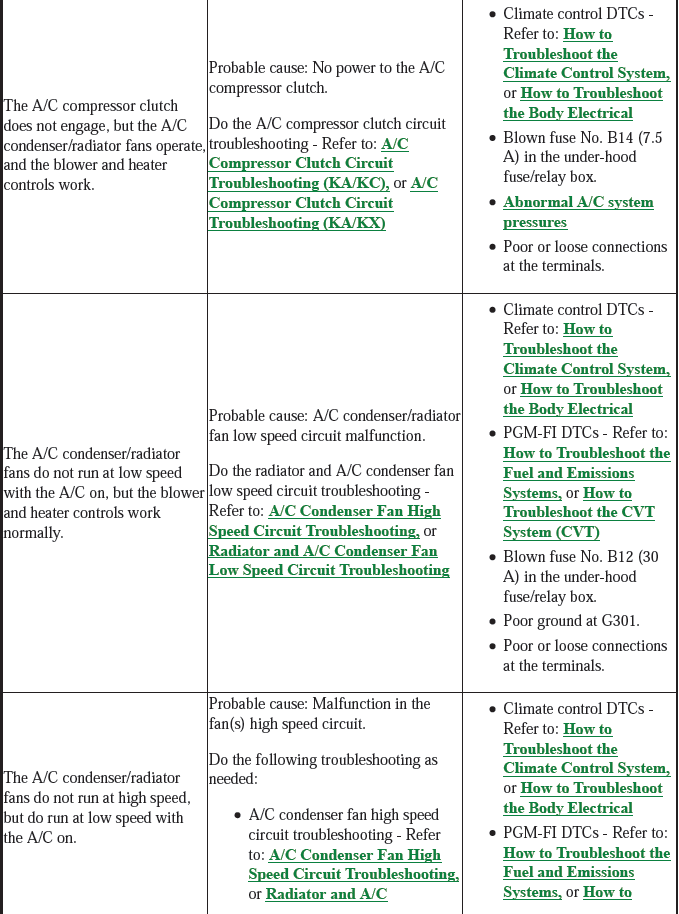

CLIMATE CONTROL SYSTEM SYMPTOM TROUBLESHOOTING INDEX (CLIMATE CONTROL)
.png)
.png)
.png)
.png)

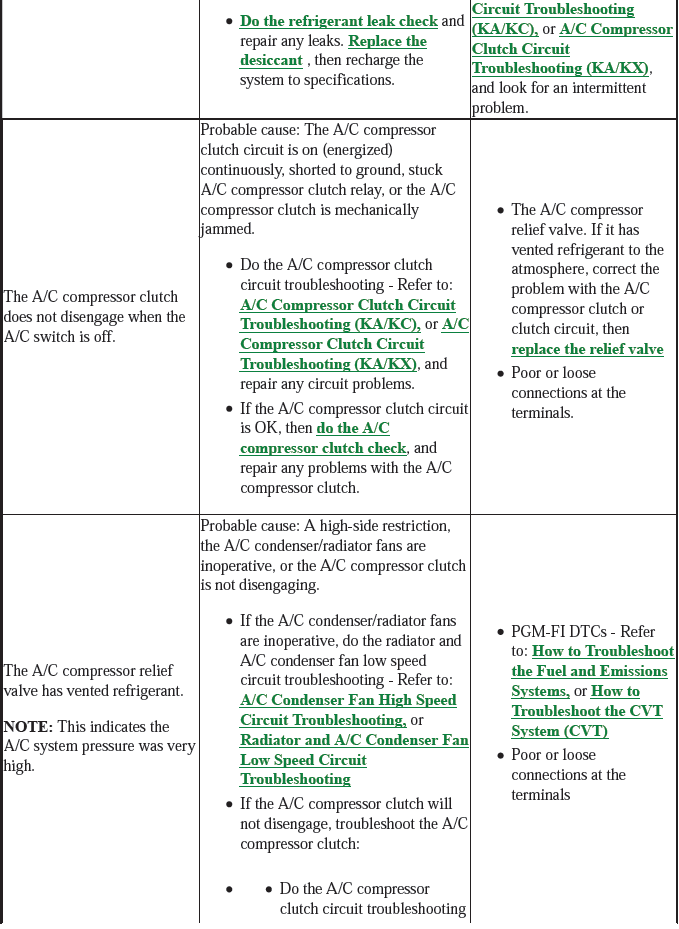

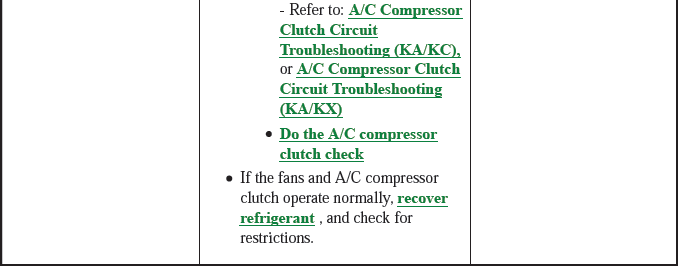

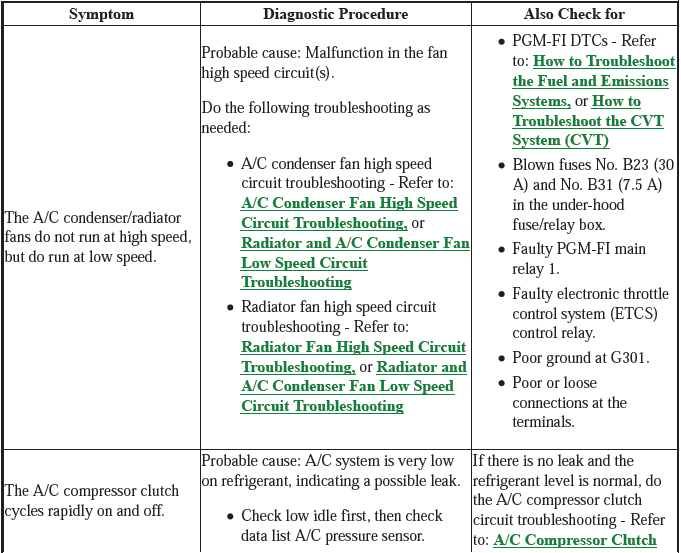

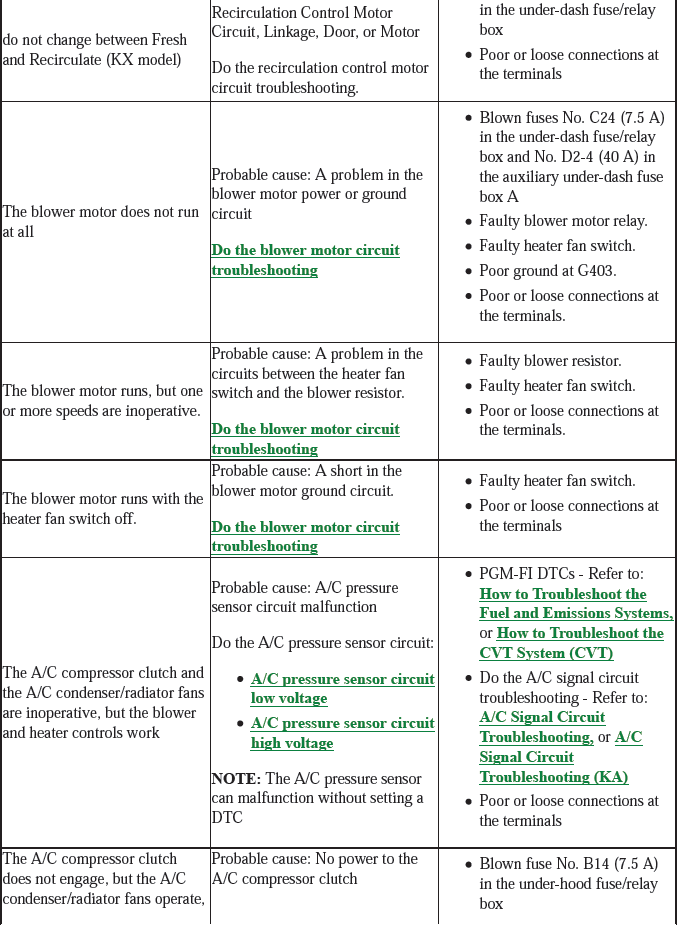

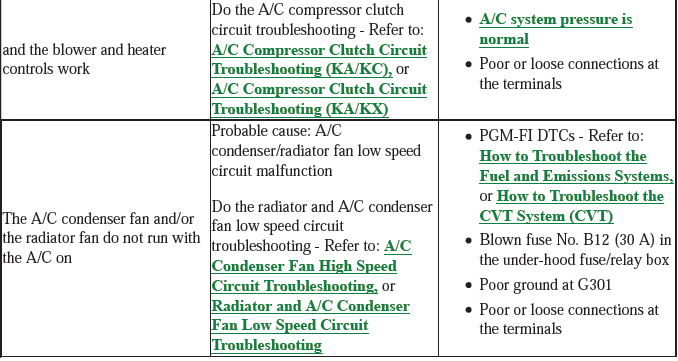

HEATING AND A/C SYSTEMS SYMPTOM TROUBLESHOOTING INDEX (HEATING/AIR CONDITIONING)
.png)
.png)
.png)
.png)
.png)
.png)
CIRCUIT DIAGRAM

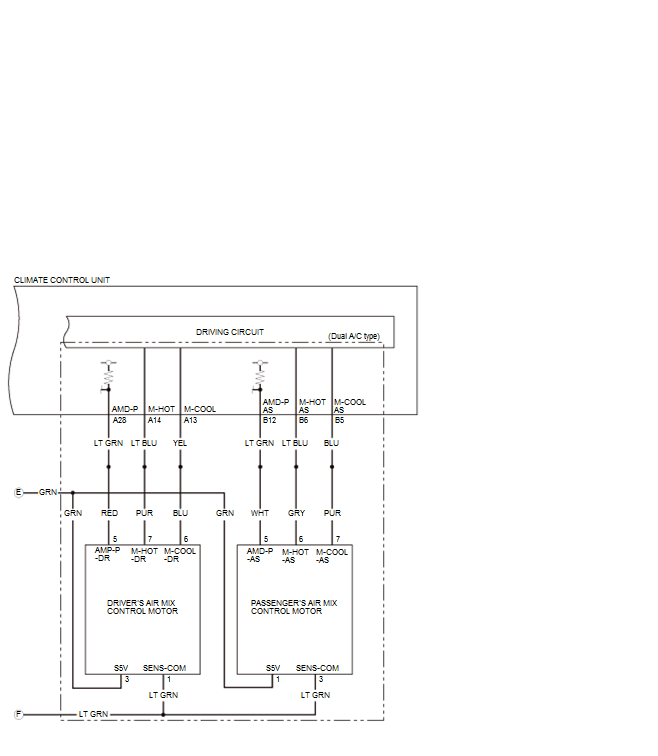

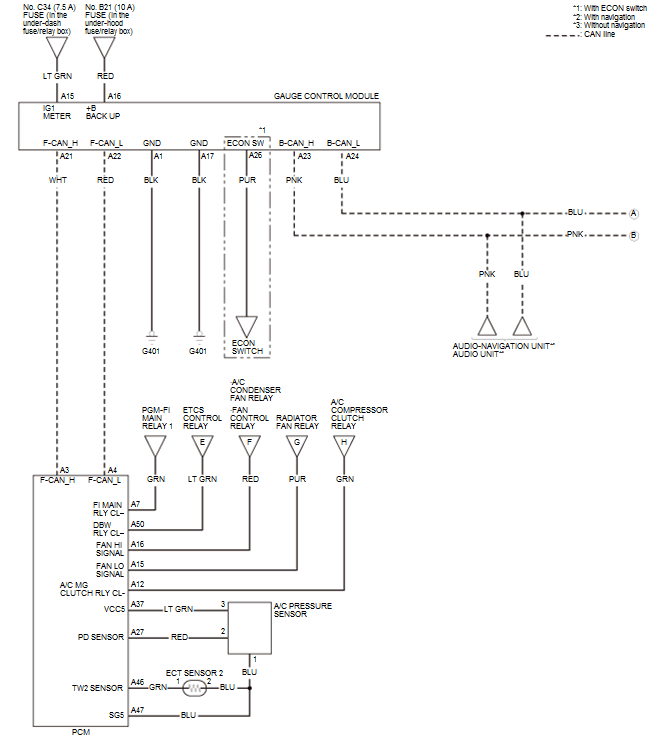

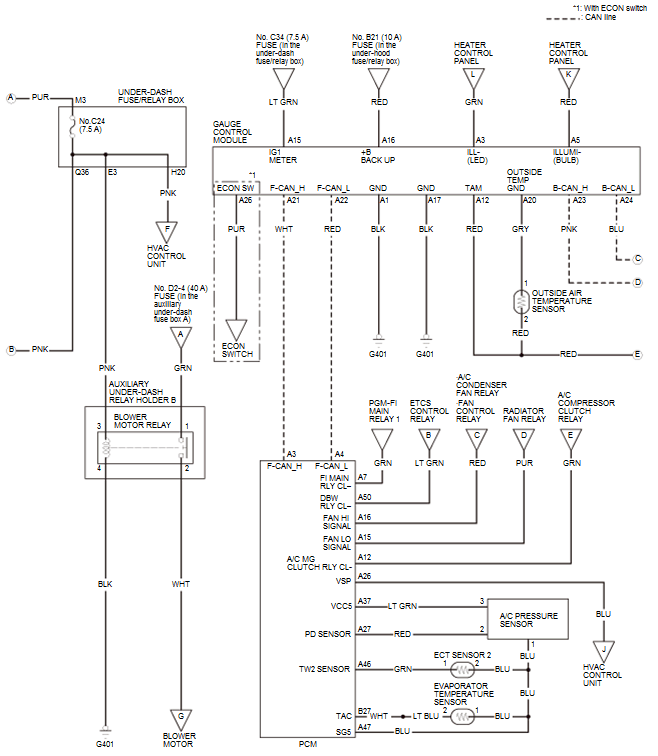

CLIMATE CONTROL SYSTEM CIRCUIT DIAGRAM
.png)

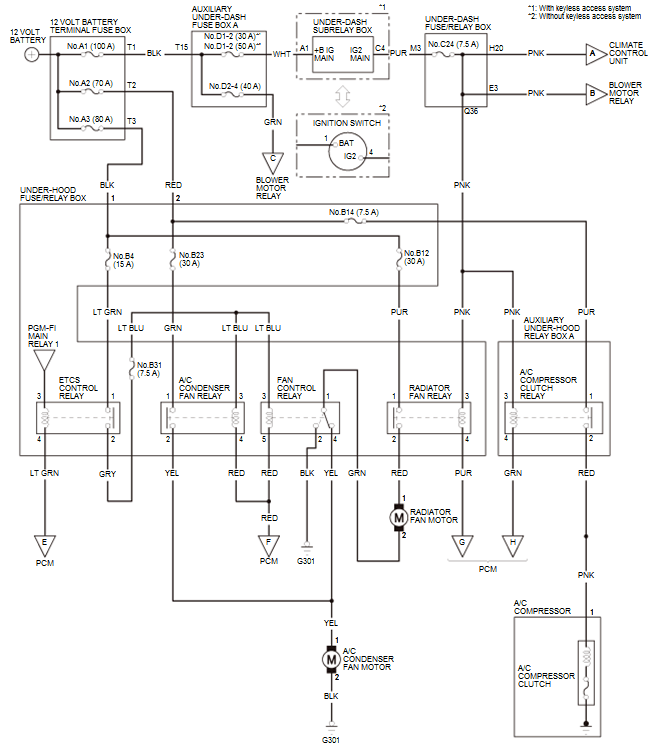

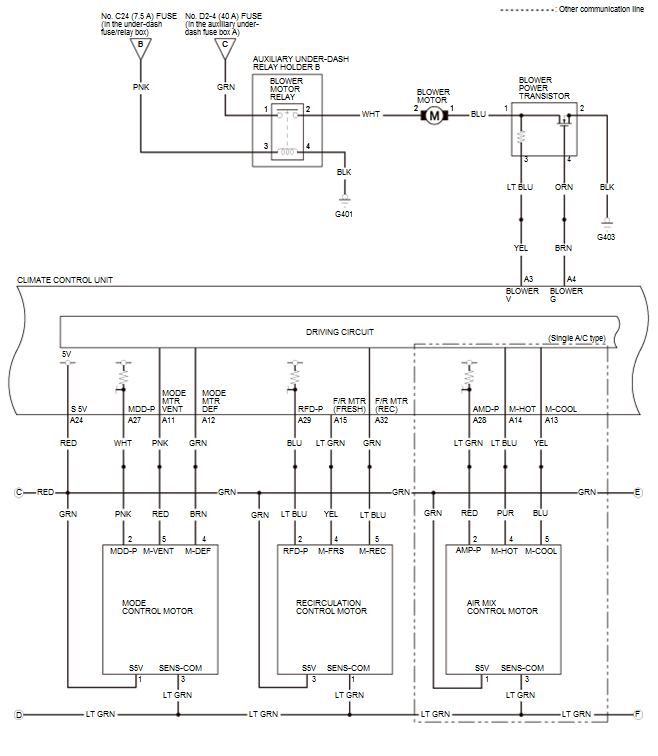

Fig. 6: Climate Control System Circuit Diagram (1 Of 5)
.png)

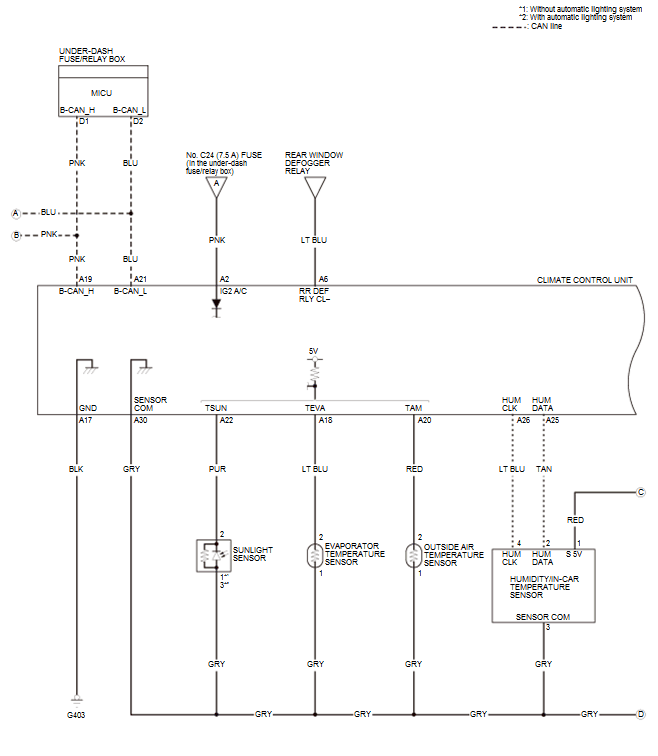

Fig. 7: Climate Control System Circuit Diagram (2 Of 5)
.png)
Fig. 8: Climate Control System Circuit Diagram (3 Of 5)
.png)
Fig. 9: Climate Control System Circuit Diagram (4 Of 5)
.png)
Fig. 10: Climate Control System Circuit Diagram (5 Of 5)
HEATING AND A/C SYSTEMS CIRCUIT DIAGRAM (KA)
.png)

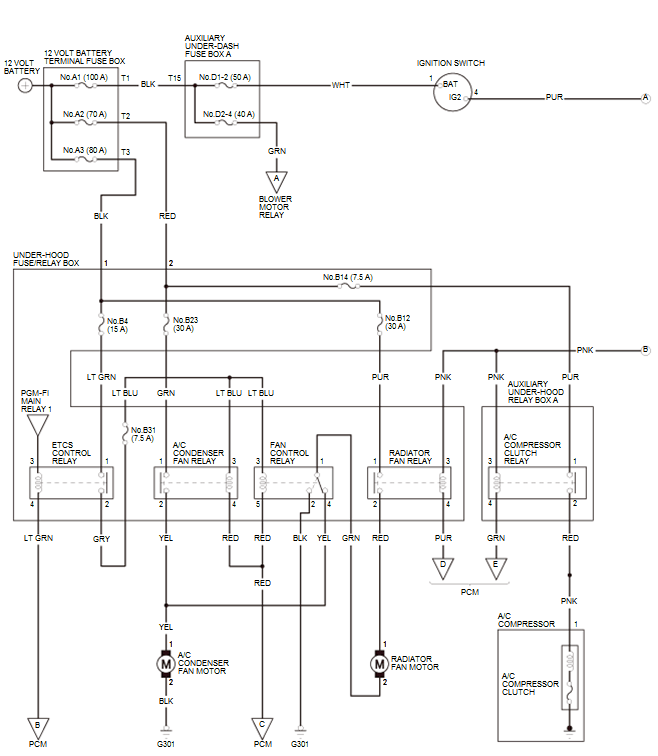

Fig. 11: Heating and A/C Systems Circuit Diagram (1 Of 3)
.png)

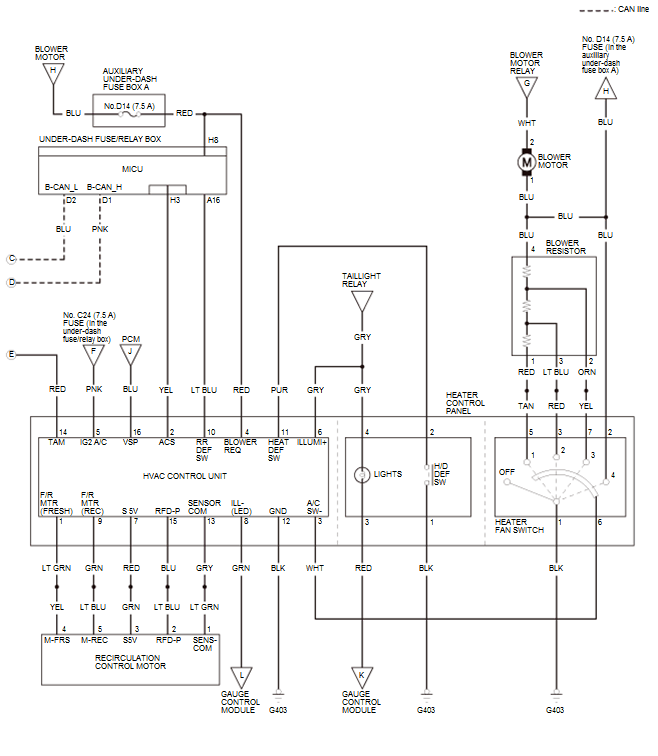

Fig. 12: Heating and A/C Systems Circuit Diagram (2 Of 3)
.png)
Fig. 13: Heating and A/C Systems Circuit Diagram (3 Of 3)
REAR WINDOW DEFOGGER CIRCUIT DIAGRAM
.png)

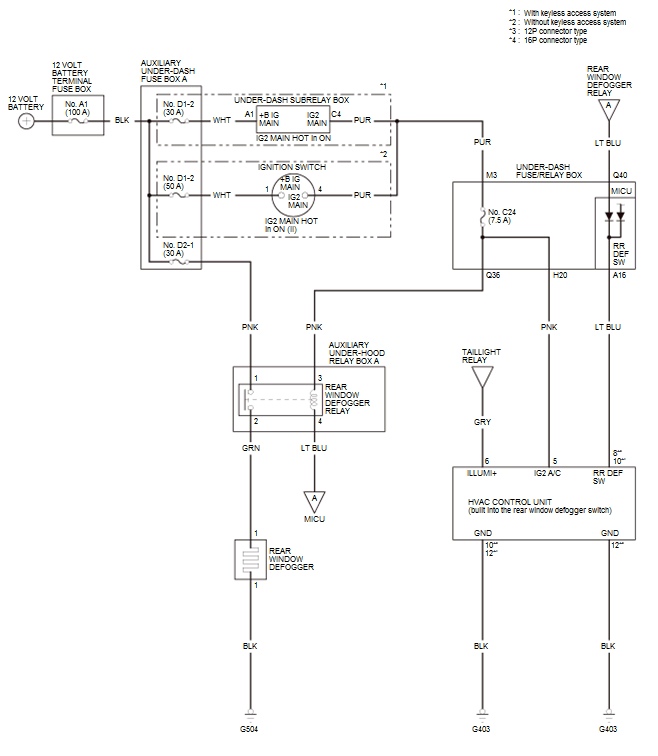

Fig. 14: Rear Window Defogger Circuit Diagram (Without climate control)
With climate control
.png)

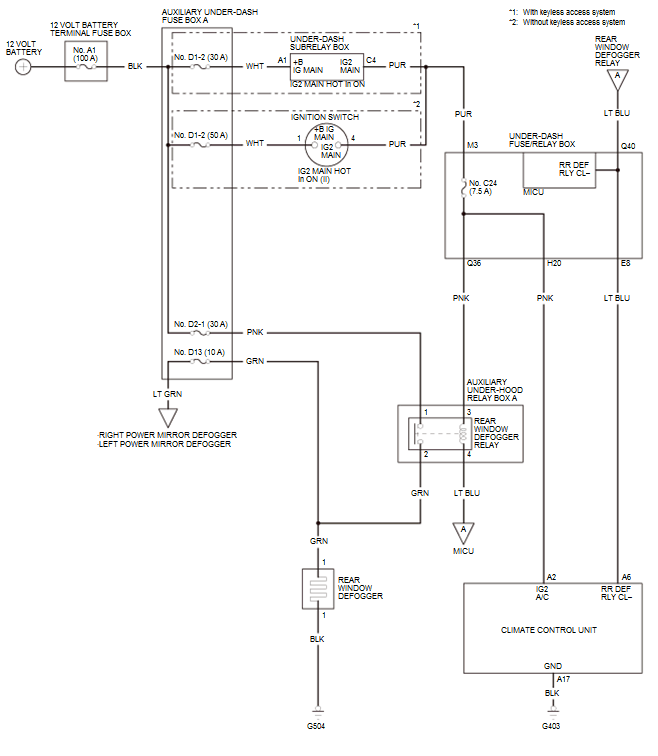

Fig. 15: Rear Window Defogger Circuit Diagram (With climate control)
