Honda HR-V: Washer Fluid Level Switch Removal, Installation, and Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Washer Fluid Level Switch Removal, Installation, and Test

Removal & Installation

1. Right Front Inner Fender - Remove

  1. Remove the right front inner fender as needed - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation.

2. Washer Fluid Level Switch - Remove

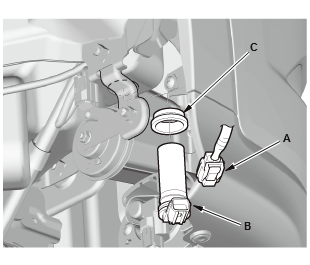

Exterior Trim - Service Information

  1. Disconnect the connector (A)
  2. Remove the washer fluid level switch (B).
    NOTE :     Fluid may flow out of the opening
  3. Remove the grommet (C).
    NOTE :     Inspect the damage of the grommet. If damaged, replace it.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal

Test

1. Washer Fluid Level Switch - Test

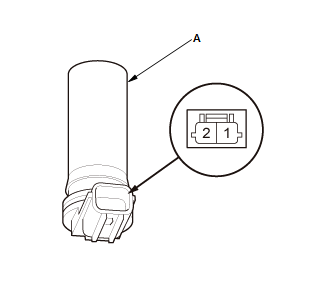

Exterior Trim - Service Information

Exterior Trim - Service Information

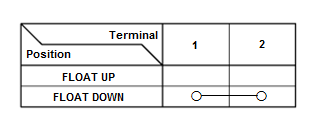

  1. Check for continuity between the terminal in each switch position according to the table
  2. If the continuity is not as specified, replace the washer fluid level switch (A).

WASHER MOTOR REMOVAL AND INSTALLATION

Removal & Installation

1. Right Front Inner Fender - Remove

  1. Remove the right front inner fender as needed - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation.

2. Windshield/Rear Window Washer Motor - Remove

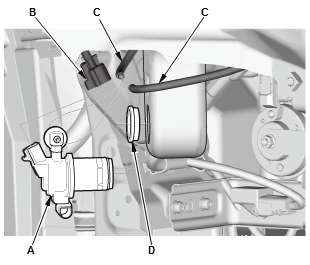

Exterior Trim - Service Information

  1. Remove the windshield/rear window washer motor (A).
    NOTE :     Fluid may flow out of the opening
  2. Disconnect the connector (B)
  3. Remove the tubes (C)
  4. Remove the grommet (D).
    NOTE :     Inspect the damage of the grommet. If damaged, replace it.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

WASHER RESERVOIR REMOVAL AND INSTALLATION

Removal & Installation

1. Front Bumper - Remove

2. Washer Fluid Level Switch - Remove (Canada model)

3. Windshield/Rear Window Washer Motor - Remove

4. Washer Reservoir - Remove

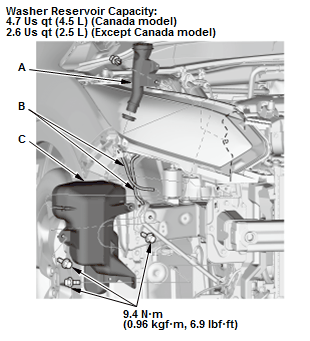

Exterior Trim - Service Information

  1. Remove the washer filler neck (A)
  2. Remove the tubes (B)
  3. Remove the washer reservoir (C).

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
