Honda HR-V: Transfer Assembly Inspection (CVT)
Inspection
Transfer Gear Backlash Measurement
1. Vehicle - Lift
2. Propeller Shaft (Transfer Side) - Disconnect
3. Transfer Assembly - Transfer Gear Backlash Check
.png)
- Shift the transmission to N

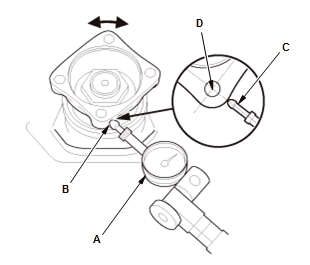

- Set a dial indicator (A) on the transfer companion flange (B).
NOTE: Position the dial indicator tip (C) on the direct extension of the
bolt hole
center (D)
- Measure the transfer gear backlash.
Standard: 0.06-0.16 mm (0.0024-0.0063 in)
- If the transfer gear backlash is out of the standard, replace the
transfer assembly.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Fluid Leak Check
5. Transfer Assembly Fluid (Transmission Side) - Leak Check
- Check for fluid leaks between the mating faces of the transfer assembly
and the
transmission
- If there is leak:
- Replace the O-ring between the transfer assembly and the
transmission.
- Replace the O-ring between the transfer housing and the transfer
hypoid drive
shaft assembly.
6. Transfer Assembly Fluid (Propeller Shaft Side) - Leak Check
- Check for fluid leaks between the transfer companion flange and the
transfer oil
seal.
- If there is leak, replace the transfer oil seal.
Total Starting Torque Measurement
7. Transmission Fluid (HCF-2) - Drain
8. Transfer Assembly - Remove
9. Transfer Assembly - Total Starting Torque Check
.png)

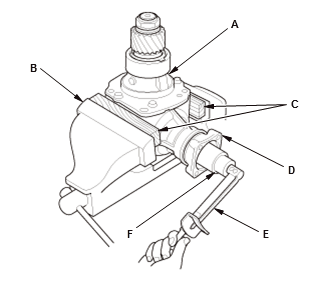

- Secure the transfer housing (A) in a bench vise (B).
NOTE: To prevent damaging the transfer housing, always use wood blocks or
equivalent materials (C) between the transfer housing and the bench vise
- Rotate the companion flange several turns to seat the tapered roller
bearings
- Measure the total starting torque at the companion flange (D) using a
torque wrench
(E) and a socket (F).
Standard: 2.85-7.40 N.m (29.1-75.6 kgf.cm, 25.2- 65.5 lbf.in)
- If the total starting torque is out of the standard, replace the
transfer assembly.
Transfer Hypoid Drive Gear Tooth Contact Pattern Check
10. Transfer Hypoid Drive Gear/Shaft Assembly - Remove
.png)

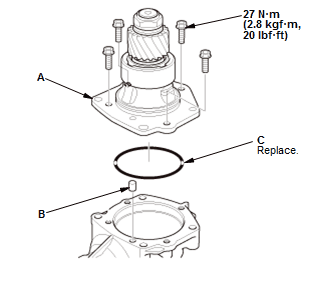

Fig. 10: Transfer Hypoid Drive Gear/Shaft Assembly With Torque Specifications
- Remove the transfer hypoid drive gear/shaft assembly (A), dowel pin (B)
and the
O-ring (C).
11. Transfer Hypoid Drive Gear - Tooth Contact Pattern Check
.png)

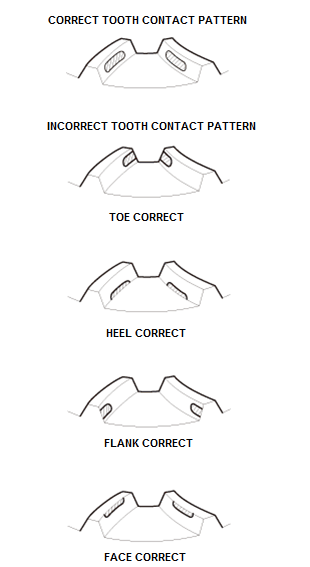

- Check the transfer hypoid drive gear tooth contact pattern.
- If the transfer gear tooth contact is incorrect, replace the transfer
assembly.
12. All Removed Parts - Install
