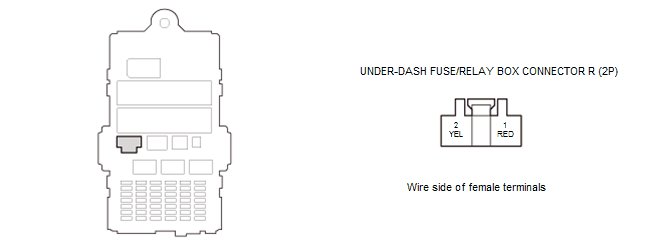

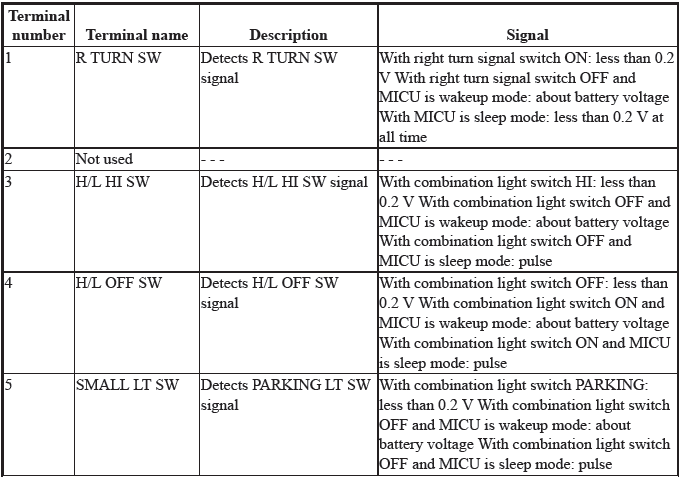

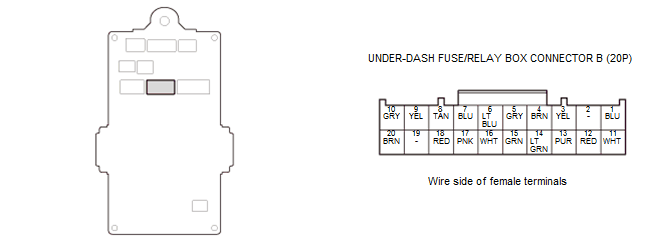

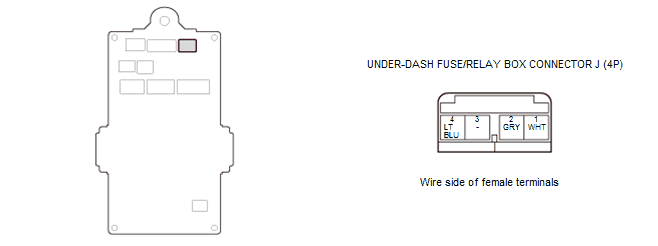

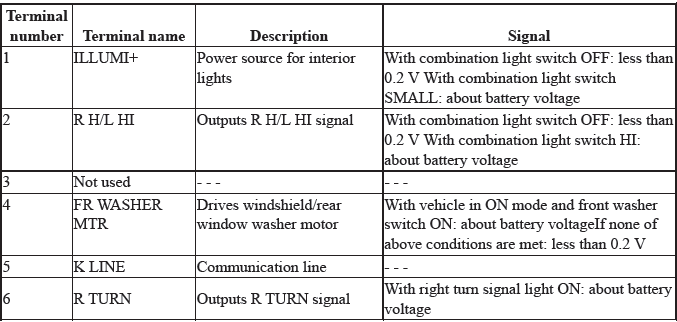

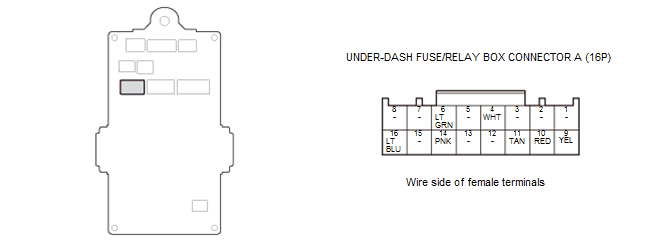

Honda HR-V: Under-Dash Fuse/Relay Box Connector For Inputs and Outputs
![Electrical System - Testing & Troubleshooting](images/books/1097/index 168(15).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 169(15).png)

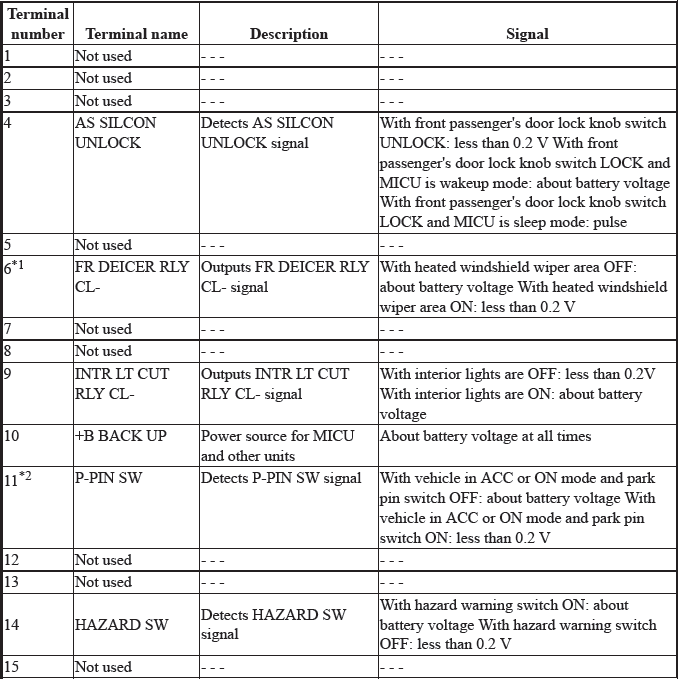

![Electrical System - Testing & Troubleshooting](images/books/1097/index 170(15).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 171(14).png)

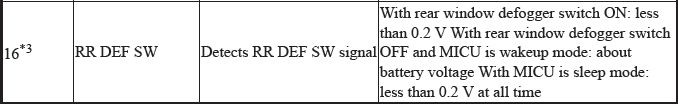

*1: With heated windshield wiper area
*2: CVT and without keyless access system
*3: Without climate control
![Electrical System - Testing & Troubleshooting](images/books/1097/index 172(14).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 173(14).png)

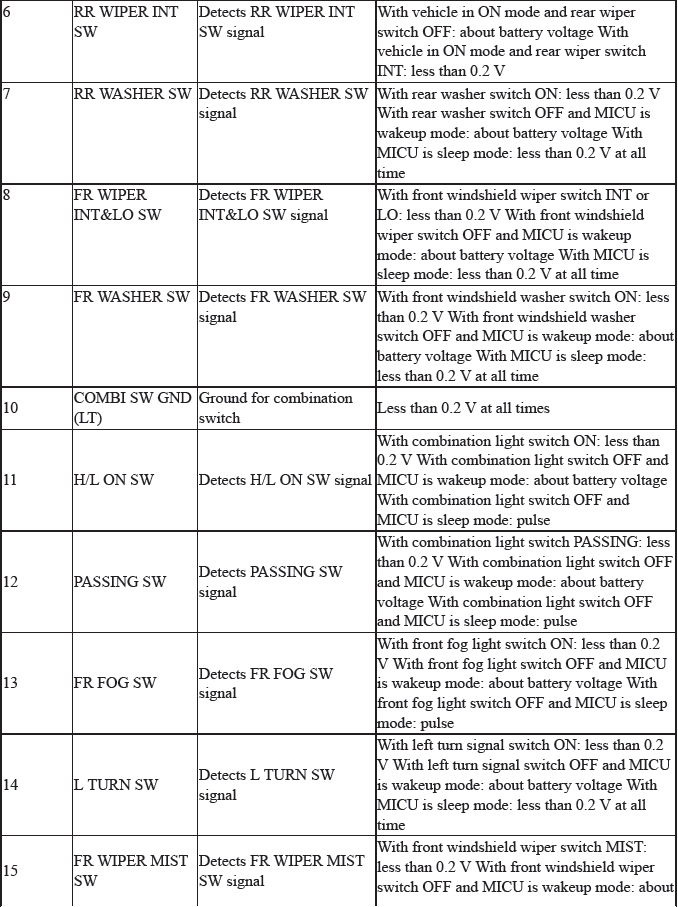

![Electrical System - Testing & Troubleshooting](images/books/1097/index 174(14).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 175(14).png)

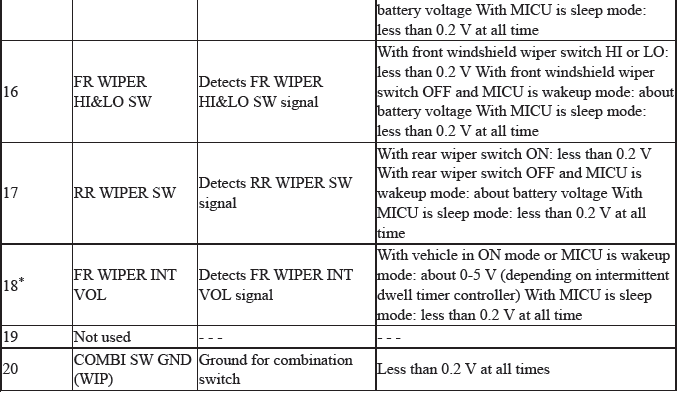

*: Front wiper with intermittent dwell timer controller

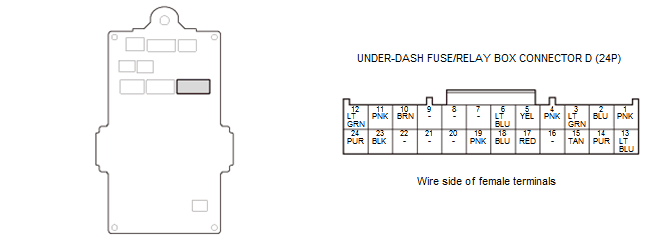

![Electrical System - Testing & Troubleshooting](images/books/1097/index 176(14).png)

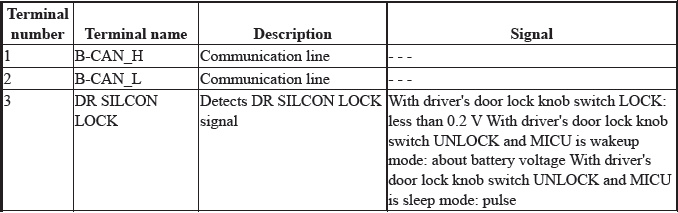

![Electrical System - Testing & Troubleshooting](images/books/1097/index 177(14).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 178(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 179(13).png)

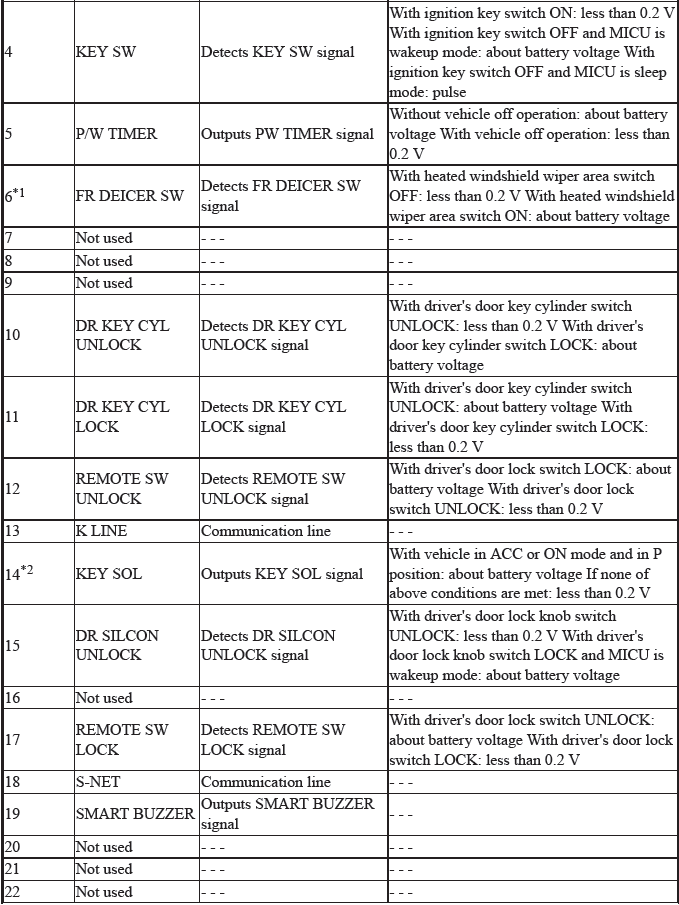

*1: With heated windshield wiper area
*2: Without keyless access system

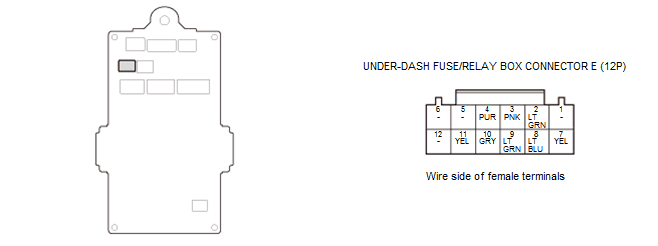

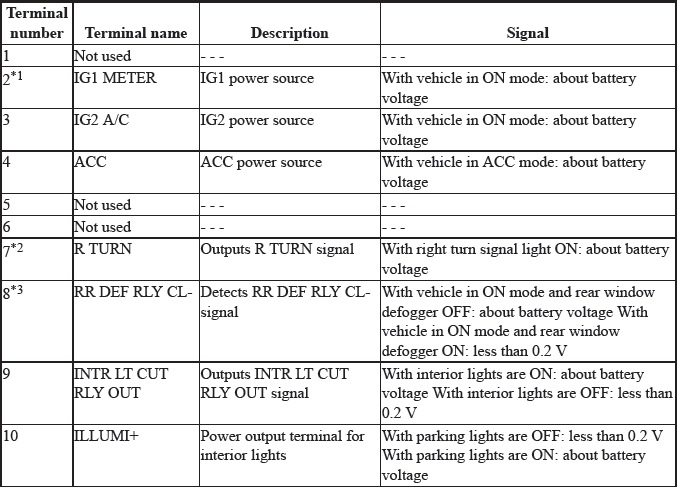

![Electrical System - Testing & Troubleshooting](images/books/1097/index 180(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 181(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 182(12).png)
*1: CVT
*2: With mirror turn signal light
*3: With climate control

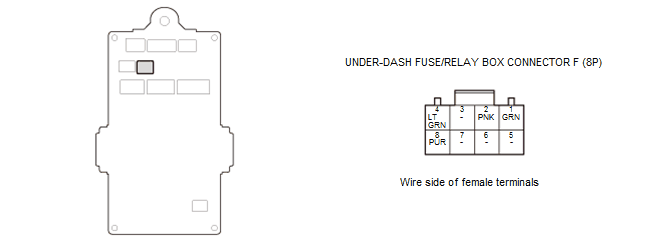

![Electrical System - Testing & Troubleshooting](images/books/1097/index 183(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 184(13).png)

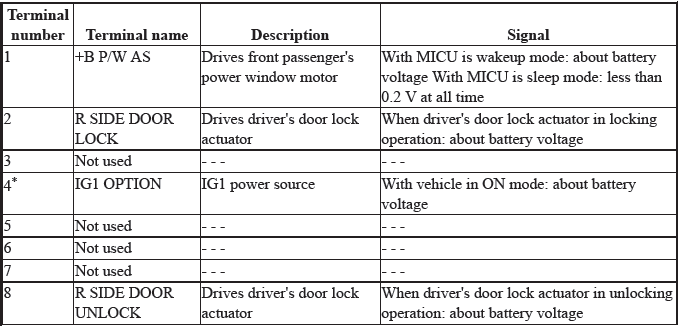

*: With moonroof

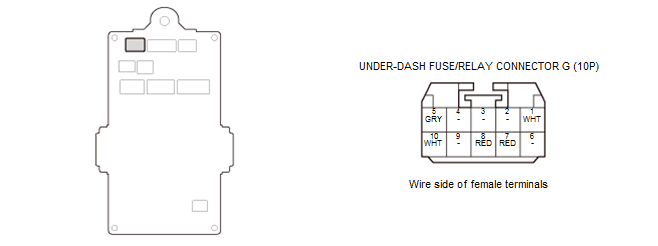

![Electrical System - Testing & Troubleshooting](images/books/1097/index 185(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 186(12).png)

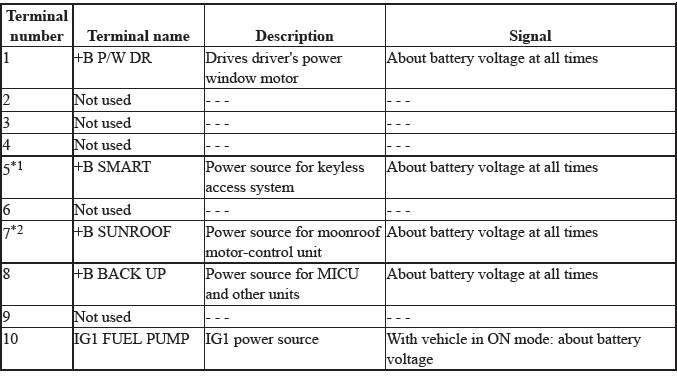

*1: With keyless access system
*2: With moonroof

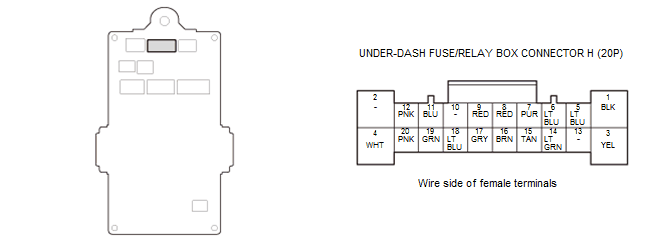

![Electrical System - Testing & Troubleshooting](images/books/1097/index 187(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 188(13).png)

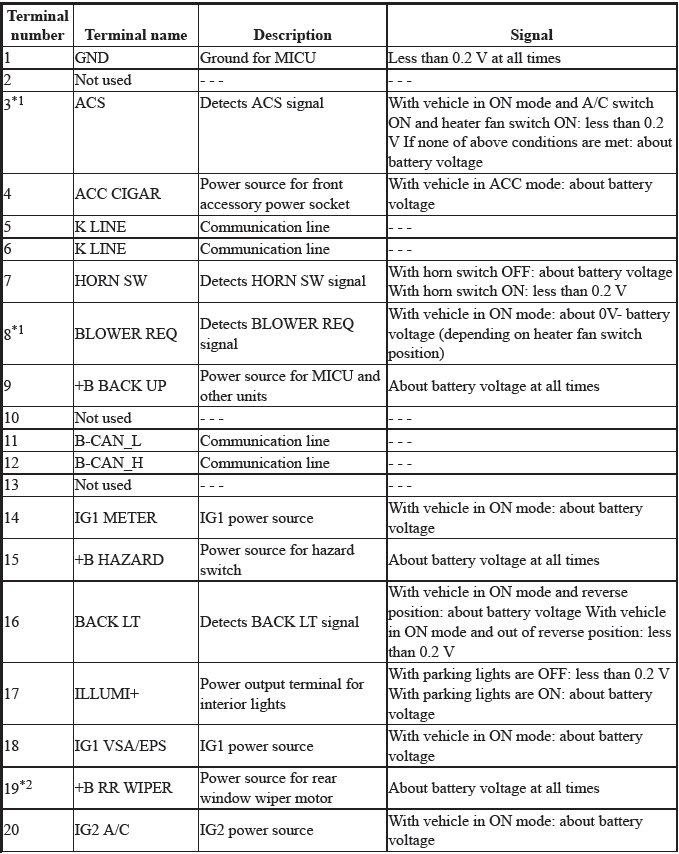

*1: Without climate control
*2: With keyless access system
![Electrical System - Testing & Troubleshooting](images/books/1097/index 189(13).png)

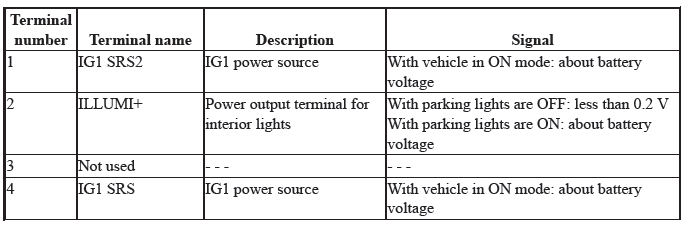

![Electrical System - Testing & Troubleshooting](images/books/1097/index 190(13).png)

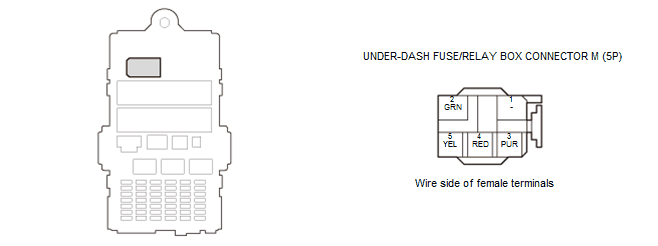

![Electrical System - Testing & Troubleshooting](images/books/1097/index 191(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 192(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 193(13).png)

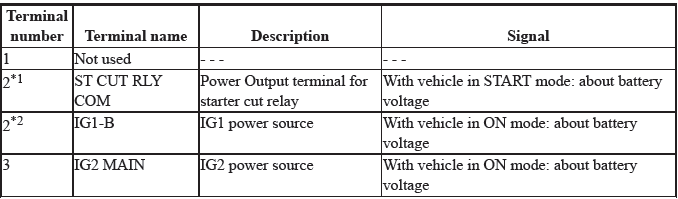

*1: Without keyless access system
*2: With Keyless access system

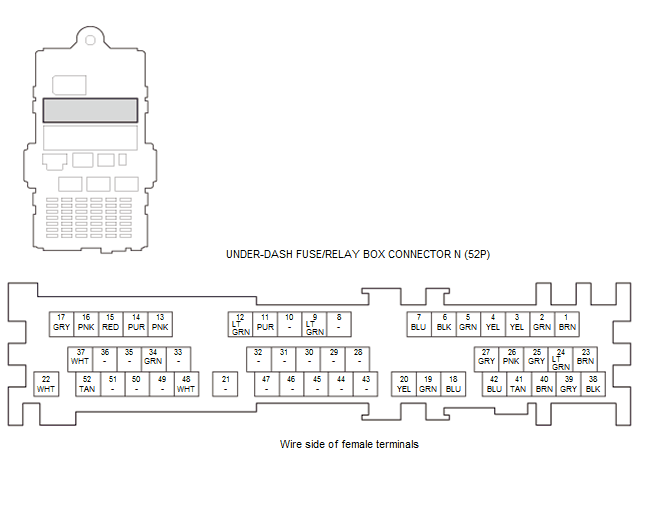

![Electrical System - Testing & Troubleshooting](images/books/1097/index 194(13).png)

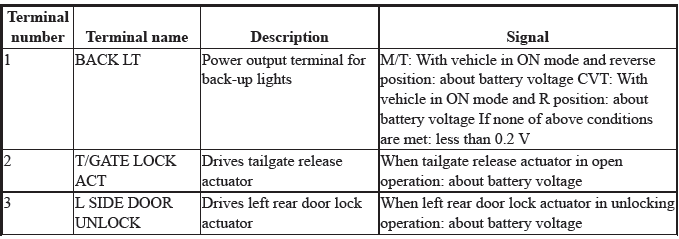

![Electrical System - Testing & Troubleshooting](images/books/1097/index 195(13).png)

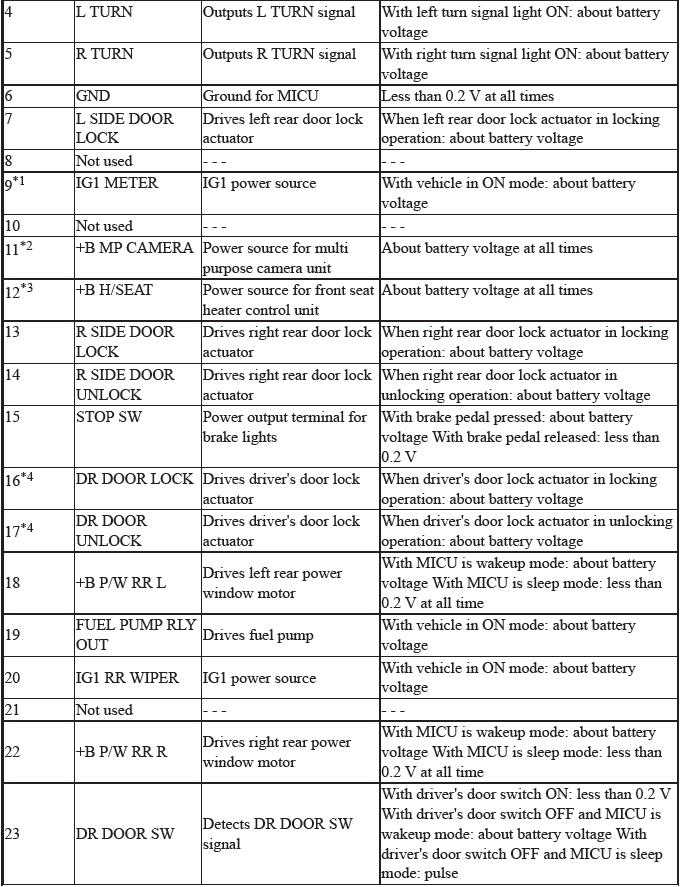

![Electrical System - Testing & Troubleshooting](images/books/1097/index 196(13).png)

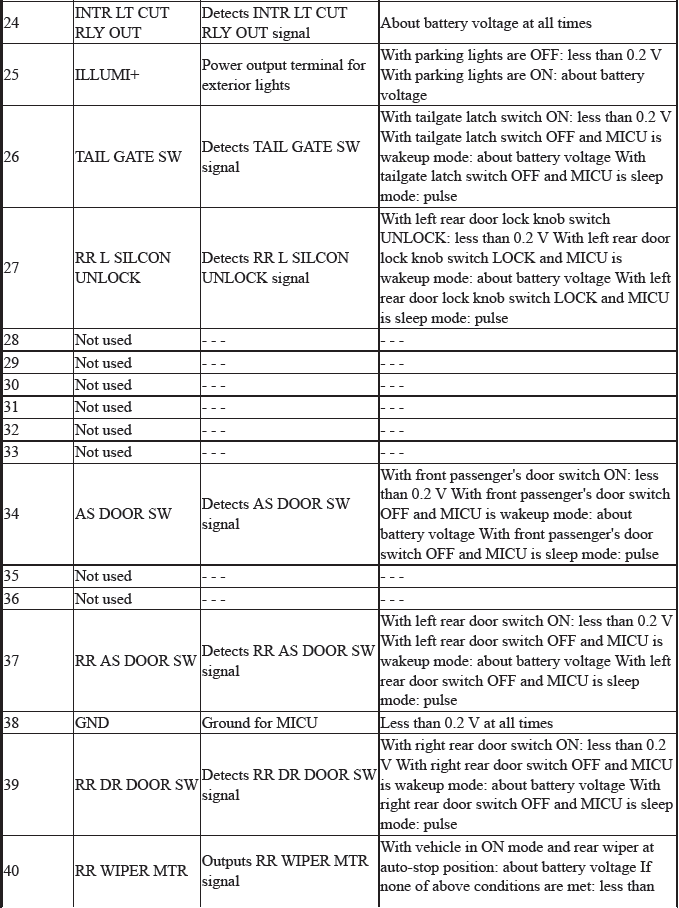

![Electrical System - Testing & Troubleshooting](images/books/1097/index 197(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 198(13).png)

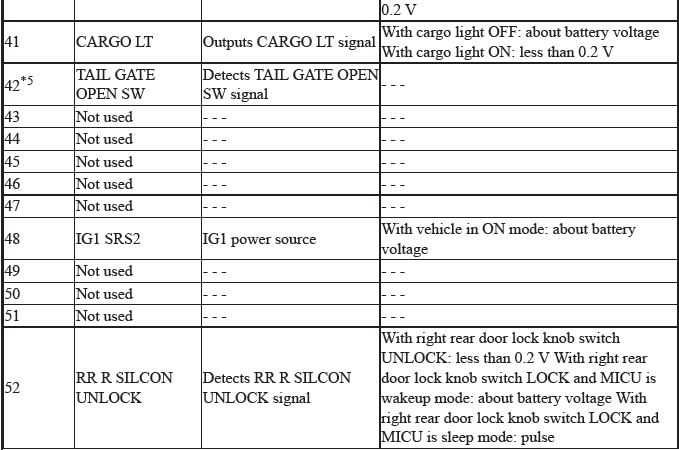

*1: CVT
*2: With forward collision warning
*3: With seat heater
*4: With selectable unlock
*5: Without keyless access system

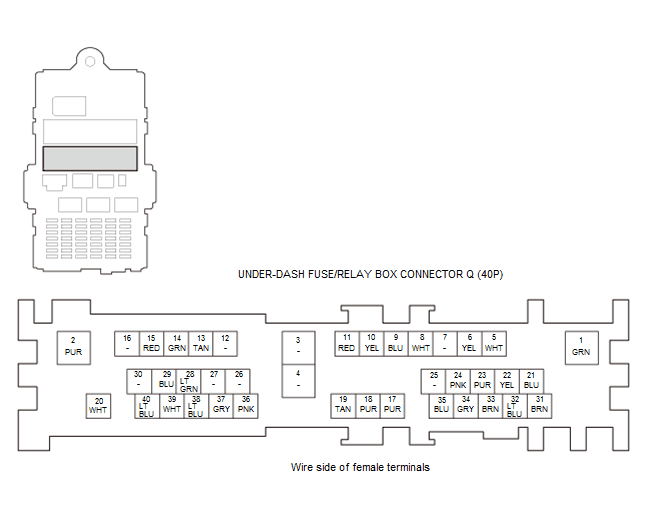

![Electrical System - Testing & Troubleshooting](images/books/1097/index 199(13).png)

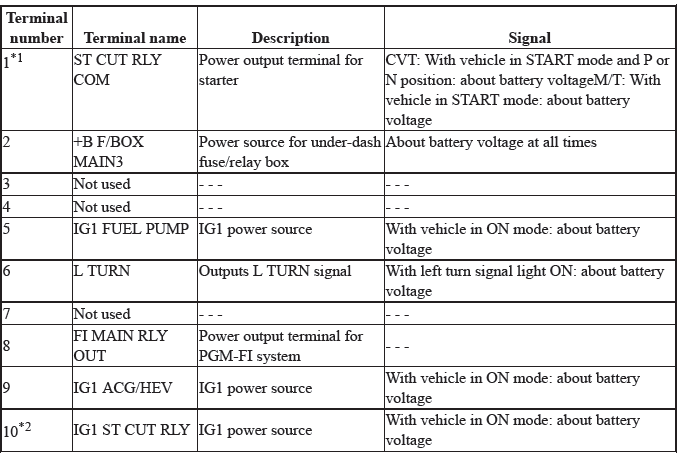

![Electrical System - Testing & Troubleshooting](images/books/1097/index 200(13).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 201(13).png)

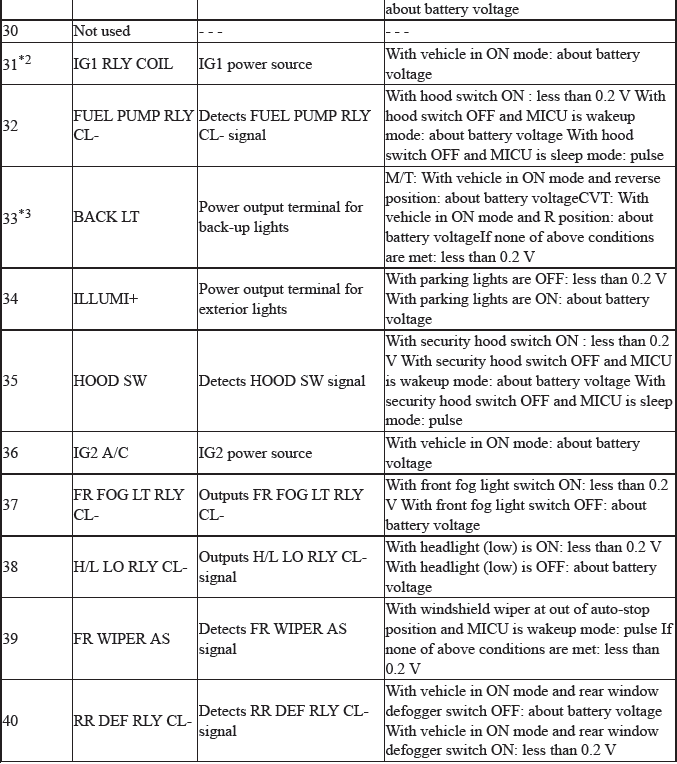

![Electrical System - Testing & Troubleshooting](images/books/1097/index 202(13).png)

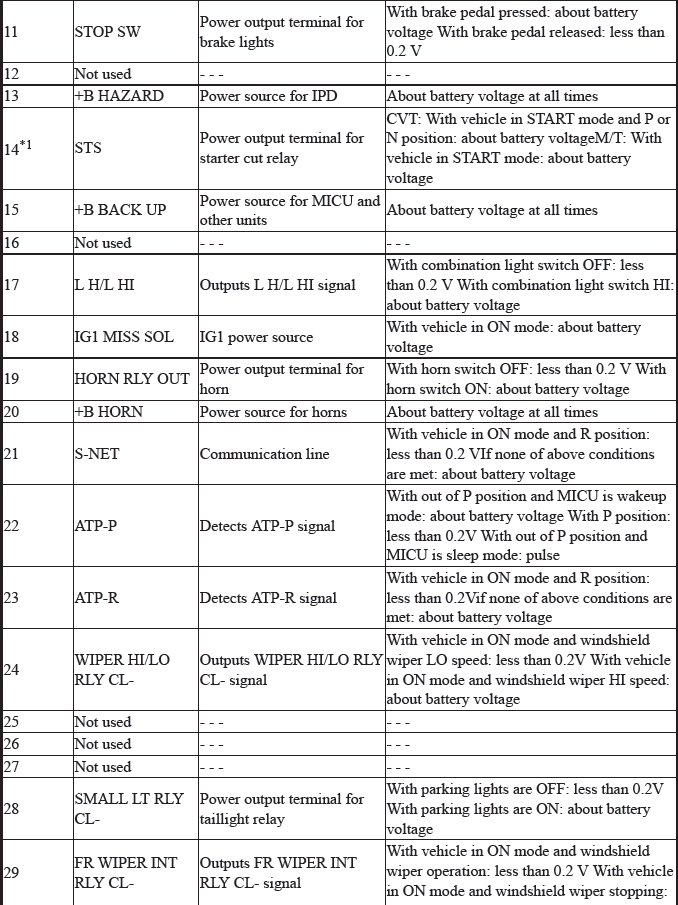

*1: Without keyless access system
*2: With keyless access system
*3: M/T
![Electrical System - Testing & Troubleshooting](images/books/1097/index 203(12).png)

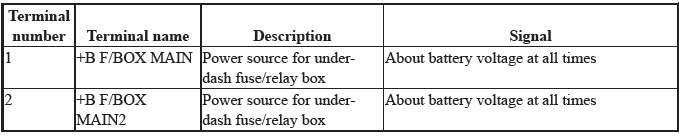

![Electrical System - Testing & Troubleshooting](images/books/1097/index 204(12).png)

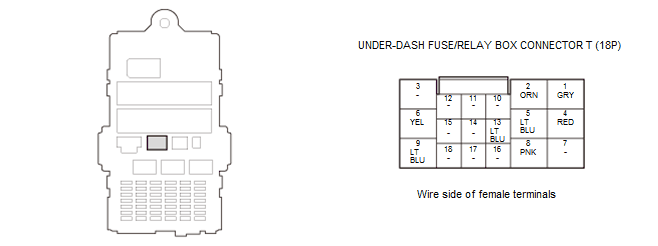

![Electrical System - Testing & Troubleshooting](images/books/1097/index 205(12).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 206(12).png)

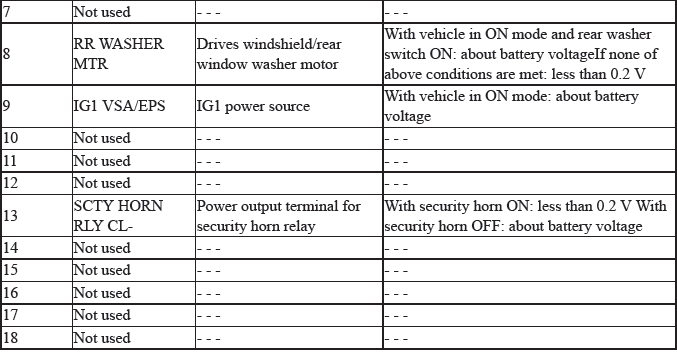

![Electrical System - Testing & Troubleshooting](images/books/1097/index 207(12).png)
COMPONENT LOCATION INDEX

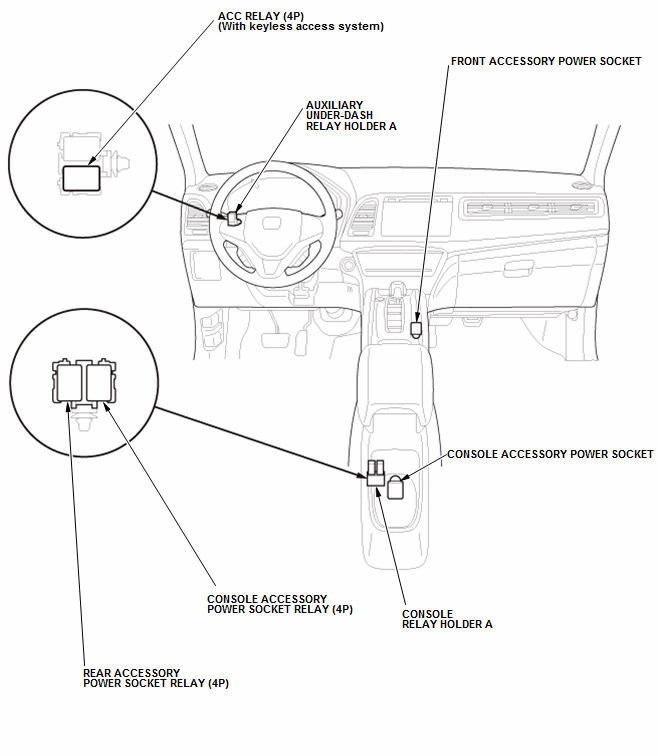

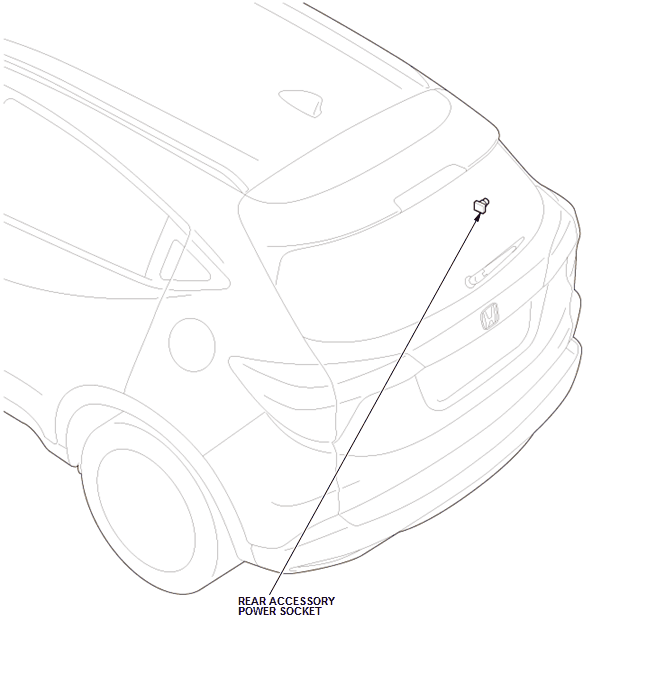

ACCESSORY POWER SOCKETS COMPONENT LOCATION INDEX
![Electrical System - Testing & Troubleshooting](images/books/1097/index 208(11).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 209(12).png)

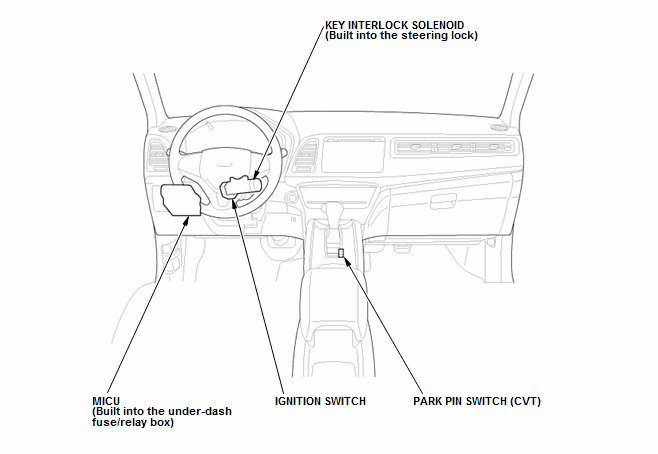

IGNITION SWITCH COMPONENT LOCATION INDEX

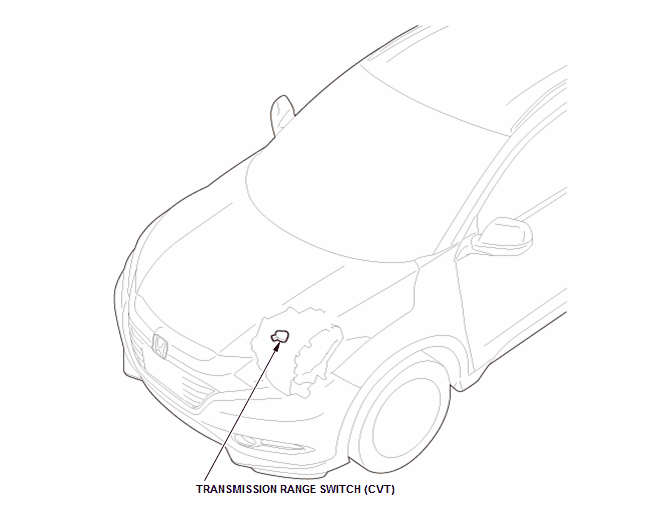

![Electrical System - Testing & Troubleshooting](images/books/1097/index 210(12).png)
![Electrical System - Testing & Troubleshooting](images/books/1097/index 211(12).png)
