Removal & Installation

NOTE: The USB adapter, the USB adapter A, and the USB adapter B are the same parts.

1. Center Console Switch Panel - Remove

Audio Visual Systems - Service Information

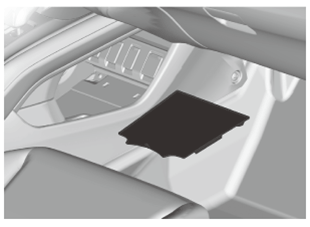

  1. Remove the console front mat.

Audio Visual Systems - Service Information

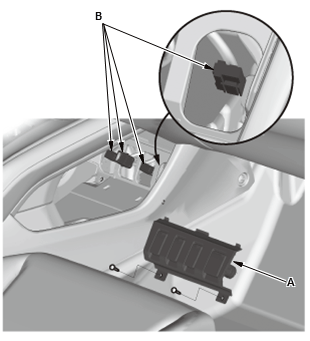

  1. Pull out the center console switch panel (A)
  2. Disconnect the connectors (B)
  3. Remove the center console switch panel.

2. USB Adapter - Remove

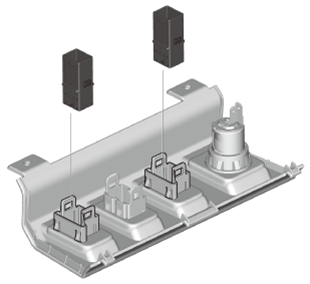

Display Audio Type (7-inch Screen)

Audio Visual Systems - Service Information

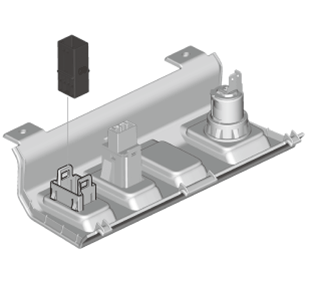

Except Display Audio Type (7-inch Screen)

Audio Visual Systems - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
