Honda HR-V: XM Receiver Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Service Information / XM Receiver Removal and Installation

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

NOTE: If you are replacing the XM receiver, register the new XM receiver I.D. number with XM Radio by calling 800- 852-9696.

1. Glove Box - Remove

2. XM Receiver - Remove

Audio Visual Systems - Service Information

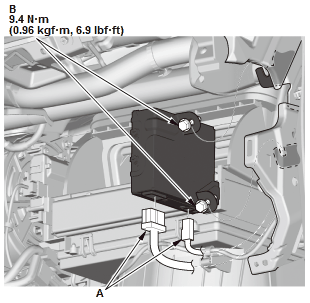

  1. Disconnect the connectors (A)

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
