Honda HR-V: VSA OFF Switch Removal, Installation, and Test

Honda HR-V (2015-2021) Service Manual / Brakes / VSA System - Service Information / VSA OFF Switch Removal, Installation, and Test

Removal and Installation

1. Driver's Dashboard Lower Cover - Remove

2. VSA Off Switch - Remove

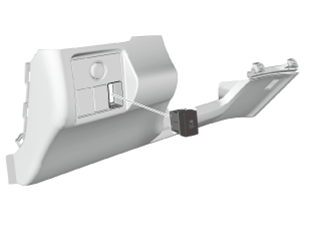

Square type

VSA System - Service Information

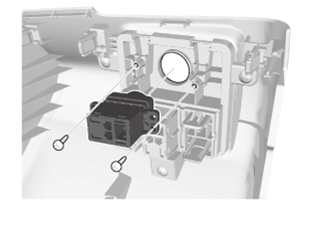

Circle type

VSA System - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Test

1. VSA Off Switch - Test

VSA System - Service Information

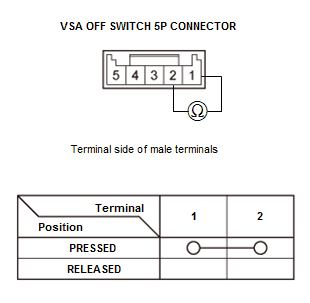

  1. On the switch side, check for continuity between the connector terminal in each switch position according to the table
  2. If the switch does not works as described in the table, replace the VSA OFF switch.
