Honda HR-V: Wheel Speed Sensor Removal and Installation

Honda HR-V (2015-2021) Service Manual / Brakes / VSA System - Service Information / Wheel Speed Sensor Removal and Installation

Removal and Installation

Front

1. Vehicle - Lift

2. Front Wheels - Remove

3. Front Wheel Speed Sensor - Remove

VSA System - Service Information

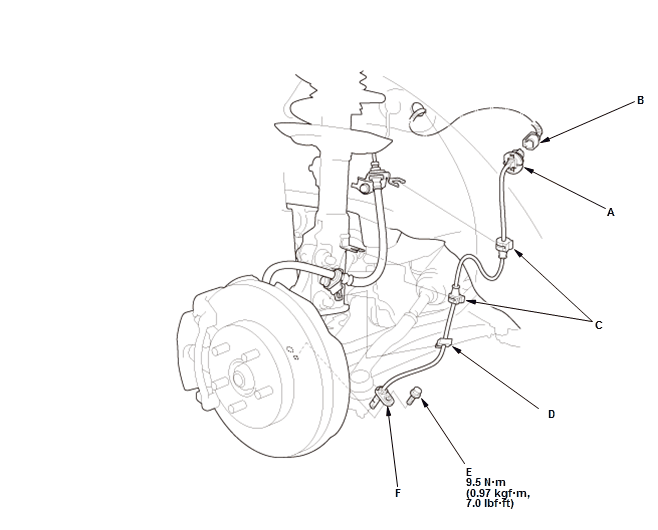

  1. Remove the grommet (A) from the body.
  2. Disconnect the connector (B)
  3. Remove the wire guide rubbers (C), the clip (D), and the bolt (E)
  4. Remove the wheel speed sensor (F).

4. All Removed Parts - Install

  1. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Install the sensor carefully to avoid twisting the wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.

Rear

1. Vehicle - Lift

2. Rear Wheels - Remove

3. Rear Hub Bearing Unit - Remove (2WD) - Refer to: Rear Hub Bearing Unit Removal and Installation (2WD), or Rear Hub Bearing Unit Removal and Installation (AWD)

4. Rear Wheel Speed Sensor - Remove (2WD)

VSA System - Service Information

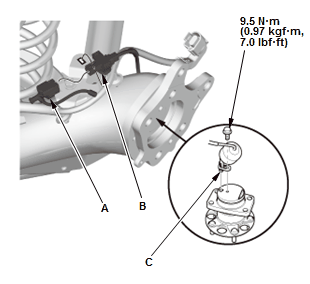

  1. Disconnect the connector (A)
  2. Remove the clip (B)
  3. Remove the wheel speed sensor (C).

5. Rear Wheel Speed Sensor - Remove (AWD)

VSA System - Service Information

Left side

Right side

VSA System - Service Information

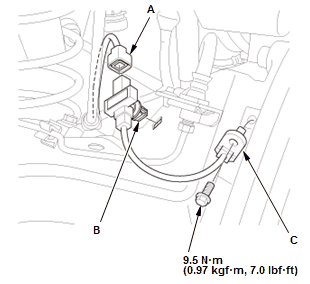

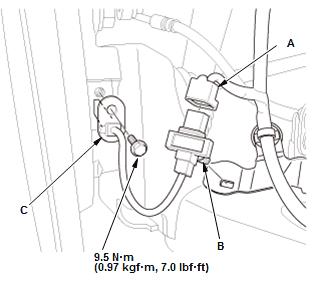

  1. Disconnect the connector (A)
  2. Remove the clip (B)
  3. Remove the wheel speed sensor (C).

6. All Removed Parts - Install

  1. Install the wheel speed sensor in the reverse order of removal, and note these items
