Honda HR-V: Wiper Arm Removal and Installation

Removal & Installation

NOTE :

  • Before removal and installation, turn the wiper/washer switch ON to (LO) or (HI) position, then OFF to return the motor shaft to the auto-stop position.
  • Do not use the wiper/washer switch (INT) position in this step.

Windshield

1. Windshield Wiper Arm Assembly - Remove

Exterior Trim - Service Information

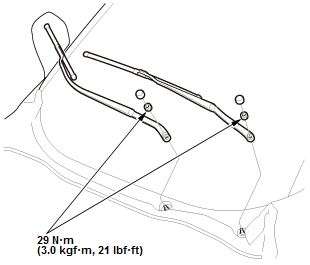

Fig. 5: Windshield Wiper Arm Torque Specifications

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

3. Windshield Wiper Arm/Nozzle - Adjust

Rear Window

4. Rear Window Wiper Arm - Remove

Exterior Trim - Service Information

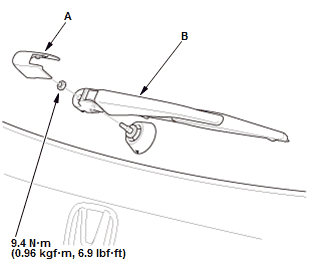

  1. Remove the cover (A)
  2. Remove the rear window wiper arm (B).

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

6. Rear Window Wiper Arm/Nozzle - Adjust

WIPER BLADE REMOVAL AND INSTALLATION

Removal

Windshield

1. Windshield Wiper Blade - Remove

Exterior Trim - Service Information

  1. Lift the wiper arm off the windshield, raising the driver's side first, then the passenger's side

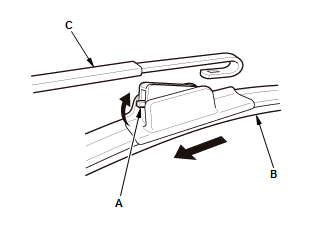

  2. Pull up the tab (A)
  3. Slide the windshield wiper blade assembly (B) off the wiper arm (C).

Exterior Trim - Service Information

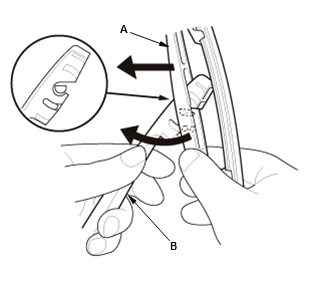

  1. Find the blade holder labeled "SET" (A)
  2. Pull back the wiper blade (B).

Exterior Trim - Service Information

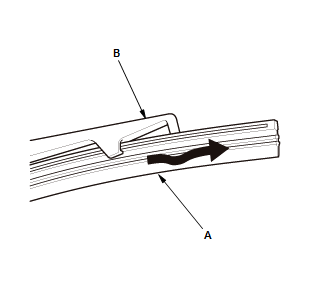

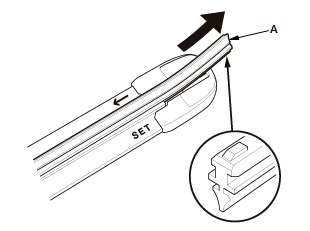

  1. Pull the wiper blade (A) through the wiper blade replacing void.

Exterior Trim - Service Information

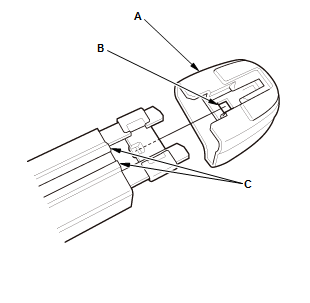

  1. Remove the end cap (A) by pressing tab (B).

    NOTE :

    • When removing it, take care not to damage the rubber holder (C).
    • When removing the wiper blade, does not need to remove the end cap.

Rear Window

2. Rear Window Wiper Blade - Remove

Exterior Trim - Service Information

  1. Lift the wiper arm off the rear window
  2. Turn the rear window wiper blade assembly (A) and release the lock
  3. Slide out the rear window wiper blade assembly.

Exterior Trim - Service Information

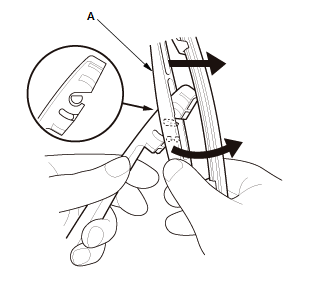

  1. Lift the rear window wiper blade (A) from the wiper blade holder (B), then slide out it.

Installation

Windshield

1. Windshield Wiper Blade - Install

Exterior Trim - Service Information

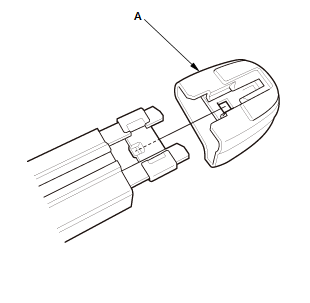

  1. Install the end cap (A).

Exterior Trim - Service Information

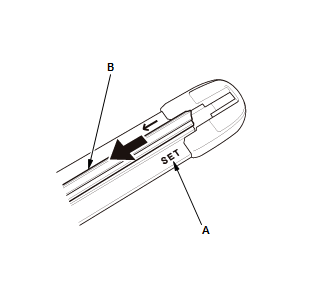

  1. Find blade holder labeled "SET" (A), and then install the tip side with no projection. NOTE : End side with a projection shall not be installed
  2. Install the new wiper blade (B).

Exterior Trim - Service Information

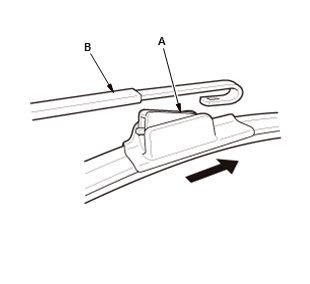

  1. Install the windshield wiper blade assembly (A) on the windshield wiper arm (B)
  2. Test by turning on the wipers
  3. If the blades slip, turn off the wipers and seat the windshield wiper blade assembly more firmly.

Rear Window

2. Rear Window Wiper Blade - Install

Exterior Trim - Service Information

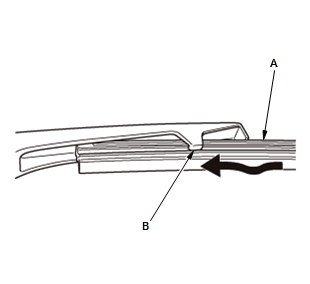

  1. Install the new rear window wiper blade (A) and set the holder (B) into the groove.

Exterior Trim - Service Information

  1. Install the rear window wiper blade assembly (A) to the rear window wiper arm (B)
  2. Test by turning on the wiper
  3. If the blade slips, turn off the wiper and the rear window wiper blade assembly more firmly
