Honda HR-V: Wiring Diagram

DLC ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

EGR SYSTEM ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

ETCS (ELECTRONIC THROTTLE CONTROL SYSTEM) ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

EVAP SYSTEM ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

IDLE CONTROL SYSTEM ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

MIL CIRCUIT ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

PCM (ALL) ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

PCM CONNECTOR FOR INPUTS AND OUTPUTS

Engine Control System & Engine Mechanical - Testing & Troubleshooting

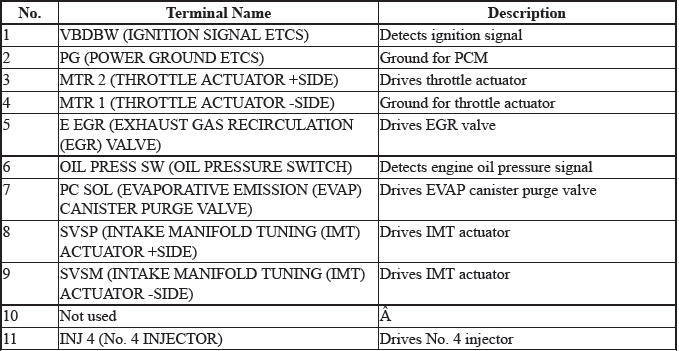

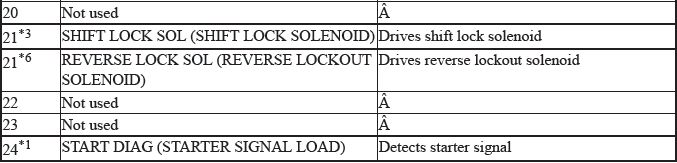

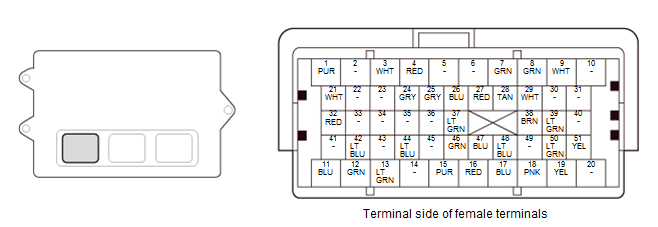

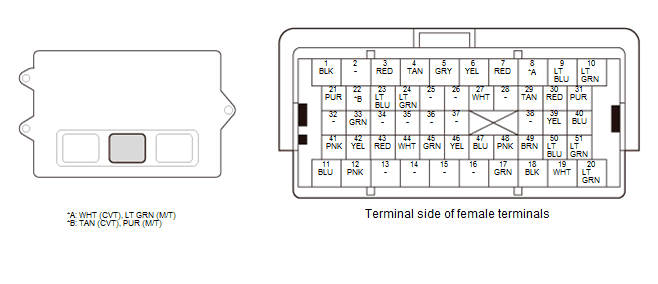

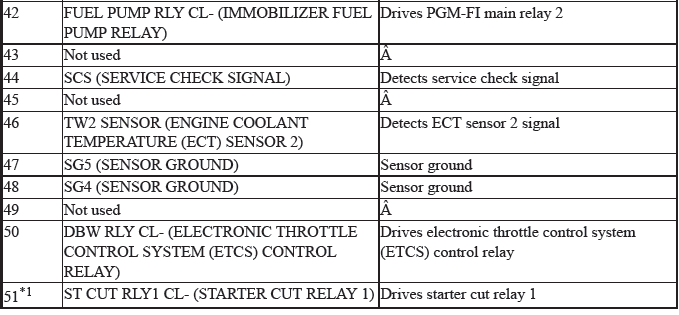

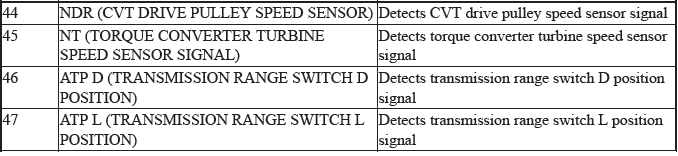

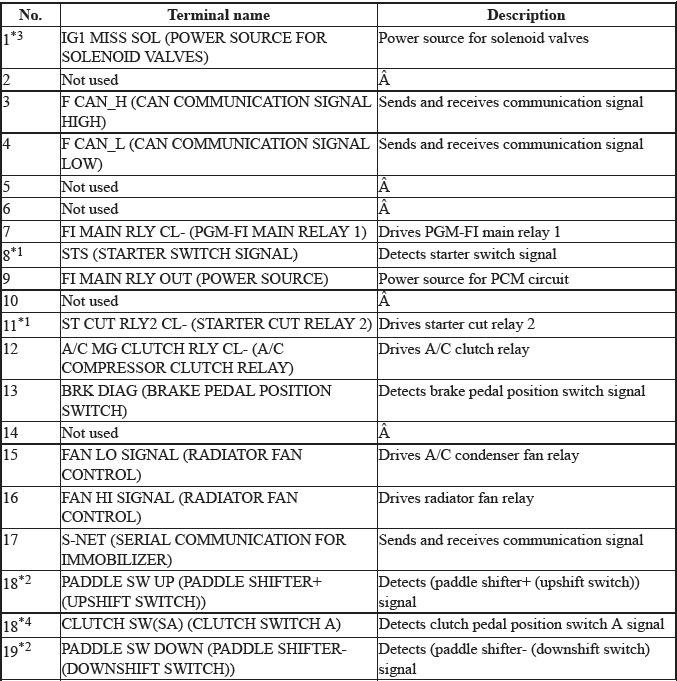

PCM Inputs and Outputs at PCM Connector A (□) (51P)

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

*1: With keyless access system s
*2: With paddle shifter
*3: CVT
*4: M/T with keyless access system
*5: USA and Canada model
*6: M/T

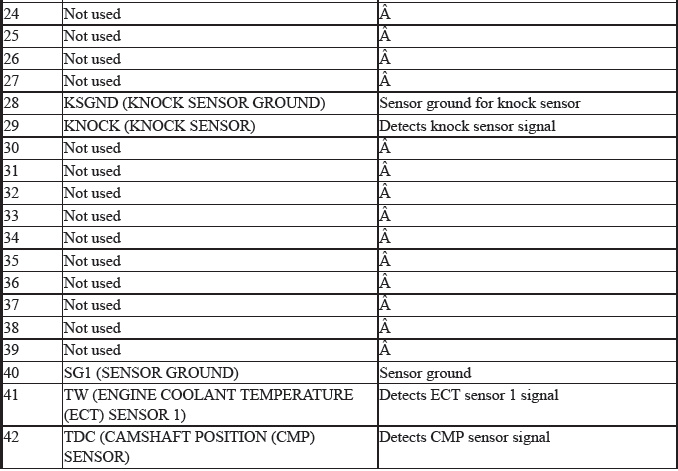

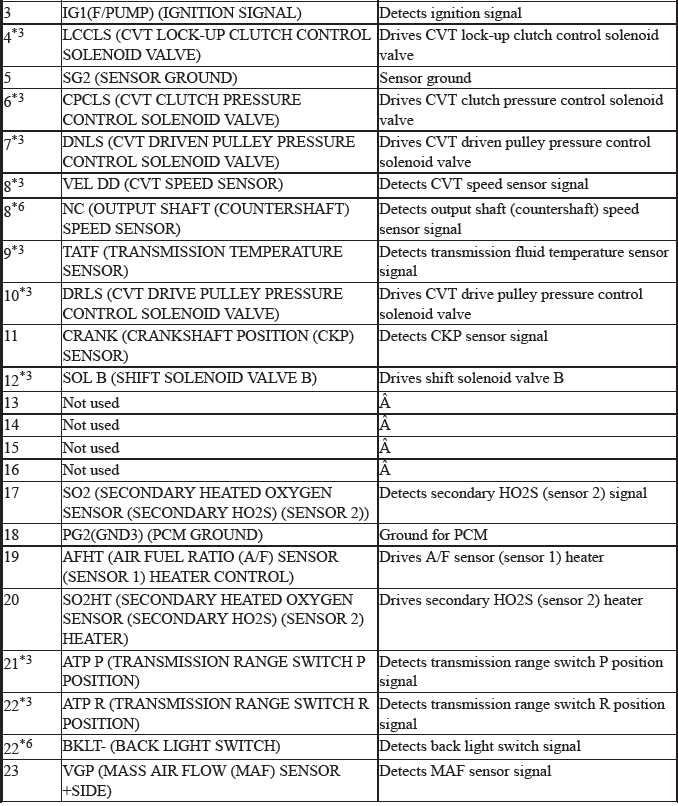

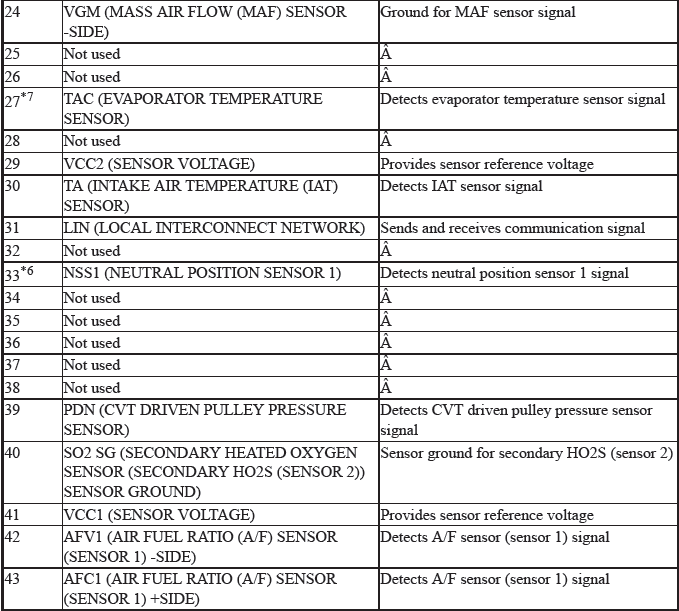

PCM Inputs and Outputs at PCM Connector B (Δ) (51P)

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

*3: CVT
*6: M/T
*7: With manual A/C

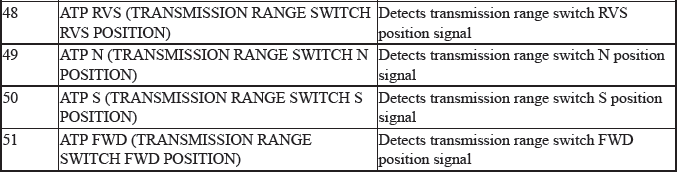

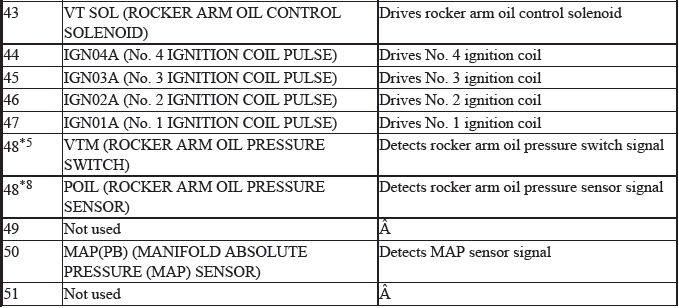

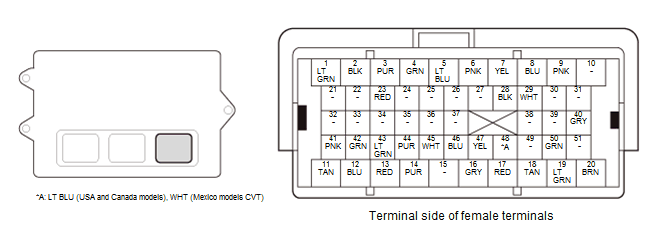

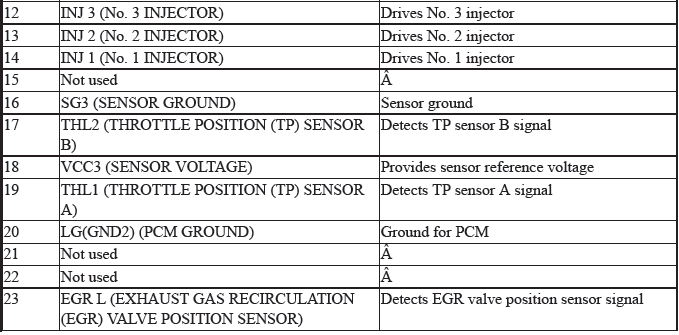

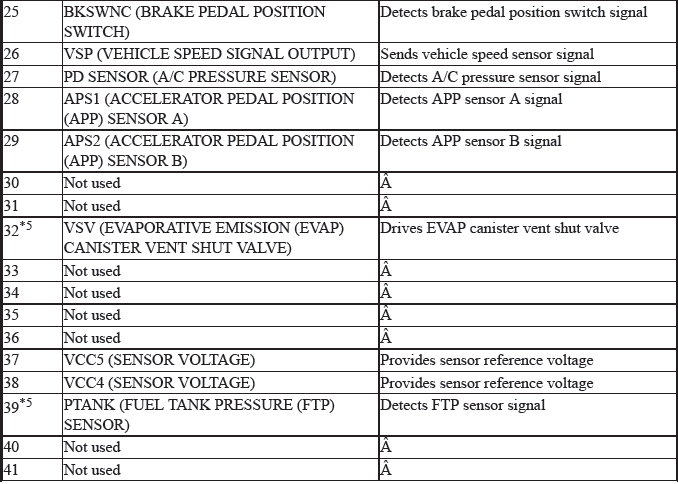

PCM Inputs and Outputs at PCM Connector C (◦) (51P)

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

Engine Control System & Engine Mechanical - Testing & Troubleshooting

*5: USA and Canada models
*8: Mexico models CVT

PCM POWER AND GROUND ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

PGM-FI SYSTEM ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams

VTEC SYSTEM ELECTRONIC WIRING DIAGRAM

Refer to the appropriate Diagram System Wiring Diagrams
