Honda HR-V: Front Fog Light Trim Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Front Fog Light Trim Removal and Installation

Removal & Installation

1. Front Bumper - Remove

2. Front Bumper Lower Grille - Remove

3. Front Fog Light Trim - Remove

Exterior Trim - Service Information

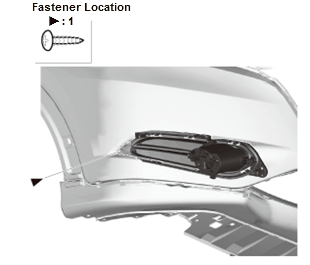

  1. Remove the screw.

Exterior Trim - Service Information

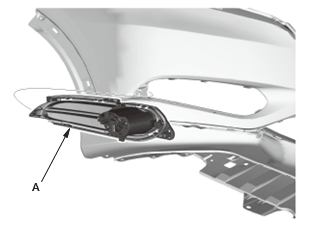

  1. Remove the front fog light trim (A).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

FRONT GRILLE COVER REMOVAL AND INSTALLATION

Removal & Installation

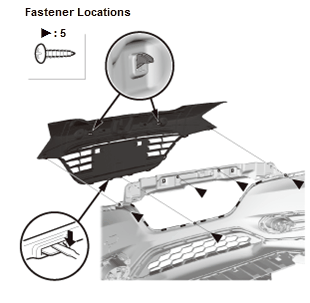

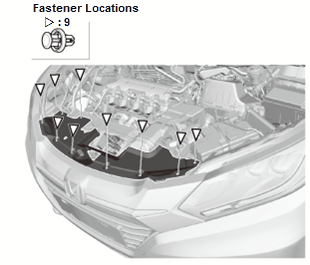

1. Front Grille Cover - Remove

Exterior Trim - Service Information

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

FRONT GRILLE REMOVAL AND INSTALLATION

Removal & Installation

1. Front Bumper - Remove

2. Front Grille - Remove

Exterior Trim - Service Information

3. Front Grille - Disassembly

Exterior Trim - Service Information

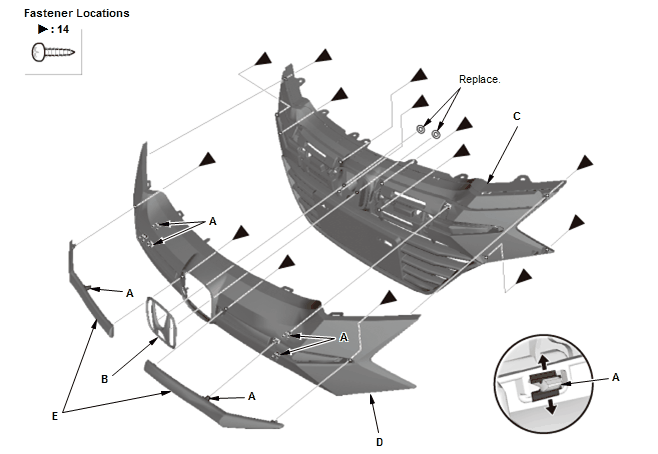

  1. Remove the screws and release the hooks (A).
  2. If necessary, remove these items.
  • Front "H" emblem (B)
  • Front grille base (C)
  • Front grille cover (D)
  • Front grille molding (E)

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
