Honda HR-V: Air Conditioning & Heat
AIR CONDITIONING TROUBLE SHOOTING
WARNING: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

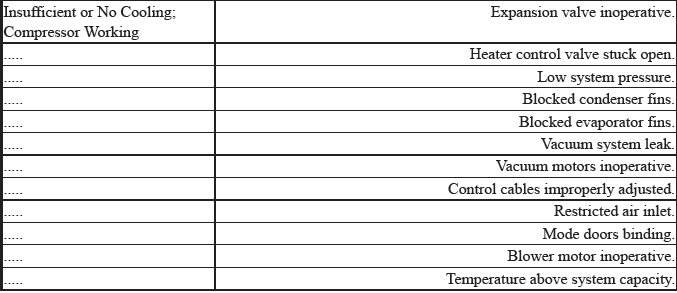

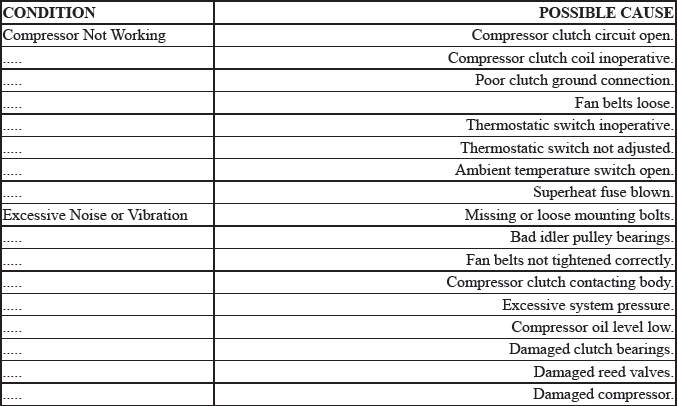

BASIC AIR CONDITIONING TROUBLE SHOOTING CHART
.png)
.png)
HEATER SYSTEM TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

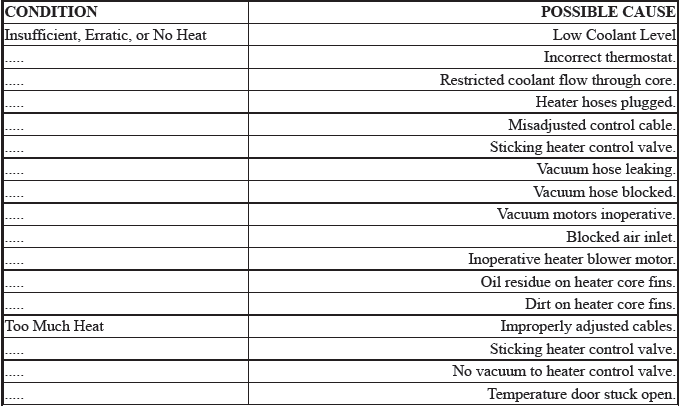

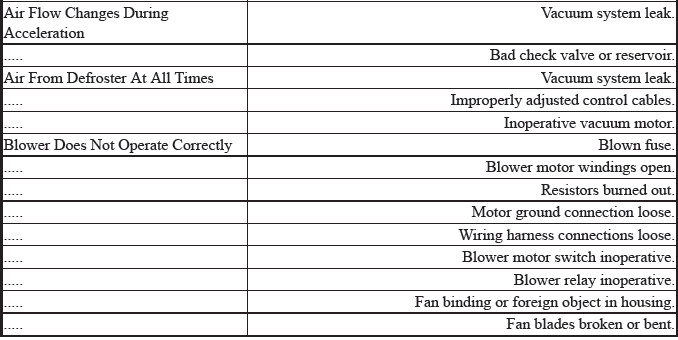

BASIC HEATER SYSTEM TROUBLE SHOOTING CHART
.png)
.png)
