REMOVAL INSTALLATION
MIRROR HOLDER REMOVAL AND INSTALLATION
Removal & Installation
1. Mirror Holder - Remove
![Mirrors - Service Information](images/books/1097/index 106(24).png)
- Carefully push on the top edge of the mirror holder (A) by hand
- Put a shop towel in the opening between the bottom edge of the mirror
holder and
the mirror housing (B) to prevent scratches
- Insert a flat-tip screwdriver under the mirror holder, and quickly twist
the
screwdriver to separate the mirror holder from the actuator (C)
- Insert a flat-tip screwdriver further into the mirror holder and twist
it again.
NOTE :
Do not pry up on the mirror holder to separate the two parts, as this can
cause either
the mirror glass or actuator to break.

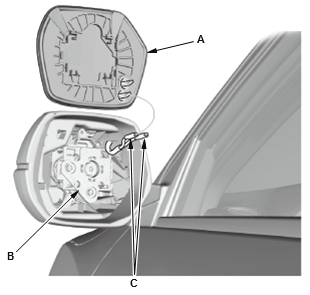

![Mirrors - Service Information](images/books/1097/index 107(24).png)
- Separate the mirror holder (A) from the actuator (B)
- Disconnect the connectors (C). (for some models)
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
MIRROR HOUSING COVER REMOVAL AND INSTALLATION
Removal & Installation
1. Mirror Holder - Remove
2. Mirror Housing Cover - Remove

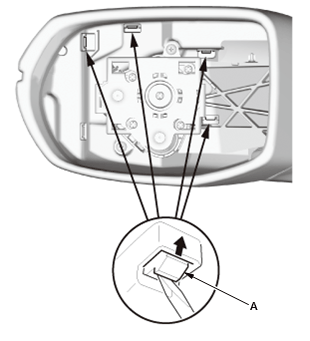

![Mirrors - Service Information](images/books/1097/index 108(23).png)
- Release the hooks (A).
![Mirrors - Service Information](images/books/1097/index 109(24).png)

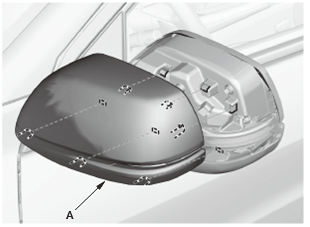

- Remove the housing cover (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
MIRROR HOUSING REMOVAL AND INSTALLATION
Removal & Installation
1. Power Mirror - Remove
2. Mirror Housing Cover - Remove
3. Side Turn Signal Light - Remove (For Some Models)
4. Mirror Housing Under Cover - Remove

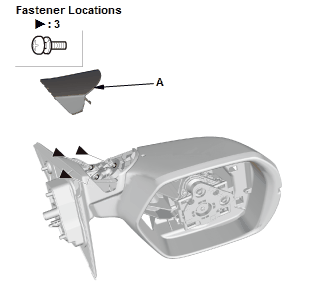

![Mirrors - Service Information](images/books/1097/index 110(24).png)
- Remove the base cover (A), and then remove the
bolts.
![Mirrors - Service Information](images/books/1097/index 111(23).png)

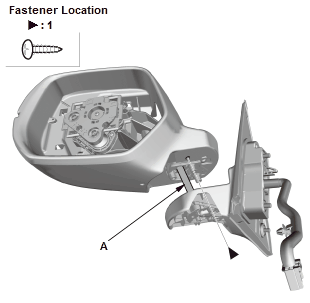

- Remove the screw.
NOTE : Do not put excessive force to the
wire harness (A).
![Mirrors - Service Information](images/books/1097/index 112(24).png)

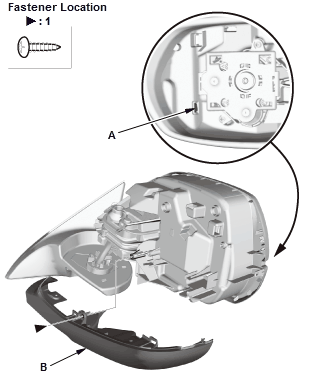

- Release the hook (A), and then remove the mirror housing
under cover (B).
5. Lane Watch Camera - Remove (For Some Models)
6. Mirror Housing - Remove
![Mirrors - Service Information](images/books/1097/index 113(23).png)

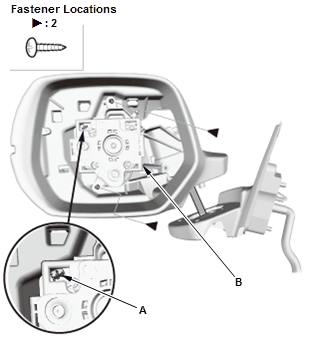

- Release the hook (A), and then remove the door mirror
actuator (B).

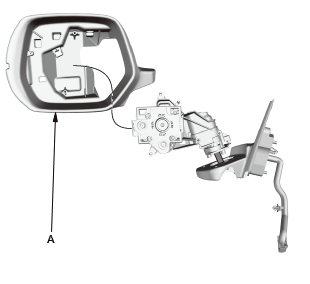

![Mirrors - Service Information](images/books/1097/index 114(24).png)
- Remove the mirror housing (A).
7. All Removed Parts - Install
- Install the parts in the reverse order of removal.
POWER MIRROR REMOVAL AND INSTALLATION
Removal & Installation
1. Front Door Panel - Remove
2. Power Mirror - Remove

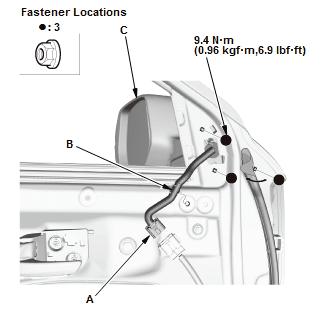

![Mirrors - Service Information](images/books/1097/index 115(24).png)
- Disconnect the connector (A), then remove the harnesses
clip (B)
- While holding the power mirror (C), remove the nuts.
![Mirrors - Service Information](images/books/1097/index 116(24).png)

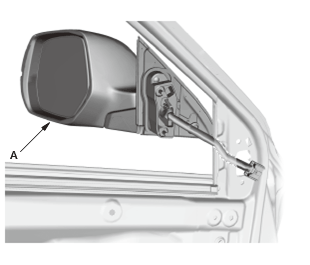

- Remove the power mirror (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
POWER MIRROR SWITCH REMOVAL AND INSTALLATION
Removal & Installation
1. Front Door Switch Panel - Remove
2. Power Mirror Switch - Remove

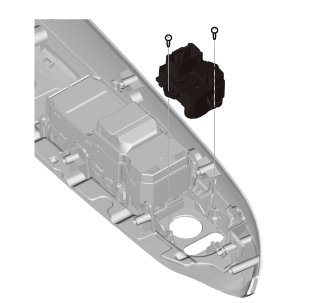

![Mirrors - Service Information](images/books/1097/index 117(24).png)
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
REARVIEW MIRROR REMOVAL AND INSTALLATION
Removal & Installation
1. Rearview Mirror - Remove

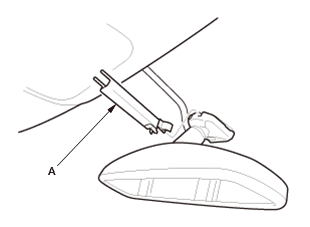

![Mirrors - Service Information](images/books/1097/index 118(23).png)
- Remove the rearview mirror harness cover (A). (for some
models)
![Mirrors - Service Information](images/books/1097/index 119(24).png)

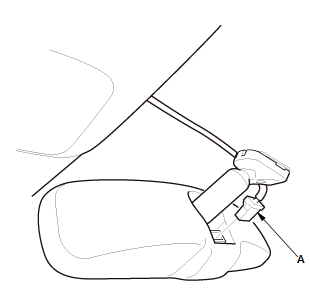

- Disconnect the connector (A). (for some models)

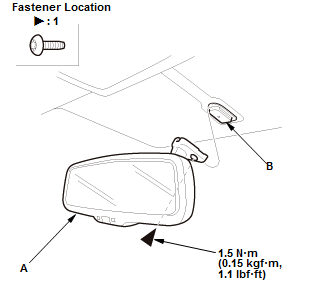

![Mirrors - Service Information](images/books/1097/index 120(24).png)
- Remove the screw with a TORX T20 bit
- Slide the rearview mirror (A) rearward and off the mount
(B).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
