Honda HR-V: Audio/Information Screen
Displays the audio status and wallpaper. From this screen, you can go to various setup options.

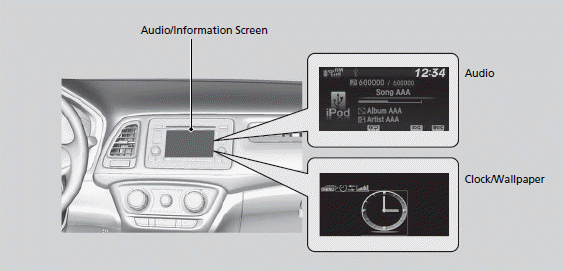

■Switching the Display
.png)
■ Audio
Shows the current audio information.
■ Clock/Wallpaper
Shows a clock screen or an image you import.
■ Change display
1. Press the MENU/CLOCK button.
2. Rotate.png)
to select Settings, then
press .png)
.
3. Rotate.png)
to select Display Change,
then press .png)
.
4. Rotate.png)
to select Wallpaper, then
press .png)
.
- If you want to return to the audio display, select Audio.
■Wallpaper Setup
You can change, store, and delete the wallpaper on the audio/information screen.

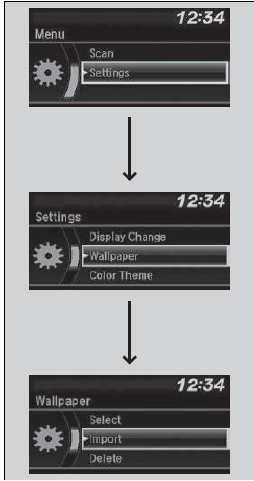

■ Import wallpaper
You can import up to three images, one at a time, for wallpaper from a USB flash drive.
1. Connect the USB flash drive to the USB port.
2. Press the MENU/CLOCK button.
3. Rotate to select Settings, then press
.png)
.
4. Rotate .png)
to select Wallpaper,
then press
.png)
.
5. Rotate .png)
to select Import, then
press .png)
.
- The picture name is displayed on the list.
6. Rotate .png)
to select a desired
picture, then
press .
- The selected picture is displayed.
7. Press .png)
to save the picture.
8. Press .png)
to select OK.
9. Rotate .png)
to select a location to
save the
picture, then press .png)
.
- The display will return to the wallpaper setting screen.
.png)
- When importing wallpaper files, the image must be in the USB flash drive's root directory. Images in a folder cannot be imported.
- The file name must be fewer than 64 characters.
- The file format of the image that can be imported is BMP (bmp) or JPEG (jpg).
- The individual file size limit is 2 MB.
- The maximum image size is 1,920 x 936 pixels. If the image size is less than 480 × 234 pixels, the image is displayed in the middle of the screen with the extra area appearing in black.
- Up to 255 files can be selected.
- If the USB flash drive does not have any pictures, the No files detected message appears.
■ Select wallpaper
1. Press the MENU/CLOCK button.
2. Rotate.png)
to select Settings, then
press .png)
.
3. Rotate.png)
to select Wallpaper, then
press .png)
.
4. Rotate.png)
to select Select, then
press .png)
.
- The screen changes to the wallpaper list.
5. Rotate.png)
to select a desired
wallpaper, then press .png)
.
■ Delete wallpaper
1. Press the MENU/CLOCK button.
2. Rotate.png)
to select Settings, then
press .png)
.
3. Rotate.png)
to select Wallpaper, then
press .png)
.
4. Rotate.png)
to select Delete, then
press .png)
.
- The screen changes to the wallpaper list.
5. Rotate.png)
to select a wallpaper
that you want to delete, then press .png)
.
6. Rotate.png)
to select Yes, then press
.png)
.
- The display will return to the wallpaper setting screen.
To go back to the previous screen, press the
.png)
(Back) button.
When the file size is large, it takes a while to be previewed.
