Honda HR-V: Audio Unit Removal and Installation (Color Audio Type (5-inch Screen)

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Service Information / Audio Unit Removal and Installation (Color Audio Type (5-inch Screen)

Removal & Installation

NOTE:

  • When working on electronic components, make sure the work area is clean and dust free.
  • Make sure your hands are clean and free of oils and grease.
  • Eject the CD before disconnecting the audio unit to prevent damaging the CD player's load mechanism.
  • If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the new audio unit.
  • Make sure the flexible printed circuit is connected certainly.

1. Passenger's Dashboard Panel - Remove - Refer to: Passenger's Dashboard Panel Removal and Installation, or Driver's Dashboard Panel Removal and Installation

2. Audio Unit Assembly - Remove

Audio Visual Systems - Service Information

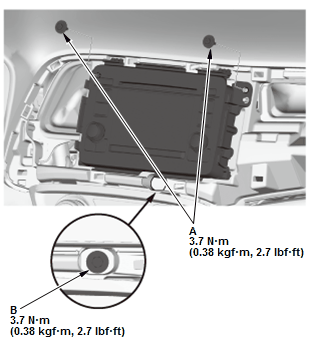

  1. Remove the bolt (A)
  2. Loosen the bolt (B).

    NOTE: Take care not to loosen the bolt excessively, you may drop it.

Audio Visual Systems - Service Information

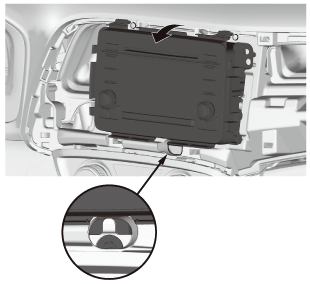

  1. Tilt the audio unit to front in the direction shown, then disengage the bracket from the bolt.

Audio Visual Systems - Service Information

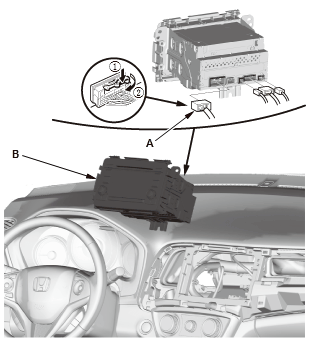

  1. Pull out the audio unit assembly (B)
  2. Disconnect the connectors.

    NOTE: There is a lever lock on audio unit connector A

  3. Remove the audio unit assembly.

3. Audio Unit - Remove

Audio Visual Systems - Service Information

NOTE:

  • Discharge static electricity from your body before and during the work.
  • Do not touch the circuit board(s) with your bare hands.
  • Do not touch the terminal connector of the audio panel with your bare hands (If you have touched it, wipe it off thoroughly).

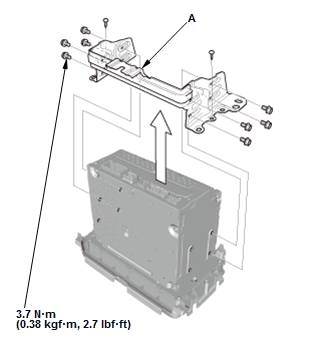

  1. Remove the bracket (A).

Audio Visual Systems - Service Information

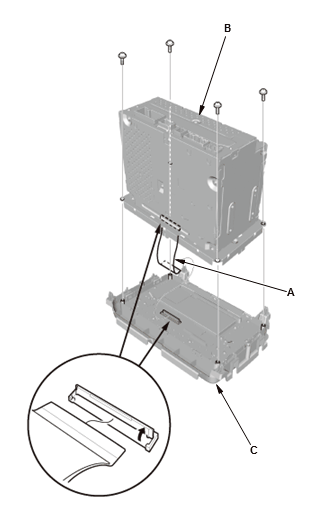

  1. Disconnect the flexible printed circuit (A)
  2. Remove the audio unit (B) from the audio panel (C).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
    NOTE:
    After Installation, do the System Links in the System Diagnostic Mode to confirm that there are no problems in the system.
