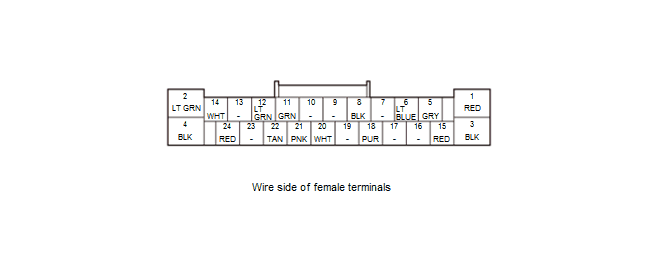

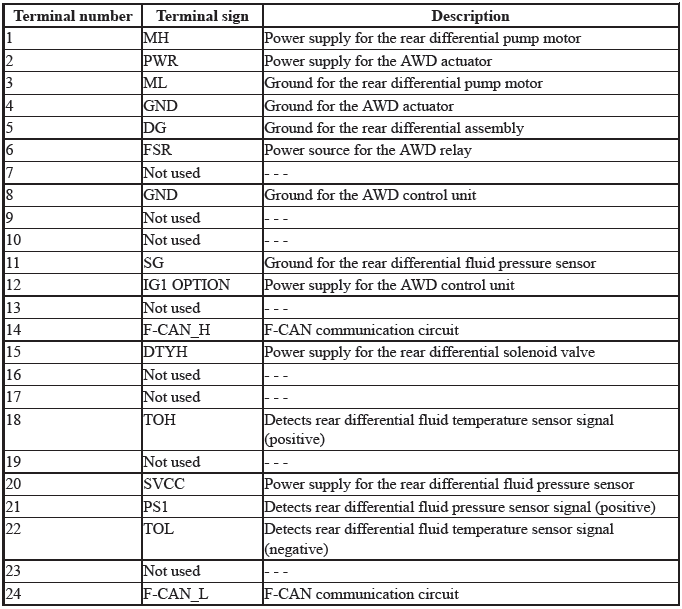

AWD Control Unit Inputs and Outputs for 24P Connector (Connector
Disconnected)
![Differential - Testing & Troubleshooting](images/books/1097/index 255(3).png)
![Differential - Testing & Troubleshooting](images/books/1097/index 256(3).png)
AWD SYSTEM BLEEDING (AWD)
Procedure
NOTE: Whenever the rear differential assembly is disassembled, the AWD with
intelligent control system must
be bled.
1. HDS - Connect
2. AWD System - Air Bleed
- Select the ADJUSTMENT in the AWD WITH INTELLIGENT CONTROL with the HDS
- Select the AIR BLEEDING in the ADJUSTMENT with the HDS.NOTE : See the
HDS Help menu
for specific instructions.
3. Rear Differential Fluid - Check
REAL TIME AWD ELECTRONIC WIRING DIAGRAM
Refer to appropriate wiring diagram.System Wiring Diagrams
REAR DIFFERENTIAL DISASSEMBLY AND REASSEMBLY (AWD)
Special Tools Required
Oil Seal Driver,
41.8 mm
07947-6890100
![Differential - Testing & Troubleshooting](images/books/1097/index 257(3).png)

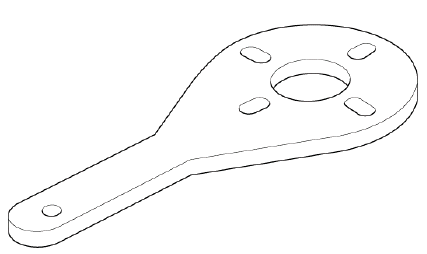

Companion
Flange Holder
07RAB-TB4010B
![Differential - Testing & Troubleshooting](images/books/1097/index 258(3).png)

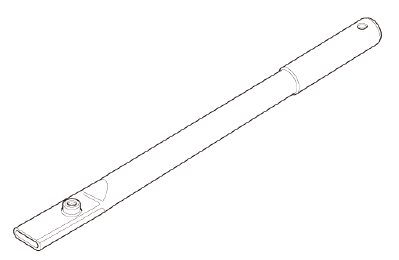

Holder Handle
07JAB-001020B
![Differential - Testing & Troubleshooting](images/books/1097/index 259(2).png)
Exploded View
1. Rear Differential - Exploded View
![Differential - Testing & Troubleshooting](images/books/1097/index 260(2).png)

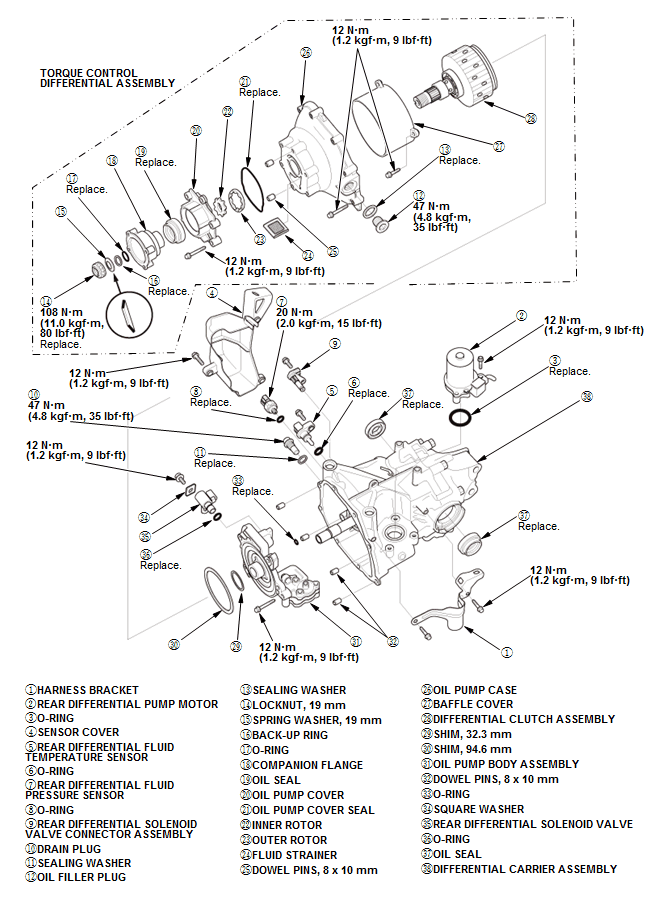

Fig. 2: Differential Exploded View With Torque Specifications
Disassembly
1. Rear Differential Pump Motor - Remove
2. Rear Differential Fluid Temperature Sensor - Remove
3. Rear Differential Fluid Pressure Sensor - Remove

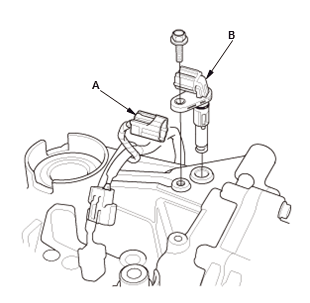

4. Rear Differential Solenoid Valve Connector Assembly - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 261(2).png)
- Disconnect the connector (A)
- Remove the rear differential solenoid valve connector
assembly (B).

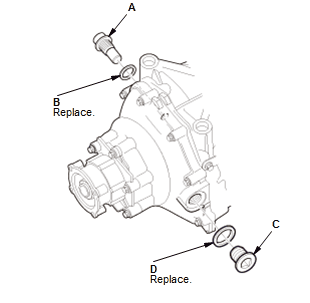

5. Oil Filler Plug and Drain Plug - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 262(2).png)
- Remove the drain plug (A) with the sealing washer (B)
- Remove the oil filler plug (C) with the sealing washer
(D).
6. Rear Differential Subharness - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 263(2).png)

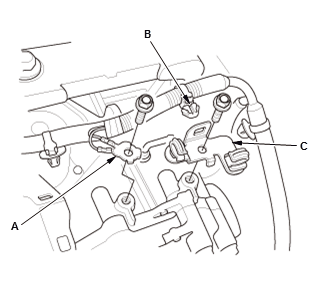

- Disconnect the ground terminal (A)
- Remove the harness clip (B)
- Remove the harness bracket (C).
7. Companion Flange - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 264(2).png)
- Pry up the stake on the locknut (A) from the groove of the clutch guide,
making sure the tab completely clears the groove to prevent damaging the
clutch
guide.
![Differential - Testing & Troubleshooting](images/books/1097/index 265(2).png)

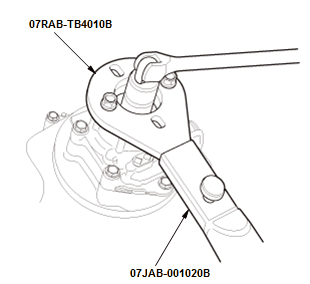

- Install the companion flange holder and the holder handle on the
companion flange.
![Differential - Testing & Troubleshooting](images/books/1097/index 266(2).png)

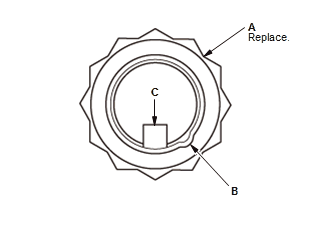

- Loosen the locknut (A) counterclockwise so its tab (B) comes out from
the groove (C) in the clutch guide.
![Differential - Testing & Troubleshooting](images/books/1097/index 267(2).png)

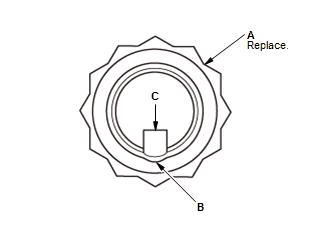

- Tighten the locknut (A) until its tab (B) aligns with the groove
(C)
- Clean any dirt from inside the groove in the clutch guide, then
loosen the locknut.
![Differential - Testing & Troubleshooting](images/books/1097/index 268(2).png)

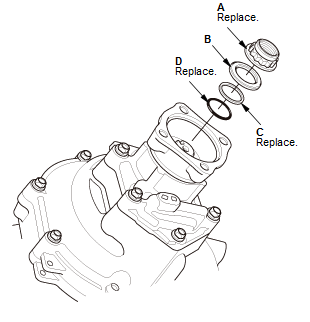

- Remove the locknut (A), the spring washer (B), the back-up ring
(C), and the O-ring (D).
![Differential - Testing & Troubleshooting](images/books/1097/index 269(2).png)

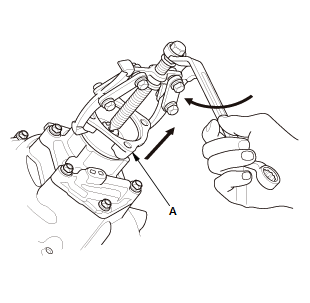

- Remove the companion flange (A) with a commercially
available puller.
8. Oil Pump Cover - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 270(2).png)

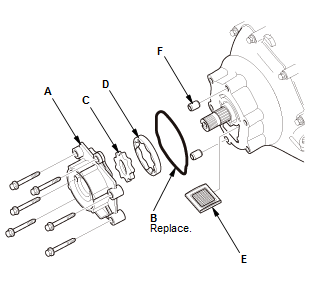

- Remove the oil pump cover (A) and oil pump cover seal
(B)
- Remove the inner rotor (C) and the outer rotor (D)
- Remove the fluid strainer (E) and the dowel pins (F).

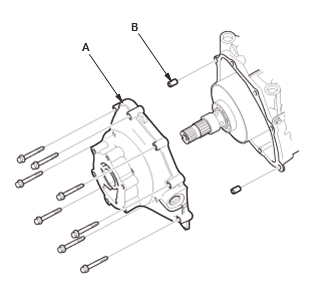

9. Oil Pump Case - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 271(2).png)
- Remove the oil pump case (A)
- Remove the dowel pins (B).
10. Differential Clutch Assembly - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 272(2).png)

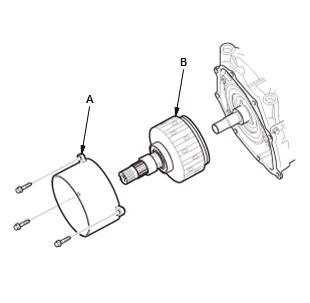

- Remove the baffle cover (A)
- Remove the differential clutch assembly (B).
11. Oil Pump Body Assembly - Remove

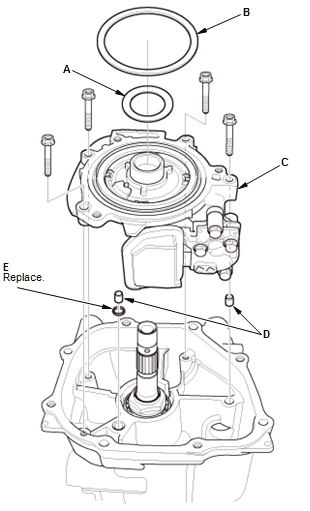

![Differential - Testing & Troubleshooting](images/books/1097/index 273(2).png)
- Remove the 32.3 mm shim (A)
- Remove the 94.6 mm shim (B)
- Remove the oil pump body assembly (C)
- Remove the dowel pins (D) and the O-ring (E).

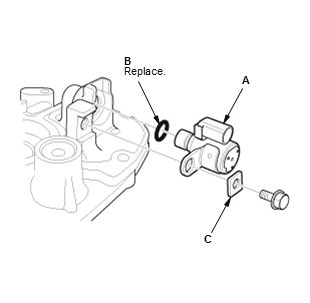

12. Rear Differential Solenoid Valve - Remove
![Differential - Testing & Troubleshooting](images/books/1097/index 274(2).png)
- Remove the rear differential solenoid valve (A), the O-ring (B),
and the square washer (C).
Reassembly

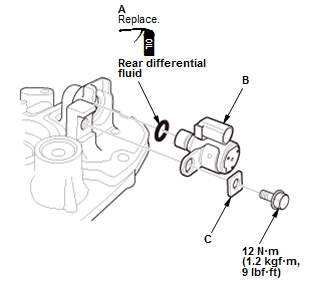

1. Rear Differential Solenoid Valve - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 275(2).png)
- Apply rear differential fluid to a new O-ring (A)
- Install the rear differential solenoid valve (B) with the O-ring, and
the square washer (C).
2. Oil Pump Body Assembly - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 276(2).png)

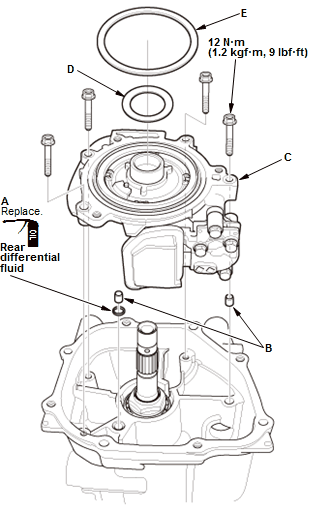

- Apply rear differential fluid to a new O-ring (A)
- Install the dowel pins (B) with the O-ring
- Install the oil pump body assembly (C)
- Install the 32.3 mm shim (D)
- Install the 94.6 mm shim (E).
3. Differential Clutch Assembly - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 277(2).png)

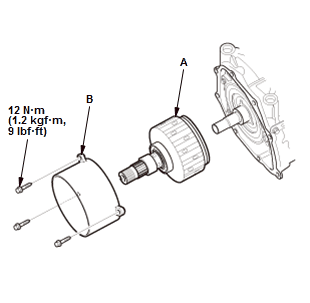

- Install the differential clutch assembly (A)
- Install the baffle cover (B).
4. Oil Pump Case - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 278(2).png)
- Remove the dirt and oil from the sealing surfaces
- Apply liquid gasket (P/N 08C70-K0334M) evenly to the sealing surface
- Install the component within 5 minutes of applying the liquid gasket.
Make sure
you seal the entire circumference of the bolt holes to prevent fluid
leakage.
NOTE :
- If too much time has passed after applying the liquid gasket, remove
the old
liquid gasket and residue, then reapply the new liquid gasket.
- Allow it to cure at least 30 minutes after assembly before filling
the
differential with recommended fluid.
![Differential - Testing & Troubleshooting](images/books/1097/index 279(2).png)

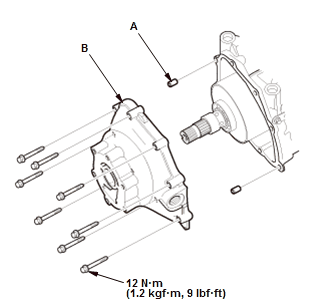

- Install the dowel pins (A)
- Install the oil pump case (B)
- Torque the mounting bolts in a crisscross pattern in several
steps.

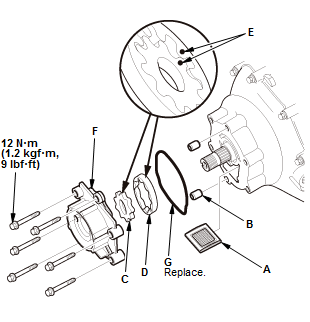

5. Oil Pump Cover - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 280(2).png)
- Install the fluid strainer (A) and the dowel pins (B)
- Install the inner rotor (C) and the outer rotor (D) with the "." marks
(E) facing the oil pump case side
- Install the oil pump cover (F) with a new oil pump cover seal (G)
- Torque the mounting bolts in a crisscross pattern in several steps.
6. Companion Flange - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 281(2).png)
- Set the companion flange (A) to the clutch guide shaft

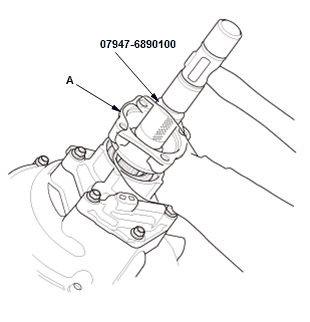

- Drive on the companion flange using the 41.8 mm oil seal
driver.
![Differential - Testing & Troubleshooting](images/books/1097/index 282(2).png)
- Check the length of clutch guide shaft as shown.
NOTE: Make sure to drive on
the companion flange until 2 to 3 thread pitches of the clutch guide shaft
appears.
![Differential - Testing & Troubleshooting](images/books/1097/index 283(2).png)
- Apply rear differential fluid to the used locknut
- Set the used locknut to the clutch guide shaft
- Install the companion flange holder and the holder handle on the
companion flange
- Tighten the used locknut
- Remove the used locknut, then remove the companion flange
holder and the holder handle
- Check the companion flange has been set to the bottom.
![Differential - Testing & Troubleshooting](images/books/1097/index 284(2).png)
- Apply rear differential fluid to a new O-ring (A)
- Install the O-ring, a new back-up ring (B), the spring washer (C), and a
new
locknut (D).
NOTE : Be sure to install the spring washer in the direction shown.
![Differential - Testing & Troubleshooting](images/books/1097/index 285(2).png)
- Install the
companion
flange holder and
the holder handle
on the
companion
flange.
- Tighten the
locknut to the
specified torque.
Specified
Torque: 108
N.m (11.0 kgf.m,
80 lbf.ft)

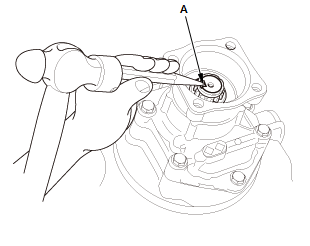

![Differential - Testing & Troubleshooting](images/books/1097/index 286(2).png)
- Stake the
locknut tab (A)
into the groove in
the clutch guide.

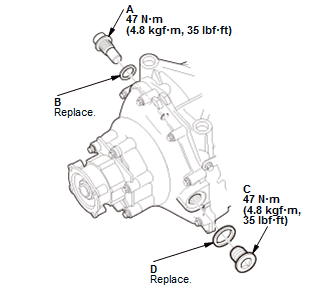

7. Oil Filler Plug and Drain Plug - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 287(2).png)
Fig. 3: Oil Filler And Drain Plug With Torque Specifications
- Install the drain plug (A) with a new sealing washer (B)
- Install the oil filler plug (C) with a new sealing washer (D)
finger-tight.
8. Rear Differential Solenoid Valve Connector Assembly - Install
![Differential - Testing & Troubleshooting](images/books/1097/index 288(2).png)
- Apply rear
differential fluid
to the O-ring (A)
- Install the rear
differential
solenoid valve
connector
assembly (B)
- Connect the
connector (C).
9. Rear Differential Fluid Pressure Sensor - Install
10. Rear Differential Fluid Temperature Sensor - Install
11. Rear Differential Pump Motor - Install
