Honda HR-V: DTC Troubleshooting B0082-13: Open or Increased Resistance in the Selectable
Energy Absorption Device of the Front Passenger's Seat Belt Tensioner
NOTE:
- Before doing this troubleshooting procedure, find out if the vehicle was
in a collision. If so, verify
that all the required components were replaced with new components of the
correct part number,
and that they were properly installed.
- Before doing this troubleshooting procedure, review SRS Precautions and
Procedures, General
Troubleshooting Information, and 12 Volt Battery Terminal Disconnection and
Reconnection.
- Before replacing the SRS unit, check the SRS unit software version with
the HDS. If the software version
is not the latest, update the SRS unit software, and retest.
1. Problem verification:
- Clear the DTCs with the HDS.
- Turn the vehicle to the ON mode, then wait for 10 seconds.
- Check for DTCs with the HDS.
Is DTC B0082-13 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting
Intermittent Failures. If
another DTC is indicated, troubleshoot the DTC.
1. Selectable energy absorption device check:
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the negative cable from the 12 volt battery, then wait at
least 3 minutes.
- Remove the right side B-pillar lower trim - Refer to: Interior Trim
Removal and Installation -
Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or
Interior Trim Removal
and Installation - Rear Side Area, or Interior Trim Removal and Installation
- Cargo Areas, or
Interior Trim Removal and Installation - Pillar Areas (With Side Curtain
Airbag), or Interior Trim
Removal and Installation - Pillar Areas (Without Side Curtain Airbag).
- Disconnect the following connector.

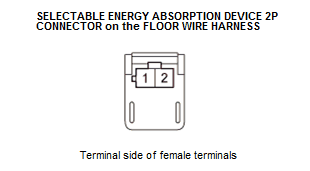

Selectable energy absorption device 2P connector (on the floor wire
harness)
- Connect terminals A and B with a jumper wire.
- Reconnect the negative cable to the 12 volt battery.
- Clear the DTCs with the HDS.
- Turn the vehicle to the ON mode, then wait for 10 seconds.
- Check for DTCs with the HDS.
Is DTC B0082-13 indicated?
YES
Go to step 3.
NO
Open in the selectable energy absorption device; replace the front
passenger's seat belt, then clear the
DTC.
3. Open wire check (READ+, READ- lines):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the negative cable from the 12 volt battery, then wait at
least 3 minutes.
- Remove the jumper wire from the selectable energy absorption device 2P
connector on the floor wire
harness.
- Disconnect the following connector.
SRS unit connector B (39P)
- Connect terminals A and B with a jumper wire.

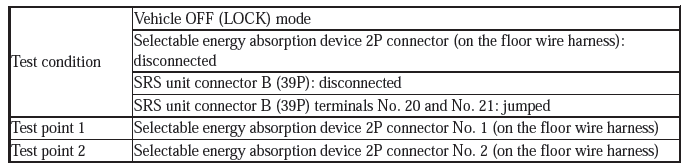

- Measure the resistance between test points 1 and 2.
Is there 1.0 Ω or less?
YES
The READ+ and READ- wires are OK. Faulty SRS unit or poor connection at SRS
unit connector B
(39P) and the SRS unit. Check the connection; if the connection is OK, replace
the SRS unit. If the
DTC does not clear, replace the floor wire harness.
NO
Open in the floor wire harness; replace the floor wire harness, then clear
the DTC.
