Honda HR-V: Carpet Removal and Installation

Removal & Installation

NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Both Front Seats - Remove

2. Both Rear Seat Foot Guide Cover - Remove

3. Center Console - Remove

4. Both Front Door Sill Trim -Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

5. Both Rear Door Sill Trim -Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

6. Both B-Pillar Lower Trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

7. Both Kick Panels - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

8. Driver's Dashboard Lower Cover - Remove

9. Glove Box - Remove

10.Front Console Panel - Remove

11.Steering Joint Cover - Remove

12.Center Lower Frame - Remove

Interior Trim - Service Information

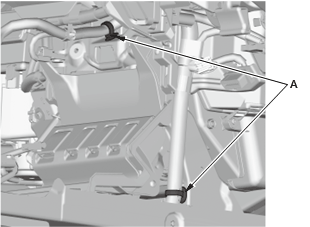

  1. Remove the harnesses clips (A).

Interior Trim - Service Information

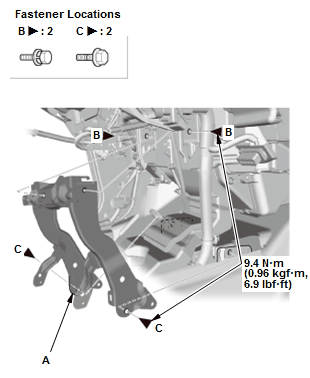

  1. Remove the center lower frame (A).

13.Floor Carpet - Remove

Interior Trim - Service Information

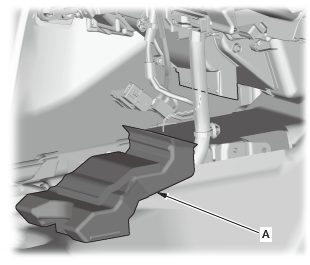

  1. Remove the rear heater joint duct (A).

Interior Trim - Service Information

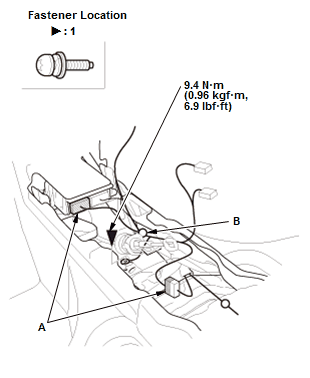

  1. Disconnect the connectors (A)
  2. Remove the ground bolt with a TORX T30 bit
  3. Remove the harness clips (B).

Interior Trim - Service Information

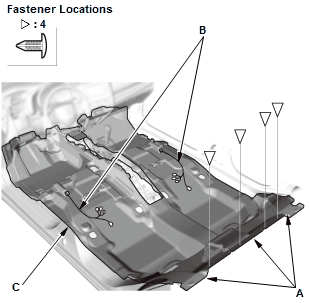

  1. Remove the clips and the fasteners (A)
  2. Pull out the harnesses (B), then remove the floor carpet (C).

14.All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
