Honda HR-V: Clutch Pedal Position Switch A Test (M/T)

Honda HR-V (2015-2021) Service Manual / Transmission / Manual Transaxle - Testing & Troubleshooting / Testing / Clutch Pedal Position Switch A Test (M/T)

Test

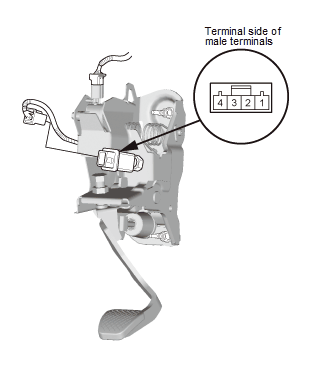

1. Connector (Clutch Pedal Position Switch A) - Disconnect

Manual Transaxle - Testing & Troubleshooting

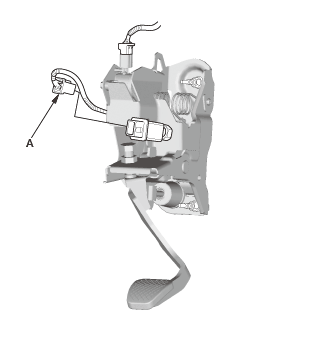

  1. Disconnect the connector (A).

2. Clutch Pedal Position Switch A - Test

Manual Transaxle - Testing & TroubleshootingManual Transaxle - Testing & Troubleshooting

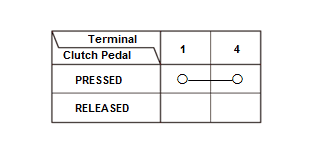

  1. Check for continuity between the terminals according to the table. If the continuity is not as specified, replace clutch pedal position switch A.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

REVERSE LOCKOUT SOLENOID TEST (M/T)

Test

1. Reverse Lockout Solenoid - Remove

2. Reverse Lockout Solenoid - Test

Manual Transaxle - Testing & Troubleshooting

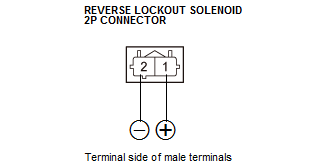

  1. Connect jumper wires from the battery positive terminal to reverse lockout solenoid 2P connector terminal No. 1, and from the battery negative terminal to reverse lockout solenoid 2P connector terminal No. 2
  2. Make sure the reverse lockout solenoid works. If the reverse lockout solenoid does not work, replace it.

    NOTE: The inhibitor should be pushed out when applying battery voltage to the solenoid, and the inhibitor should be released when there is no battery voltage at the solenoid.

3. Reverse Lockout Solenoid - Install
