Honda HR-V: Front Fender Fairing Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Trim - Service Information / Front Fender Fairing Removal and Installation

Removal & Installation

1. Front Inner Fender - Remove

  1. Remove the front inner fender - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation as needed.

2. Front Fender Fairing - Remove

Exterior Trim - Service Information

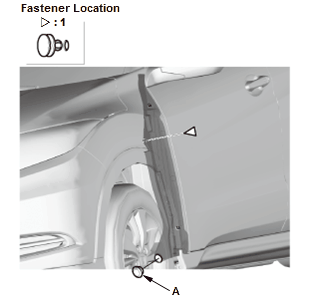

  1. Remove the clip and the grommet (A).

Exterior Trim - Service Information

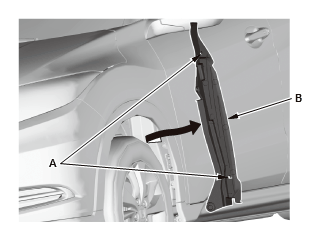

  1. Release the hooks (A), then remove the front fender fairing (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

FRONT FLOOR UNDERCOVER REMOVAL AND INSTALLATION (2WD)

Removal & Installation

1. Vehicle - Lift

2. Front Fuel Tank Guard - Remove

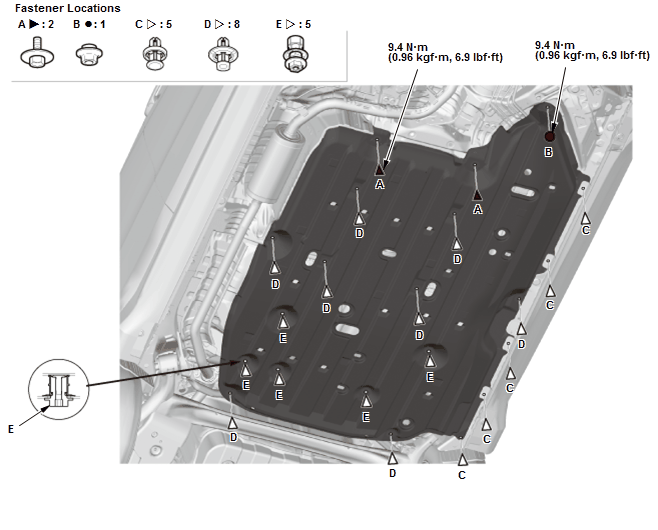

3. Front Floor Undercover - Remove (For Some Models)

NOTE : The retainer clips (E) will stay in the front floor under cover.

Exterior Trim - Service Information

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
