Honda HR-V: Manual Transmission Disassembly and Reassembly (M/T)

Special Tools Required

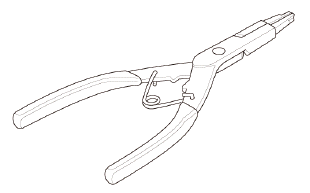

Snap Ring Pliers 07LGC-0010100

Manual Transaxle - Testing & Troubleshooting

Exploded View

1. Clutch Housing - Exploded View

Manual Transaxle - Testing & Troubleshooting

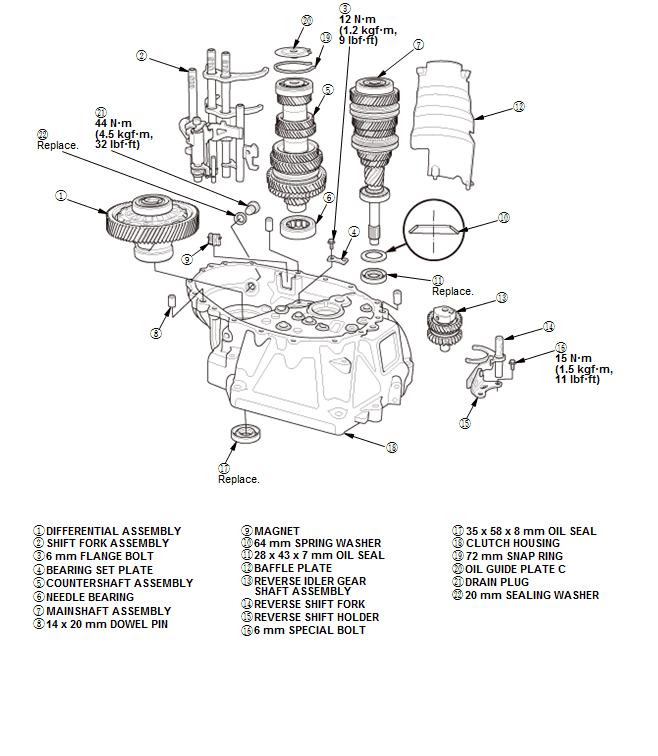

Fig. 5: Exploded View Of Clutch Housing With Torque Specifications

2. Transmission Housing - Exploded View

Manual Transaxle - Testing & Troubleshooting

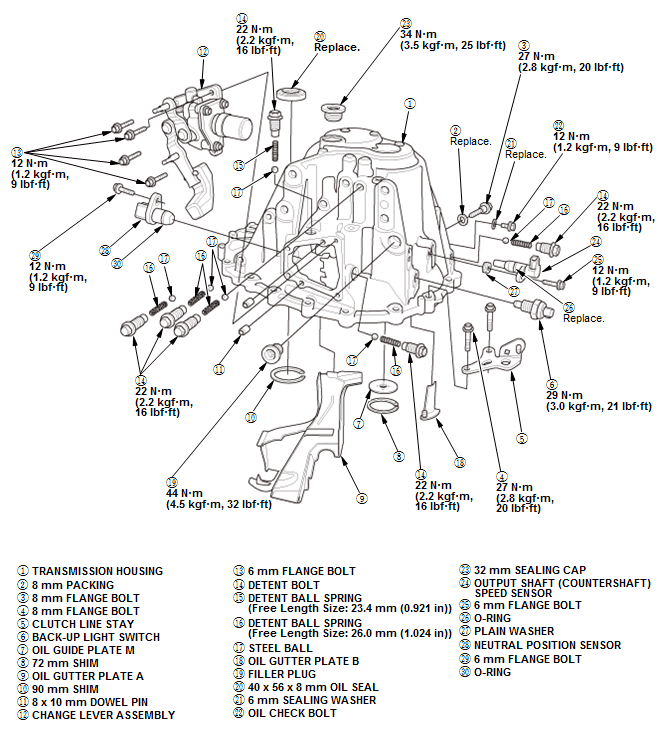

Fig. 6: Exploded View Of Transmission Housing With Torque Specifications

Disassembly

NOTE: Place the clutch housing on two pieces of wood thick enough to keep the mainshaft from hitting the workbench.

1. Transmission Housing - Remove

Manual Transaxle - Testing & Troubleshooting

  1. Remove the release bearing and the release fork.
  2. Remove the neutral position sensor (A) and the O-ring (B).

Manual Transaxle - Testing & Troubleshooting

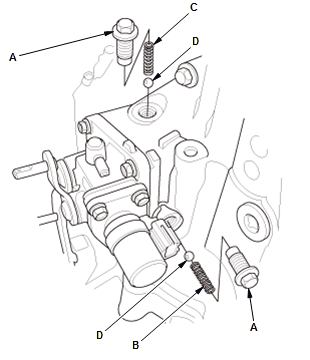

  1. Remove the detent bolts (A), the 26.0 mm detent ball spring (B), the 23.4 mm detent ball spring (C), and the steel balls (D).

Manual Transaxle - Testing & Troubleshooting

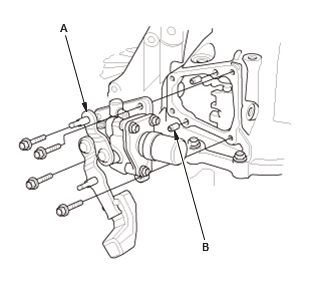

  1. Remove the change lever assembly (A) and the 8 x 10 mm dowel pins (B).

Manual Transaxle - Testing & Troubleshooting

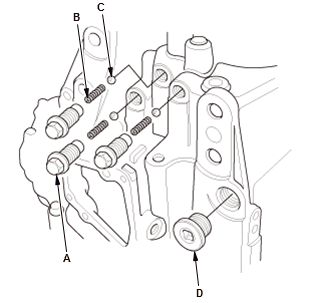

  1. Remove the detent bolts (A), the 26.0 mm detent ball springs (B), and the steel balls (C)
  2. Remove the filler plug (D).

Manual Transaxle - Testing & Troubleshooting

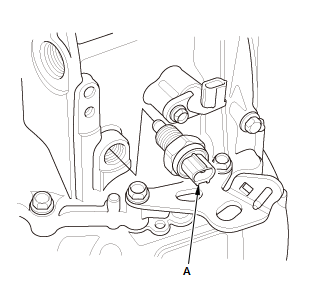

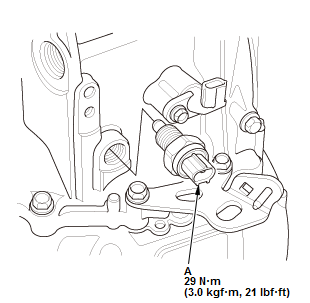

  1. Remove the back-up light switch (A).

Manual Transaxle - Testing & Troubleshooting

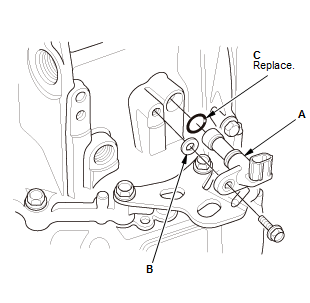

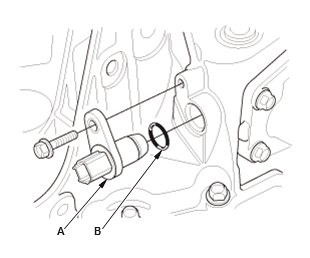

  1. Remove the output shaft (countershaft) speed sensor (A), the plain washer (B), and the O-ring (C).

Manual Transaxle - Testing & Troubleshooting

  1. Remove the detent bolt (A), the 26.0 mm detent ball spring (B), and the steel ball (C)
  2. Remove the oil check bolt (D) and the 6 mm sealing washer (E).

Manual Transaxle - Testing & Troubleshooting

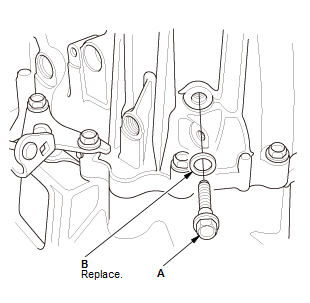

  1. Remove the 8 mm flange bolt (A) and the 8 mm packing (B).

Manual Transaxle - Testing & Troubleshooting

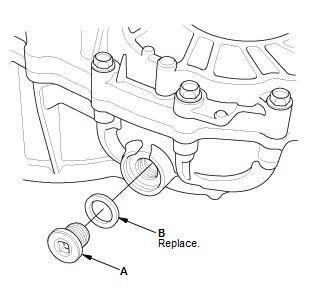

  1. Remove the drain plug (A) and the 20 mm sealing washer (B).

Manual Transaxle - Testing & Troubleshooting

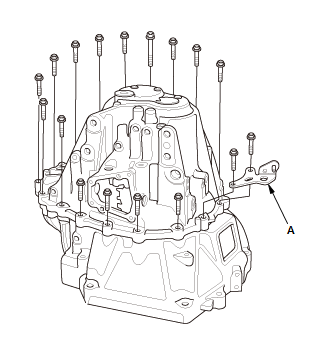

  1. Remove the clutch line bracket (A). Loosen the 8 mm flange bolts in a crisscross pattern in several steps, then remove them.

Manual Transaxle - Testing & Troubleshooting

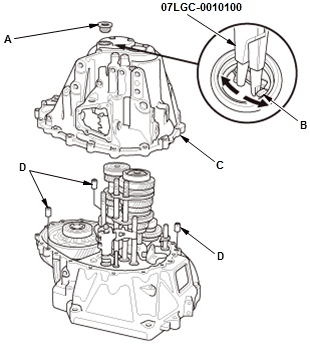

  1. Remove the 32 mm sealing cap (A)
  2. While expanding the 72 mm snap ring (B) on the countershaft ball bearing with the snap ring pliers, lift the transmission housing (C). Release the snap ring pliers, and remove the transmission housing and the 14 x 20 mm dowel pins (D).

2. Oil Guide Plate C - Remove

Manual Transaxle - Testing & Troubleshooting

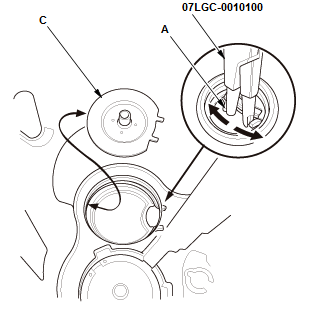

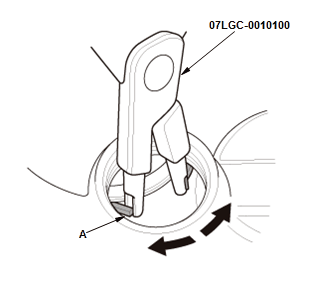

  1. While expanding the 72 mm snap ring (A) using the snap ring pliers, remove oil guide plate C.

3. Oil Guide Plate M, 72 mm Shim, and Oil Gutter Plate A - Remove

Manual Transaxle - Testing & Troubleshooting

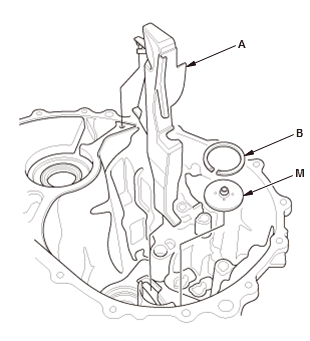

  1. Remove oil guide plate M and the 72 mm shim (B)
  2. Remove oil gutter plate A.

4. Oil Gutter Plate B - Remove

Manual Transaxle - Testing & Troubleshooting

  1. Remove oil gutter plate B.

5. Reverse Shift Holder - Remove

Manual Transaxle - Testing & Troubleshooting

  1. Remove the reverse shift holder (A).

6. Baffle Plate - Remove

Manual Transaxle - Testing & Troubleshooting

  1. Remove the baffle plate (A).

7. Reverse Idler Gear Shaft Assembly - Remove

Manual Transaxle - Testing & Troubleshooting

  1. Remove the reverse idler gear shaft assembly (A), the 33 mm spring washer (B), and the reverse shift fork (C) as an assembly.

8. Shift Piece - Remove

Manual Transaxle - Testing & Troubleshooting

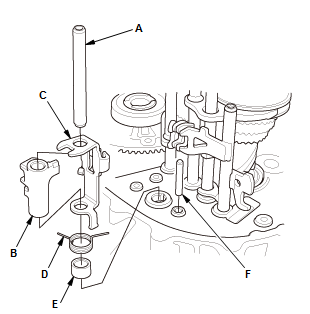

  1. Remove the shift piece shaft (A), the shift piece (B), the interlock (C) the select return spring (D), the shift piece collar (E), and the 8 x 50 mm pin (F).

9. Mainshaft, Countershaft and Shift Fork Assembly - Remove

Manual Transaxle - Testing & Troubleshooting

  1. Apply a thin layer of tape to the mainshaft splines to protect the oil seal.

    NOTE: Do not apply too much tape as it will damage the oil seal.

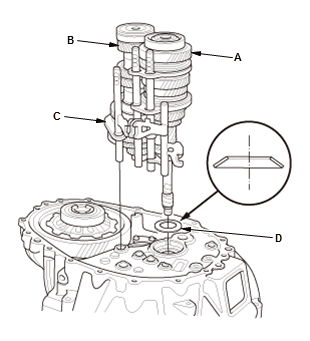

  2. Remove the mainshaft assembly (A) and the countershaft assembly (B) with the shift fork assembly (C).
  3. Remove the 64 mm spring washer (D).

10. Differential Assembly and Magnet - Remove

Manual Transaxle - Testing & Troubleshooting

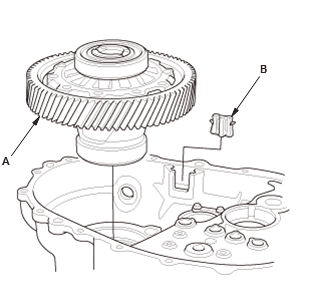

  1. Remove the differential assembly (A)
  2. Remove the magnet (B).

Reassembly

NOTE:

  • Prior to reassembling, clean all parts in solvent, dry them, and apply MTF to all contact surfaces.
  • Place the clutch housing on two pieces of wood thick enough to keep the mainshaft from hitting the workbench.
  • Differential Assembly and Magnet - Install

Manual Transaxle - Testing & Troubleshooting

  1. Install the differential assembly (A)

  2. Install the magnet (B).

    NOTE: Clean the magnet anytime the transmission is disassembled.

2. Mainshaft, Countershaft, and Shift Fork Assembly - Install

Manual Transaxle - Testing & Troubleshooting

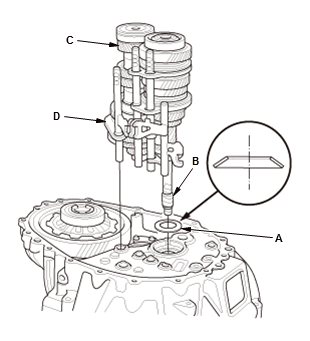

  1. Install the 64 mm spring washer (A).

    NOTE: Be sure to install the spring washer in the direction shown.

  2. Apply a thin layer of tape to the mainshaft splines (B) to protect the oil seal.

    NOTE: Do not apply too much tape as it will damage the oil seal.

  3. Install the mainshaft and the countershaft (C) with the shift fork assembly (D) as an assembly.

3. Shift Piece - Install

Manual Transaxle - Testing & Troubleshooting

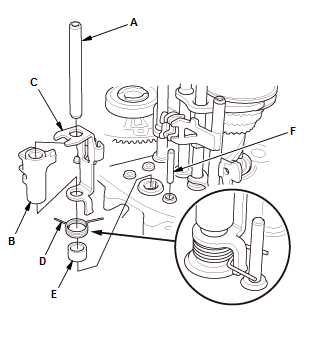

  1. Set the shift piece shaft (A), the shift piece (B), the interlock (C) the select return spring (D), the shift piece collar (E), and the 8 x 50 mm pin (F) as shown.

4. Reverse Idler Gear Shaft Assembly - Install

Manual Transaxle - Testing & Troubleshooting

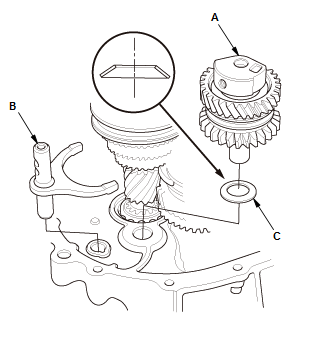

  1. Assemble the reverse idler gear shaft assembly (A) and the reverse shift fork (B)
  2. Install the 33 mm spring washer (C).

    NOTE: Be sure to install the spring washer in the direction shown.

Manual Transaxle - Testing & Troubleshooting

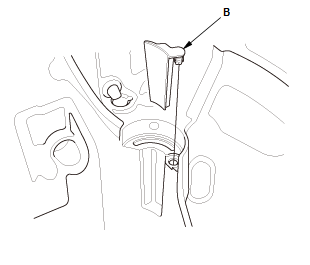

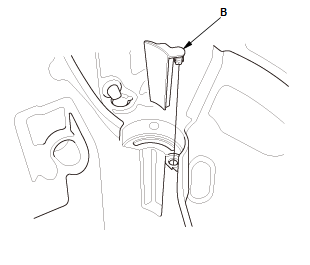

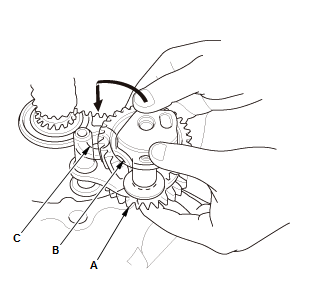

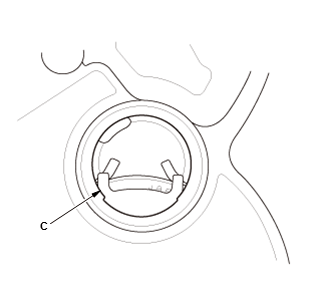

  1. Slide the reverse idler gear shaft assembly (A) on the rib (B) of the clutch housing, then install it into the hole (C) of the clutch housing.

Manual Transaxle - Testing & Troubleshooting

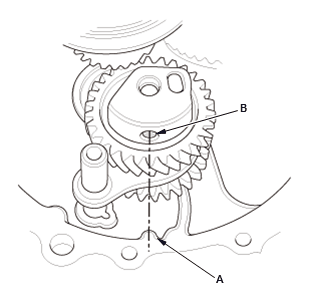

  1. Align the mark (A) on the clutch housing with the reverse gear holder hole (B).

5. Baffle Plate - Install

Manual Transaxle - Testing & Troubleshooting

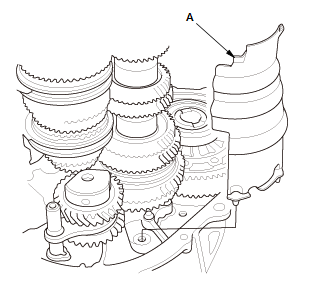

  1. Install the baffle plate (A).

6. Reverse Shift Holder - Install

Manual Transaxle - Testing & Troubleshooting

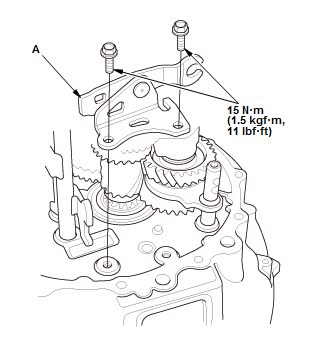

Fig. 7: Reverse Shift Holder With Torque Specifications

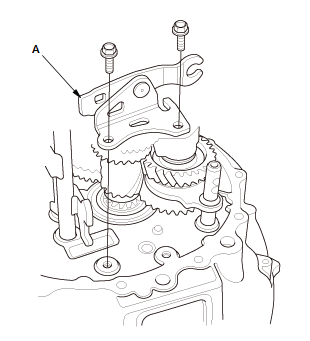

  1. Install the reverse shift holder (A).

7. Oil Gutter Plate B - Install

Manual Transaxle - Testing & Troubleshooting

  1. Install oil gutter plate B.

8. Oil Guide Plate M, 72 mm Shim, and Oil Gutter Plate A - Install

Manual Transaxle - Testing & Troubleshooting

  1. Select the proper size 72 mm shim (B) according to the measurements made during the Mainshaft Thrust Clearance Adjustment.
  2. Install oil guide plate M and the 72 mm shim.
  3. Install oil gutter plate A.

9. Oil Guide Plate C - Install

Manual Transaxle - Testing & Troubleshooting

  1. While expanding the 72 mm snap ring (A) using the snap ring pliers, install oil guide plate C.

10. Transmission Housing - Install

Manual Transaxle - Testing & Troubleshooting

  1. Clean any dirt and oil from the sealing surface of the transmission housing and the clutch housing

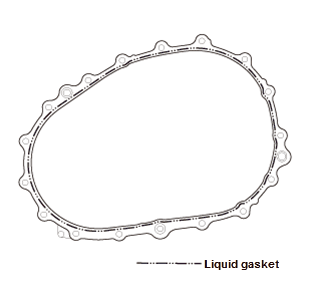

  2. Apply liquid gasket (P/N 08C70- K0334M) evenly to the clutch housing mating surface of the transmission housing. Install the component within 4 minutes of applying the liquid gasket.

    NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Manual Transaxle - Testing & Troubleshooting

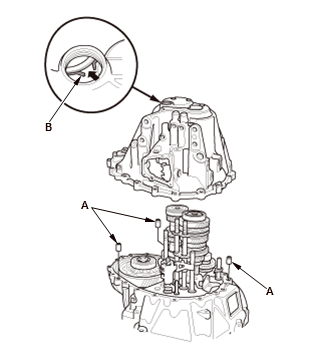

  1. Install the 14 x 20 mm dowel pins (A)
  2. Place the transmission housing on the clutch housing, making sure to line up the shafts.

    NOTE: When installing the transmission housing to the clutch housing, push the 72 mm snap ring (B) towards the direction pointed by the arrow shown in the picture to make sure to place the 72 mm snap ring properly without holding it between the transmission housing and the countershaft ball bearing.

Manual Transaxle - Testing & Troubleshooting

  1. While expanding the 72 mm snap ring (A) on the countershaft ball bearing using the snap ring pliers, push the transmission housing down to start the countershaft ball bearing through the snap ring. Release the pliers, and push down the housing until it bottoms out and the snap ring snaps in place in the snap ring groove of the countershaft ball bearing.

Manual Transaxle - Testing & Troubleshooting

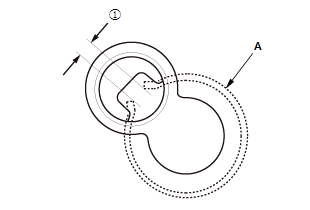

  1. Make sure the 72 mm snap ring (A) is securely seated in the groove of the countershaft bearing.

Dimension (1) as installed: 3.3-6.0 mm (0.130-0.236 in)

Manual Transaxle - Testing & Troubleshooting

  1. Make sure oil guide plate C is positioned on the transmission housing as shown.

Manual Transaxle - Testing & Troubleshooting

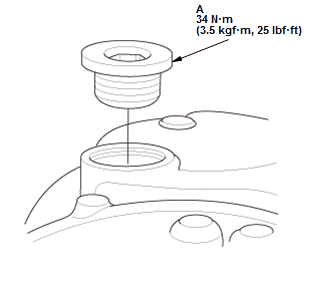

Fig. 8: 32 Mm Sealing Cap With Torque Specifications

  1. Clean any dirt and oil from the sealing surface of the 32 mm sealing cap (A) and the transmission housing
  2. Apply liquid gasket (P/N 08C70- K0334M) evenly to the threads of the 32 mm sealing cap. Install the component within 5 minutes of applying the liquid gasket.

    NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Manual Transaxle - Testing & Troubleshooting

  1. Install the 8 mm flange bolts finger-tight with the clutch line bracket (A).
  2. Tighten the 8 mm flange bolts in a crisscross pattern in several steps.

Manual Transaxle - Testing & Troubleshooting

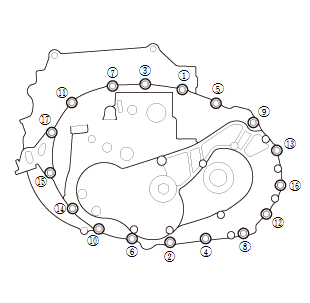

Fig. 9: Transmission Housing Tightening Sequence

27 N.m (2.8 kgf.m, 20 lbf.ft)

Manual Transaxle - Testing & Troubleshooting

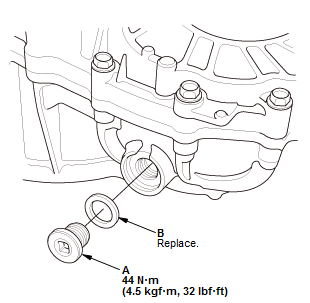

Fig. 10: Drain Plug With Torque Specifications

  1. Install the drain plug (A) with a new 20 mm sealing washer (B).

Manual Transaxle - Testing & Troubleshooting

  1. Install the 8 mm flange bolt (A) with a new 8 mm packing (B) finger-tight.

Manual Transaxle - Testing & Troubleshooting

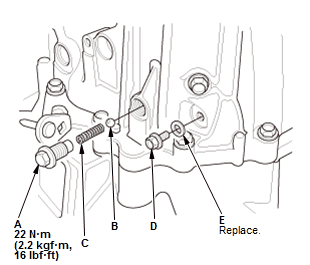

Fig. 11: Detent Bolt With Torque Specifications

  1. Apply liquid gasket (P/N 08C70- K0334M) to the thread of the detent bolt (A).

    Install the component within 5 minutes of applying the liquid gasket.

    NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

  2. Install the steel ball (B), the 26.0 mm detent ball spring (C), and the detent bolt
  3. Install the oil check bolt (D) with a new 6 mm sealing washer (E) finger-tight.

Manual Transaxle - Testing & Troubleshooting
Fig. 12: Output Shaft (Countershaft) Speed Sensor With Torque Specifications

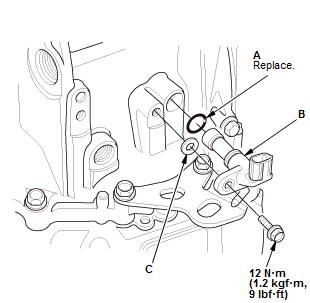

  1. Apply MTF to a new O-ring (A)
  2. Install the output shaft (countershaft) speed sensor (B), the plain washer (C), and the O-ring.

Manual Transaxle - Testing & Troubleshooting
Fig. 13: Back-Up Light Switch With Torque Specifications

  1. Clean any dirt and oil from the sealing surface of the back-up light switch (A) and the transmission housing
  2. Apply liquid gasket (P/N 08C70- K0334M) to the threads of the back-up light switch. Install the back-up light switch within 4 minutes of applying the liquid gasket.

    NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Manual Transaxle - Testing & Troubleshooting
Fig. 14: Detent Bolts With Torque Specifications

  1. Apply liquid gasket (P/N 08C70- K0334M) to the thread of the detent bolts (A).

    Install the component within 4 minutes of applying the liquid gasket.

    NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

  2. Install the steel balls (B), the 26.0 mm detent ball springs (C), and the detent bolts.
  3. Install the filler plug (D) finger-tight.

Manual Transaxle - Testing & Troubleshooting

  1. Clean any dirt and oil from the sealing surface of the change lever assembly and the transmission housing.
  2. Apply liquid gasket (P/N 08C70- K0334M) evenly to the transmission housing mating surface of the change lever assembly. Install the component within 4 minutes of applying the liquid gasket.

    NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Manual Transaxle - Testing & Troubleshooting
Fig. 15: Change Lever Assembly With Torque Specifications

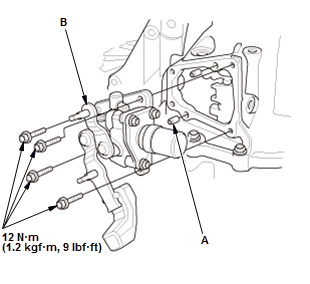

  1. Install the 8 x 10 mm dowel pins (A) and the change lever assembly (B).

Manual Transaxle - Testing & Troubleshooting

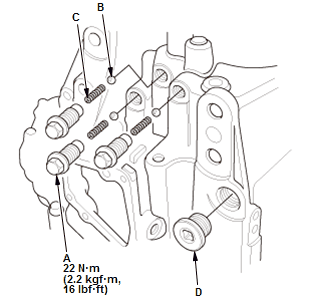

Fig. 16: Detent Bolts With Torque Specifications

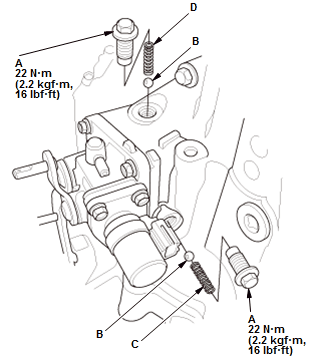

  1. Apply liquid gasket (P/N 08C70- K0334M) to the thread of the detent bolts (A).

    Install the component within 5 minutes of applying the liquid gasket.

    NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

  2. Install the steel balls (B), the 26.0 mm detent ball spring (C), the 23.4 mm detent ball spring (D), and the detent bolts.

Manual Transaxle - Testing & Troubleshooting

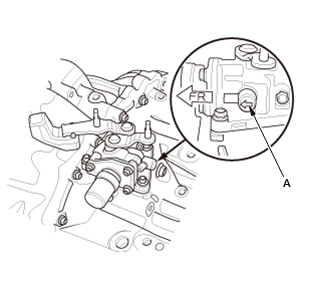

  1. Check the position of the breather cap mark (A) as shown.
  2. Check that the transmission shifts into all gears smoothly.

Manual Transaxle - Testing & Troubleshooting

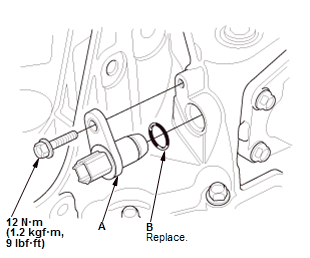

Fig. 17: Neutral Position Sensor With Torque Specifications

  1. Install the neutral position sensor (A) and a new O-ring (B).
  2. Install the release bearing and the release fork. (Refer to "Release Bearing and the Release Fork - Install " in "Clutch Removal and Installation.")
