Honda HR-V: Coolant Replacement

Replacement

1. Radiator Cap - Remove

  1. Wait until the engine is cool, then carefully remove the radiator cap.

2. Engine Undercover - Remove (With Engine Undercover)

3. Engine Coolant - Drain

Engine Cooling System - Service Information

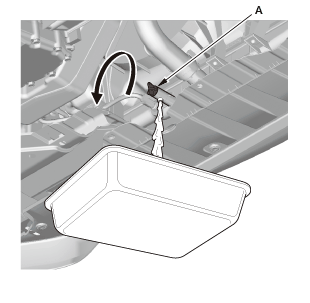

  1. Loosen the drain plug (A), and drain the coolant
  2. After the coolant has drained, tighten the radiator drain plug securely.

4. Cylinder Block Coolant - Drain

Engine Cooling System - Service Information

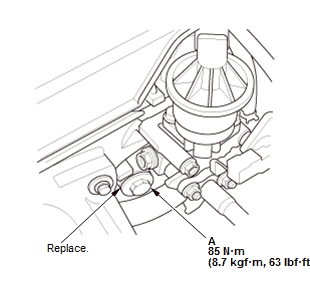

Fig. 1: Cylinder Block Coolant - Drain With Torque Specifications

  1. Remove the drain bolt (A)
  2. After the coolant has drained, reinstall the drain bolt with a new washer.

5. Engine Undercover - Install (With Engine Undercover)

6. Coolant Reservoir - Refill

Engine Cooling System - Service Information

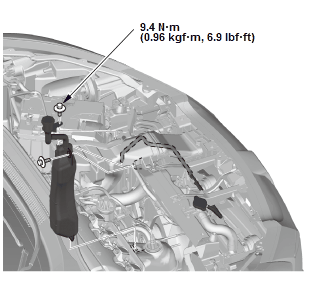

  1. Remove, drain and reinstall the coolant reservoir
  2. Fill the coolant reservoir to the MAX mark with Honda Long Life Antifreeze/Coolant Type 2.

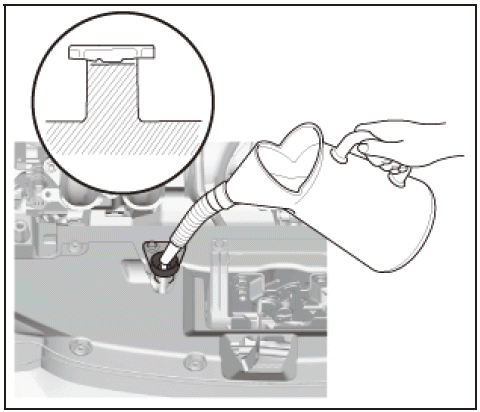

7. Engine Coolant - Refill

NOTE:

  • Use Honda Long Life Antifreeze/Coolant Type 2, and if necessary add Honda Extreme Cold Weather Antifreeze/Coolant Type 2 (concentrate). Using a non-Honda coolant can result in corrosion, causing the cooling system to malfunction or fail.
  • Honda Long Life Antifreeze/Coolant Type 2 is a mixture of 50 % antifreeze and 50 % water.

    Honda Extreme Cold Weather Antifreeze/Coolant Type 2 is a 100 % concentration coolant. Do not add water to either coolant.

  • If the vehicle is regularly driven in very low temperatures (below -22 ºF (-30 ºC) ), a 60 % concentration of coolant should be used.

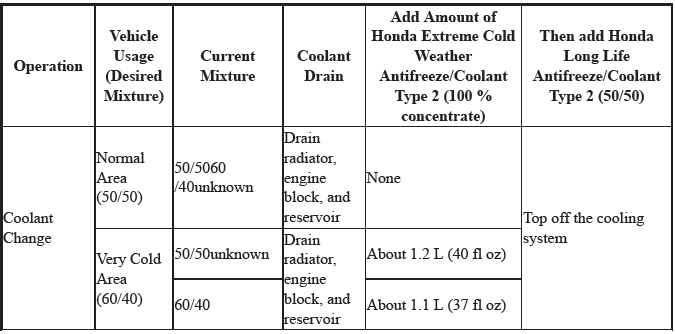

Engine Cooling System - Service Information

Engine Cooling System - Service Information

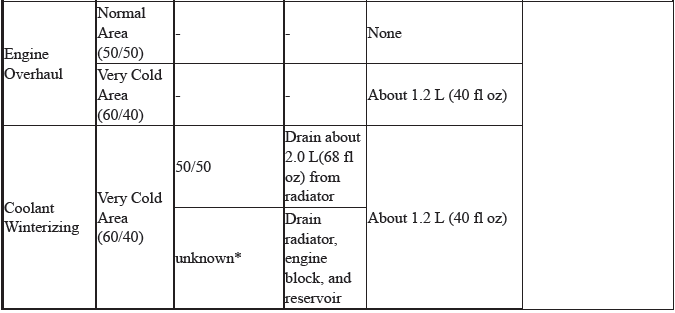

*: When you want to winterize the coolant with the minimum amount of coolant change but the current coolant concentration in the vehicle is unknown, you must drain all coolant from the cooling system.

Engine Coolant Refill Capacities (Including the coolant reservoir capacity of 0.50 L (0.132 US gal) )

At Coolant Change

M/T: 5.24 L (1.384 US gal)
CVT: 5.25 L (1.387 US gal)

After Engine Overhaul

M/T: 5.89 L (1.556 US gal)
CVT: 5.98 L (1.580 US gal)

Engine Cooling System - Service Information

8. Engine Coolant - Air Bleed

  1. Loosely install the radiator cap
  2. Start the engine, and let it run until it warms up (the radiator fan comes on at least twice).
    NOTE:
    Do not operate the air conditioning system
  3. Turn off the engine. Check the level in the radiator, and add Honda Long Life Antifreeze/Coolant Type 2, if needed.

9. Engine Coolant Leak - Check

  1. Put the radiator cap securely, then start the engine again, and check for leaks
  2. Clean up any spilled engine coolant.

10.Maintenance Minder - Reset (With Maintenance Minder System)

  1. If the Maintenance Minder required to replace the engine coolant, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder"). If the Maintenance Minder did not require to replace the engine coolant, reset the Maintenance Minder with the HDS (see "Resetting Individual Maintenance Items").
