Honda HR-V: Heater Outlet Removal and Installation

Honda HR-V (2015-2021) Service Manual / Engine / Engine Cooling System - Service Information / Heater Outlet Removal and Installation

Removal and Installation

1. Engine Coolant - Drain

2. Intake Air Duct - Remove

3. Heater Hose and Water Bypass Hose - Disconnect

Engine Cooling System - Service Information

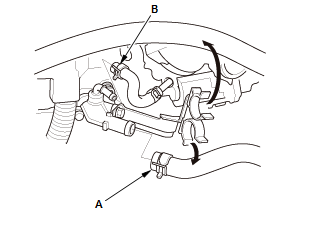

  1. Disconnect the heater hose (A) and the water bypass hose (B).

4. Heater Outlet - Remove

Engine Cooling System - Service Information

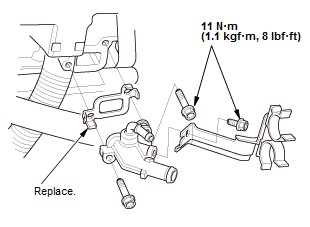

  1. Remove the hose clamp bracket
  2. Remove the heater outlet.

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE: After installing all the removed parts, refill the radiator with engine coolant, and bleed the air from the cooling system.
