Honda HR-V: Radiator and A/C Condenser Fan, Motor, and Shroud Removal and Installation

Honda HR-V (2015-2021) Service Manual / Engine / Engine Cooling System - Service Information / Radiator and A/C Condenser Fan, Motor, and Shroud Removal and Installation

Removal and Installation

1. 12 Volt Battery - Remove

2. Front Grille Cover - Remove

3. Air Intake Duct - Remove

4. Front Grille Center Stay - Remove

5. Hood Latch - Remove

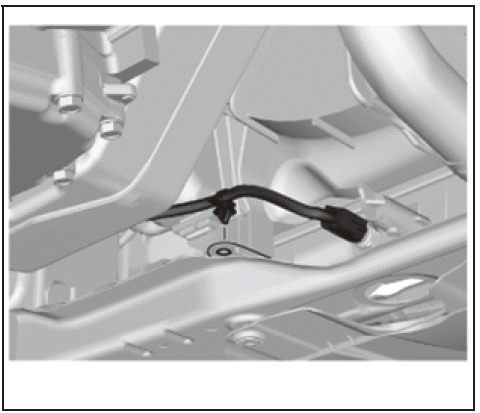

NOTE:

  • Do not disconnect the hood opener cable.
  • Disconnect the connector at the same time.

6. Engine Undercover - Remove (With Engine Undercover)

7. Harness Clamp - Remove

Engine Cooling System - Service Information

8. Coolant Reservoir - Remove

9. Connector (Radiator Fan Motor and A/C Condenser Fan Motor) - Disconnect

Engine Cooling System - Service Information

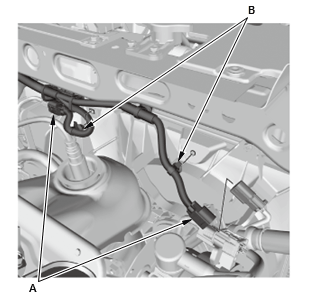

  1. Disconnect the connectors (A)
  2. Remove the harness clamps (B).

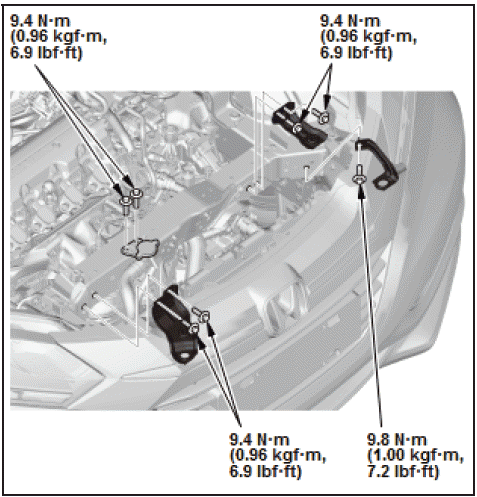

10. Radiator Upper Mount, A/C Condenser Upper Mount, and Coolant Filler mounting bolt - Remove

Engine Cooling System - Service Information

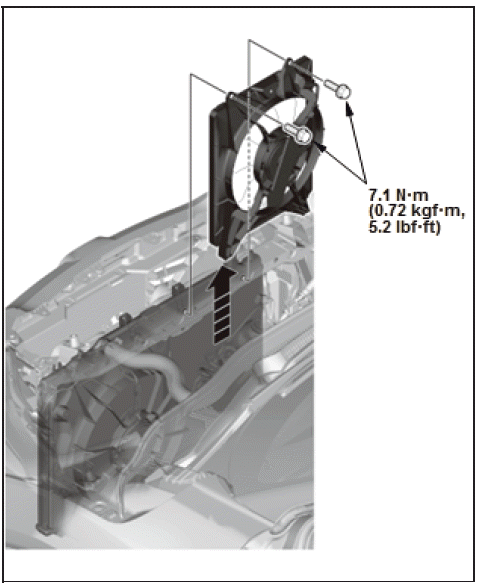

11. A/C Condenser Fan Shroud Assembly - Remove

Engine Cooling System - Service Information

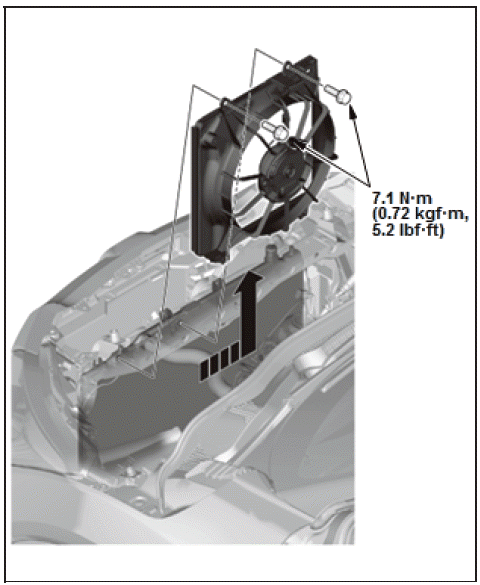

12. Radiator Fan Shroud Assembly - Remove

Engine Cooling System - Service Information

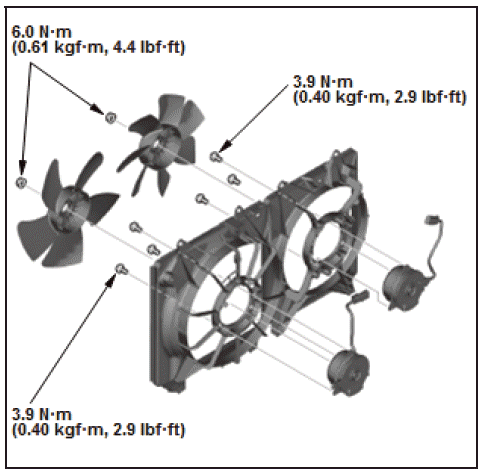

13. Fan Shroud - Disassemble

Engine Cooling System - Service Information

14. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
