Honda HR-V: CVT Transmission Disassembly and Reassembly (CVT)
Honda HR-V (2015-2021) Service Manual / Transmission / Continuously Variable Transmission (CVT) - Testing & Troubleshooting / Disassembly and Reassembly / CVT Transmission Disassembly and Reassembly (CVT)
Special Tools Required
Reverse Brake Spring Compressor Set 070AF-5T00100
.png)

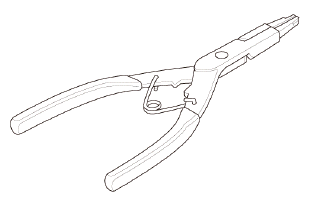

Snap Ring Pliers 07LGC-0010100
.png)

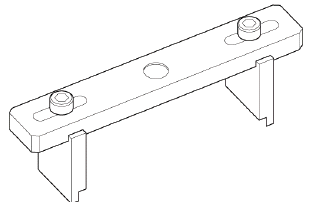

Clutch Compressor Attachment 07ZAE-PRP0100
.png)
Clutch Compressor Attachment 64 mm 07ZAE-PRP0110
.png)
Exploded View
1. Transmission - Exploded View
.png)

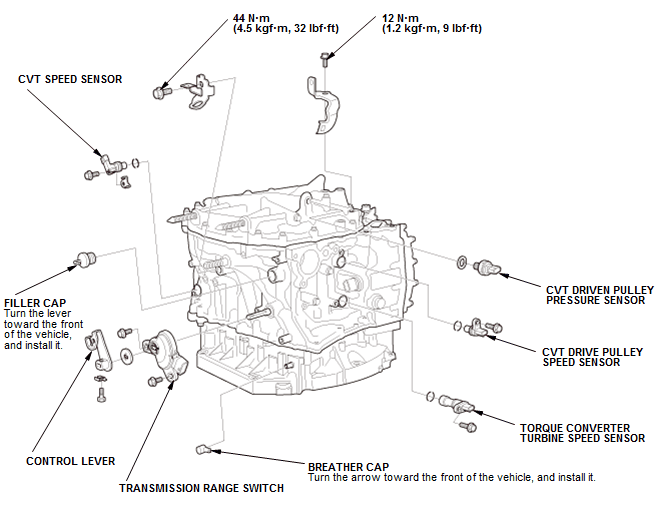

Fig. 34: Exploded View Of Transmission (1 Of 3)
.png)

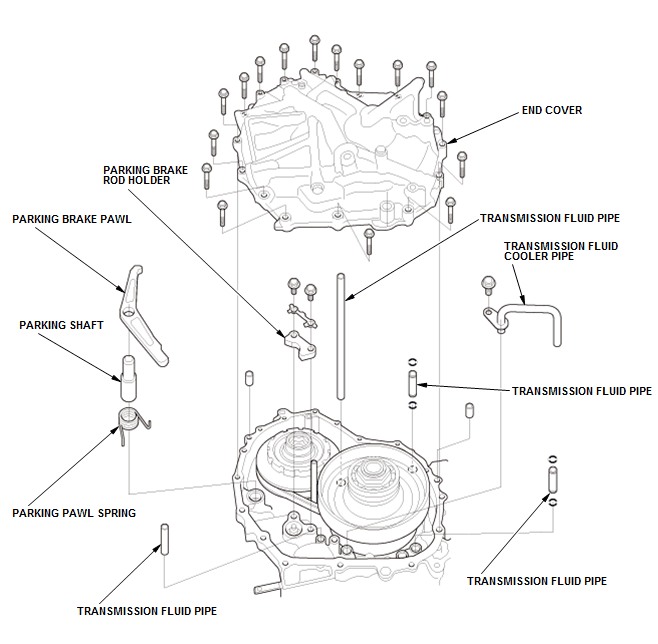

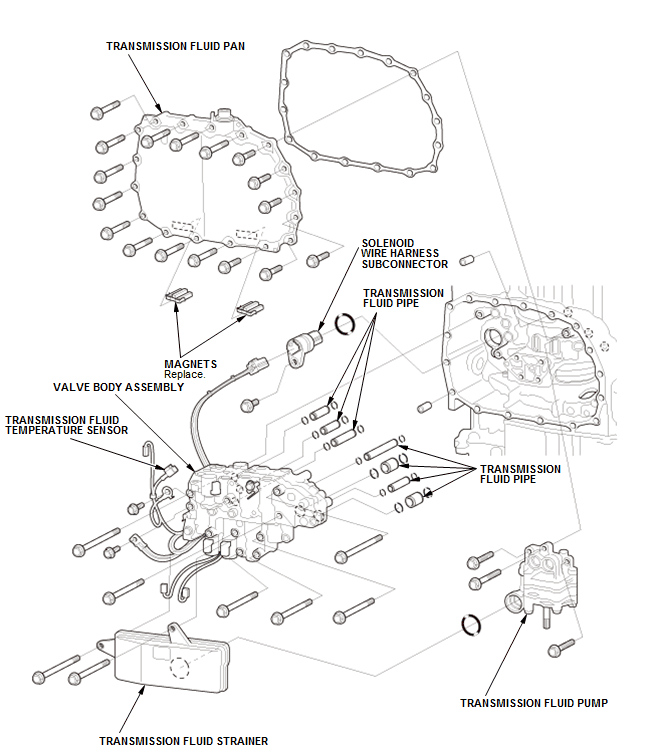

Fig. 35: Exploded View Of Transmission (2 Of 3)
.png)

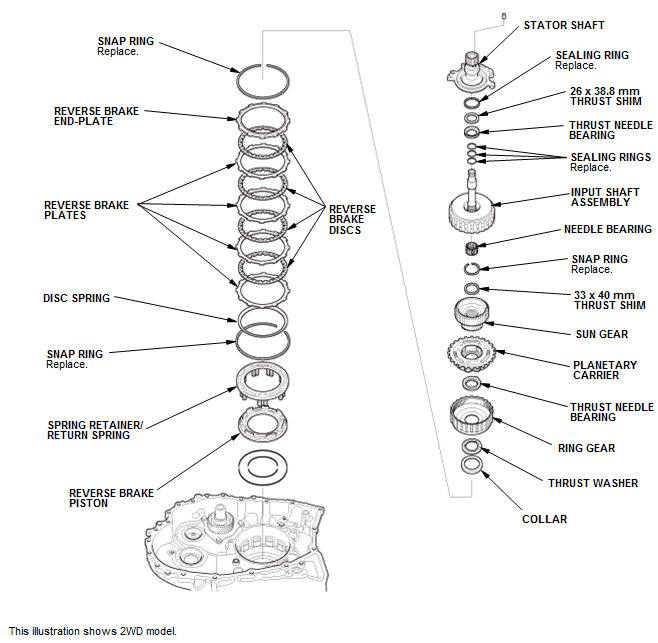

Fig. 36: Exploded View Of Transmission (3 Of 3)
.png)

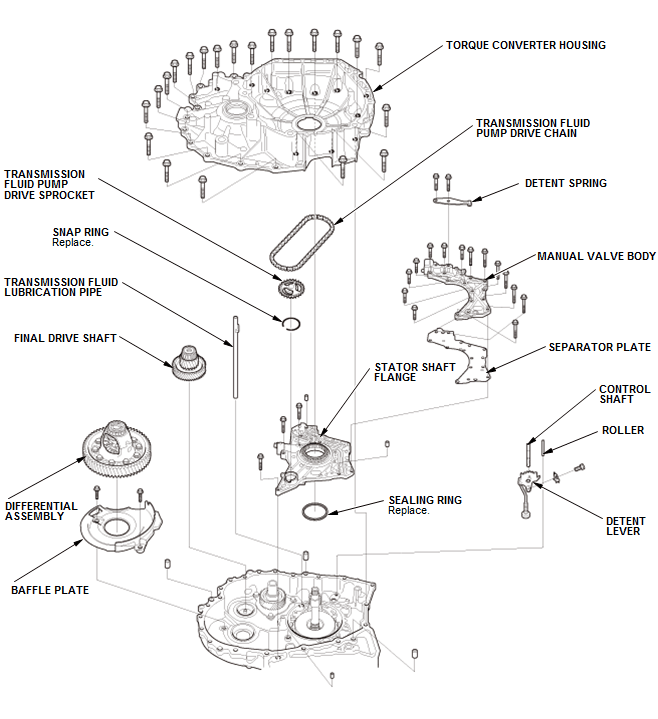

Fig. 37: Exploded View Of Transmission (2WD)
.png)

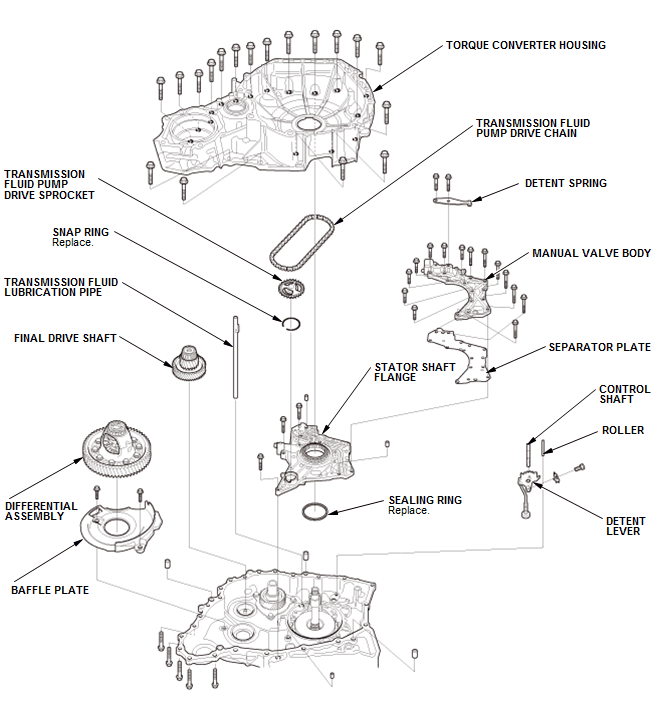

Fig. 38: Exploded View Of Transmission (AWD) (1 Of 2)
.png)
Fig. 39: Exploded View Of Transmission (AWD) (2 Of 2)
