Honda HR-V: Description

POWER WINDOWS SYSTEM DESCRIPTION - COMPONENTS

Power Window Master Switch

The power window master switch is installed in the driver's door panel.

Power Window Motors

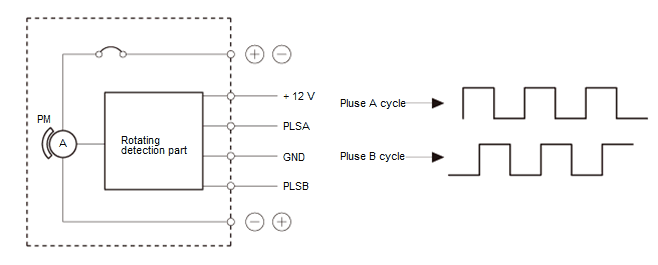

The motor includes the pulse sensors that detect window's position and direction with the motor rotation. The rotating direction (up/down) is detected with the rotating cycles from the 2 pulse sensors and the moving amount (window position) is also detected by considering 4 pulses as one rotation pulse.

Windows & Glass - Testing & Troubleshooting

POWER WINDOWS SYSTEM DESCRIPTION - CONTROL/FUNCTION

Basic Control/Function

  • Manual Up/Down Function
    The 1-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or vehicle OFF operation.
  • Auto Up/Down Function
    The 2-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or the vehicle OFF timer signal operation.

Auto Reverse Power Window Function

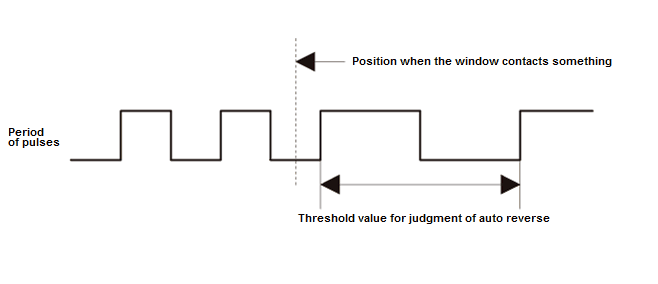

When an object is detected during the AUTO UP operation, the window stops closing and reverses about 2.76 in (70 mm). If the window is less than halfway opened (about 8.66 in (220 mm) ), it will reverse to half open position (about 8.66 in (220 mm) ). In manual operation, this function is active only during the vehicle OFF operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

Windows & Glass - Testing & Troubleshooting

Vehicle OFF Operation

For about 10 minutes after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches is available.

Windows & Glass - Testing & Troubleshooting

Windows & Glass - Testing & Troubleshooting

*: Operating time is different depending on the specifications.

Windows & Glass - Testing & Troubleshooting

*: Operating time is different depending on the specifications.

POWER WINDOWS SYSTEM DESCRIPTION - FAILSAFE FUNCTION

When a failure occurs in the inputs of the motor pulses, and power window switches, the failsafe function stops the control of each function.

POWER WINDOWS SYSTEM DESCRIPTION - OVERVIEW

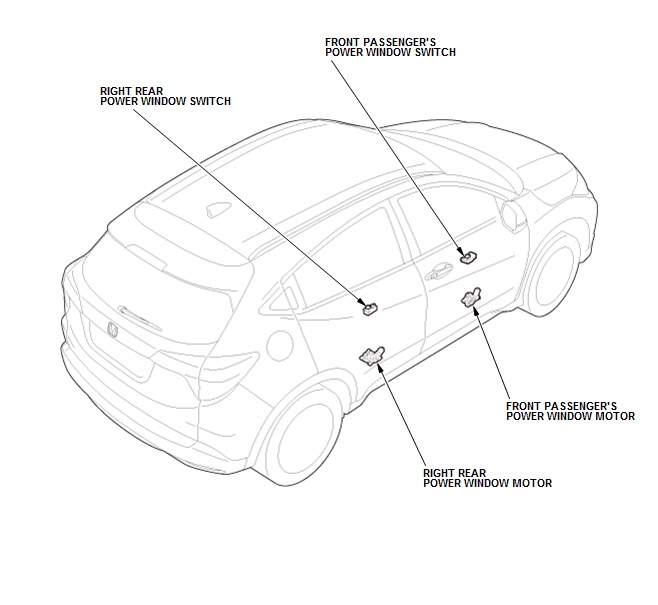

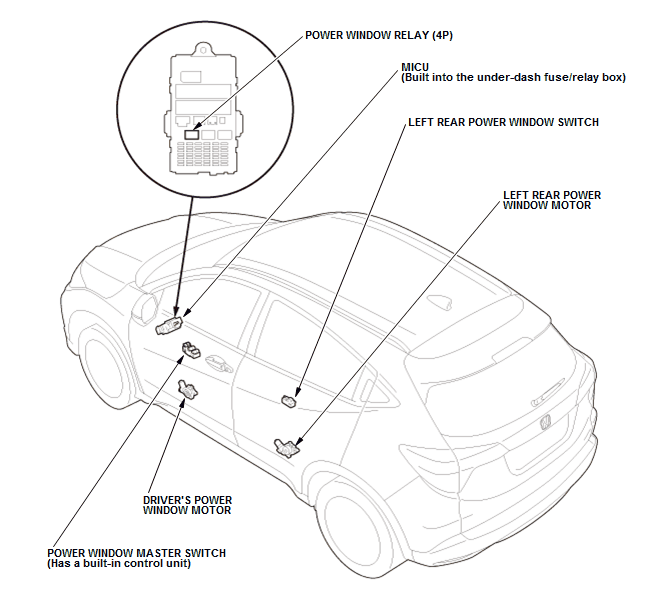

All models come equipped with the power window system. The power window with auto open/close mechanism consists of the power window master switch, the power window switch for each seat, and the power window motor for each door. For taking safety into account, the auto reverse function is provided.

Windows & Glass - Testing & Troubleshooting

Windows & Glass - Testing & Troubleshooting

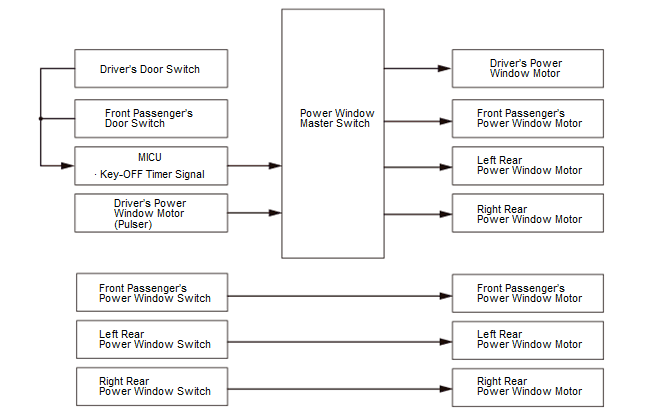

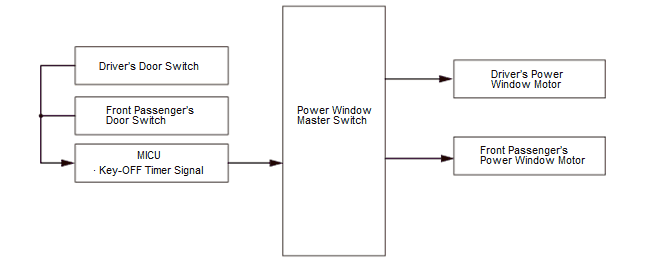

POWER WINDOWS SYSTEM DESCRIPTION - SYSTEM DIAGRAM

Windows & Glass - Testing & Troubleshooting
