Honda HR-V: Front Passenger's Power Window Motor Test

Test

1. Front Passenger's Door Panel - Remove

2. Front Passenger's Power Window Motor - Test

Windows & Glass - Testing & Troubleshooting

Windows & Glass - Testing & Troubleshooting

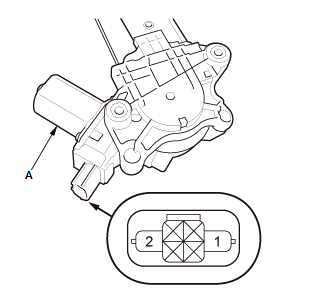

  1. Test the motor in each direction by connecting 12 volt battery power and ground to the connector (A) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the front passenger's door regulator, then go to step 2.

Windows & Glass - Testing & Troubleshooting

Windows & Glass - Testing & Troubleshooting

  1. Test the front passenger's power window motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately.
  2. If the motor does not run or fails to run smoothly, the front passenger's power window motor is faulty; replace the front passenger's door regulator .If the motor runs smoothly, replace the wire harnesses or adjust the front passenger's door glass.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

FRONT PASSENGER'S POWER WINDOW SWITCH TEST

Test

1. Front Passenger's Door Armrest - Remove

2. Front Passenger's Power Window Switch - Test

Windows & Glass - Testing & Troubleshooting

Windows & Glass - Testing & Troubleshooting

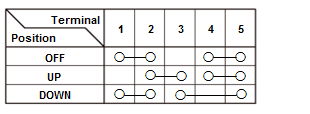

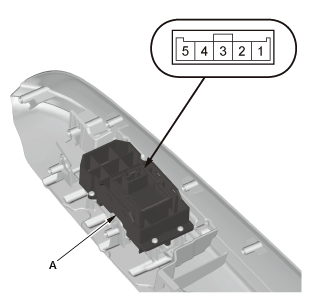

  1. Check for continuity between the terminals in each switch position according to the table.
  2. If the continuity is not as specified, replace the front passenger's power window switch - Refer to: Front Passenger's Power Window Switch Removal and Installation, or Rear Power Window Switch Removal and Installation (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
