Honda HR-V: DTC Advanced Diagnostics: VSA Related DTCS

NOTE

  • Initial Diagnosis: The initial on-board diagnosis occurs right after the vehicle condition is turned to the ON mode, and the ABS/VSA indicator comes on, and continues until the indicator goes off.
  • Regular Diagnosis: The regular on-board diagnosis begins right after the ABS/VSA indicator goes off, and it continues until the vehicle condition is turned to the OFF (LOCK) mode.
  • Review "How to troubleshoot the VSA system" before doing the DTC troubleshooting procedure.
  • Test-drive the vehicle according to local traffic conditions and regulations. Do not test-drive on a lift unless specified.
  • The possible causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

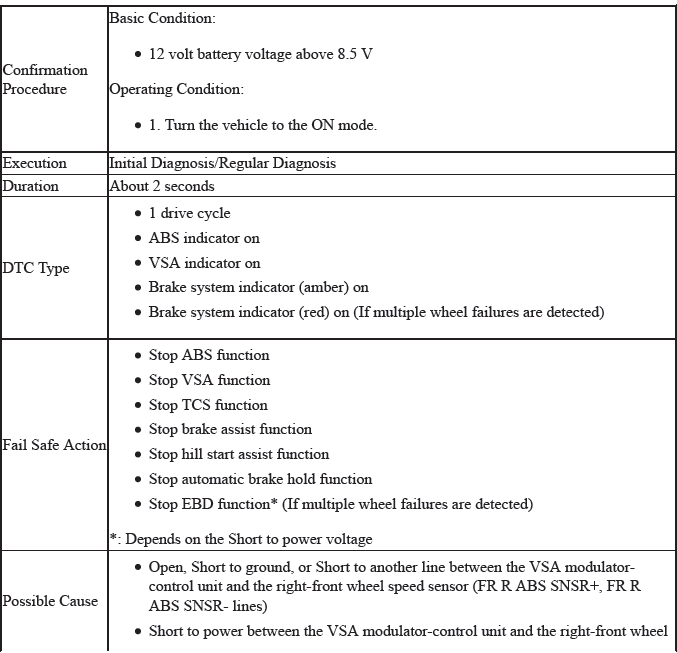

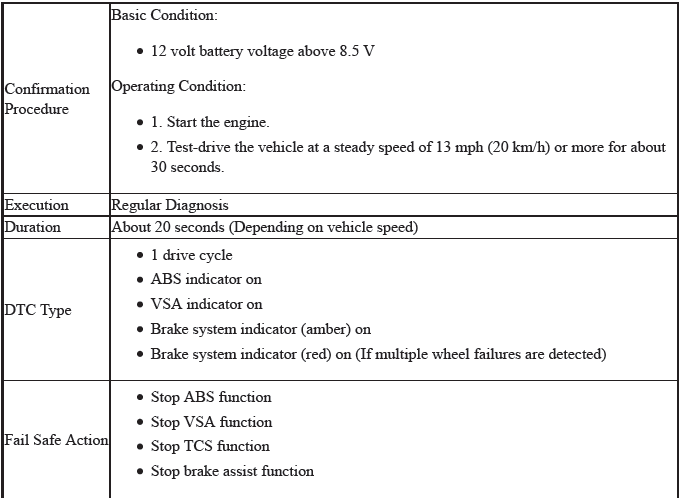

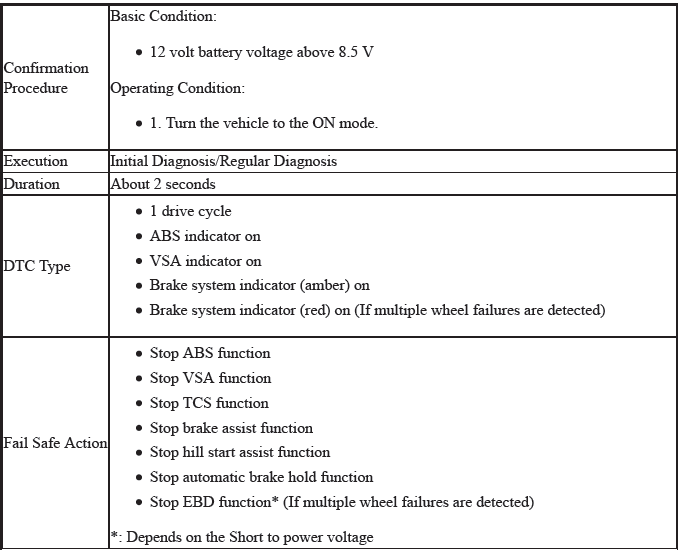

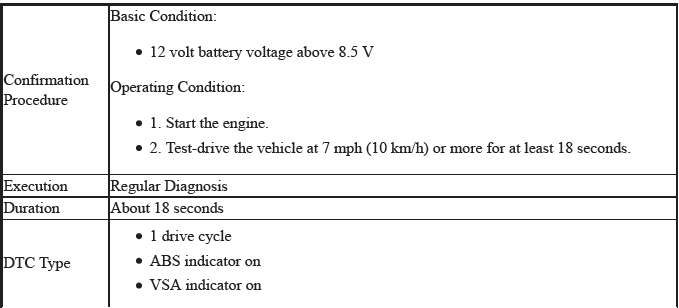

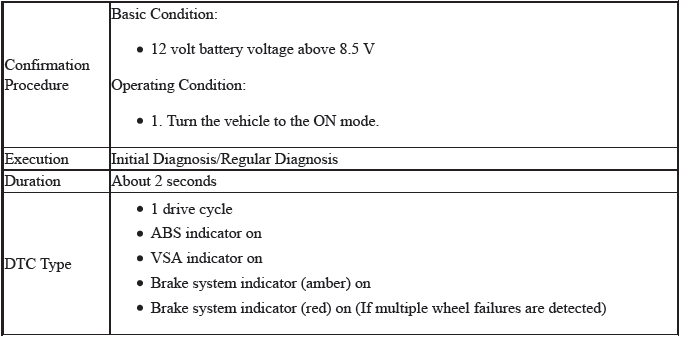

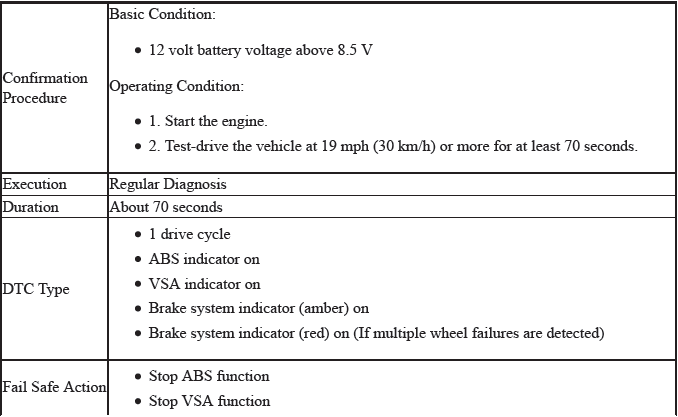

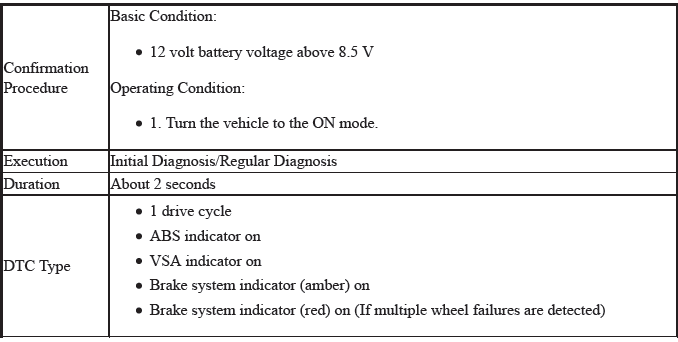

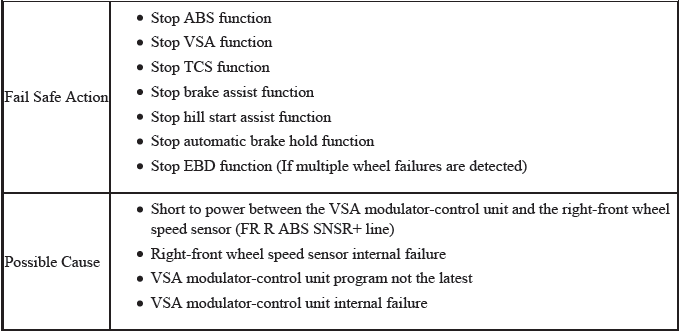

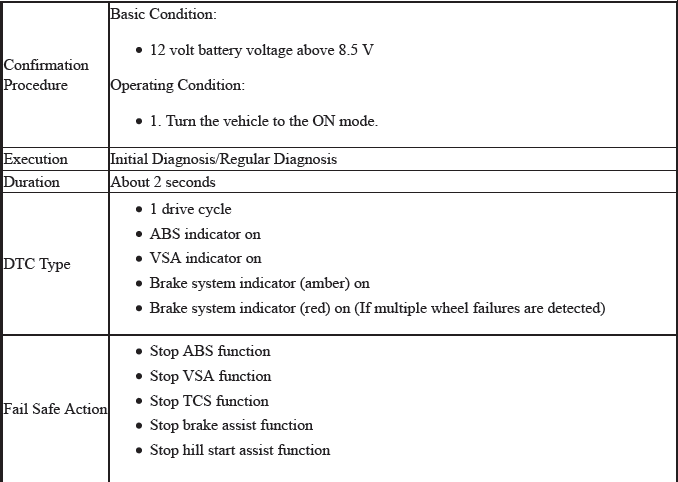

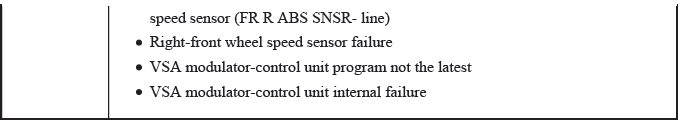

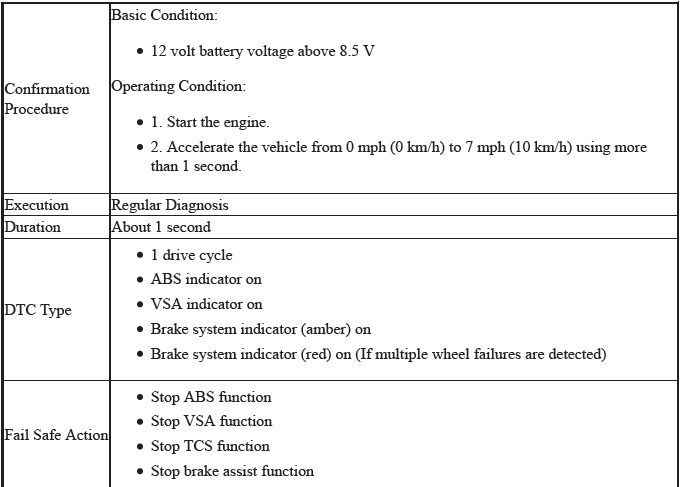

DTC 11-11: Right-Front Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

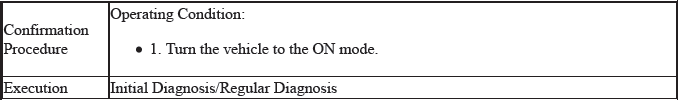

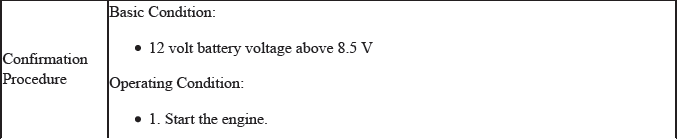

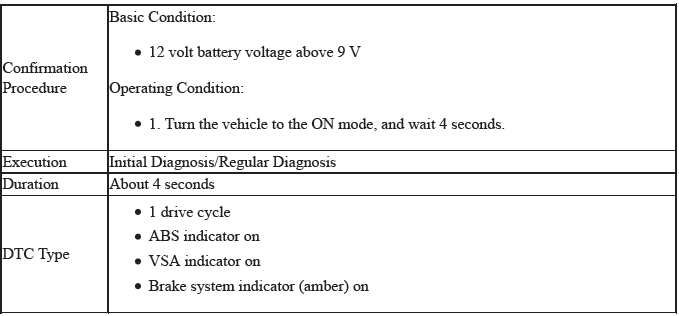

DTC 11-12: Right-Front Wheel Speed Sensor Power Source Malfunction

VSA System - Diagnostics

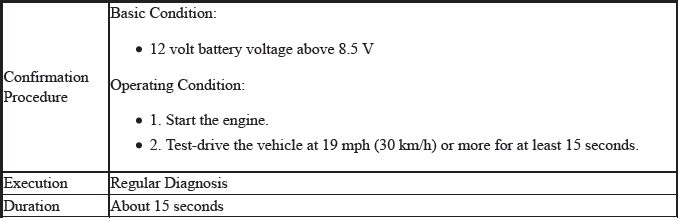

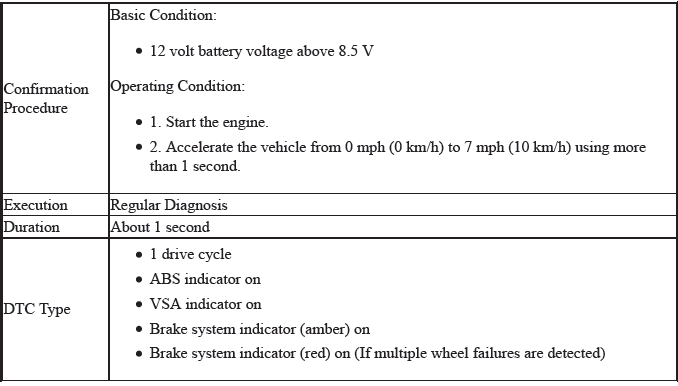

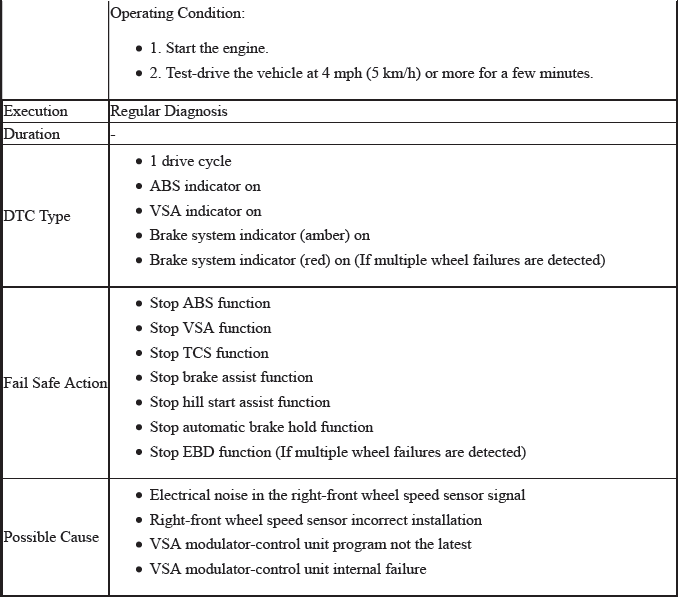

DTC 12-11: Right-Front Wheel Speed Sensor Electrical Noise or Intermittent Interruption

VSA System - Diagnostics

VSA System - Diagnostics

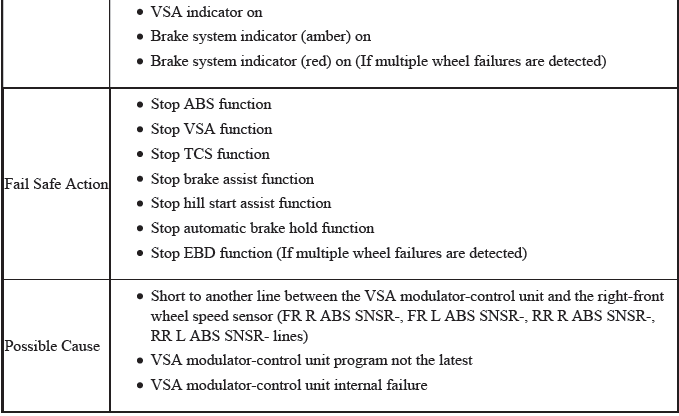

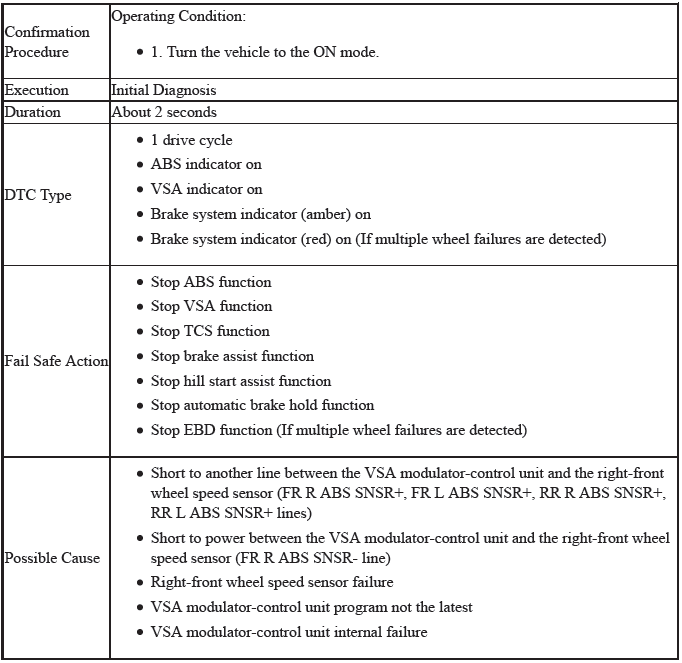

DTC 12-12: Right-Front Wheel Speed Sensor Short to the Other Sensor Circuit

VSA System - Diagnostics

VSA System - Diagnostics

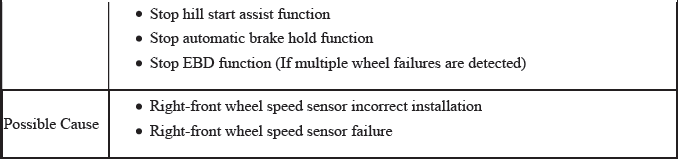

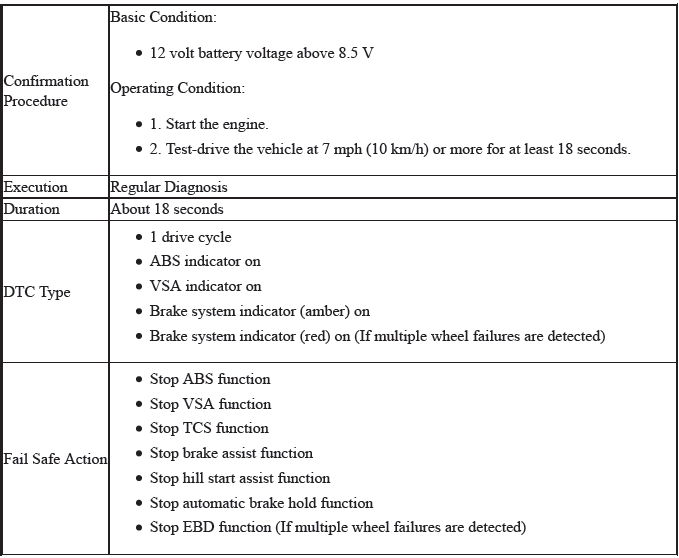

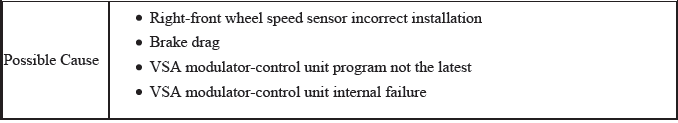

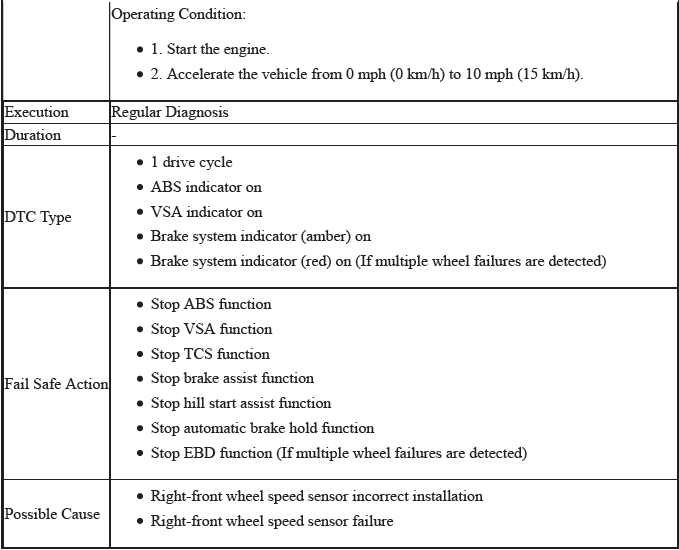

DTC 12-13: Right-Front Wheel Speed Sensor Installation Error

VSA System - Diagnostics

VSA System - Diagnostics

DTC 12-14: Right-Front Wheel Speed Sensor Installation Error

VSA System - Diagnostics

DTC 12-15: Right-Front Wheel Speed Sensor Installation Error

VSA System - Diagnostics

VSA System - Diagnostics

DTC 12-120: Right-Front Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

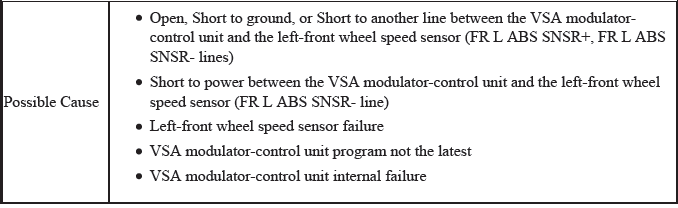

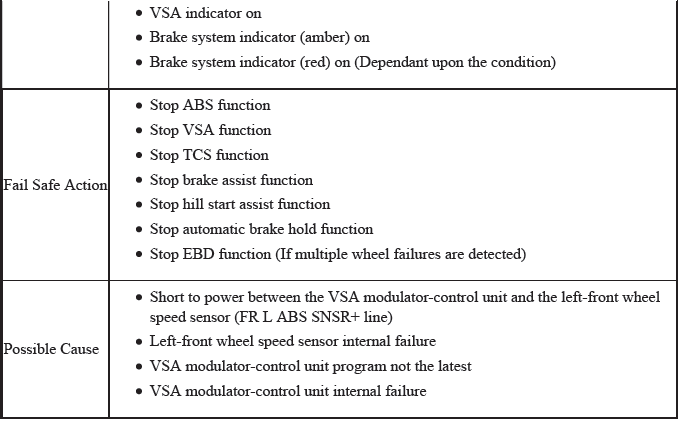

DTC 13-11: Left-Front Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 13-12: Left-Front Wheel Speed Sensor Power Source Malfunction

VSA System - Diagnostics

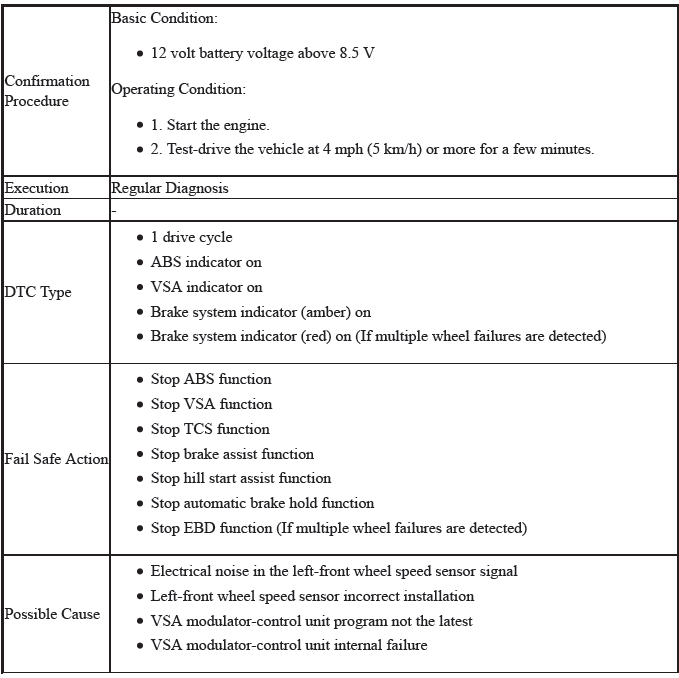

DTC 14-11: Left-Front Wheel Speed Sensor Electrical Noise or Intermittent Interruption

VSA System - Diagnostics

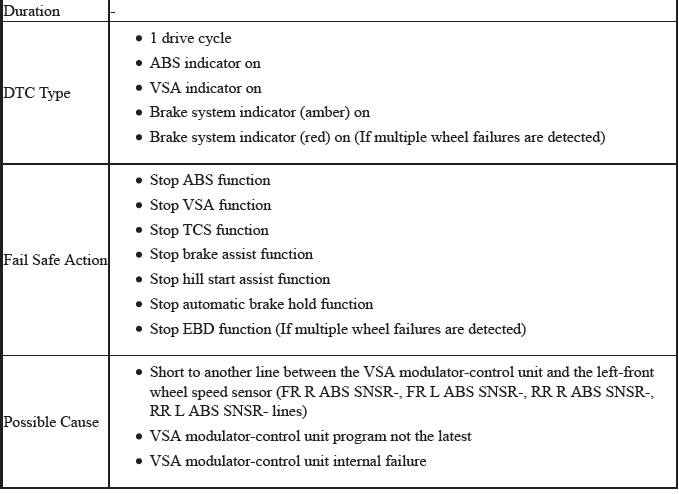

DTC 14-12: Left-Front Wheel Speed Sensor Short to the Other Sensor Circuit

VSA System - Diagnostics

VSA System - Diagnostics

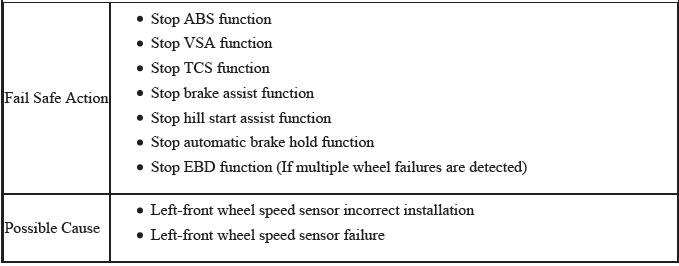

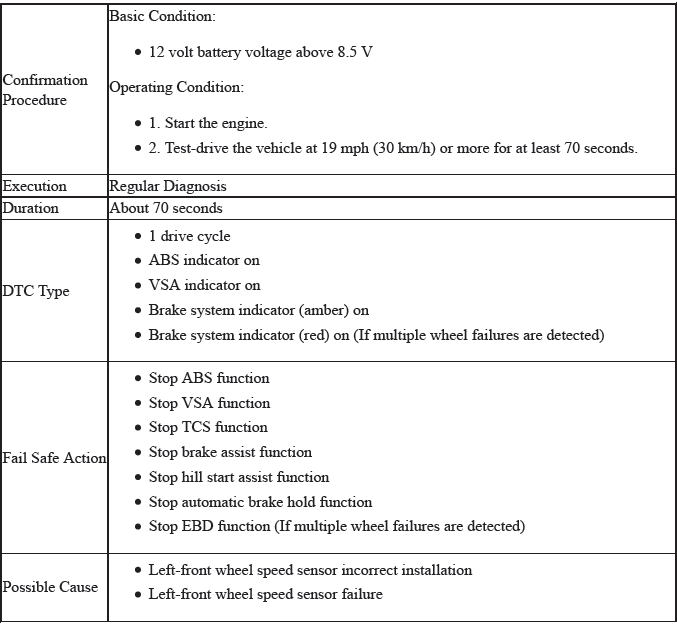

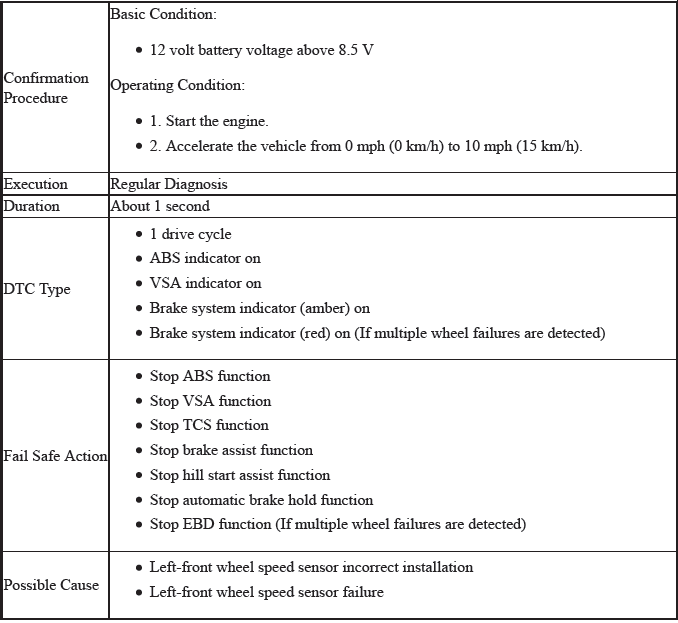

DTC 14-13: Left-Front Wheel Speed Sensor Installation Error

VSA System - Diagnostics

VSA System - Diagnostics

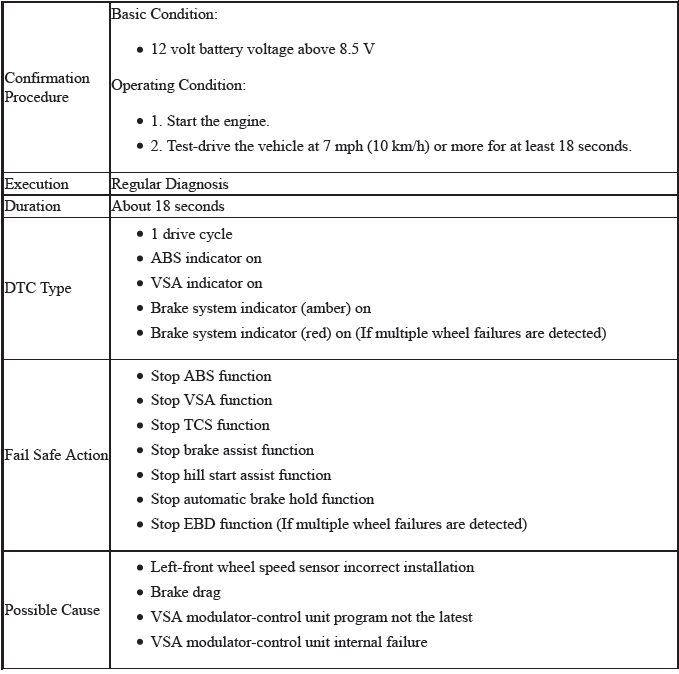

DTC 14-14: Left-Front Wheel Speed Sensor Installation Error

VSA System - Diagnostics

DTC 14-15: Left-Front Wheel Speed Sensor Installation Error

VSA System - Diagnostics

DTC 14-120: Left-Front Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

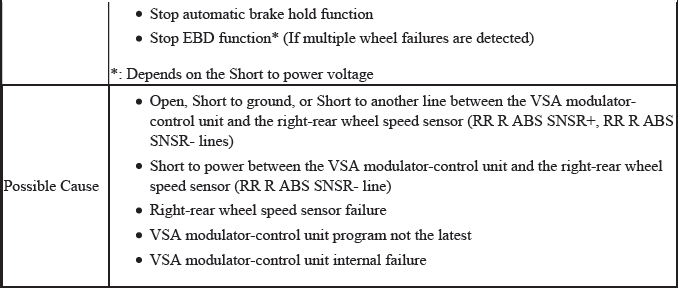

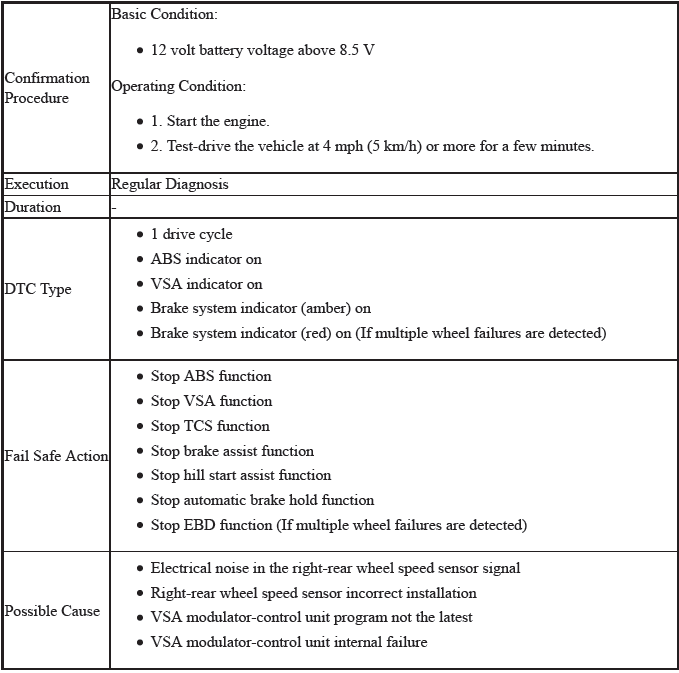

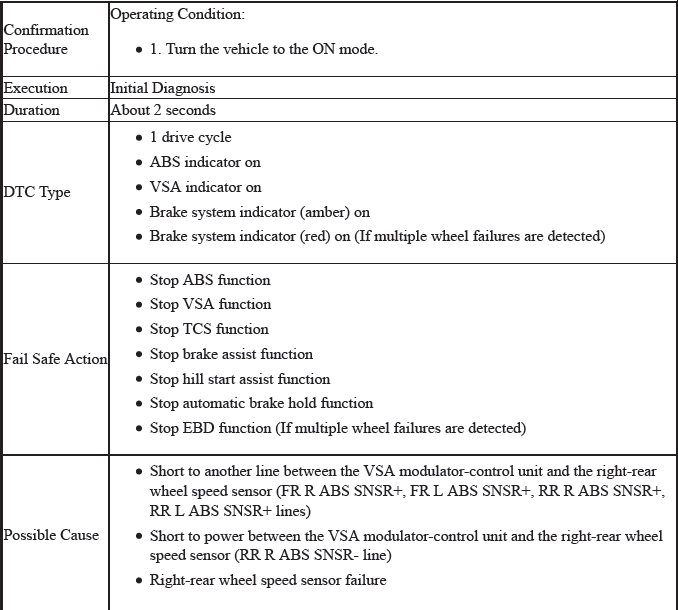

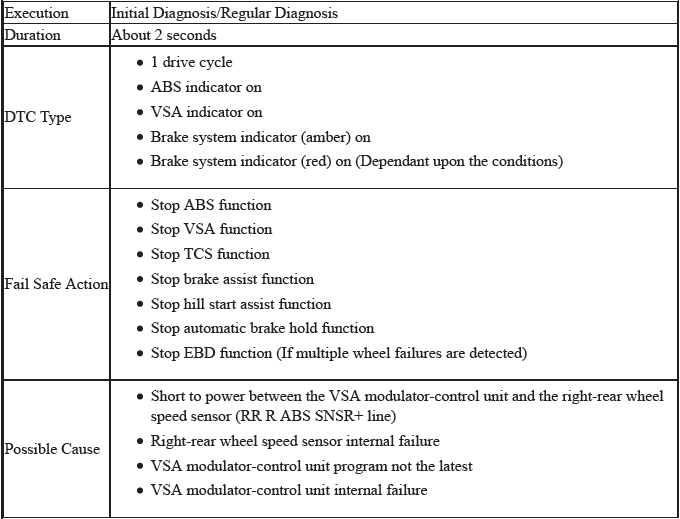

DTC 15-11: Right-Rear Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 15-12: Right-Rear Wheel Speed Sensor Power Source Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 16-11: Right-Rear Wheel Speed Sensor Electrical Noise or Intermittent Interruption

VSA System - Diagnostics

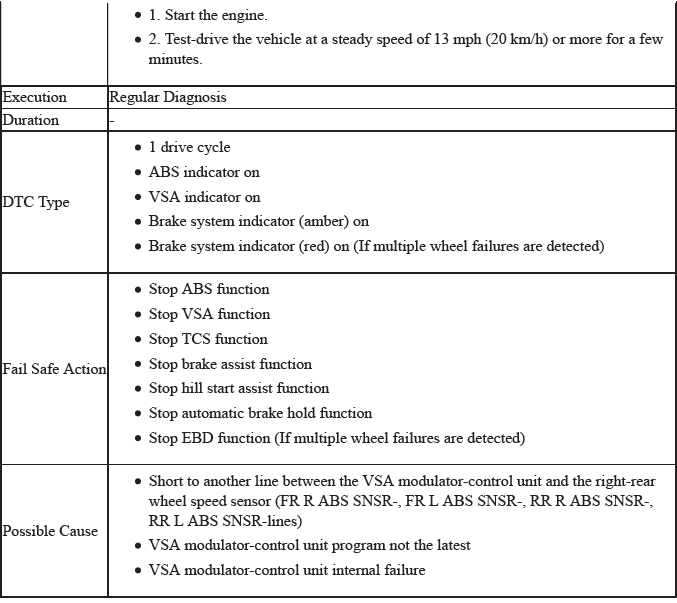

DTC 16-12: Right-Rear Wheel Speed Sensor Short to the Other Sensor Circuit

VSA System - Diagnostics

VSA System - Diagnostics

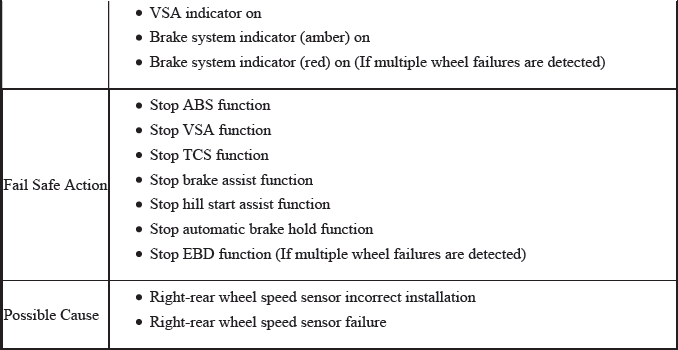

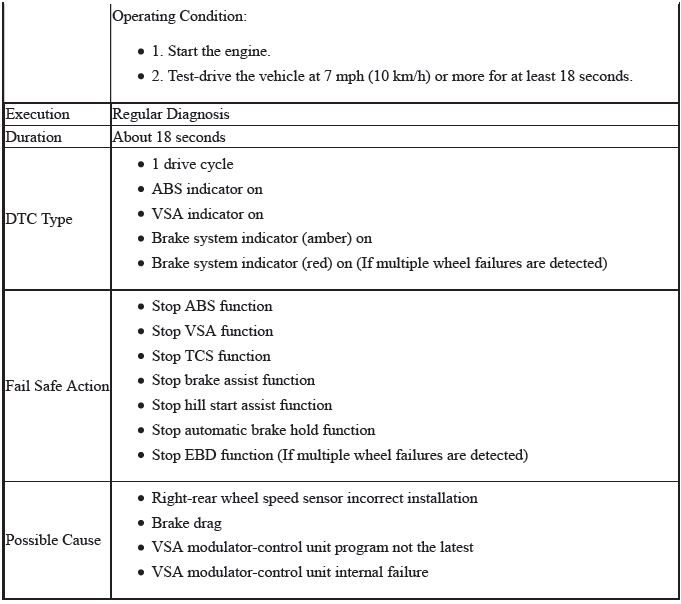

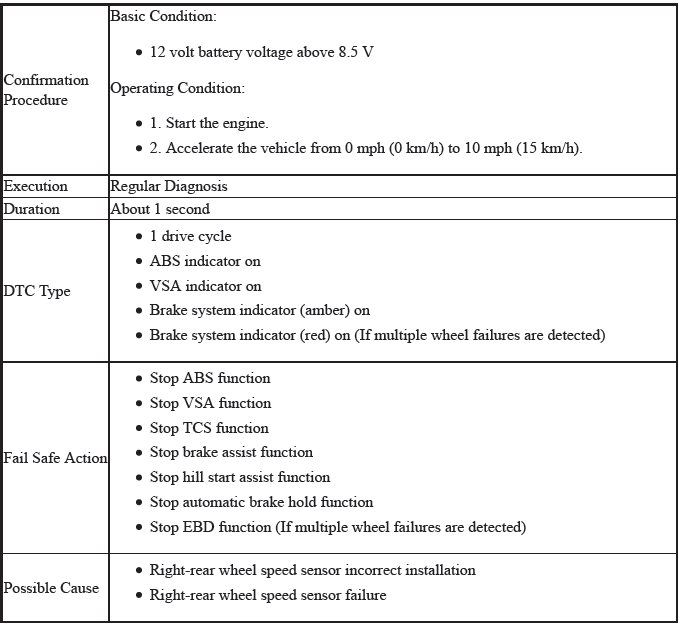

DTC 16-13: Right-Rear Wheel Speed Sensor Installation Error

VSA System - Diagnostics

VSA System - Diagnostics

DTC 16-14: Right-Rear Wheel Speed Sensor Installation Error

VSA System - Diagnostics

VSA System - Diagnostics

DTC 16-15: Right-Rear Wheel Speed Sensor Installation Error

VSA System - Diagnostics

DTC 16-120: Right-Rear Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

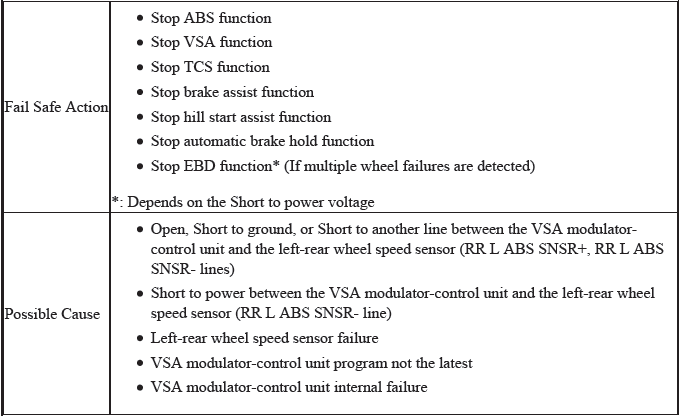

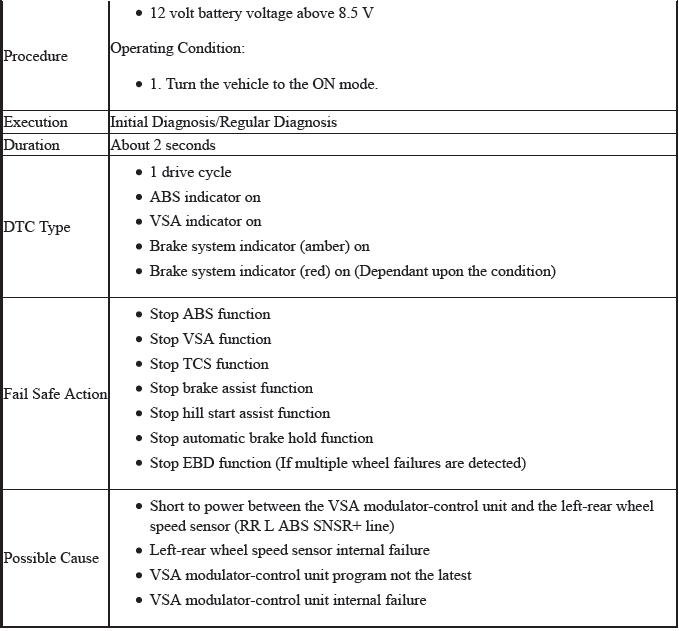

DTC 17-11: Left-Rear Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 17-12: Left-Rear Wheel Speed Sensor Power Source Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 18-11: Left-Rear Wheel Speed Sensor Electrical Noise or Intermittent Interruption

VSA System - Diagnostics

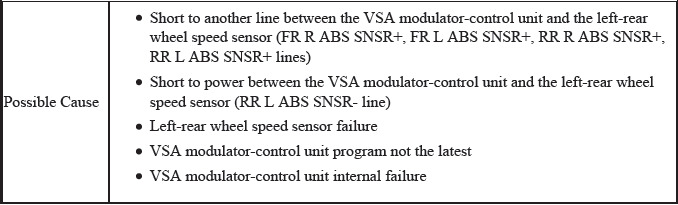

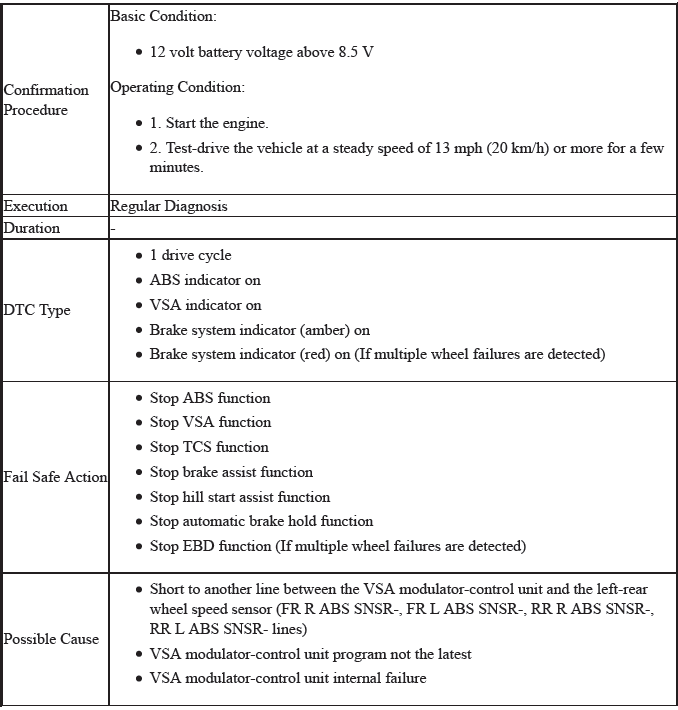

DTC 18-12: Left-Rear Wheel Speed Sensor Short to the Other Sensor Circuit

VSA System - Diagnostics

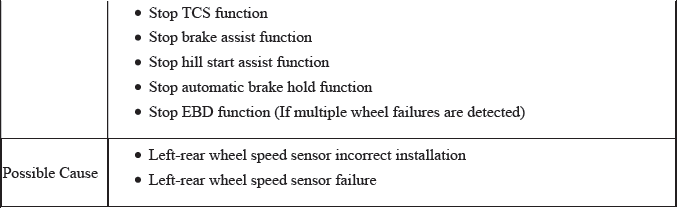

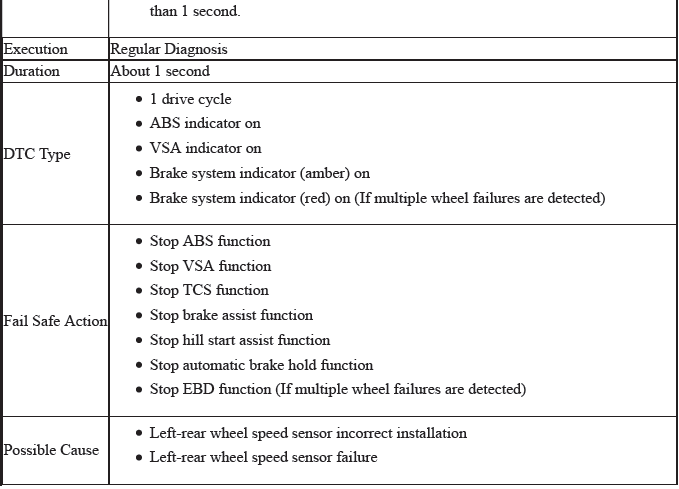

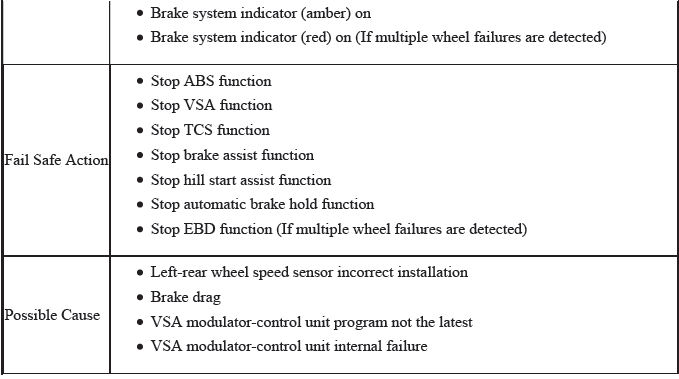

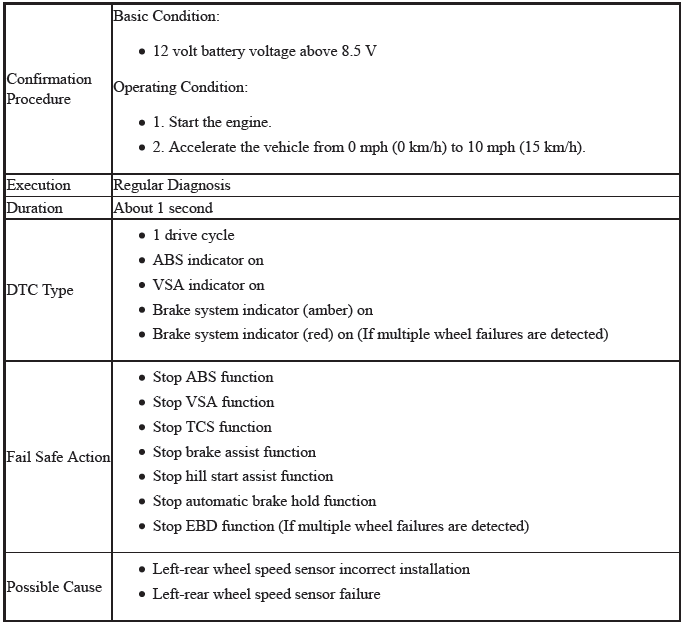

DTC 18-13: Left-Rear Wheel Speed Sensor Installation Error

VSA System - Diagnostics

VSA System - Diagnostics

DTC 18-14: Left-Rear Wheel Speed Sensor Installation Error

VSA System - Diagnostics

VSA System - Diagnostics

DTC 18-15: Left-Rear Wheel Speed Sensor Installation Error

VSA System - Diagnostics

DTC 18-120: Left-Rear Wheel Speed Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

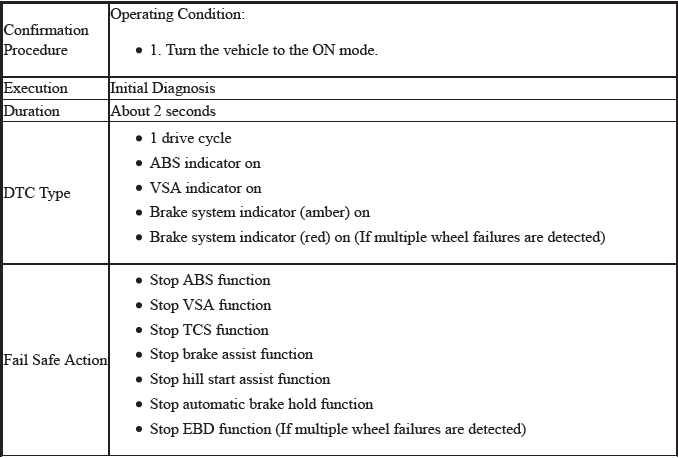

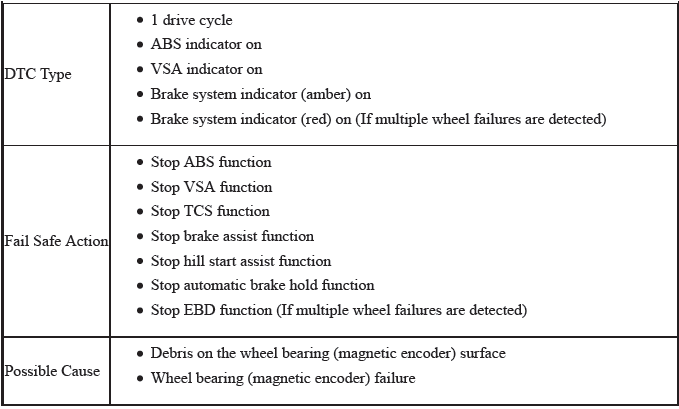

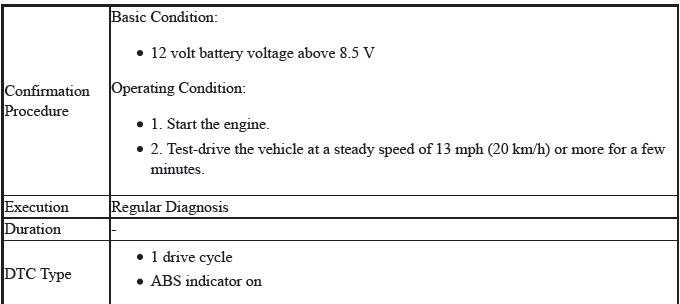

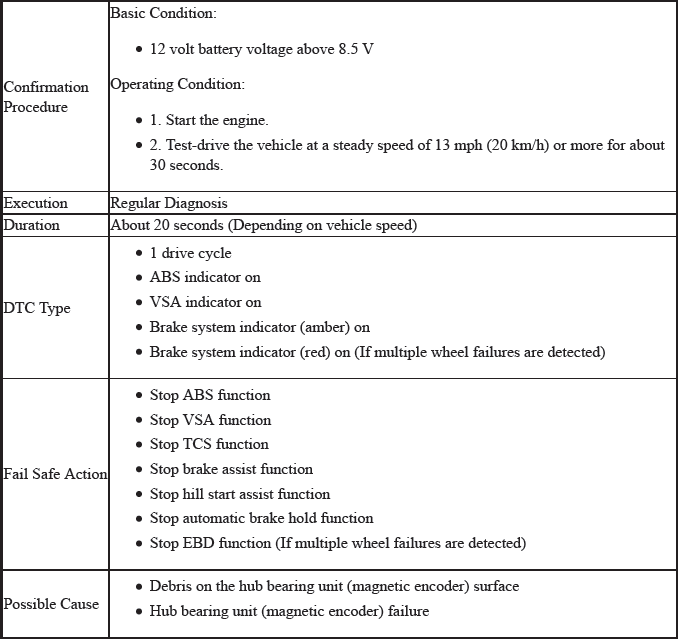

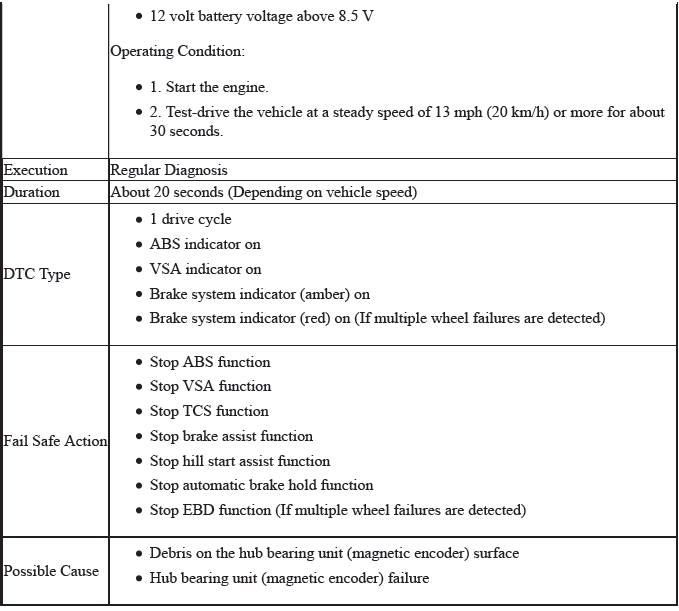

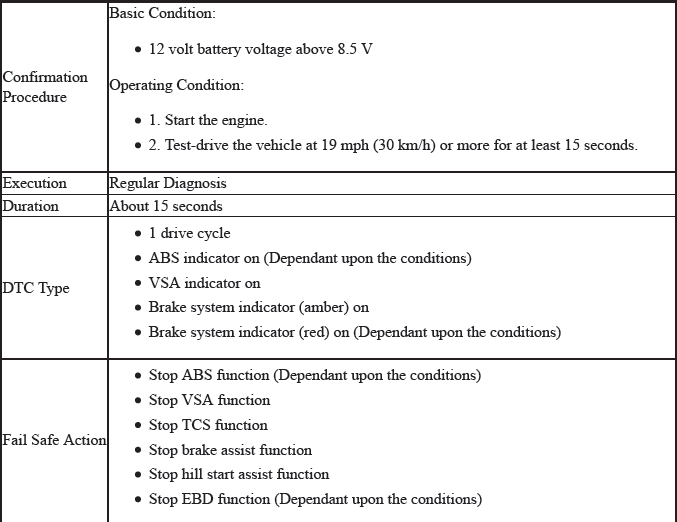

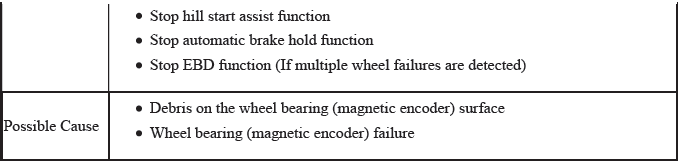

DTC 21-11: Right-Front Magnetic Encoder Malfunction (Pulse Missing)

VSA System - Diagnostics

VSA System - Diagnostics

DTC 22-11: Left-Front Magnetic Encoder Malfunction (Pulse Missing)

VSA System - Diagnostics

VSA System - Diagnostics

DTC 23-11: Right-Rear Magnetic Encoder Malfunction (Pulse Missing)

VSA System - Diagnostics

DTC 24-11: Left-Rear Magnetic Encoder Malfunction (Pulse Missing)

VSA System - Diagnostics

VSA System - Diagnostics

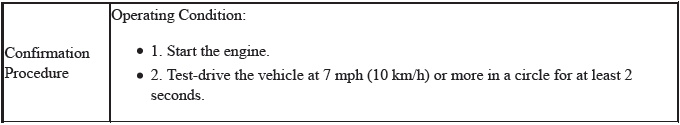

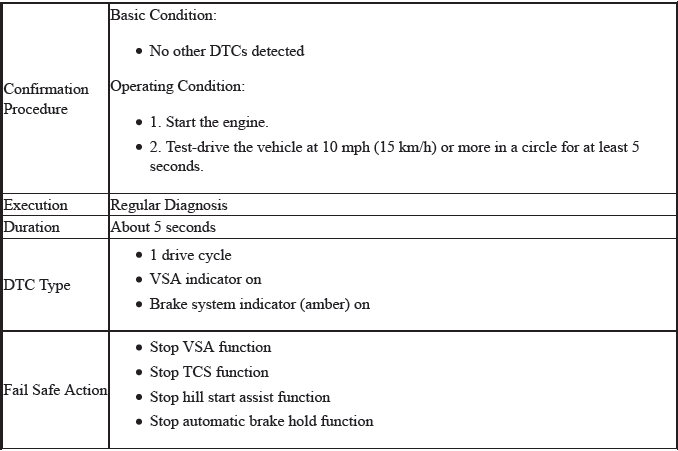

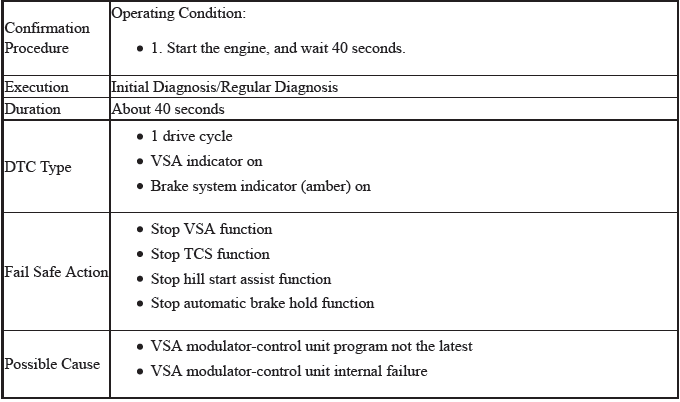

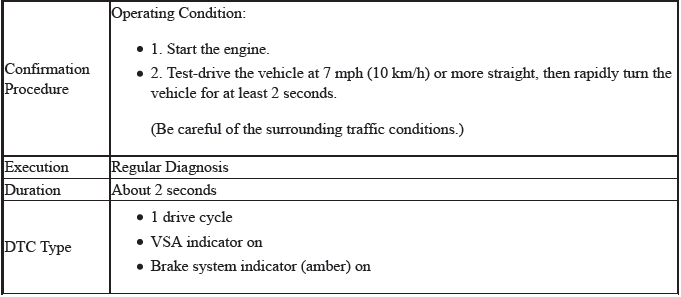

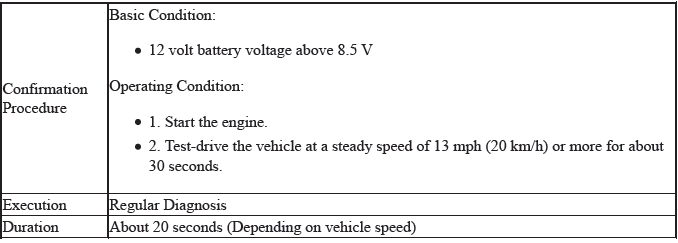

DTC 25-120: Yaw Rate Sensor (Inside of Modulator-Control Unit) Stuck

VSA System - Diagnostics

VSA System - Diagnostics

DTC 25-121: Yaw Rate Sensor (Inside of Modulator-Control Unit) Output Signal Malfunction

VSA System - Diagnostics

DTC 26-120: Lateral Acceleration Sensor (Inside of Modulator-Control Unit) Stuck

VSA System - Diagnostics

VSA System - Diagnostics

DTC 26-121: Lateral Acceleration Sensor (Inside of Modulator-Control Unit) Output Signal Malfunction

VSA System - Diagnostics

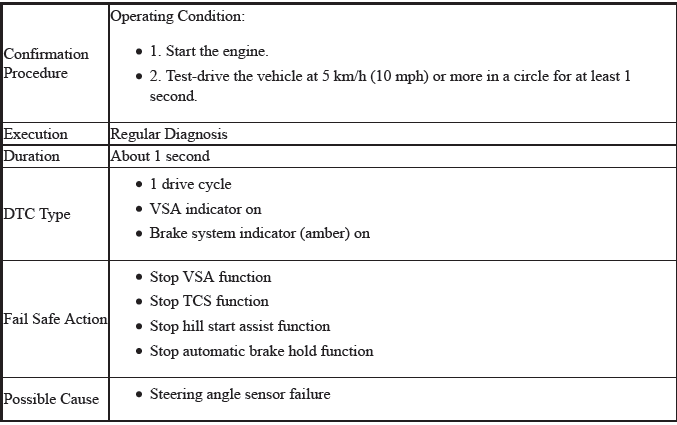

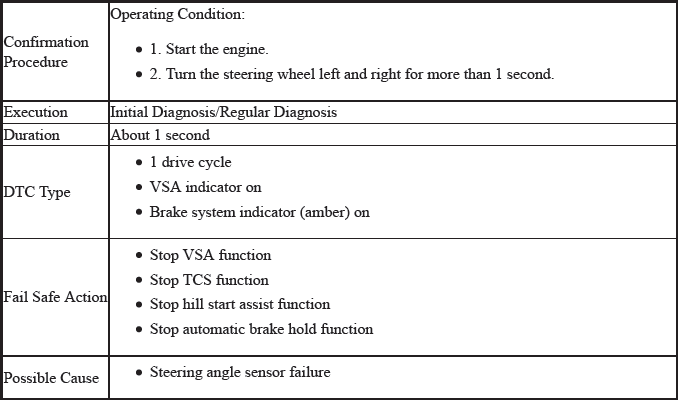

DTC 27-12: Steering Angle Sensor Stuck

VSA System - Diagnostics

DTC 27-13: Steering Angle Sensor Output Signal Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 27-15: Steering Angle Sensor Internal Circuit Malfunction

VSA System - Diagnostics

DTC 28-120: Longitudinal Acceleration Sensor (Inside of Modulator-Control Unit) Stuck

VSA System - Diagnostics

VSA System - Diagnostics

*: 4WD Vehicle

DTC 28-121: Longitudinal Acceleration Sensor (Inside of Modulator-Control Unit) Output Signal Malfunction

VSA System - Diagnostics

*: 4WD Vehicle

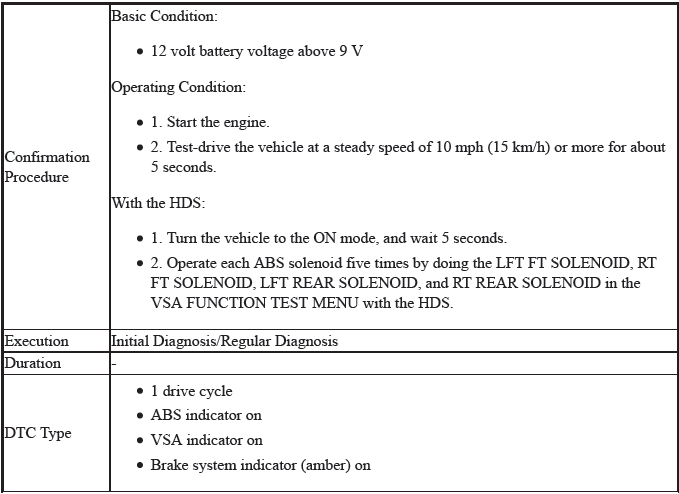

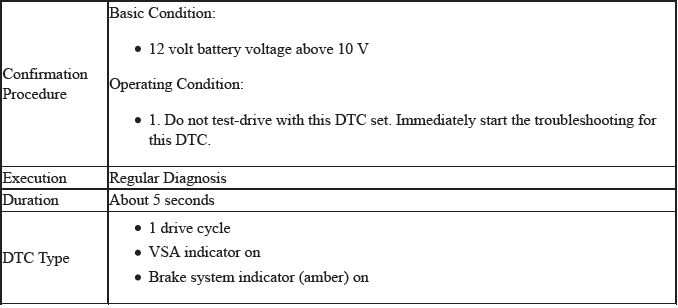

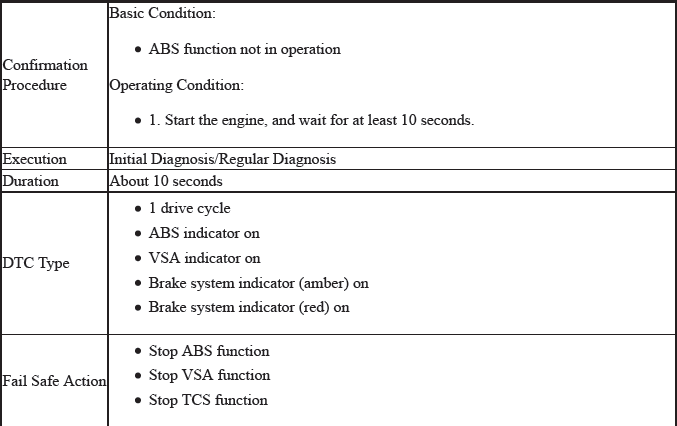

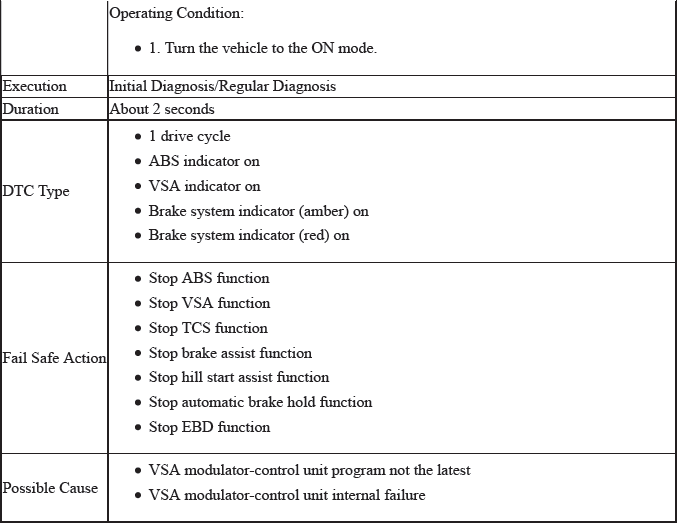

DTC 31-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 32-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 33-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

DTC 34-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

DTC 35-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 36-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

DTC 37-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

DTC 38-11: ABS Solenoid Valve Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

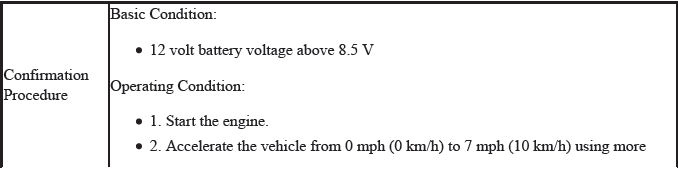

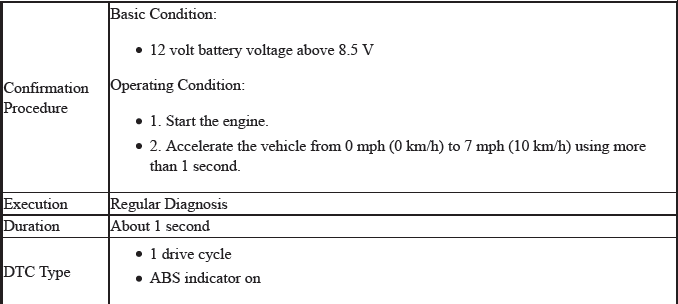

DTC 41-11: Right-Front Wheel Lock

VSA System - Diagnostics

VSA System - Diagnostics

DTC 42-11: Left-Front Wheel Lock

VSA System - Diagnostics

DTC 43-11: Right-Rear Wheel Lock

VSA System - Diagnostics

VSA System - Diagnostics

DTC 44-11: Left-Rear Wheel Lock

VSA System - Diagnostics

VSA System - Diagnostics

DTC 51-11: Motor Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

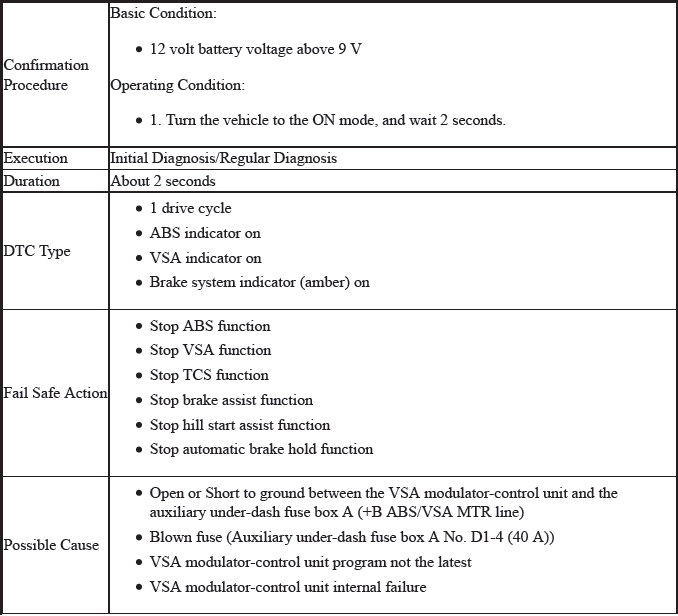

DTC 51-12: Motor Power Source Circuit Malfunction

VSA System - Diagnostics

DTC 52-11: Motor Stuck OFF

VSA System - Diagnostics

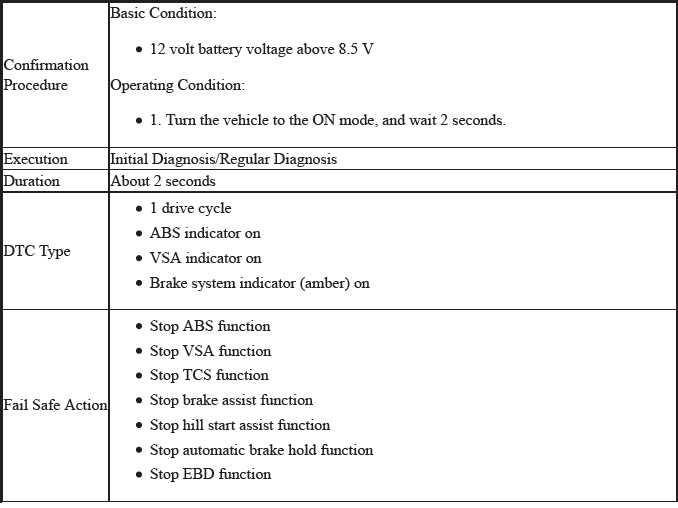

DTC 53-11: Motor Relay Stuck ON

VSA System - Diagnostics

VSA System - Diagnostics

DTC 54-11: Fail-Safe Relay Stuck ON

VSA System - Diagnostics

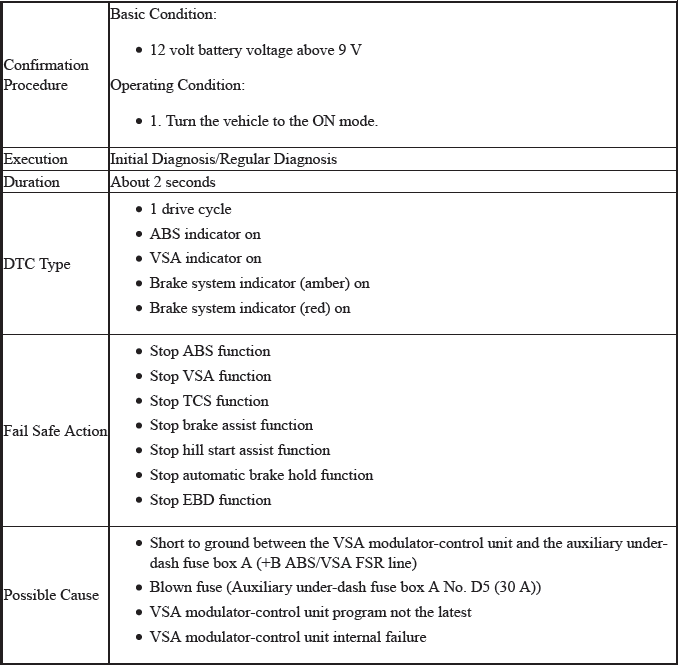

DTC 54-12: Fail-Safe Relay Stuck OFF

VSA System - Diagnostics

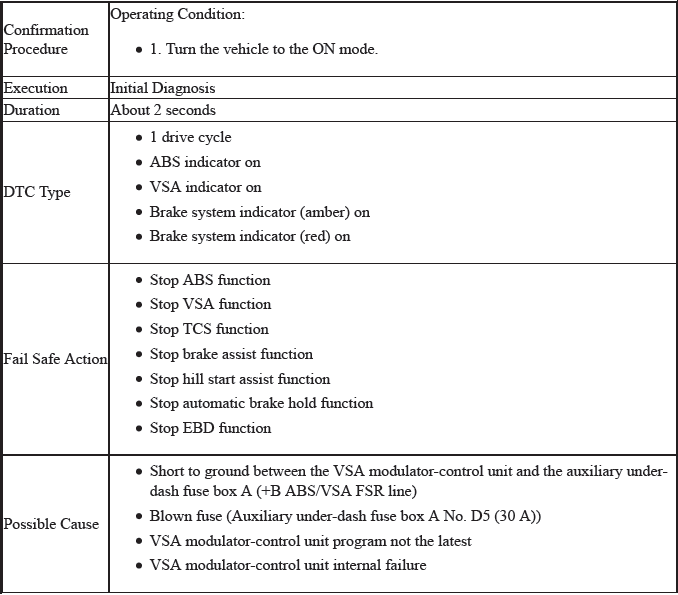

DTC 56-11: Fail-Safe Relay Power Source Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

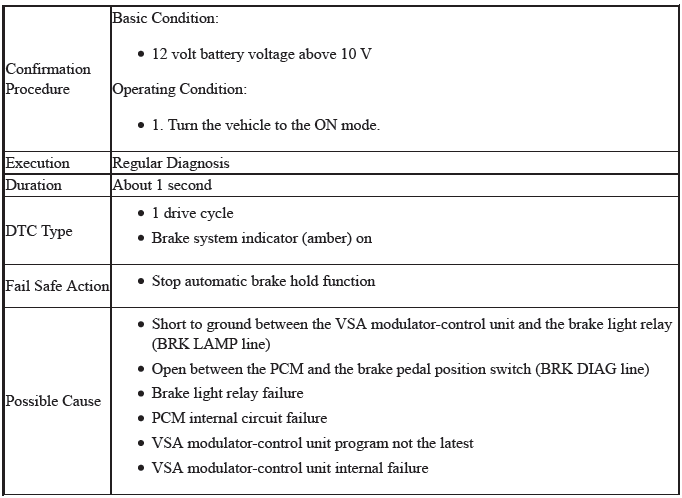

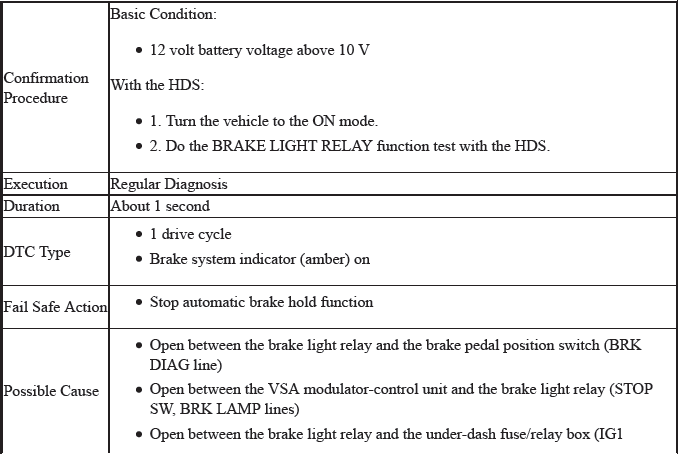

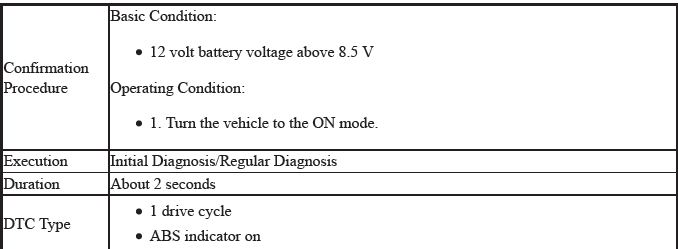

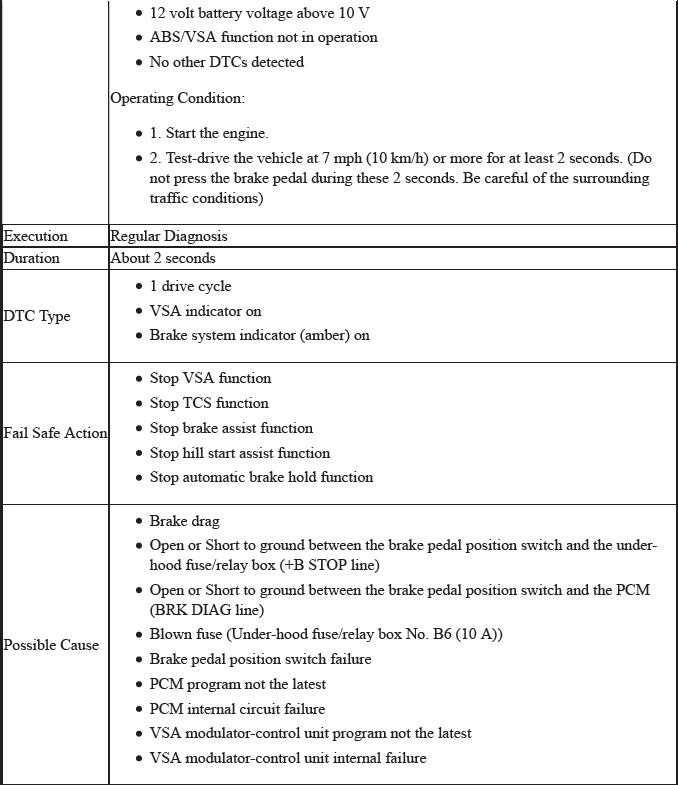

DTC 58-11: Brake Diag Circuit OFF Failure

VSA System - Diagnostics

VSA System - Diagnostics

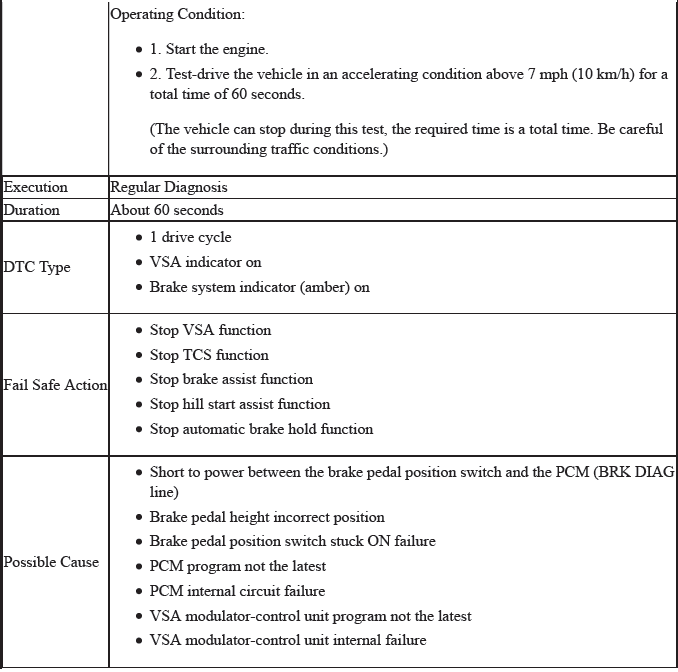

DTC 58-12: Brake Diag Circuit ON Failure

VSA System - Diagnostics

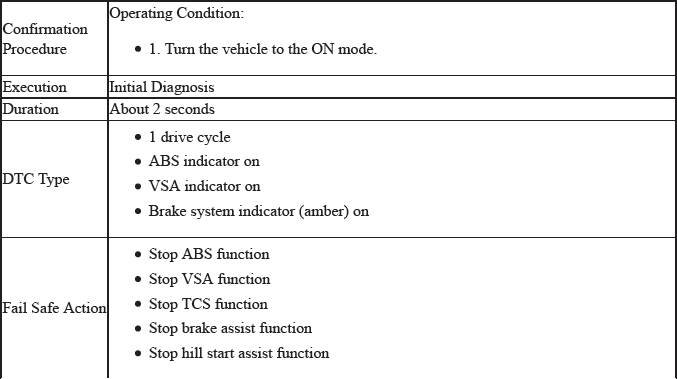

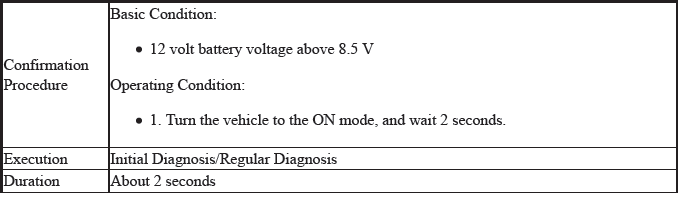

DTC 61-11: Modulator-Control Unit Power Source Circuit (IG) Low Voltage

VSA System - Diagnostics

VSA System - Diagnostics

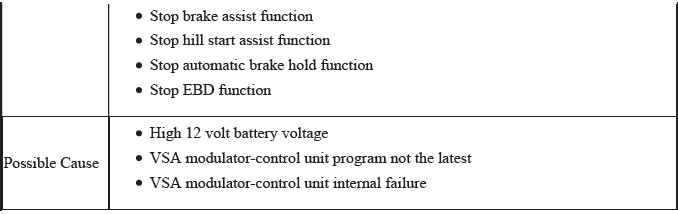

DTC 62-11: Modulator-Control Unit Power Source Circuit (IG) High Voltage

VSA System - Diagnostics

VSA System - Diagnostics

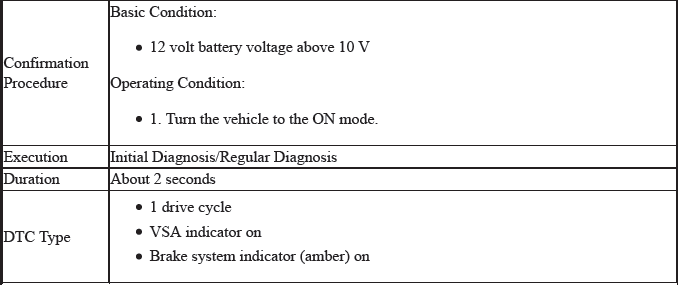

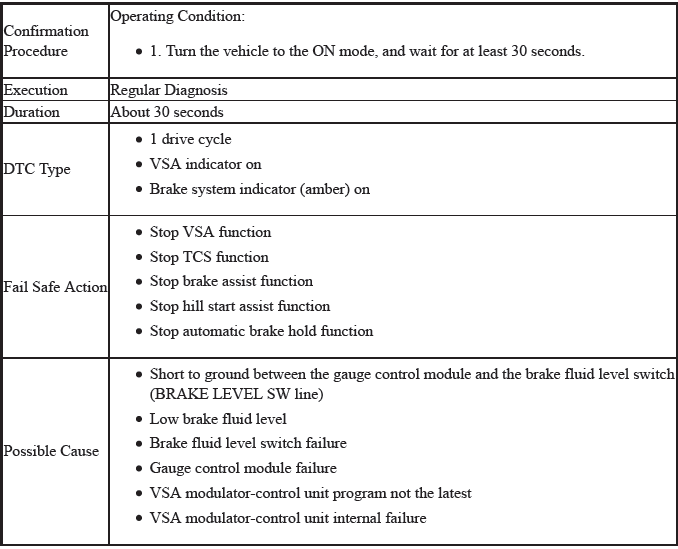

DTC 65-11: Brake Fluid Level Switch Circuit Malfunction

VSA System - Diagnostics

DTC 66-11: Pressure Sensor Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 66-13: Pressure Sensor Malfunction

VSA System - Diagnostics

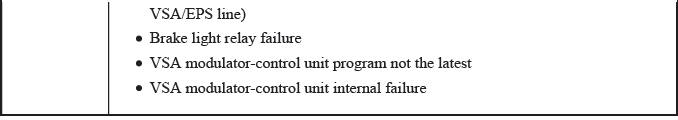

DTC 68-11: Brake Pedal Position Switch Stuck OFF

VSA System - Diagnostics

VSA System - Diagnostics

DTC 68-12: Brake Pedal Position Switch Stuck ON

VSA System - Diagnostics

VSA System - Diagnostics

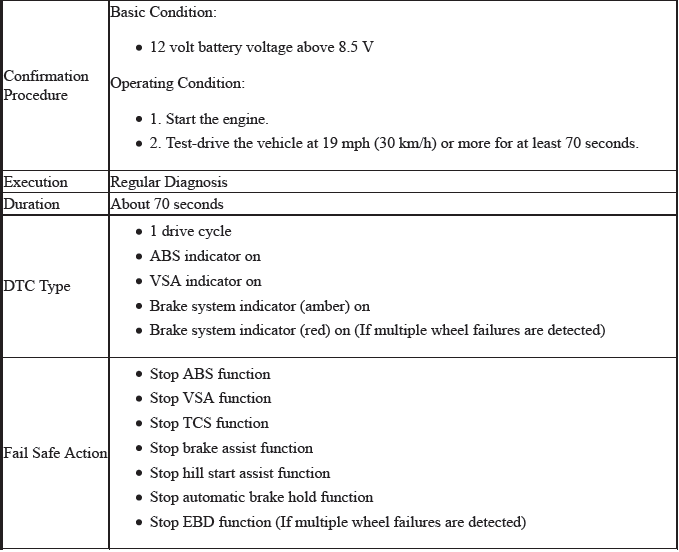

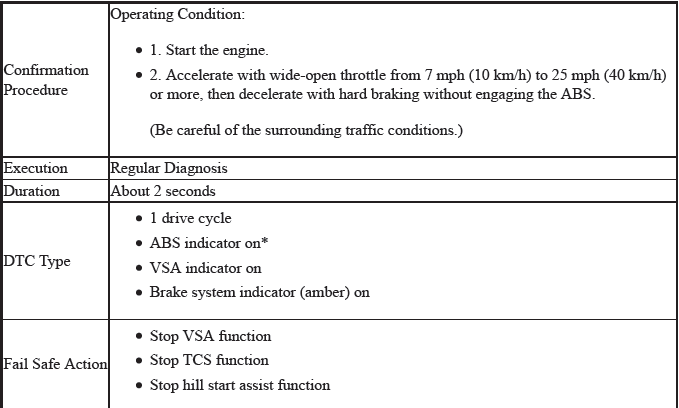

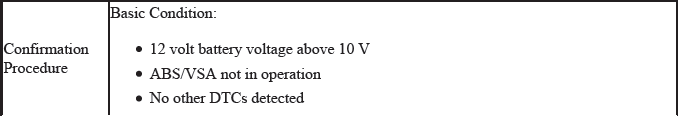

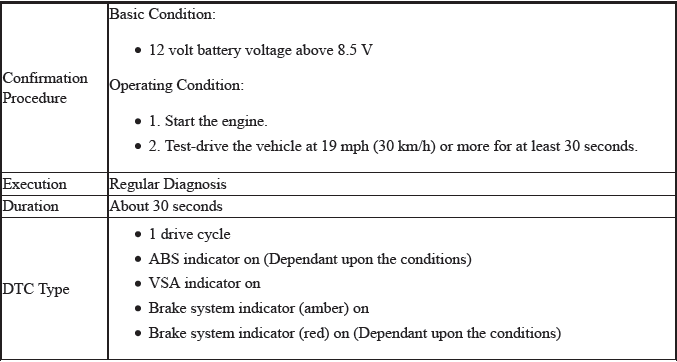

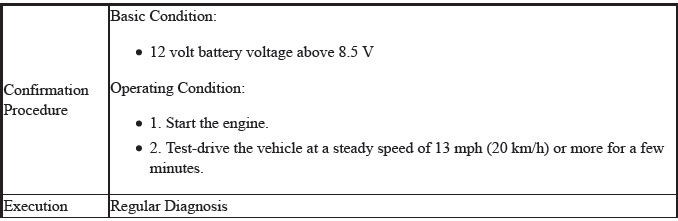

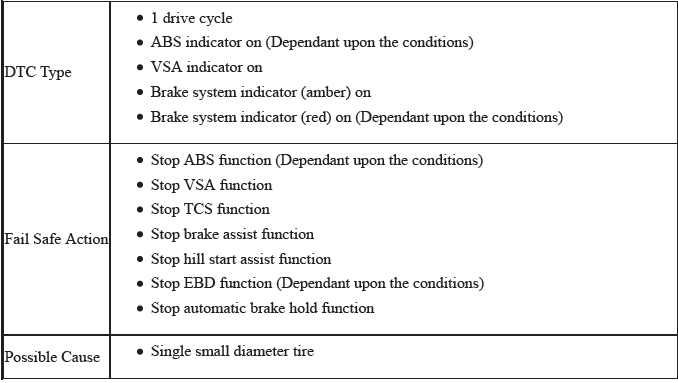

DTC 71-11: Different Diameter Tire Malfunction (Right-Front or Left-Rear)

VSA System - Diagnostics

VSA System - Diagnostics

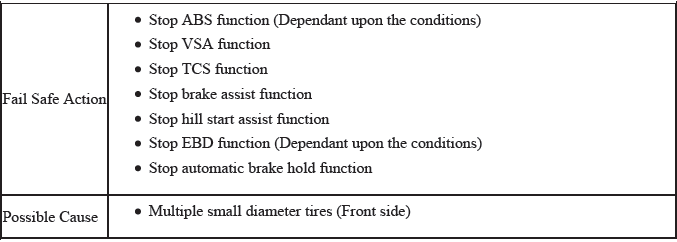

DTC 71-12: Different Diameter Tire Malfunction (Left-Front or Right-Rear)

VSA System - Diagnostics

VSA System - Diagnostics

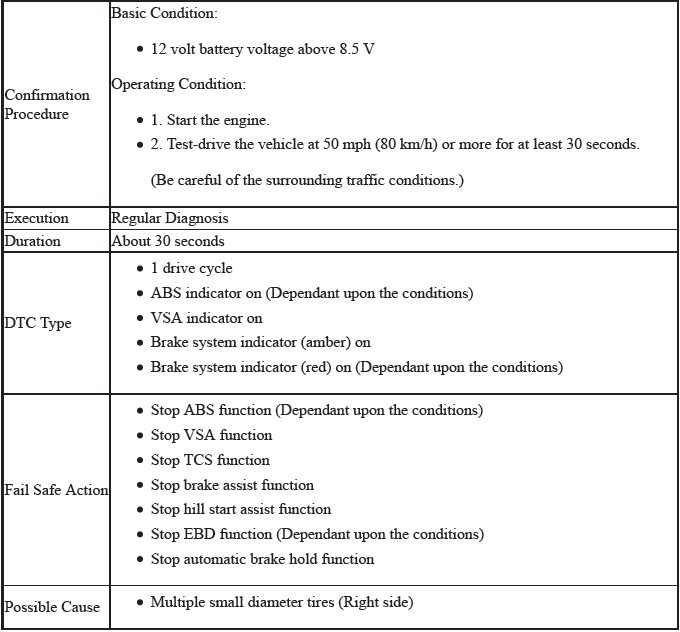

DTC 71-13: Different Diameter Tire Malfunction (Right-Front and Right-Rear)

VSA System - Diagnostics

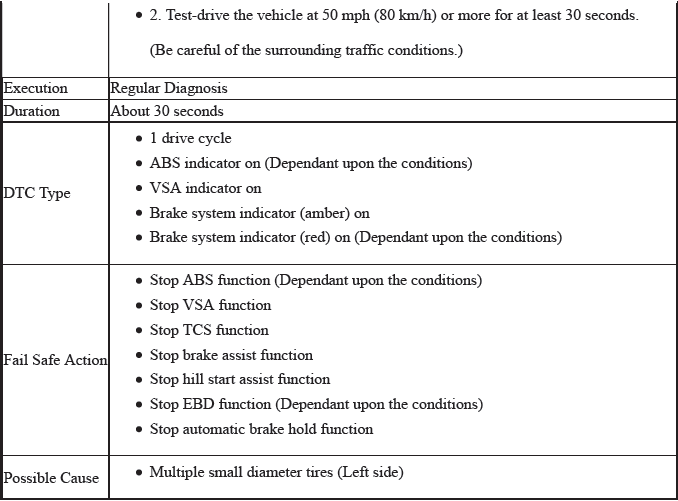

DTC 71-14: Different Diameter Tire Malfunction (Left-Front and Left-Rear)

VSA System - Diagnostics

VSA System - Diagnostics

DTC 71-15: Different Diameter Tire Malfunction (Right-Front and Left-Front)

VSA System - Diagnostics

VSA System - Diagnostics

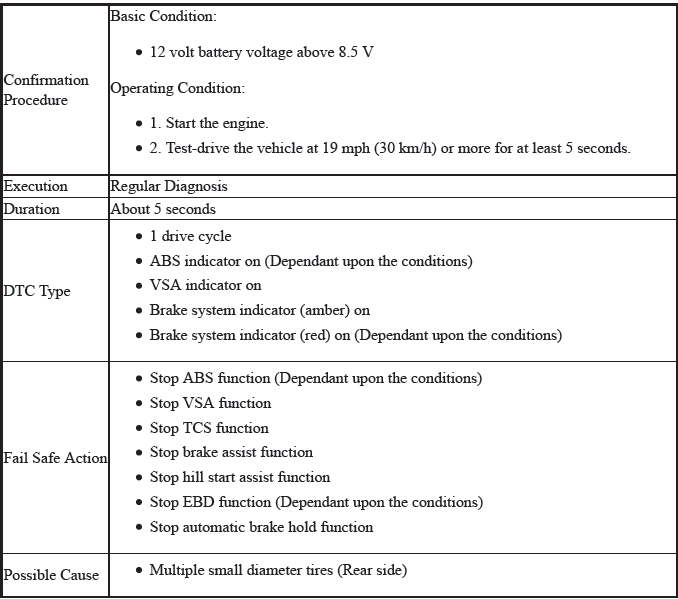

DTC 71-16: Different Diameter Tire Malfunction (Right-Rear and Left-Rear)

VSA System - Diagnostics

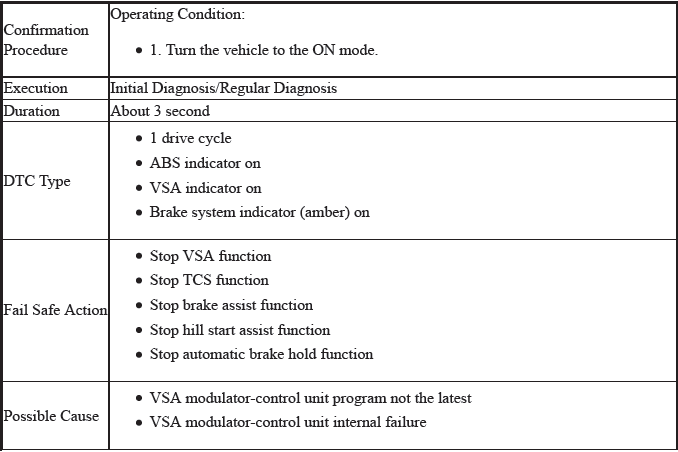

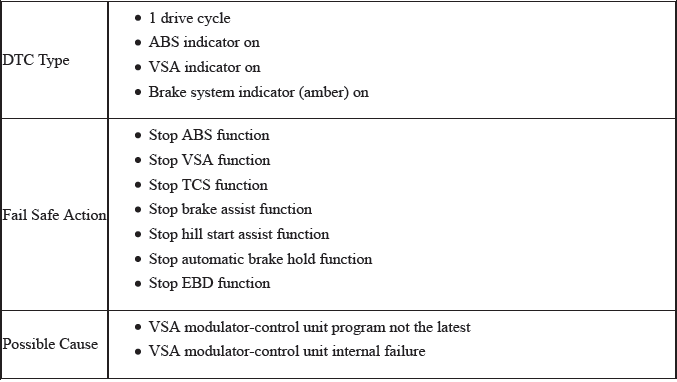

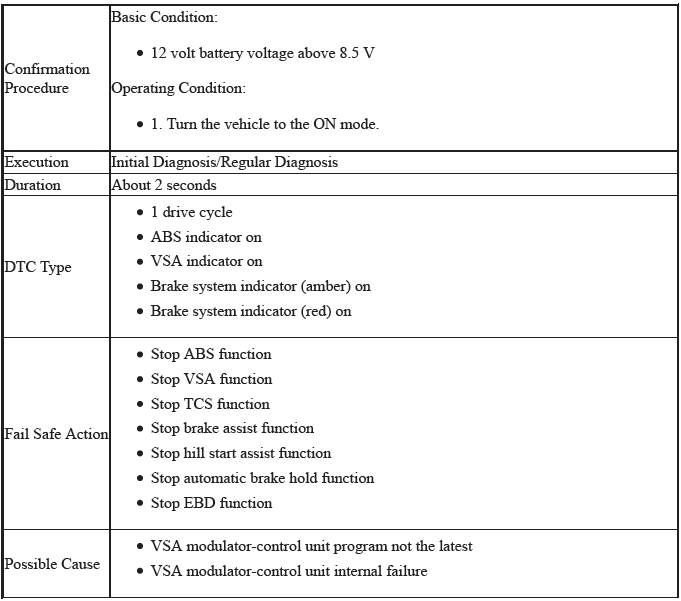

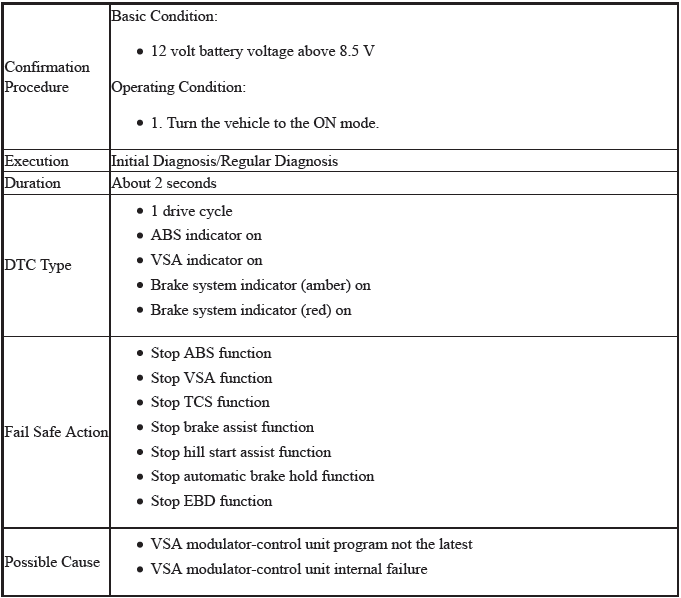

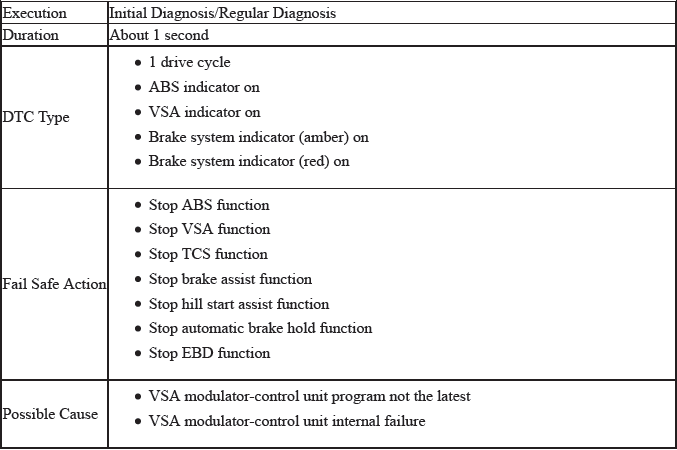

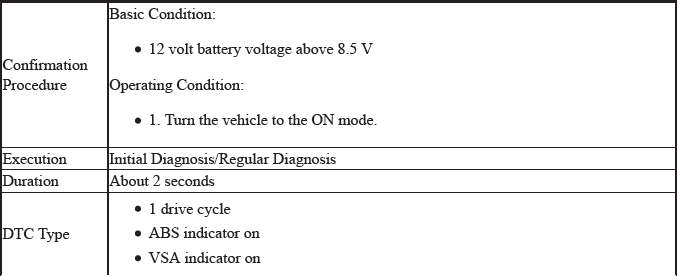

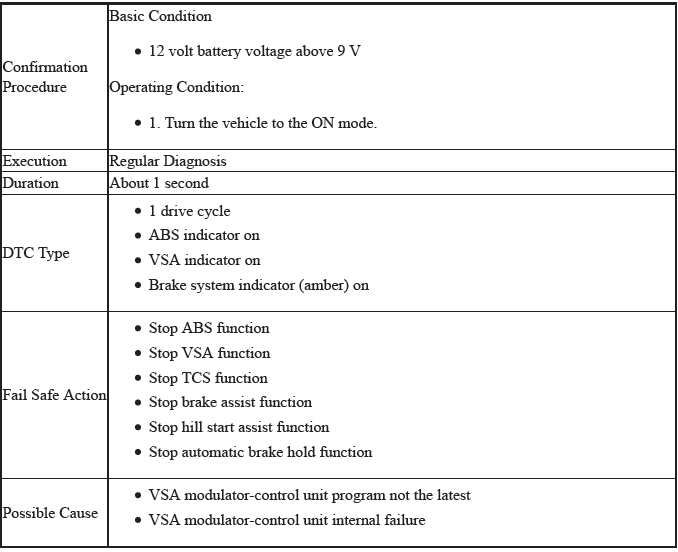

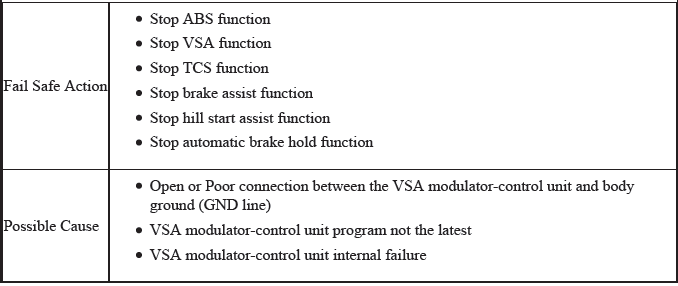

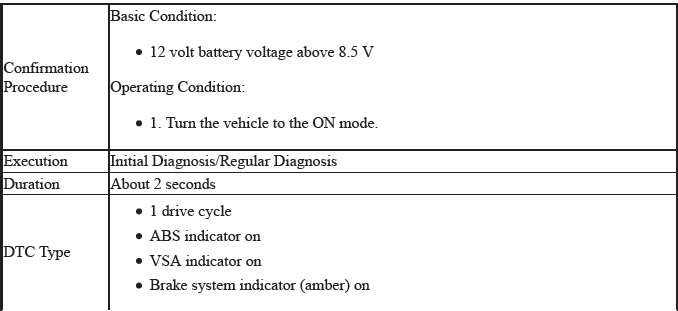

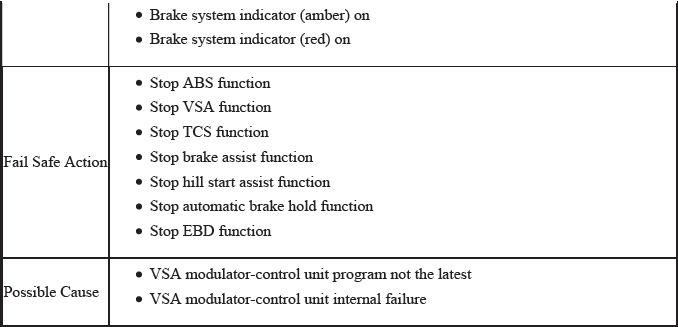

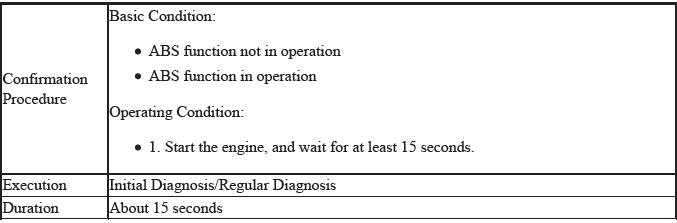

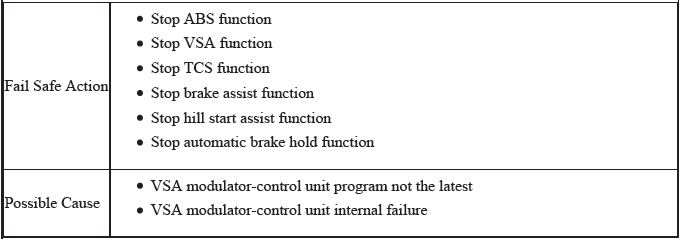

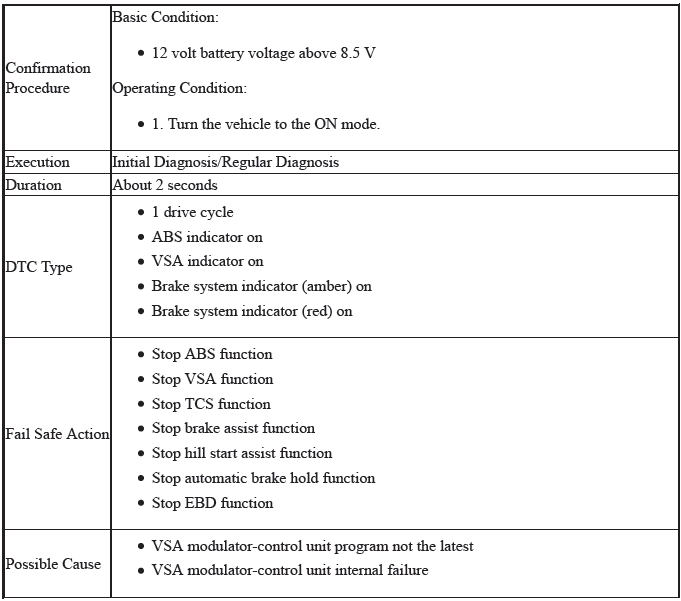

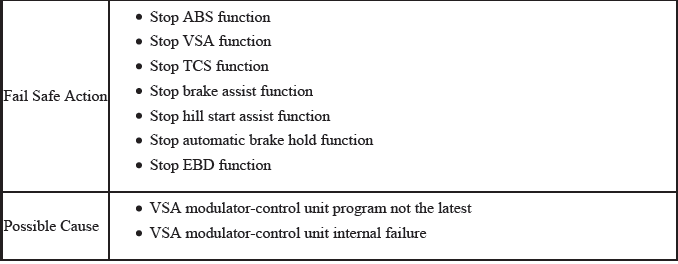

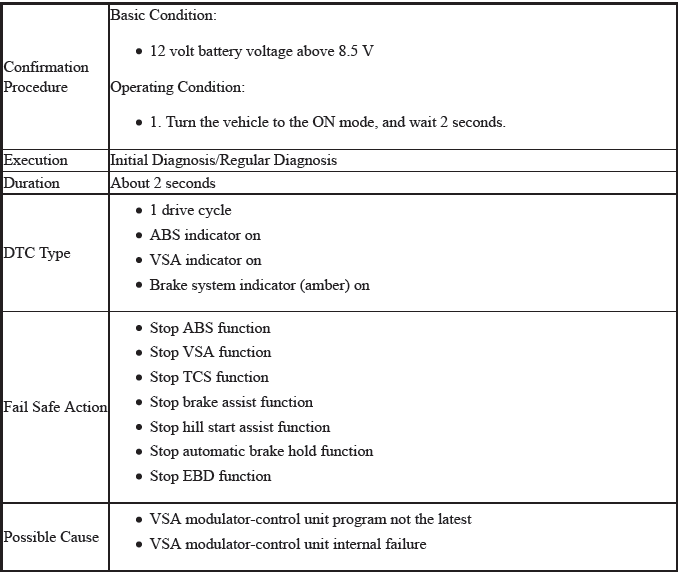

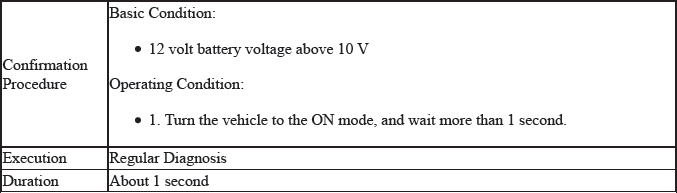

DTC 81-11: Modulator-Control Unit Internal Circuit Malfunction

VSA System - Diagnostics

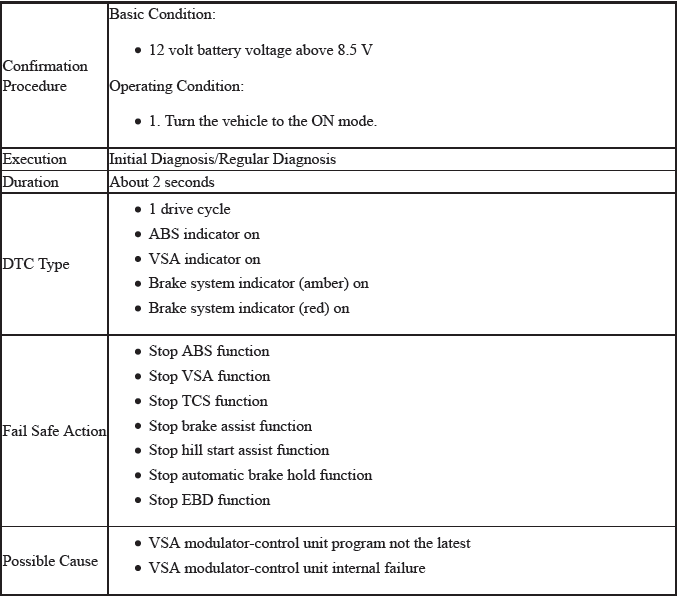

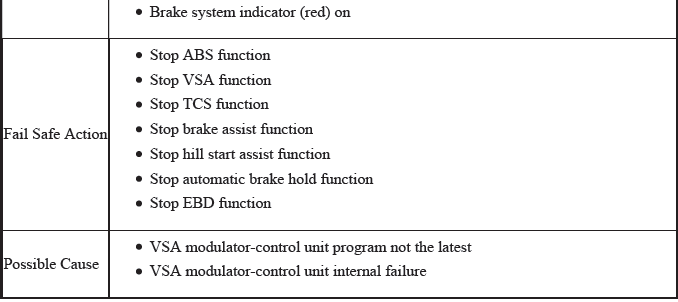

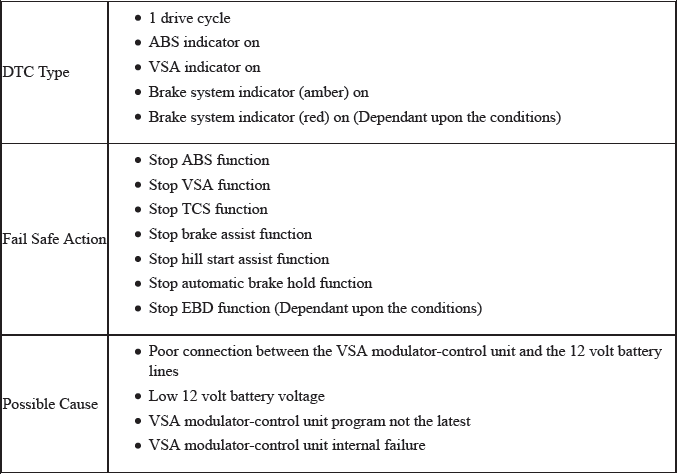

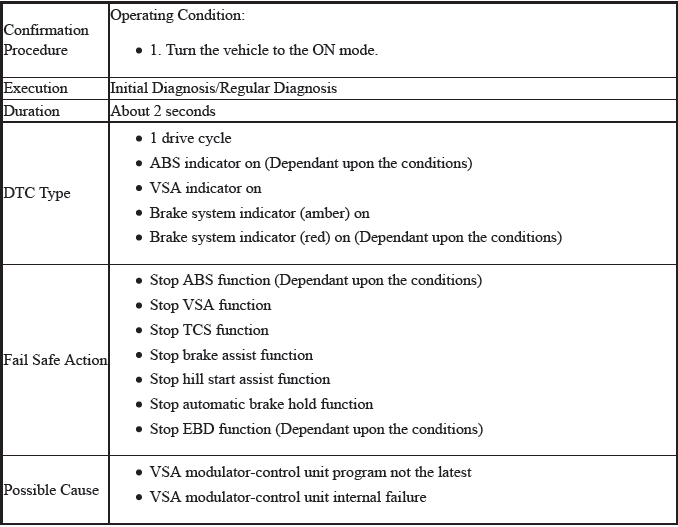

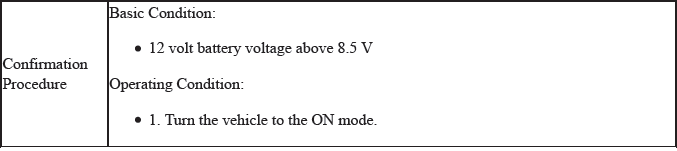

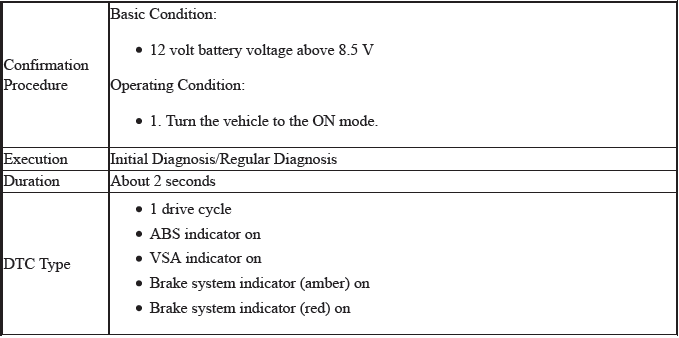

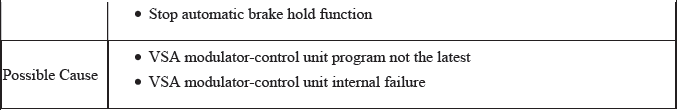

DTC 81-13: Modulator-Control Unit Internal Circuit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

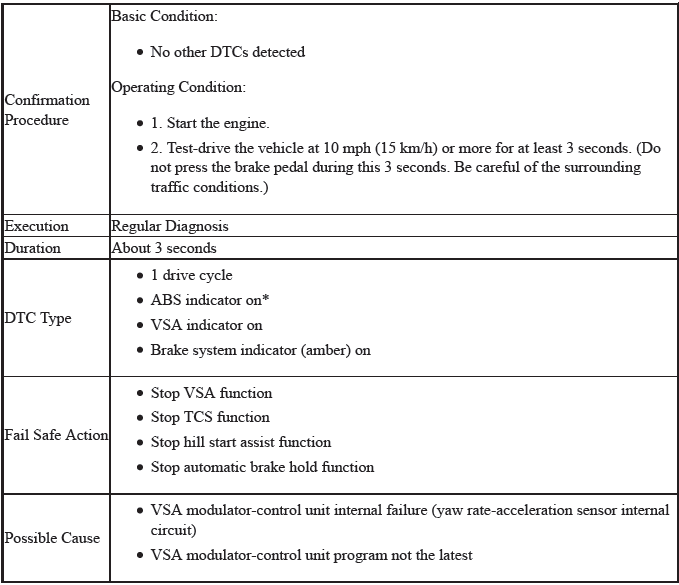

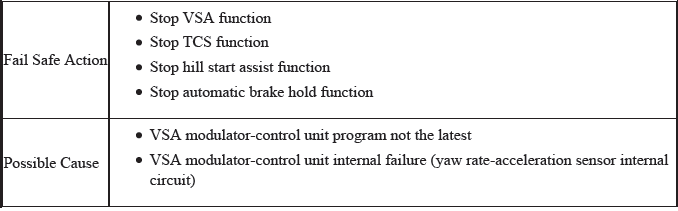

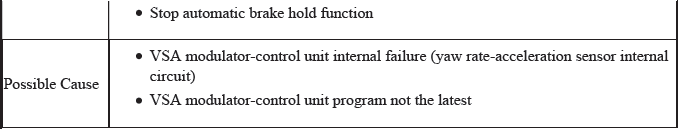

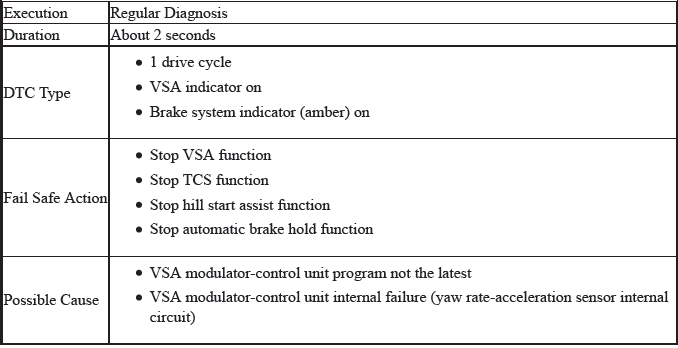

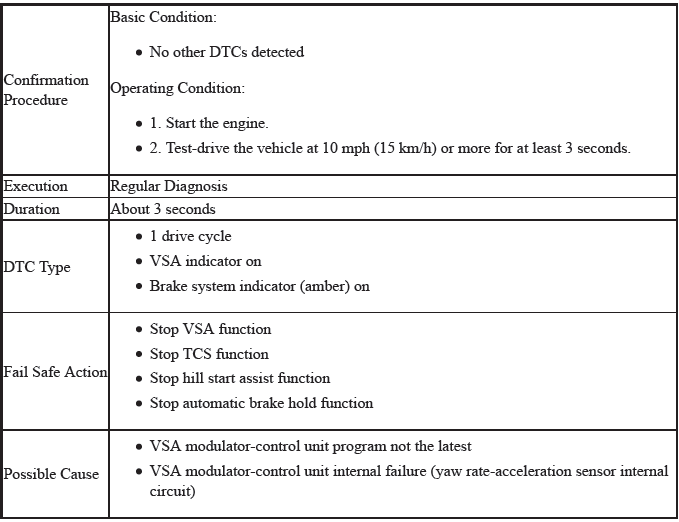

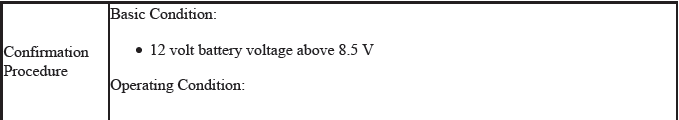

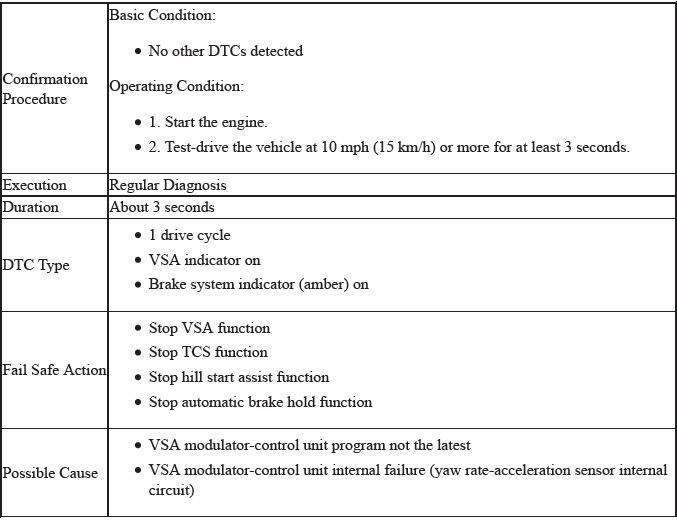

DTC 81-19: Yaw Rate Sensor (Inside of Modulator-Control Unit) Internal Circuit Malfunction

VSA System - Diagnostics

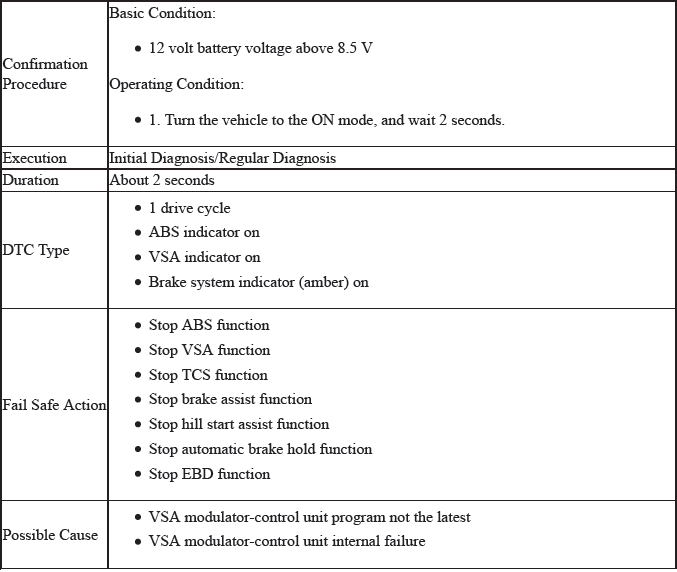

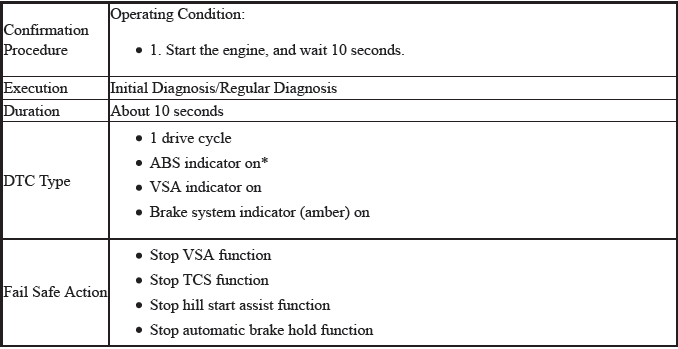

DTC 81-20: Acceleration Sensor (Inside of Modulator-Control Unit) Internal Circuit Malfunction

VSA System - Diagnostics

*: 4WD Vehicle

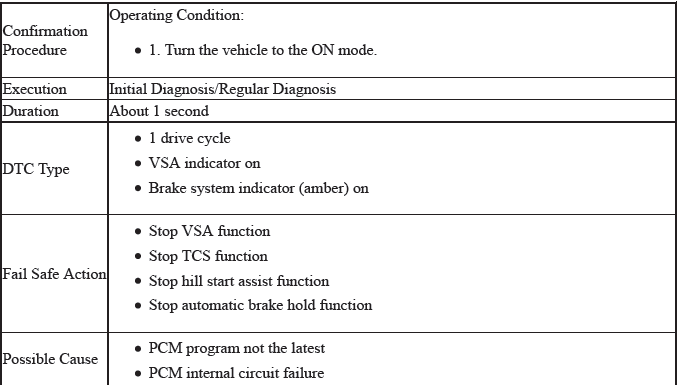

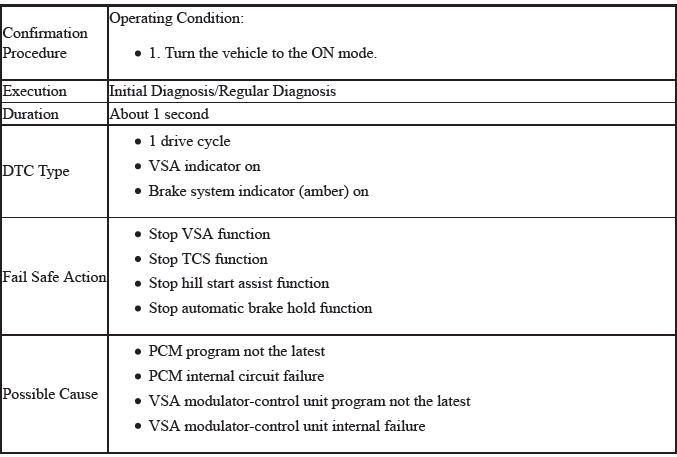

DTC 83-11: PCM (Engine) Malfunction

VSA System - Diagnostics

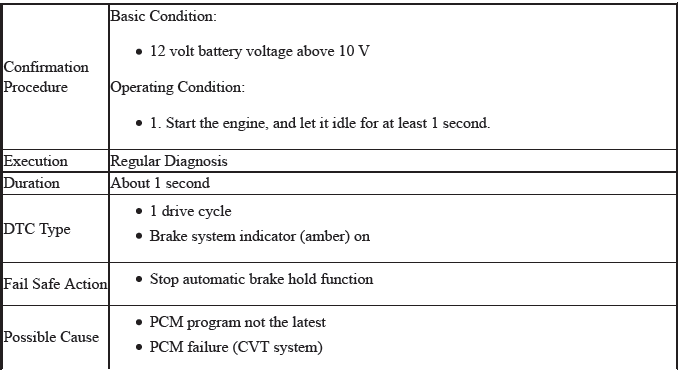

DTC 83-12: PCM (AT/CVT) Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 83-14: Electric Parking Brake System Malfunction

VSA System - Diagnostics

DTC 83-16: Shift Position Signal Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 86-11: F-CAN Bus-Off Malfunction

VSA System - Diagnostics

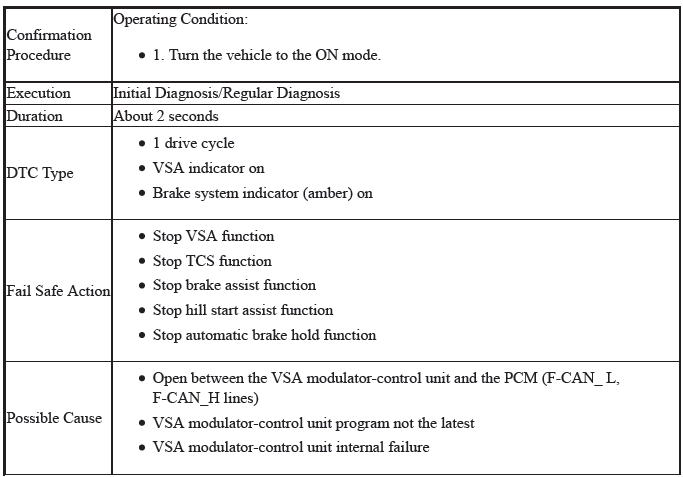

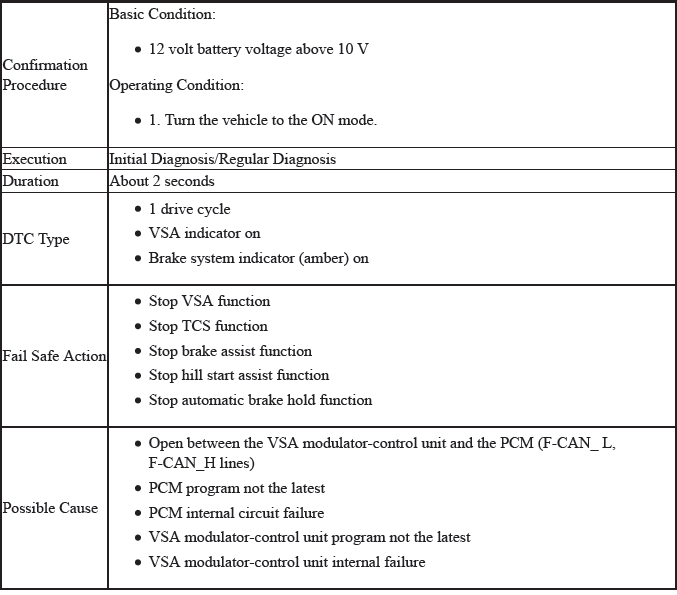

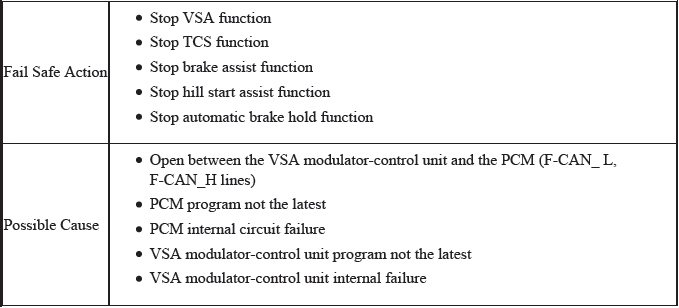

DTC 86-12: F-CAN Communication With PCM (Engine) Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 86-13: F-CAN Communication With PCM (AT/CVT) Malfunction

VSA System - Diagnostics

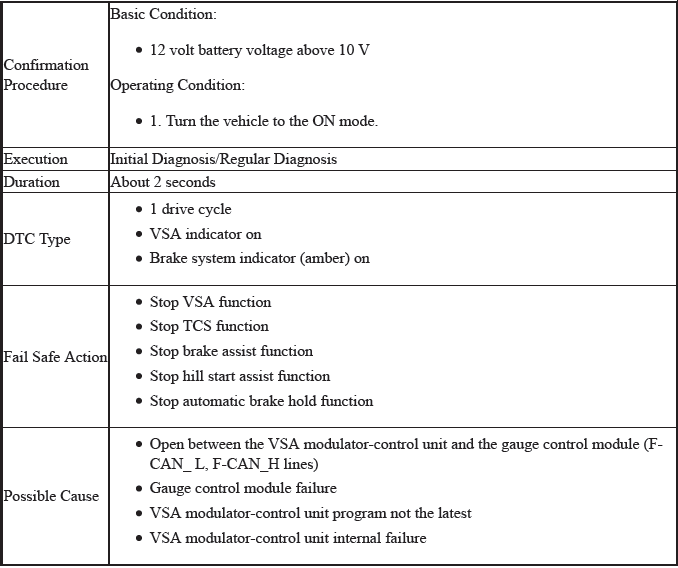

DTC 86-14: F-CAN Communication With Gauge Control Module Malfunction

VSA System - Diagnostics

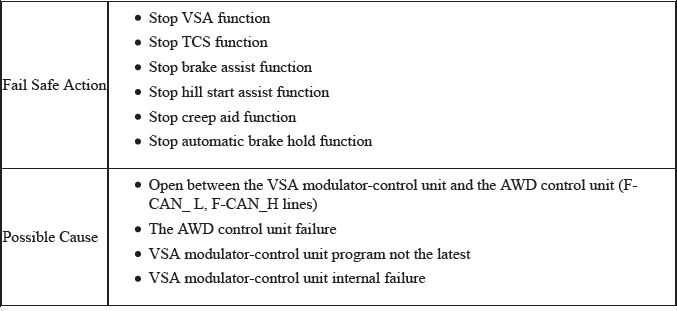

DTC 86-16: F-CAN Communication With AWD Control Unit

VSA System - Diagnostics

VSA System - Diagnostics

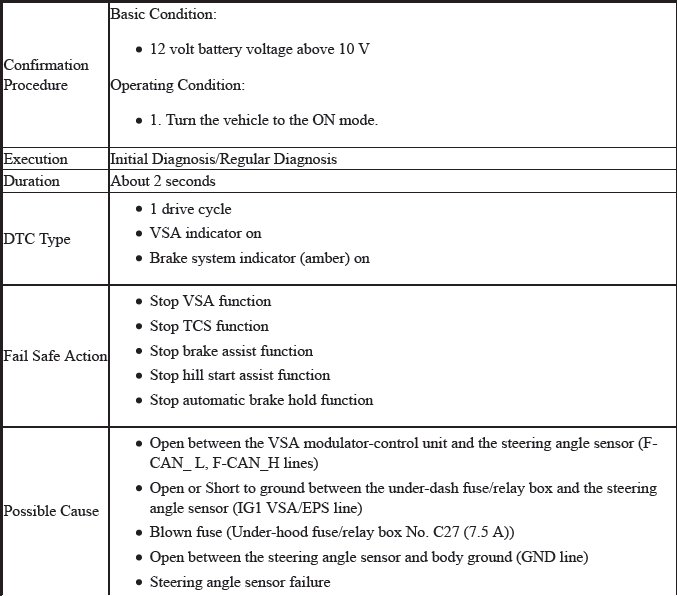

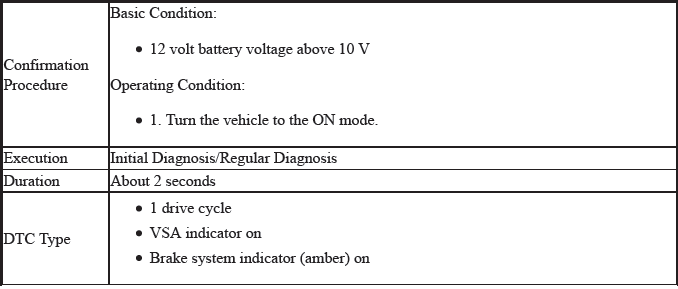

DTC 86-19: F-CAN Communication With Steering Angle Sensor Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

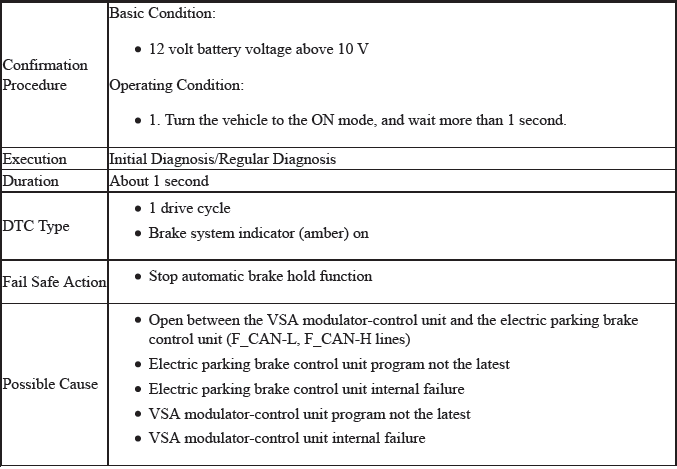

DTC 86-21: F-CAN Communication With Electric Parking Brake Control Unit Malfunction

VSA System - Diagnostics

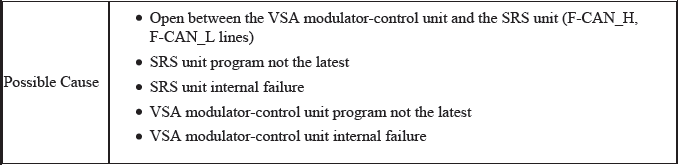

DTC 86-22: F-CAN Communication With SRS Unit Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

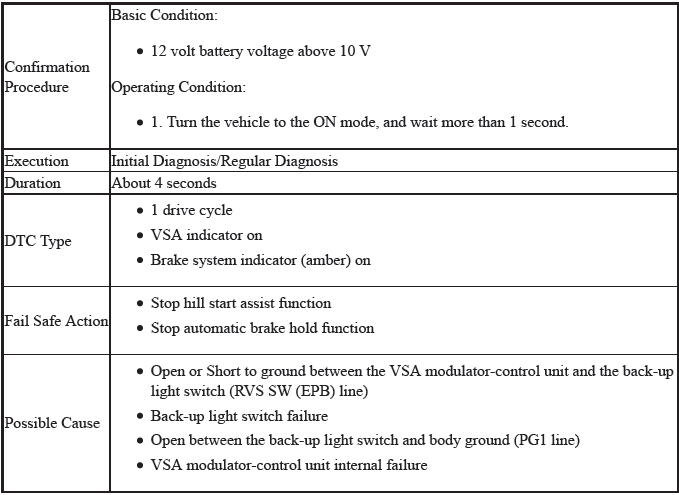

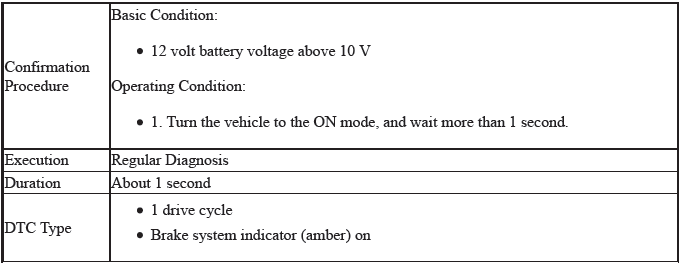

DTC 94-11: Back-Up Light Switch Circuit Open or Short

VSA System - Diagnostics

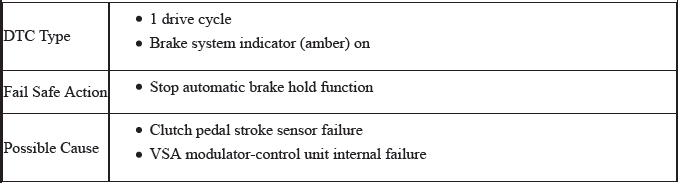

DTC 95-11: Clutch Pedal Stroke Sensor Failure

VSA System - Diagnostics

VSA System - Diagnostics

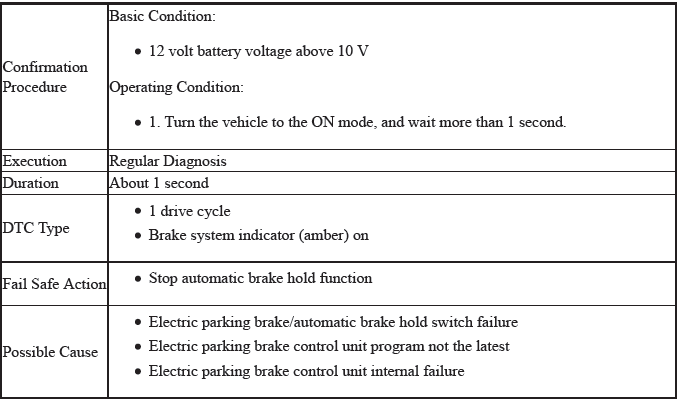

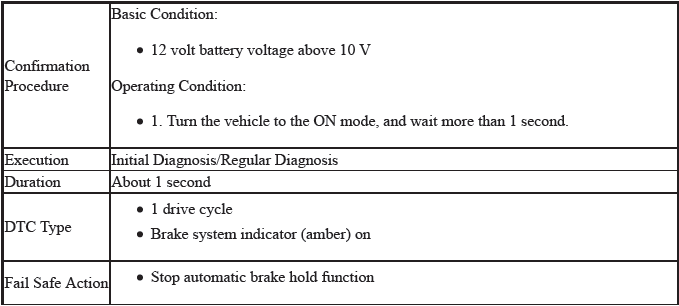

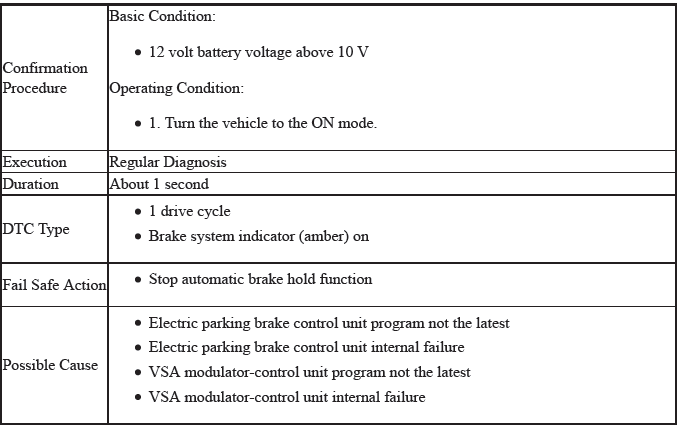

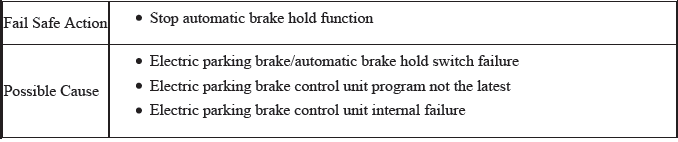

DTC 97-11: Automatic Brake Hold Switch Signal Circuit Open

VSA System - Diagnostics

DTC 97-12: Automatic Brake Hold Switch Signal Circuit Short

VSA System - Diagnostics

VSA System - Diagnostics

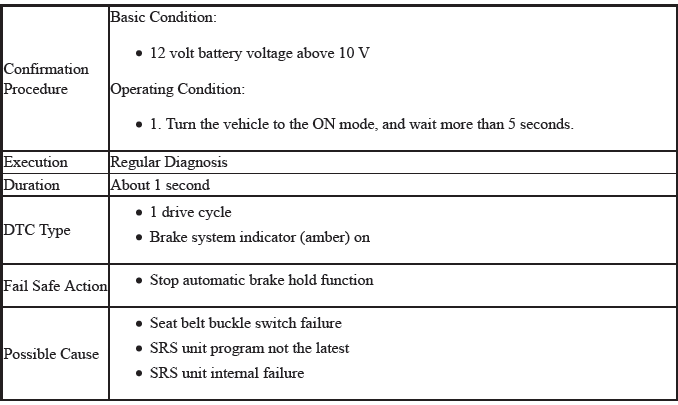

DTC 98-11: Seat Belt Buckle Switch Malfunction

VSA System - Diagnostics

DTC 108-11: Steering Angle Sensor Stuck

VSA System - Diagnostics

VSA System - Diagnostics

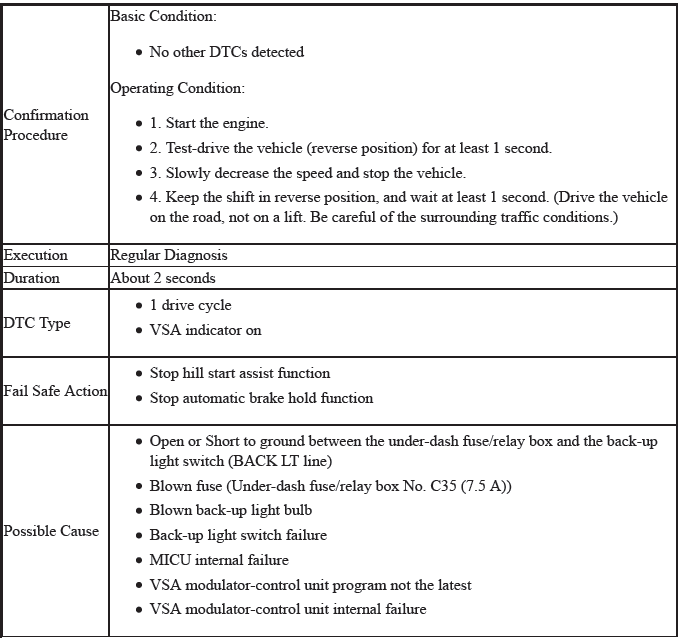

DTC 111-11: Back-Up Light Switch Stuck OFF

VSA System - Diagnostics

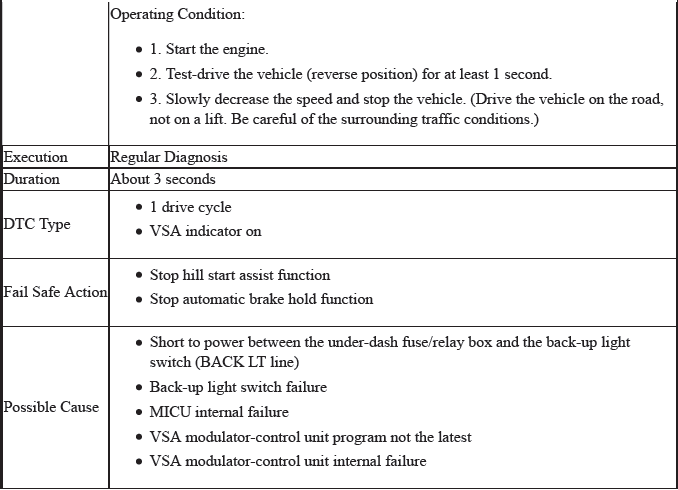

DTC 111-12: Back-Up Light Switch Stuck ON

VSA System - Diagnostics

VSA System - Diagnostics

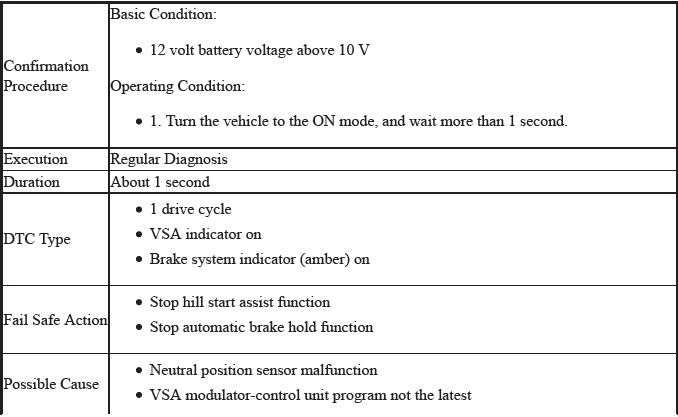

DTC 112-11: Neutral Gear Signal Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 121-11: VSA Solenoid Valve Malfunction

VSA System - Diagnostics

DTC 122-11: VSA Solenoid Valve Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 123-11: VSA Solenoid Valve Malfunction

VSA System - Diagnostics

VSA System - Diagnostics

DTC 124-11: VSA Solenoid Valve Malfunction

VSA System - Diagnostics

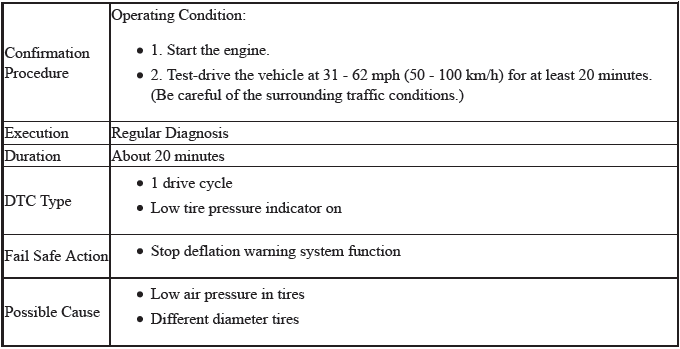

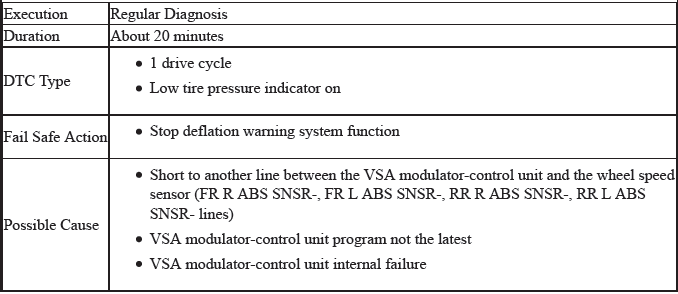

DTC 151-11: Low Tire Air Pressure

VSA System - Diagnostics

VSA System - Diagnostics

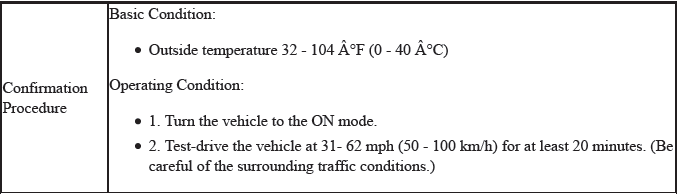

DTC 151-21: Different Diameter Tire Detection

VSA System - Diagnostics

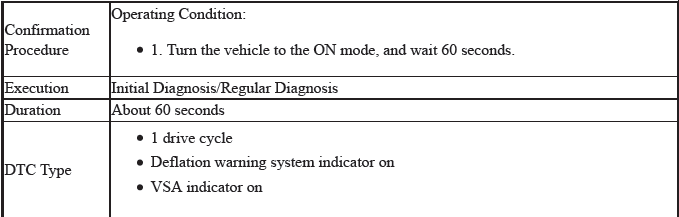

DTC 151-31: TPMS Switch Circuit Open

VSA System - Diagnostics

VSA System - Diagnostics

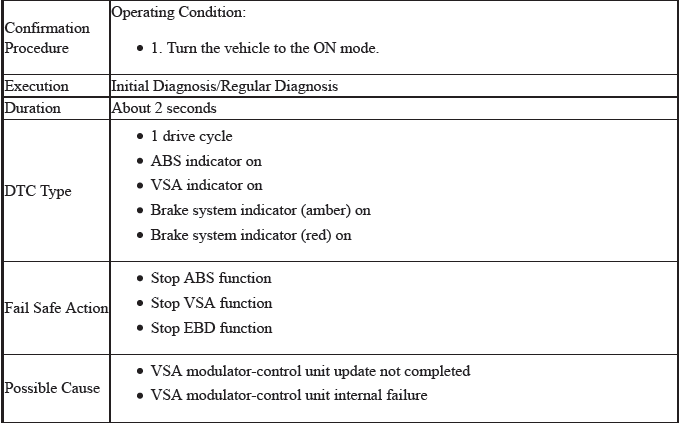

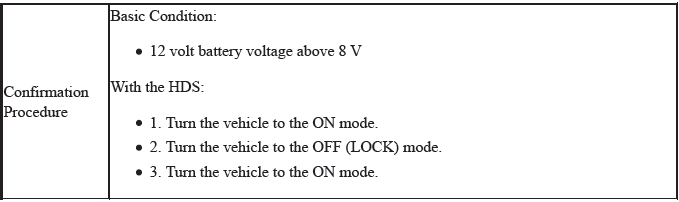

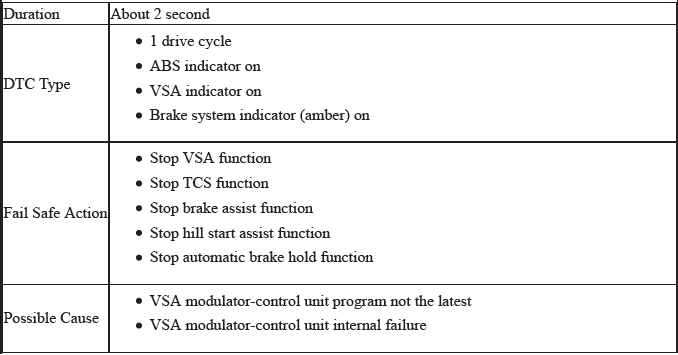

DTC 158-1: ECU Software Update Failure

VSA System - Diagnostics

    READ NEXT:

     VSA System - Testing & Troubleshooting

     Description

     VSA System Description - ABS Control

    When wheel speed is significantly reduced from estimated vehicle speed, the VSA modulator-control unit closes the inlet valve and opens the outlet valve momentarily to reduce brake fluid pressure an

    SEE MORE:

     Rocker Arm Assembly Removal and Installation

    Removal 1. Cylinder Head Cover - Remove 2. Rocker Arm Assembly - Remove Loosen the locknuts and the adjusting screws (A). Fig. 32: Lost Motion Holder Bolt Removal Sequence Remove the lost motion holder bolts. To prevent damaging the lost motion holder and the rocker shaft loosen the bolts,

     Navigation System Symptom Troubleshooting - Audio-Navigation Unit Power Will Not Turn ON (No Information Display ON Touch Screen)

    NOTE: Check the vehicle 12 volt battery condition first. Check the connectors for poor connections or loose terminals. 1. Problem verification: Turn the vehicle to the ON mode. Press the POWER button on to see if the audio-navigation unit turns on. Does the audio system operate properly, and

    © 2019-2024 Copyright www.hohrv2.com
