Honda HR-V: DTC B0029-13
NOTE:
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number, and that they were properly installed.
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures, General Troubleshooting Information, and 12 Volt Battery Terminal Disconnection and Reconnection.
- Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software, and retest.
.png)
DTC (SRS)
1. Problem verification:
- Clear the DTCs with the HDS.
Clear DTCs
- Turn the vehicle to the ON mode, then wait for 10 seconds.
- Check for DTCs with the HDS.
.png)
Is DTC B0029-13 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.
2. Right side curtain airbag inflator check:
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- Remove the headliner.
- Disconnect the following connector.

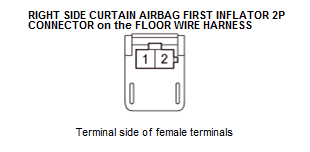

Right side curtain airbag inflator 2P connector (on the floor wire harness)
- Connect terminals A and B with a jumper wire.
.png)
.png)
- Reconnect the negative cable to the 12 volt battery.
- Clear the DTCs with the HDS.
Clear DTCs
- Turn the vehicle to the ON mode, then wait for 10 seconds.
- Check for DTCs with the HDS.
.png)
Is DTC B0029-13 indicated?
YES
Go to step 3.
NO
Faulty right side curtain airbag inflator; replace the right side curtain airbag, then clear the DTC.
3. Open wire check (RCA+, RCA- lines):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- Remove the jumper wire from the right side curtain airbag inflator 2P connector on the floor wire harness.
- Disconnect the following connector.
SRS unit connector B (39P)
- Connect terminals A and B with a jumper wire.
.png)

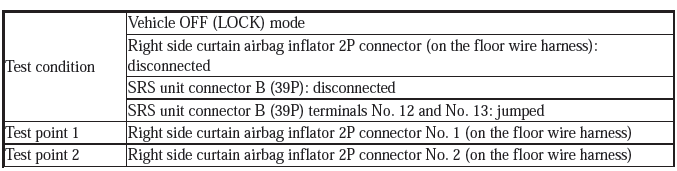

- Measure the resistance between test points 1 and 2.
.png)
.png)
Is there 1.0 Ω or less?
YES
The RCA+ and RCA- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit. If the DTC does not clear, replace the floor wire harness.
NO
Open in the floor wire harness; replace the floor wire harness, then clear the DTC.
