Honda HR-V: DTC Troubleshooting 112-11: Neutral Gear Signal Malfunction

Honda HR-V (2015-2021) Service Manual / Brakes / VSA System - Diagnostics / DTC Troubleshooting / DTC Troubleshooting 112-11: Neutral Gear Signal Malfunction

NOTE: Before you troubleshoot, review the general troubleshooting information.

VSA System - Diagnostics

1. Problem verification:

  1. Turn the vehicle to the ON mode.
  2. Clear the DTC with the HDS.
  3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
  4. Check for DTCs with the HDS.

VSA System - Diagnostics

Is DTC 112-11 indicated?

YES

The failure is duplicated. Go to PGM-FI system troubleshooting - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the CVT System (CVT).

NO

Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.

DTC TROUBLESHOOTING 12-11, 14-11, 16-11, 18-11: WHEEL SPEED SENSOR ELECTRICAL NOISE OR INTERMITTENT INTERRUPTION

NOTE:

  • Before you troubleshoot, review the general troubleshooting information.
  • These DTCs may be caused by electrical interference. Check for aftermarket devices installed in the vehicle when these DTCs are indicated.

VSA System - Diagnostics

1. DTC check:

  1. Turn the vehicle to the ON mode.
  2. Clear the DTC with the HDS.
  3. Turn the vehicle to the OFF (LOCK) mode.
  4. Test-drive the vehicle.

NOTE: Drive the vehicle on the road, not on a lift.

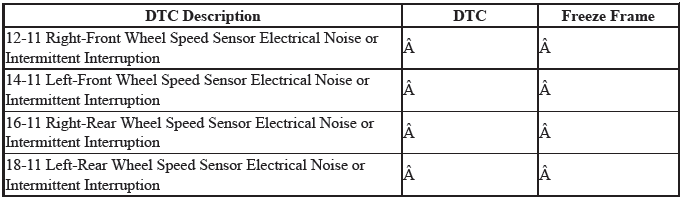

  1. Check for DTCs with the HDS.

VSA System - Diagnostics

Is DTC 12-11, 14-11, 16-11, or 18-11 indicated?

YES

If only DTC 12-11, 14-11, 16-11, or 18-11 are indicated, go to step 2.

YES

If DTC 12-12, 14-12, 16-12, or 18-12 are also indicated, go to DTC 12-12, 14-12, 16-12, or 18-12.

NO

Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting.

2. Wheel speed sensor installation check:

  1. Turn the vehicle to the OFF (LOCK) mode.

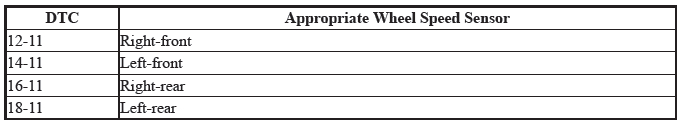

  2. Check that the appropriate wheel speed sensor is properly mounted.

VSA System - Diagnostics

Is the wheel speed sensor installation OK?

YES

Go to step 3.

NO

Reinstall the wheel speed sensor, and recheck the mounting position.

3. VSA modulator-control unit check (update):

  1. Update the VSA modulator-control unit if it does not have the latest software.
  2. Turn the vehicle to the OFF (LOCK) mode.
  3. Test-drive the vehicle.

NOTE: Drive the vehicle on the road, not on a lift.

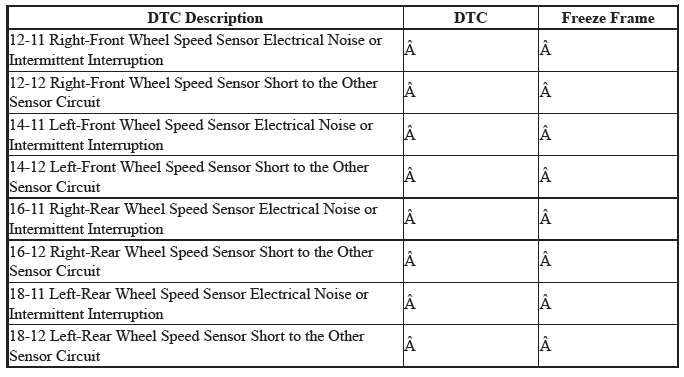

  1. Check for DTCs with the HDS.

VSA System - Diagnostics

Is DTC 12-11, 14-11, 16-11, or 18-11 indicated?

YES

Check for loose terminals in the VSA modulator-control unit 21P connector. If the VSA modulator-control unit was updated and the symptom/indication is still present, replace the VSA modulator-control unit.

NO

Troubleshooting is complete. If any other DTCs are indicated, go to the indicated DTCs troubleshooting.
