Honda HR-V: Rear Differential Oil Seal Replacement (AWD)
Special Tools Required
Driver Handle, 40 mm I.D.
07746-0030100
.png)
Replacement
Driveshaft Side
1. Vehicle - Lift
2. Rear Differential Assembly - Remove

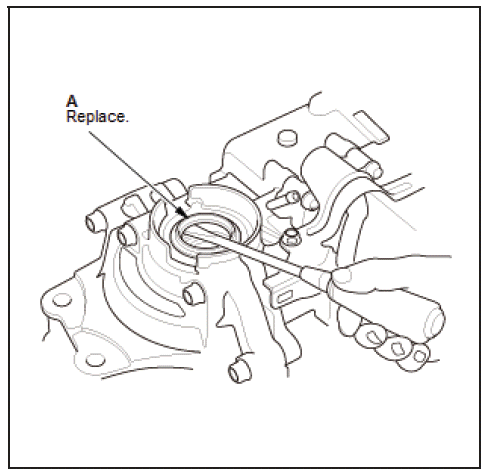

3. Oil Seal - Remove
.png)

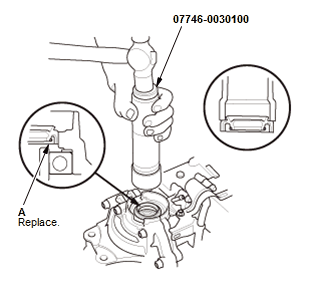

4. Oil Seal - Install
.png)
- Install a new oil seal (A) even and flush with the machined edge of the
differential carrier assembly using the 40 mm I.D. driver handle.
5. Rear Differential Assembly - Install
Propeller Shaft Side
6. Vehicle - Lift
7. Rear Differential Fluid - Drain
8. No. 2 Propeller Shaft - Disconnect
9. Companion Flange - Remove

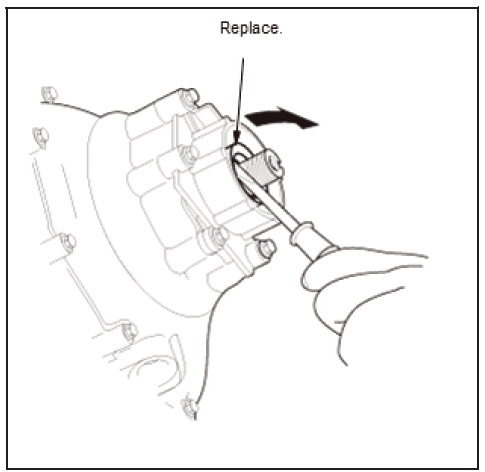

10. Oil Seal - Remove
.png)

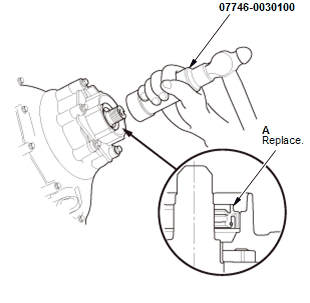

11. Oil Seal - Install
.png)
- Install a new oil seal (A) even and flush with the rear differential oil
pump cover using the 40 mm I.D. driver handle.
12. Companion Flange - Install
13. No. 2 Propeller Shaft - Connect
14. Rear Differential Fluid - Refill
REAR DIFFERENTIAL PUMP MOTOR REMOVAL AND INSTALLATION (AWD)
Removal & Installation
1. Vehicle - Lift

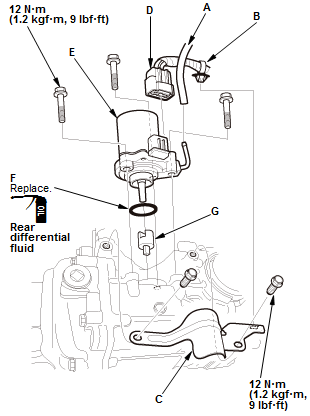

2. Rear Differential Pump Motor - Remove
.png)
- Disconnect the breather hose (A)
- Remove the harness clip (B), and the harness bracket (C)
- Disconnect the connector (D)
- Remove the rear differential pump motor (E) and the
O-ring (F)
- Remove the drive joint (G).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
